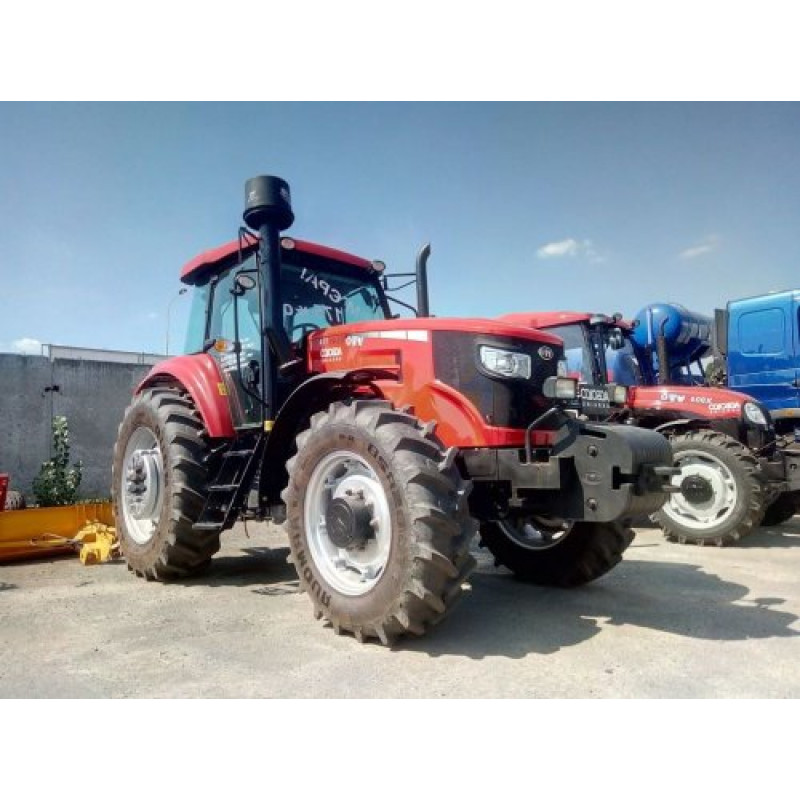

YTO ELG1604 Tractor — Powerful Mototractor for Intensive Agricultural Work
The YTO ELG1604 model from the YTO brand is a reliable tractor designed for large farms and heavy-duty tasks. Production takes place at China's First Tractor Factory, with a long history that guarantees quality standards for domestic and export markets. The ELG1604 is a modernized modification of the original tractor with an updated design and enhanced technical characteristics, ensuring a long service life and stable operation.
The model's components are manufactured with international participation: the multi-disc wet clutch is supplied by the German company LUK, the engines are created in cooperation with British Ricardo, and the transmission is Italian-made with high efficiency and three gear ranges. This combination of technologies ensures efficiency, fuel economy, and reliability in long-term operation.
Advantages and Functionality
- A large 280-liter fuel tank ensures long autonomous operation in the field without frequent refueling.
- A sealed cabin with heating and air conditioning systems guarantees operator comfort in all weather conditions; the cabin is equipped with cabin filters, an additional seat, a roof hatch, and a rear-view camera with a monitor.
- The power take-off (PTO) shaft with 540 and 1000 rpm modes allows for the use of a wide range of mounted and trailed equipment.
- The multi-disc 15-inch LUK wet clutch with electro-hydraulic control ensures smooth torque transmission and a long service life.
The YTO ELG1604 is suitable for plowing, cultivation, inter-row processing, cargo transportation, and working with a large amount of mounted and trailed equipment. The tractor's design is engineered for intensive loads and long-term operation in challenging conditions.
Technical Specifications:
| Engine Type | Shanghai 7H Euro III with turbocharging, intercooling, and pre-start heating, SC7h285 |
| Engine Power, hp (kW) | 118.5 (160) |
| Drawbar Power, kW (hp) | 106 (143) |
| Air Filter | Ultra-efficient 2-stage air cleaner (adapted for desert operation) |
| Clutch | 15-inch LUK single-acting clutch with electro-hydraulic control, multi-disc, wet type |
| Transmission | Mechanical, 18 forward + 6 reverse |
| Hydraulic System: type / number of hydraulic outlets | Separate / 3 pairs |
| Hydraulic Pump Type | Gear pump with engine drive |
| PTO: power, hp / kW | 150.5/110.6 |
| PTO Damper | Hydraulic with accumulator |
| PTO: speed, rpm | 540/1000, 6 splines - 35mm and 20 splines - 45mm |
| Lifting Capacity of Hitch Mechanism, kg | 4500 |
| Hydraulic System Flow Rate, l/min | 95 |
| Rear Differential Lock | Hydraulic |
| Front / Rear Wheel Track, mm | 1770-2208/1730-2342 |
| Steering | Hydraulic, independent |
| Front / Rear Tire Size, inch | 14.9-28/18.4-38 |
| Turning Radius, m | 7.3 |
| Ground Clearance, mm | 490 |
| Overall Dimensions: LxWxH, mm | 5430×2770×3310 |
| Wheelbase, mm | 2790 |
| Curb Weight, kg | 6580 |
| Brakes | Disc, in oil bath, with hydraulic drive |
| Fuel Tank Capacity, l | 280 |
| Cabin Equipment | Sealed cabin with heating and air conditioning system, cabin filters, additional seat, roof hatch, engine operating mode switch, rear-view camera with monitor |
This tractor combines proven international solutions: an SC7h285 turbodiesel with intercooling and pre-start heating, a reliable Italian transmission, a German LUK clutch, and efficient hydraulic systems and PTO. As a result, you get a fuel-efficient, productive, and durable tractor for heavy field and transport work.
Ready to discuss configuration, additional mounted equipment, or delivery terms in Ukraine — contact our managers to select the optimal YTO ELG1604 configuration for your farm's needs. The model belongs to the category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mototractors.
