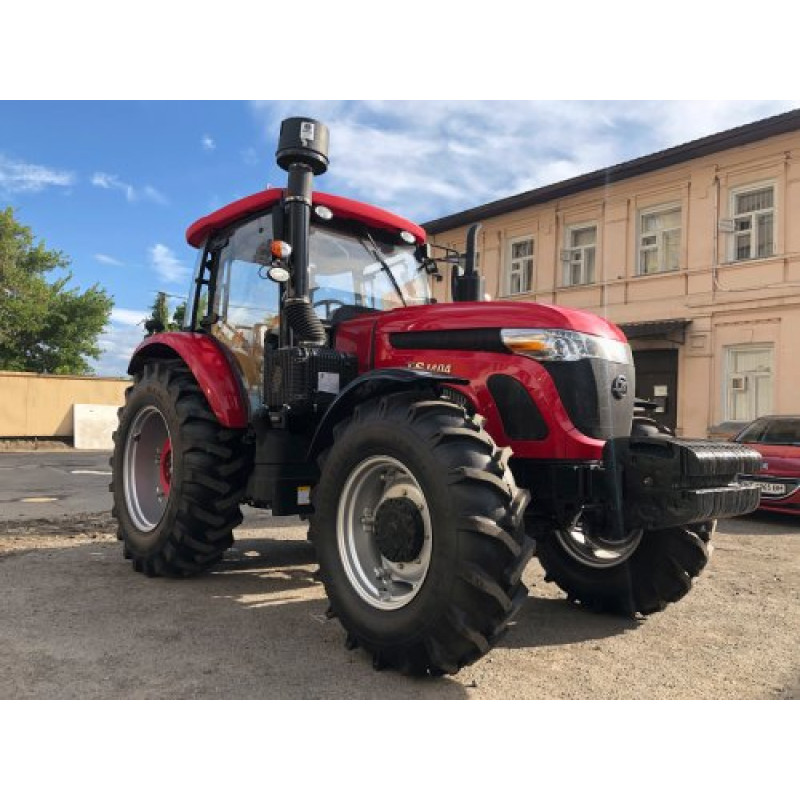

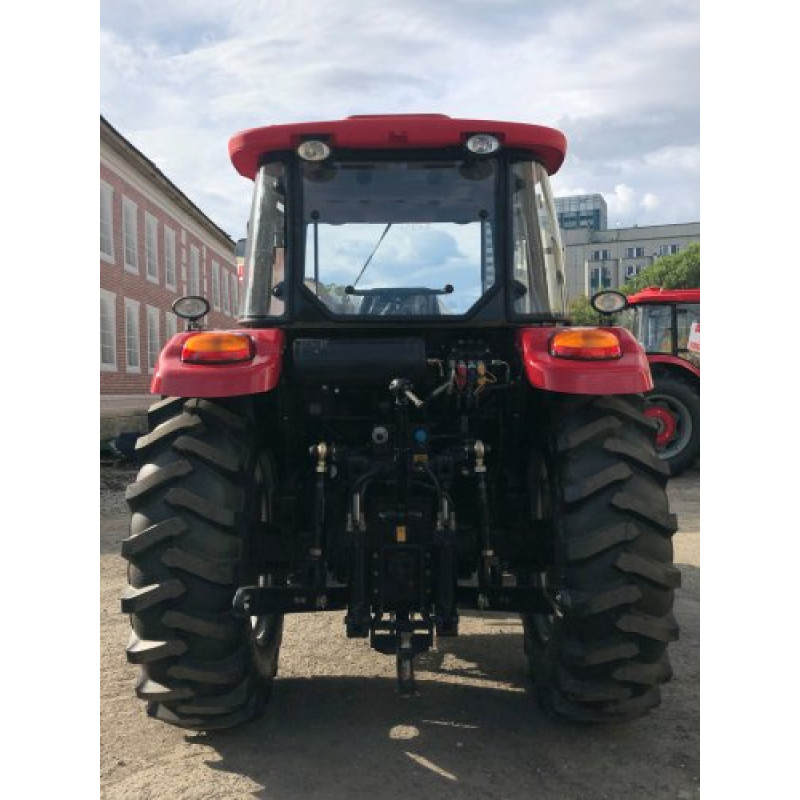

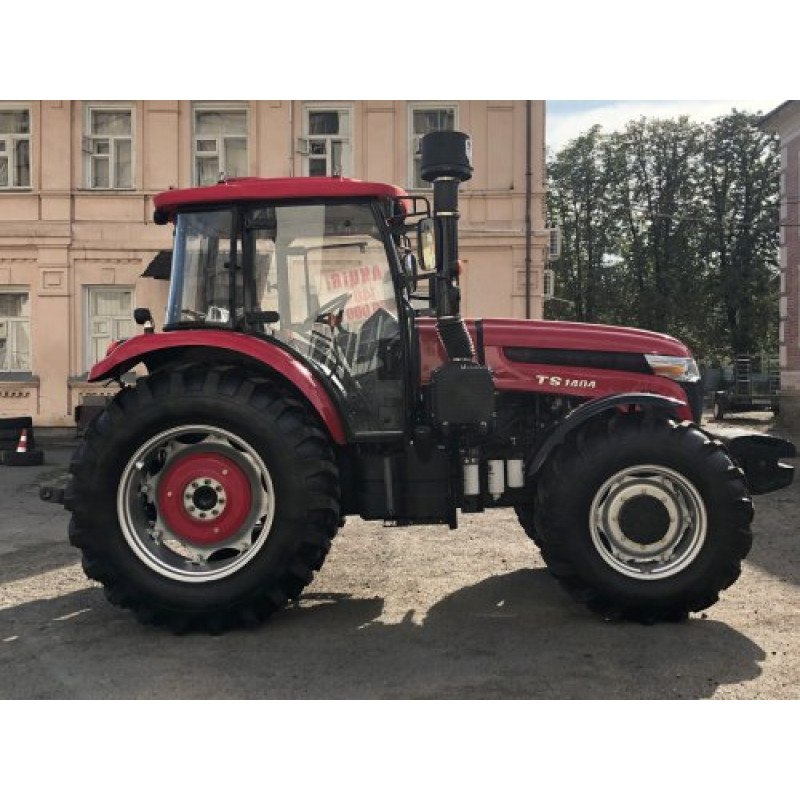

WUZHENG TS1404 Tractor

The WUZHENG TS1404 is a powerful and versatile mototractor from the WUZHENG brand, designed for intensive use in agriculture, forestry, municipal services, and construction. This model combines a reliable chassis and cabin design with a high-performance 6-cylinder Weichai WP6G140E331 turbocharged diesel engine with Common Rail system, providing a nominal power of 102.9 kW (140 hp), torque of 600 Nm, and economical fuel consumption of ≤240 g/kWh at nominal 1400–1600 rpm. Cylinder bore/stroke is 105x130 mm, engine displacement is 4.09 L.

Overview and Purpose

The TS1404 is a 4×4 all-wheel-drive tractor designed for cultivating fields from ~40 to 120 hectares, suitable for medium and large agricultural enterprises, and for performing tasks in forestry, municipal, and construction sectors. Thanks to its high traction force of 27 kN, two-speed power take-off (PTO 540/1000 rpm), and reinforced hydraulics, the machine is compatible with a wide range of mounted and trailed equipment.

Design Advantages

The design features an "alligator" style with modern LED optics and additional halogen headlights on the cabin. The tractor is equipped with front and rear counterweights for balance, high-quality plastic front fenders, and convenient steps for cabin access. A ground clearance of 430 mm allows for comfortable operation in challenging field conditions.

Engine and Transmission

The Weichai WP6G140E331 engine (6 cylinders) sets high standards for reliability and fuel efficiency. Nominal power is 102.9 kW (140 hp), torque is 600 Nm, nominal revolutions are 1400–1600 rpm. The transmission is mechanical with 16 forward and 8 reverse gears, providing a speed range of 2.44–35.18 km/h and allowing precise selection of operating mode for various tasks.

Running Characteristics and Hydraulics

Front/rear tires: 14.9-24 / 18.4-34 inches. Front wheel track width — 1610–1950 mm, rear — 1490–2005 mm. Wheelbase — 2510 mm, turning radius — 5700 mm. The hydraulic system is reinforced: 3 hydraulic pairs (hydraulic outlets), a trailer socket, and a compressor, expanding the possibilities for connecting mounted equipment and trailers.

Comfort and Cabin

The cabin is equipped with heating and air conditioning, a high-quality filter, a heater, an MP3 player, panoramic glazing, and a sunroof. The plastic roof reduces heat in summer. Side and rear windows open, the steering wheel and seat are adjustable for the operator, and a modern onboard computer is installed on the panel — all for comfortable and long-term work in various climatic conditions.

How to Buy WUZHENG TS1404

You can order the WUZHENG TS1404 tractor on the Flash Army website: submit an application — a sales representative will contact you and advise on configuration, options, and delivery. Delivery across Ukraine is carried out within 2–3 days to any locality. Fuel tank capacity — 240 L.

Payment Options

• prepayment (card-to-card, via terminal or bank teller);
• upon receipt (cash payment at the post office or to the courier);
• on credit.

We also recommend other mini-tractor models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244NRX, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng, DW 244, DTZ 5404K, Solis 26.

Technical Specifications

The WUZHENG TS1404 is a robust, functional, and well-equipped machine for a wide range of tasks: from plowing and soil cultivation to municipal and construction work. Thanks to its powerful engine, multi-speed transmission, reinforced hydraulics, capacious fuel system (240 L), and comfortable heated cabin with air conditioning, this tractor is ready to operate in various climatic conditions and provide high productive resource.

Brand name: WUZHENG. Product category: Tractors > Mototractors.
