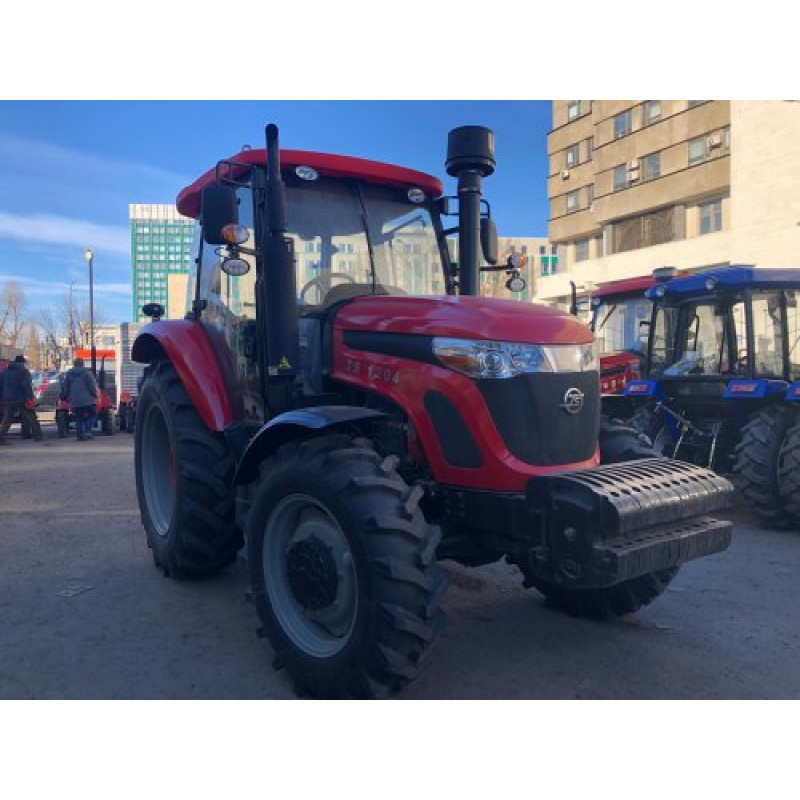

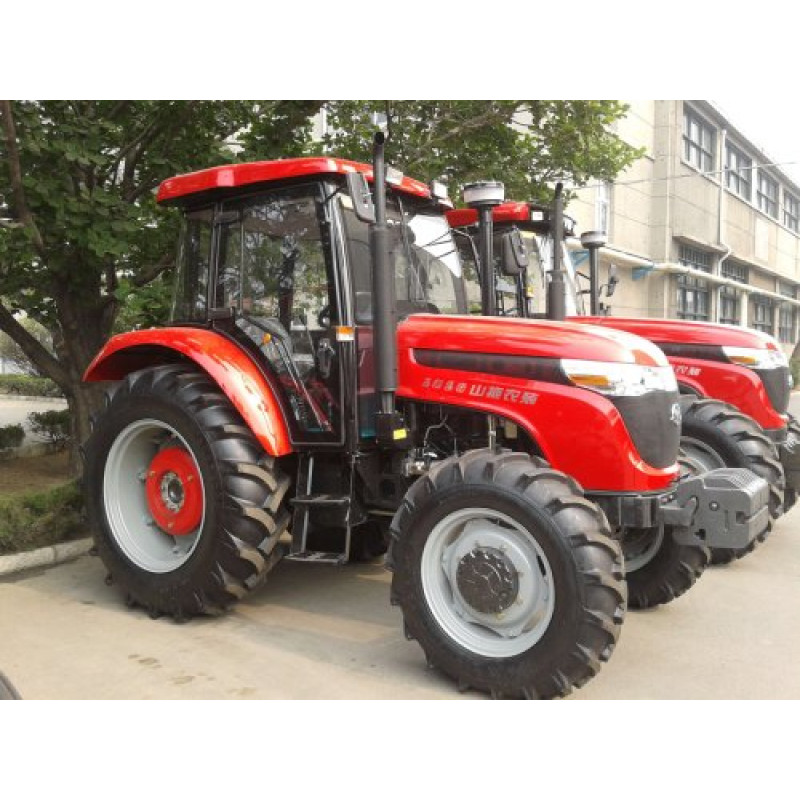

WUZHENG TS1204 Tractor
The WUZHENG TS1204 from the WUZHENG brand is a powerful all-wheel-drive mototractor for agriculture, utilities, and construction. The model stands out for its high-quality performance and competitive price, combining technical solutions close to Japanese, Korean, and European counterparts. The tractor is designed to work with front and rear mounted equipment and can also tow trailed equipment up to 5 tons.
Engine and Key Technical Specifications
The machine's power is 120 hp (88.2 kW). The technical documentation mentions two engine models: the Weichai WP4.1G120E310A diesel and the LR6B5-23 model. This is an in-line 4-cylinder, 4-stroke turbocharged diesel with liquid (water) cooling. The engine displacement is 7420 cm3. The integrated Common Rail injection system reduces fuel consumption by up to 15% and increases torque and power; nominal rpm/torque values are 461/2350. The traction force, according to various sources, is about 24–24.5 kN. Fuel consumption in the technical data is stated as 240 g/kWh.
Gearbox and Dynamics
The transmission features a combined scheme: in the general description – 16 forward and 8 reverse gears, in the technical data – the formula (8+4)x2, which provides flexibility when operating in various modes. The working speed ranges from 1.58 to 35.18 km/h. PTO speed is 540/1000 rpm.
Chassis, Wheels, and Ground Clearance
The machine has a 4x4 wheel formula. Tire sizes: rear 16.9x34, front 12.4x24. Wheel track: rear 1605-2005 mm, front 1610-1950 mm. Ground clearance – 430 mm. Tractor weight – 4875 kg. Automatic tire inflation is provided.

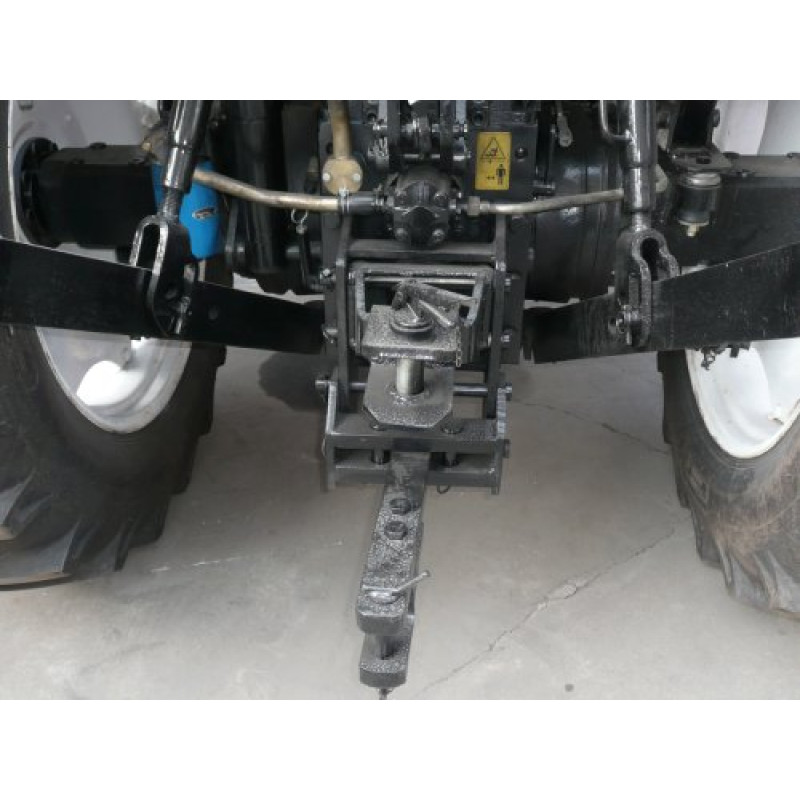

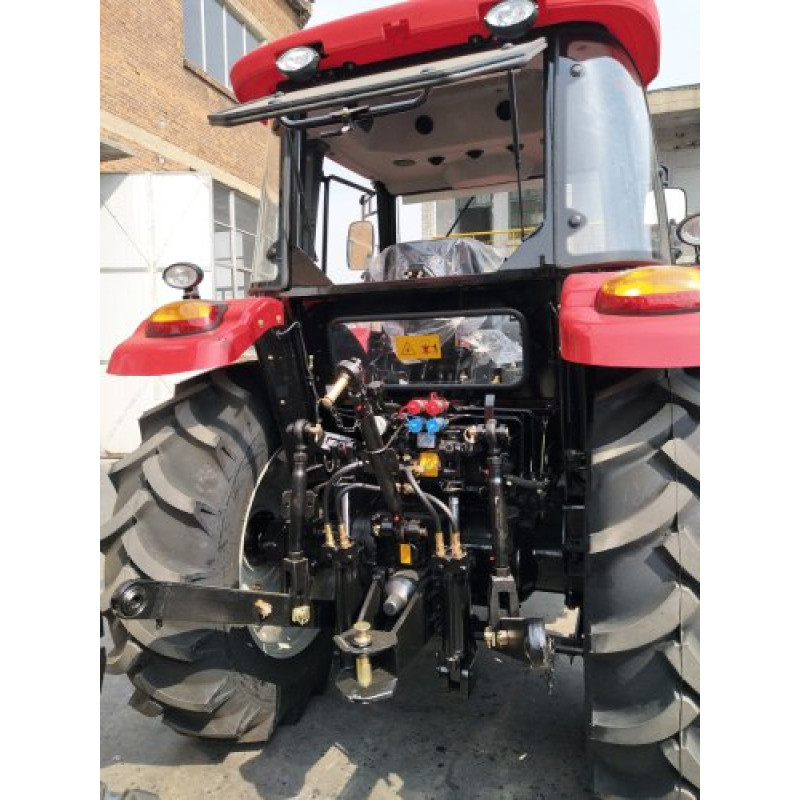

Hydraulics and Mounted Equipment
The hydraulic system allows connecting various mounted equipment: front counterweight – 480 kg, rear – 126 kg. Pump performance is 53.5 l/min. There are 2 hydraulic outlets and 2 hydraulic cylinders, and a trailer socket.

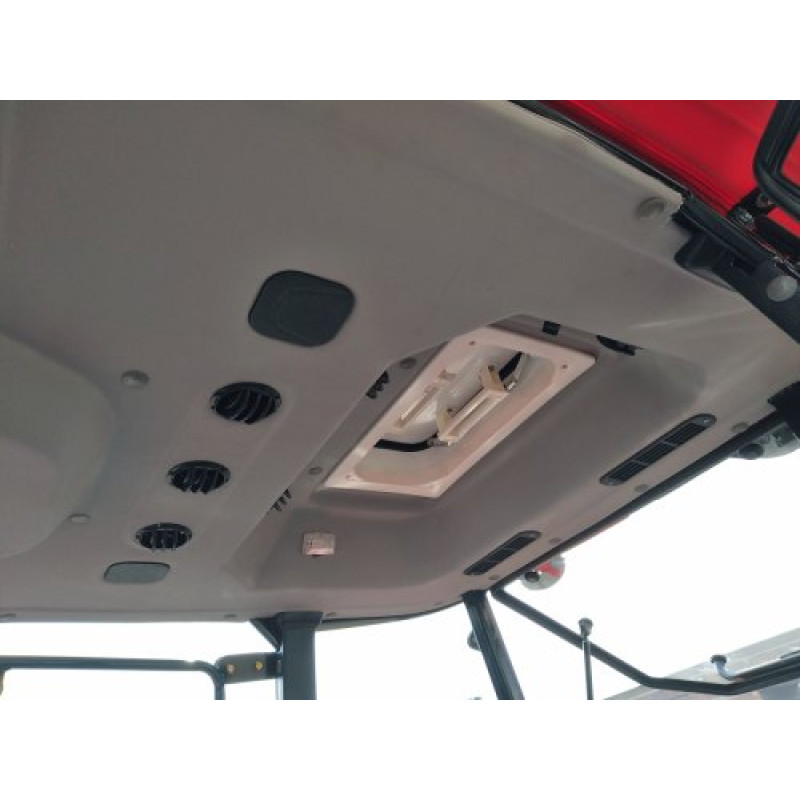

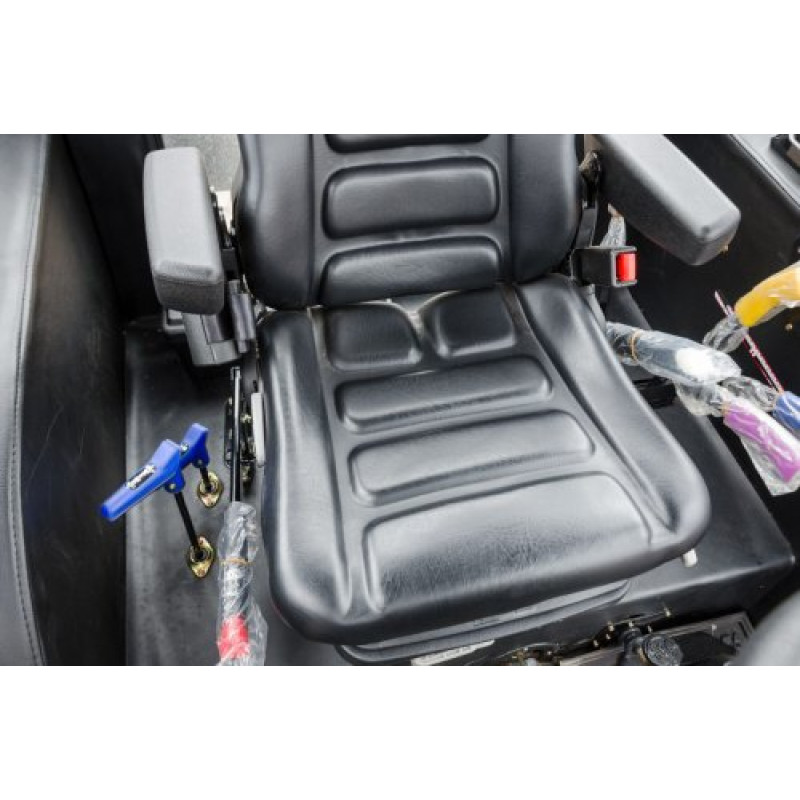

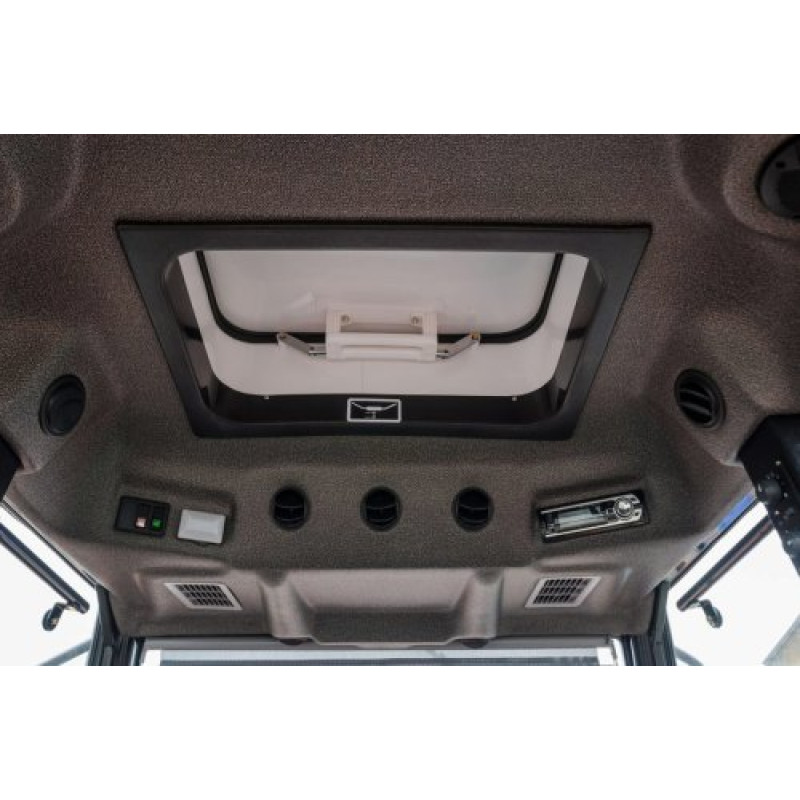

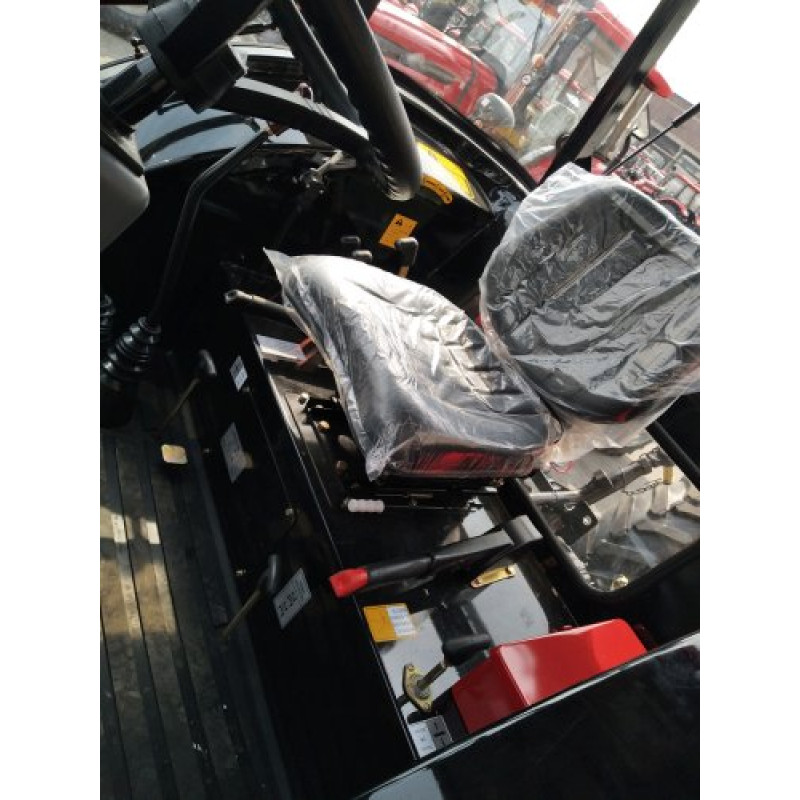

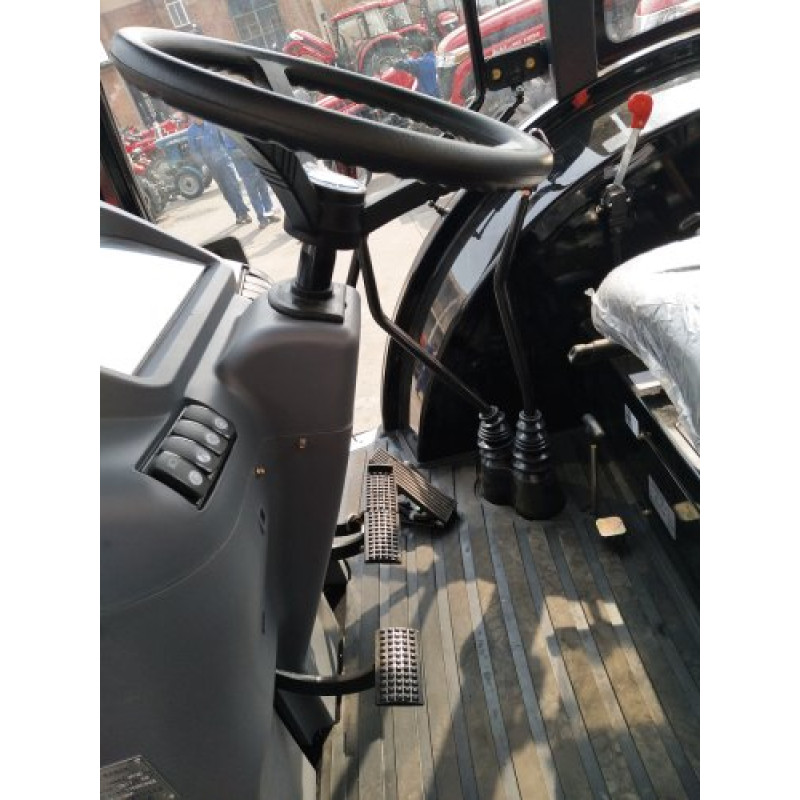

Cabin, Comfort, and Control
The cabin is equipped with sound-insulating trim and meets safety and comfort standards. Features include a filter, heater, and air conditioner. There is an onboard diagnostic computer and a dashboard with engine temperature gauges, an ammeter, a speedometer, and engine hours. Power steering, adjustable steering wheel, and seat ensure operator comfort.
Performance and Applications
The WUZHENG TS1204 shows high aggregation with mounted and trailed equipment, making it effective in agriculture, construction, and utilities. The fuel tank is stated as 240 l in the introduction and 200 l in the technical data; the characteristics table lists a volume of 200 l, which should be considered when planning work shifts. The tractor is capable of performing long work cycles without frequent refueling.
Dimensions and Additional Parameters
Overall dimensions LхWхH: 4600×2150×2870 mm. Designed for working with trailed equipment up to 5 tons. Weight, dimensions, ground clearance, and wide wheelbase ensure stability and проходимость on various soil types.
How to Purchase
You can buy the WUZHENG TS1204 on the Flash Army website with the option of credit and delivery across Ukraine. Payment is available through various methods, including cash on delivery. Delivery is made within 2-3 days after placing an order. For additional information, please contact the sales department on the website.
Technical Specifications
| Tractor power, hp (kW) | 120 (88.2) |
| Wheel formula: | 4x4 |
| Engine type: | in-line vertical 4-cylinder 4-stroke diesel with liquid cooling |
| Engine model: | LR6B5-23 (Weichai WP4.1G120E310A also mentioned in documentation) |
| Engine displacement, cm3: | 7420 |
| Gearbox (transmission): | (8+4)x2 (16 forward / 8 reverse also stated in description) |
| Torque, Nominal RPM: | 461/2350 |
| Fuel consumption, g/kWh: | 240 |
| Fuel tank volume, l: | 200 (240 l mentioned in some sources) |
| Travel speed, km/h: | 1.58 - 35.18 |
| PTO speed, rpm: | 540/1000 |
| Traction force, kN: | 24.5 (approx. 24–24.5 kN) |
| Hydraulic output, pairs: | 2 |
| Pump performance, l/min: | 53.5 |
| Overall dimensions LхWхH (mm): | 4600*2150*2870 |
| Wheel track, mm: | rear: 1605-2005, front: 1610-1950 |
| Tire size: | rear: 16.9x34, front: 12.4x24 |
| Ground clearance, mm | 430 |
| Weight, kg: | 4875 |
| Front counterweight, kg: | 480 |
| Rear counterweight, kg: | 126 |
| Air conditioner: | yes |
