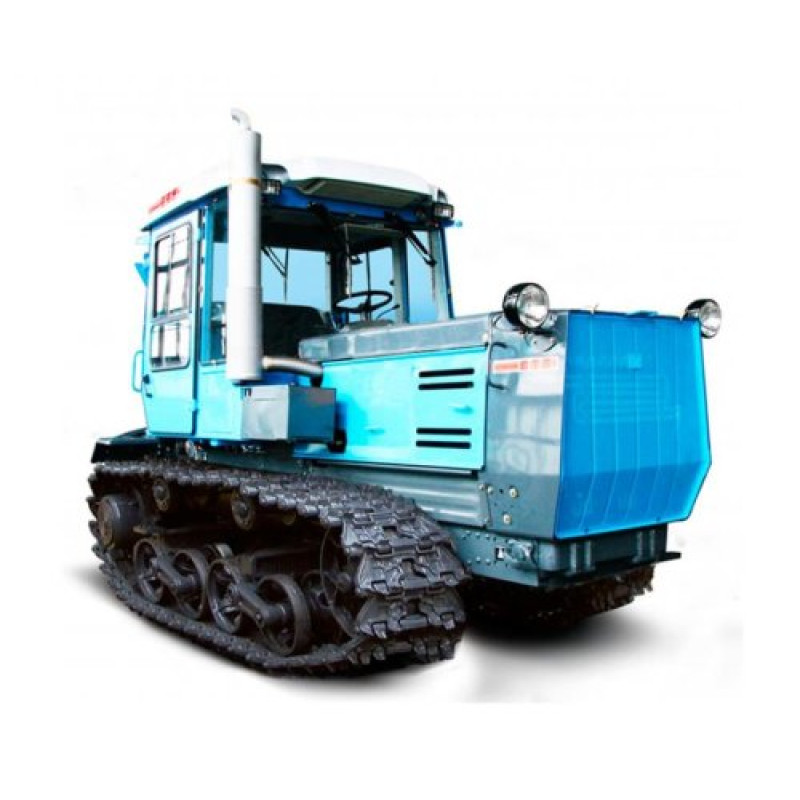

Tractor T-150-05-09-25-04 from HTZ — tracked professional unit

The T-150-05-09-25-04 tracked tractor model from the HTZ brand — is a reliable choice for intensive professional use in agriculture and construction. The tracked chassis design ensures high cross-country capability, excellent traction, and minimal pressure on the fertile soil layer, allowing work on wet areas without excessive damage to the field structure.

Kharkiv Tractor Plant has many years of experience and has produced over three million units of equipment, which are exported to Europe, Asia, and Africa. Modern HTZ products undergo multi-stage certification and comply with international quality standards, guaranteeing a long service life and stable operation in difficult conditions.

Areas of application and advantages

The T-150-05-09-25-04 model is designed for heavy field and special operations: plowing, cultivation, soil preparation, trailer towing, bulldozing operations, and work with mounted equipment. The tracked base ensures stability on slopes and uneven terrain, while universal attachment points for mounted equipment allow for quick configuration changes to perform various tasks.

Engine, transmission, and running gear

The heart of the tractor is a reliable YaMZ-236M2-59 diesel engine with a displacement of 11.15 L and six cylinders. The engine's nominal power is 180 hp (132 kW), maximum torque — 667 N·m at 1250–1450 rpm, which provides high traction potential and efficient operation at low speeds under heavy loads. The tractor is equipped with a 9/3 mechanical gearbox, and the fuel tank has a volume of 430 L.

Functional features and equipment

The maximum forward speed is 4.26–15.31 km/h, and backward — 5.78–7.93 km/h. The independent PTO operates at 540/1000 rpm, allowing the connection of various mounted and trailed implements. The hitch is hydraulic, single-cylinder with a lifting capacity of 3500 kg. The hydraulic system's performance is 86 L/min.

The suspension — six-roller (per side) reinforced torsion-balance with an increased track width of 1680 mm. The track — rubber-cable, which increases durability and ride comfort. The electrical system is equipped with 2 pcs. 6ST-190A3 batteries. Turning radius — 2.35 m, ground clearance — 300 mm. The tractor's curb weight — 8250 kg, overall dimensions — 5000×1960×3170 mm, track width — 1435 mm.

To enhance operator comfort, the cabin can be equipped with audio preparation, air conditioning, ventilation, heating, and an additional folding seat.

We are an official representative of HTZ and offer consultations on selecting modifications, configurations, service support, and spare parts supply. Our managers will help you choose the optimal option for your farm and arrange delivery throughout Ukraine.

Technical specifications:

Category: Tractors > Mini-tractors. Brand: HTZ. Model: T-150-05-09-25-04.

How to place an order: add the product to your cart on the website or contact a manager to clarify the configuration, price, and delivery terms. We provide full consultation, assistance with transportation, and support for warranty and post-warranty service.

If you need more detailed information or assistance with selecting a configuration, call or leave a request on the website — our specialists will contact you and select the optimal option for your farm.
