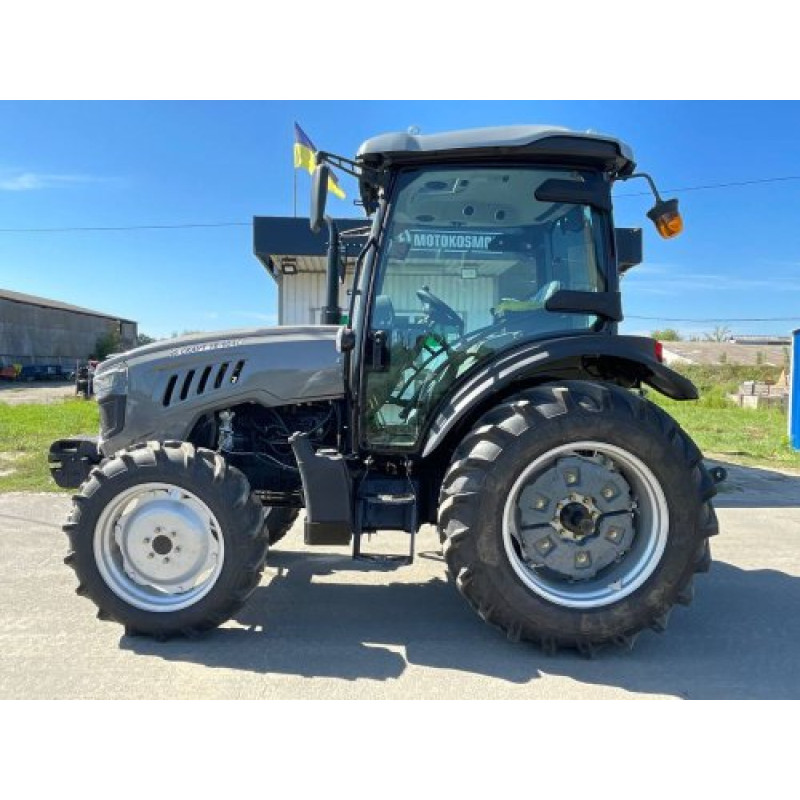

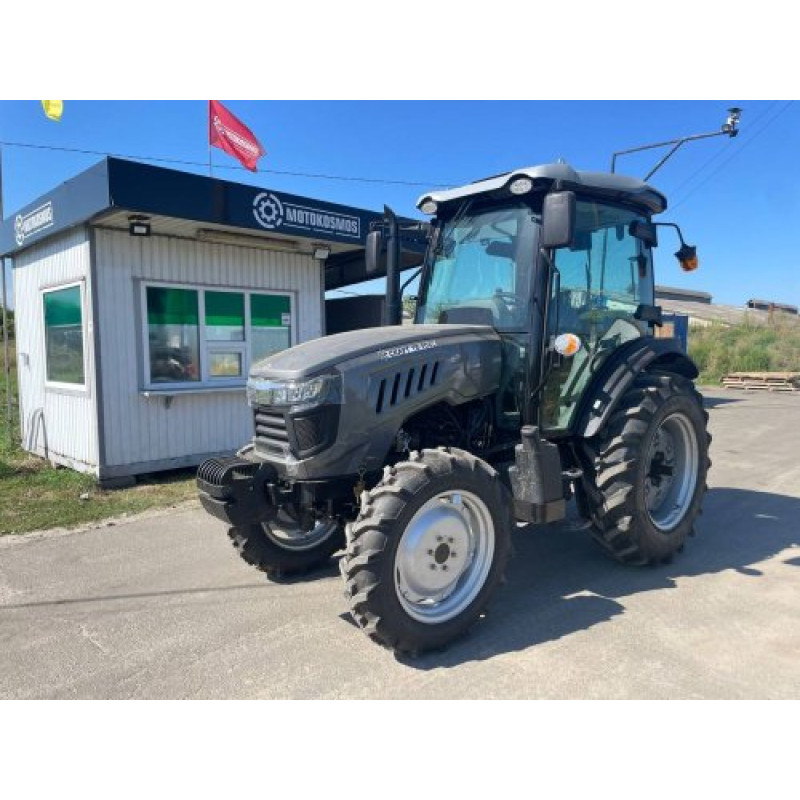

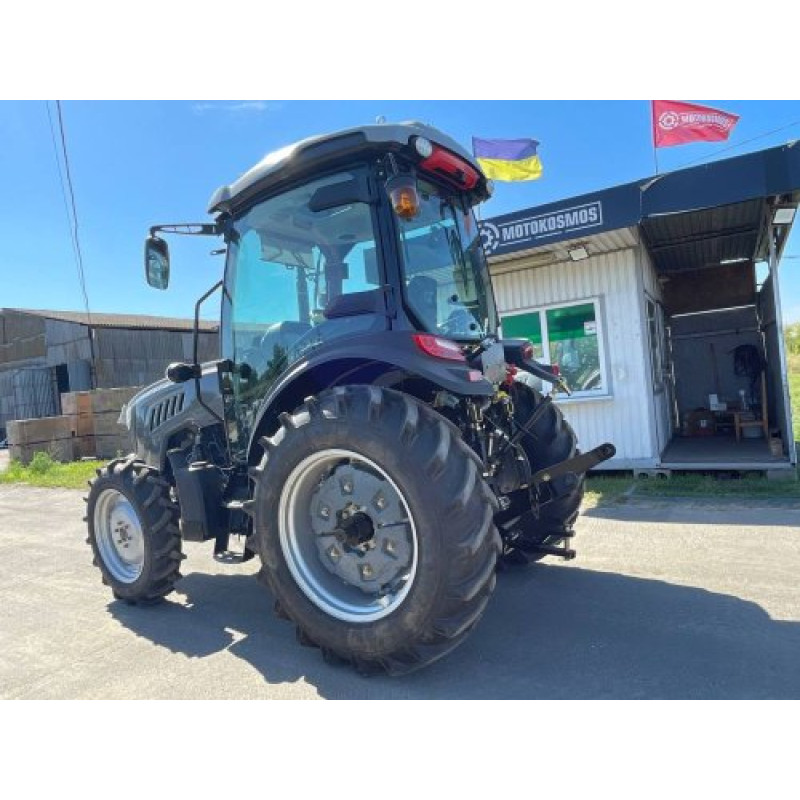

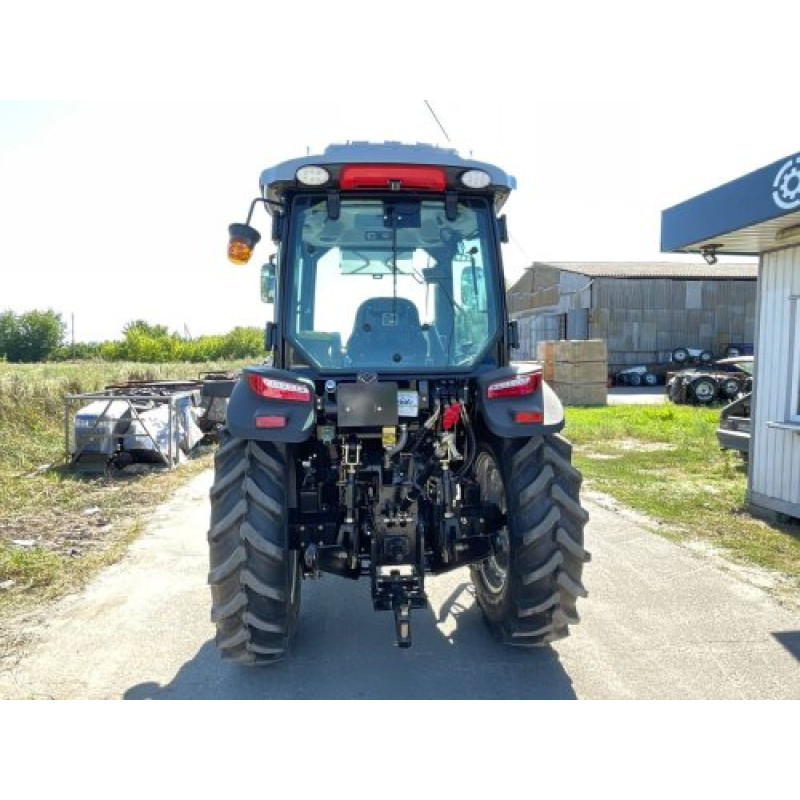

SKAUT TV-904C Tractor with Air Conditioning — Reliable Power and Comfort
The SKAUT TV-904C tractor with air conditioning from the manufacturer Skaut is a versatile mototractor with 90 hp (66.2 kW) and a 4x4 wheel formula, designed for intensive field, transport, and municipal work. Equipped with a 4-stroke YTO YD4105T diesel engine with a displacement of 4200 cm3, four vertical cylinders, and an electric starter, it combines high performance and fuel efficiency with a nominal fuel consumption of ≤323 g/kWh. The forced-circulation liquid cooling system ensures stable operation in various climatic conditions, while the air conditioner in the cabin enhances operator comfort during long shifts.
The SKAUT TV-904C features a balanced transmission and chassis, allowing it to efficiently work with plows, cultivators, seeders, towed equipment, and operate a front loader. Compact dimensions of 3700x1800x2750 mm and a curb weight of 3200 kg provide maneuverability while maintaining a high hitch lifting capacity of 1880 kg.
Key Advantages and Capabilities:
- Engine power of 90 hp (66.2 kW) for heavy-duty tasks and driving large implements.
- 4x4 all-wheel drive for excellent cross-country capability, stability, and work in challenging soil conditions.
- YTO YD4105T diesel engine, 4-stroke, 4 cylinders, vertical arrangement — reliability and service accessibility.
- Electric start (electric starter) and closed liquid cooling system with forced circulation.
- Transmission in (4x3)+(4x3) configuration provides a wide range of speeds for field and transport tasks.
- Dry single-disc clutch of constantly closed type and direct main drive for ease of maintenance.
- Rear differential lock, hydraulic control, gear pump (NSh) for hitch drive and NSh for power steering operation.
- Four hydraulic outlets for connecting implements and a rear splined PTO with 540/1000 rpm.
- Brakes on the secondary shaft of the gearbox (brake drums) and a trailer connector for transport work.

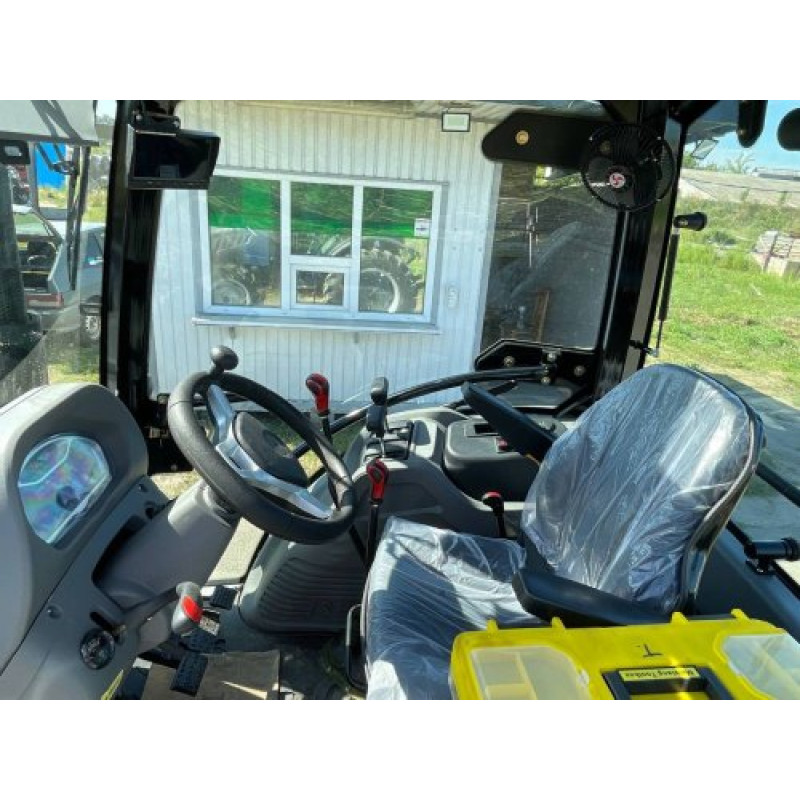

- Comfortable cabin with air conditioning makes operation more comfortable during the warmest period of the year.
Technical Specifications:
| Engine power, hp (kW) | 90 (66.2) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, YTO YD4105T |
| Number and arrangement of cylinders | 4, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced circulation of cooling fluid |
| Engine displacement, cm3 | 4200 |
| Nominal engine fuel consumption, g/kWh | ≤323 |
| Transmission (КП) | (4x3)+(4x3) |
| Rear differential lock | + |
| Clutch | dry 1-disc constantly closed type |
| Main drive | direct |
| Steering control | hydraulic |
| Brakes | on secondary shaft of gearbox, brake drums |
| Power Take-Off (PTO) | rear, splined |
| Hydraulic system pump type | gear pump (NSh) for hitch drive / NSh for power steering operation |
| Hitch lifting capacity | 1880 kg |
| Power Take-Off (PTO) speed, rpm | 540/1000 |
| Tire size | front 9.5-24, rear 14.9-30 |
| Wheel track | front 1200-1500, rear 1200-1500 |
| Ground clearance, mm | 390 |
| Number of hydraulic outlets | 4 |
| Trailer connector (socket) | + |
| Dimensions LxWxH mm | 3700x1800x2750 |
| Curb weight, kg | 3200 |
The SKAUT TV-904C model is suitable for a wide range of tasks: agricultural (plow, cultivator, seeder), transport, municipal tasks, and use with front loaders. Its robust construction, ease of maintenance, and service accessibility from the manufacturer Skaut ensure a long service life and a profitable investment for farms and municipal services. Product type: Tractors > Mototractors.
