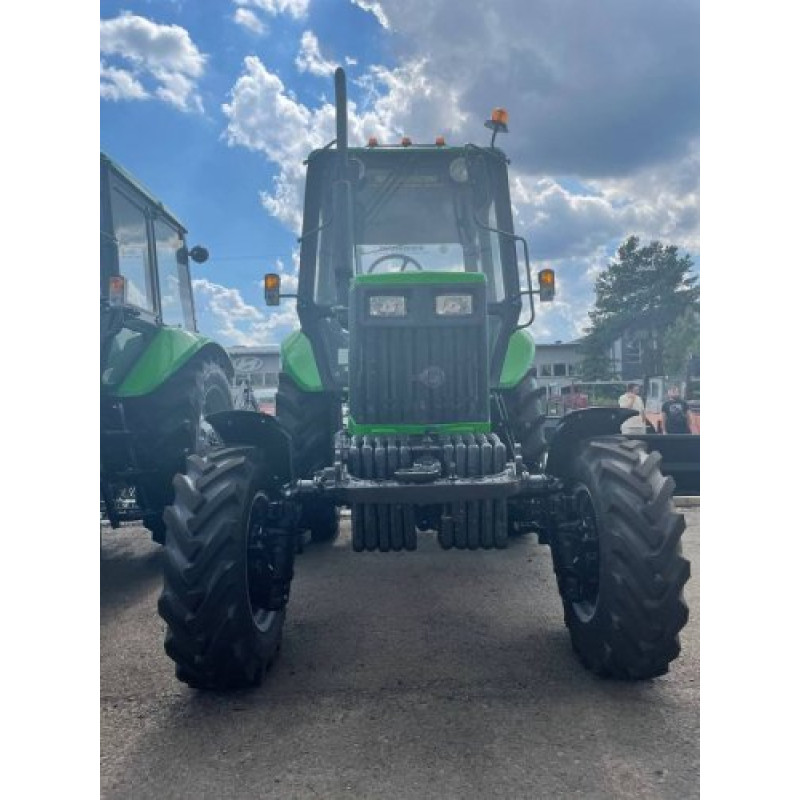

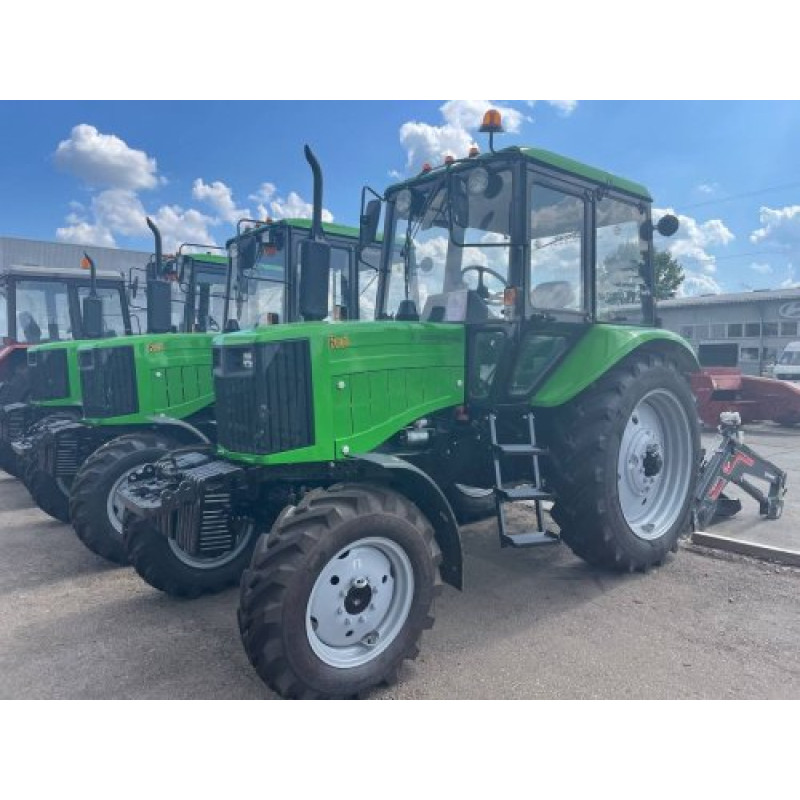

Tractor KIY 14102P

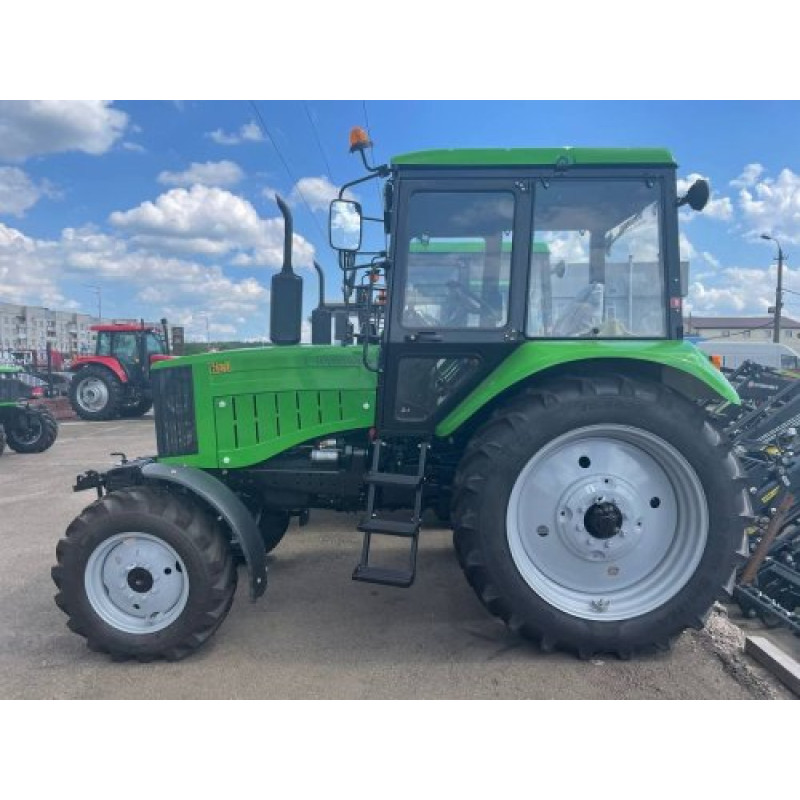

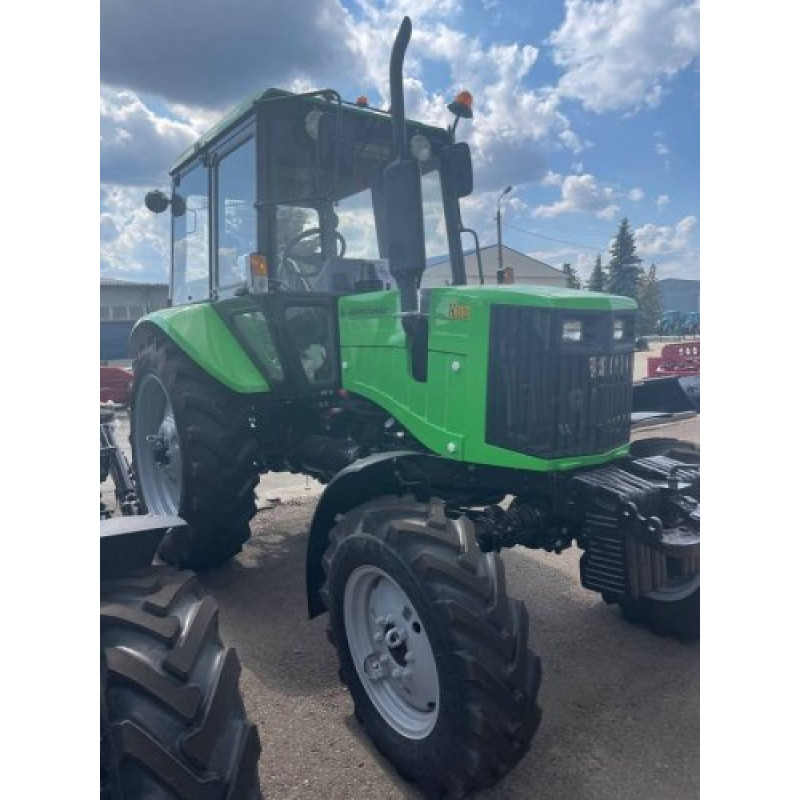

Introducing the powerful and reliable tractor from the KIY brand — model KIY 14102P, category: Tractors > Mini Tractors. This versatile mini tractor is designed for intensive agricultural and municipal work, combining a modern diesel engine, 4x4 all-wheel drive, and a well-designed hydraulic system for connecting a wide range of attachments.
Key advantages at a glance: high engine power of 105 hp (77 kW), D-245 (MMZ) turbodiesel with 4 cylinders, reliable 18/4 transmission, power take-off (PTO) shaft with 540/1000 rpm modes, significant lifting capacity of 3200 kg, and a productive hydraulic system of 45 l/min. The curb weight of 4000 kg and ground clearance of 410 mm ensure stability and off-road capability in challenging field conditions, while dimensions of 4400x2000x2850 mm and a 130 L fuel tank allow for long work periods without frequent refueling.
| Engine type | 4-cylinder diesel, turbocharged D-245 (MMZ) |
| Engine power, hp (kW) | 105 (77) |
| Rated engine crankshaft speed, rpm | 2200 |
| Drive | 4x4 |
| Clutch | single-disc, dry |
| Transmission | 18/4 |
| Hydraulic system: type / number of hydraulic outlets | separate-aggregate |
| PTO: speed, rpm | 540/1000 |
| Lifting capacity of hitch mechanism, kg | 3200 |
| Hydraulic system output, l/min | 45 |
| Front / rear tire size, inch | 11.2-20/15.5-38 |
| Turning radius, m | 5.9 |
| Ground clearance, mm | 410 |
| Overall dimensions: LxWxH, mm | 4400x2000x2850 |
| Curb weight, kg | 4000 |
| Fuel tank capacity, l | 130 |
The D-245 turbocharged engine from MMZ provides the necessary traction for heavy loads and working with mounted or trailed equipment. The rated speed of 2200 rpm is optimized for economical fuel consumption and long-term operation in fields and on farm roads.

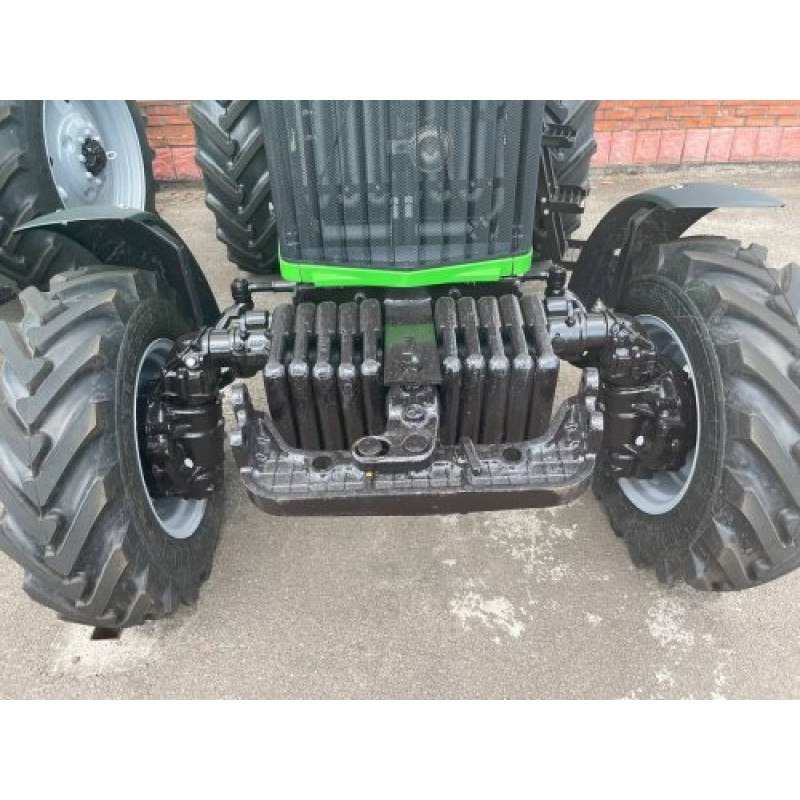

The 4x4 all-wheel drive combined with a ground clearance of 410 mm guarantees excellent off-road capability on uneven terrain, and a turning radius of 5.9 m allows for maneuvering in confined spaces. Tire sizes 11.2-20 at the front and 15.5-38 at the rear ensure reliable grip and even load distribution.

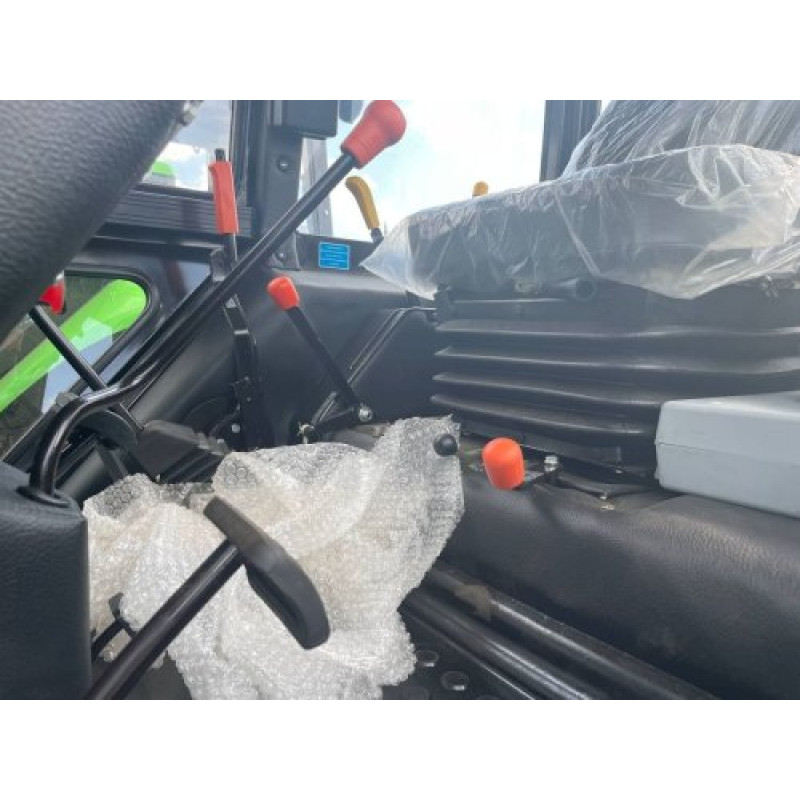

The 18/4 transmission provides a wide range of working and transport speeds, while the single-disc, dry clutch is easy to maintain and reliable during intensive use. The separate-aggregate hydraulic system with an output of 45 l/min allows for quick and smooth control of hydraulic tools, lifting loads up to 3200 kg, and working with most modern mounted implements.

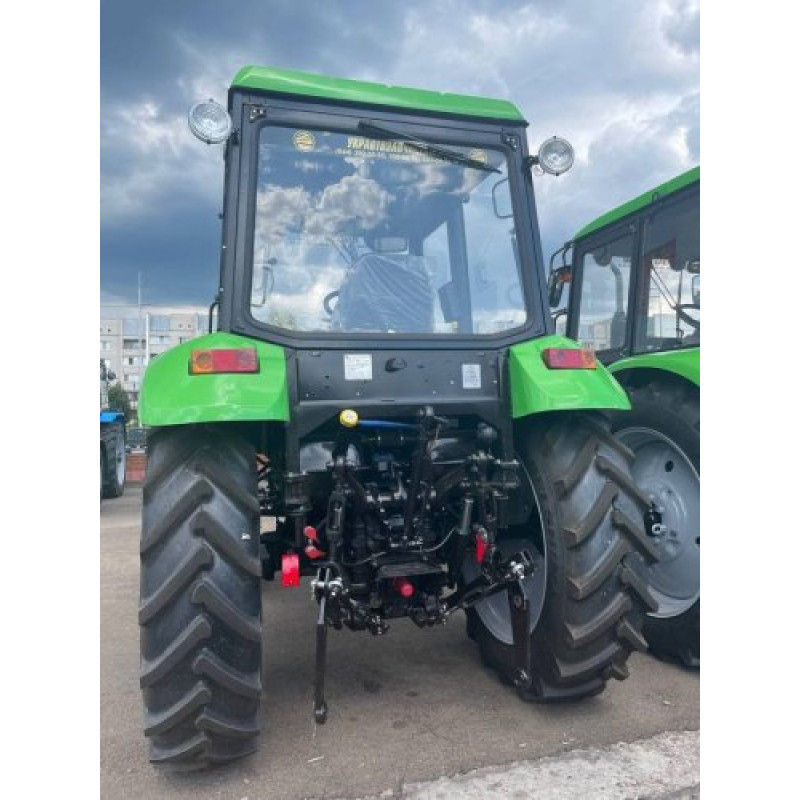

The power take-off shaft has two modes, 540/1000 rpm, making the tractor compatible with a wide range of agricultural machinery: mowers, forage harvesters, rotary cultivators, and other equipment. Dimensions of 4400x2000x2850 mm and a 130 L fuel tank ensure long autonomous operation without frequent refueling, and a curb weight of 4000 kg adds stability when working with heavy implements.
Who is the KIY 14102P suitable for?
- Farms requiring a versatile tractor for plowing, tillage, sowing, and harvesting;
- Municipal services for road maintenance, snow removal, and work with mounted equipment;
- Livestock enterprises for fodder harvesting, transporting heavy loads, and working with trailed equipment.
The KIY 14102P is a combination of power, reliability, and versatility, making it a profitable investment for professional use. If you need a powerful mini tractor with an economical turbodiesel engine, an efficient hydraulic system, and high lifting capacity, this model meets these requirements.
