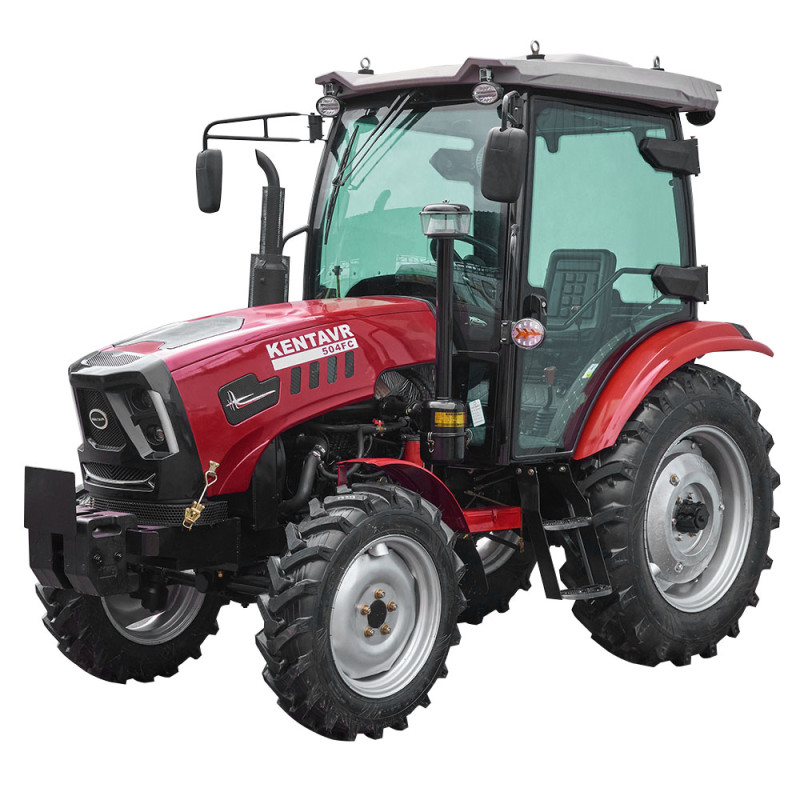

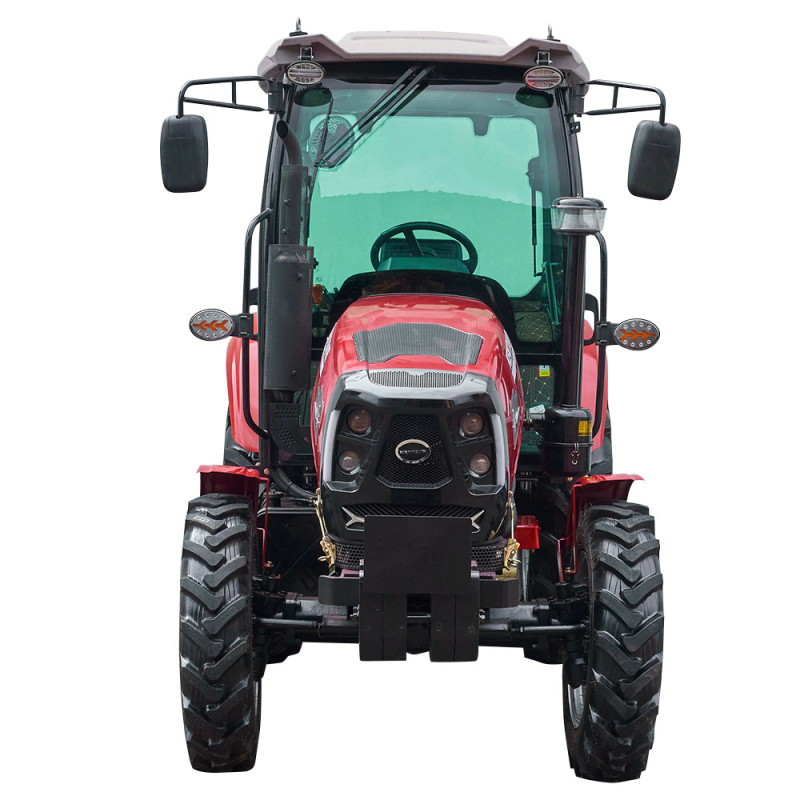

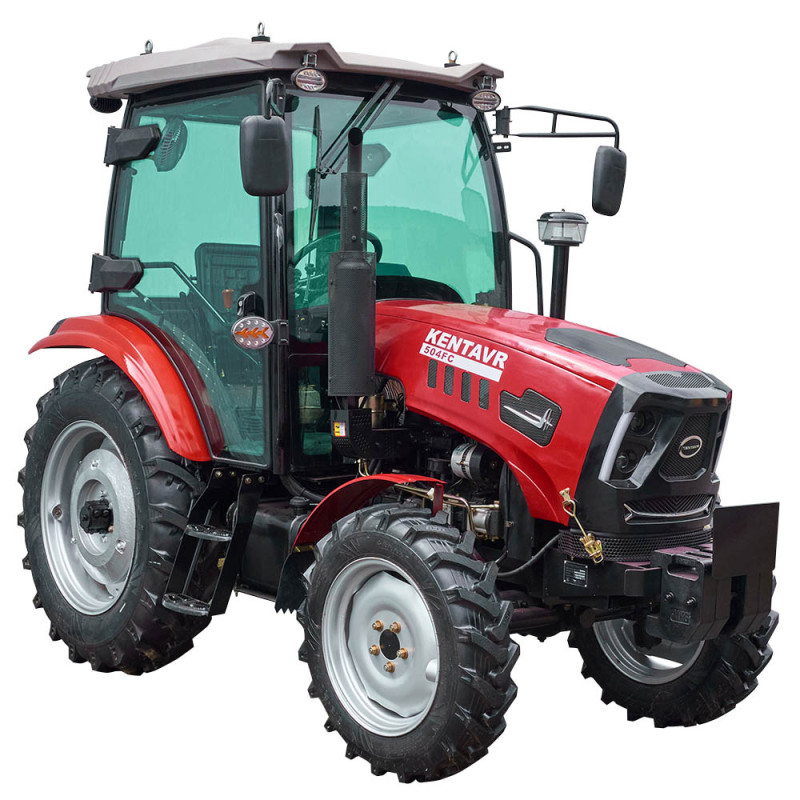

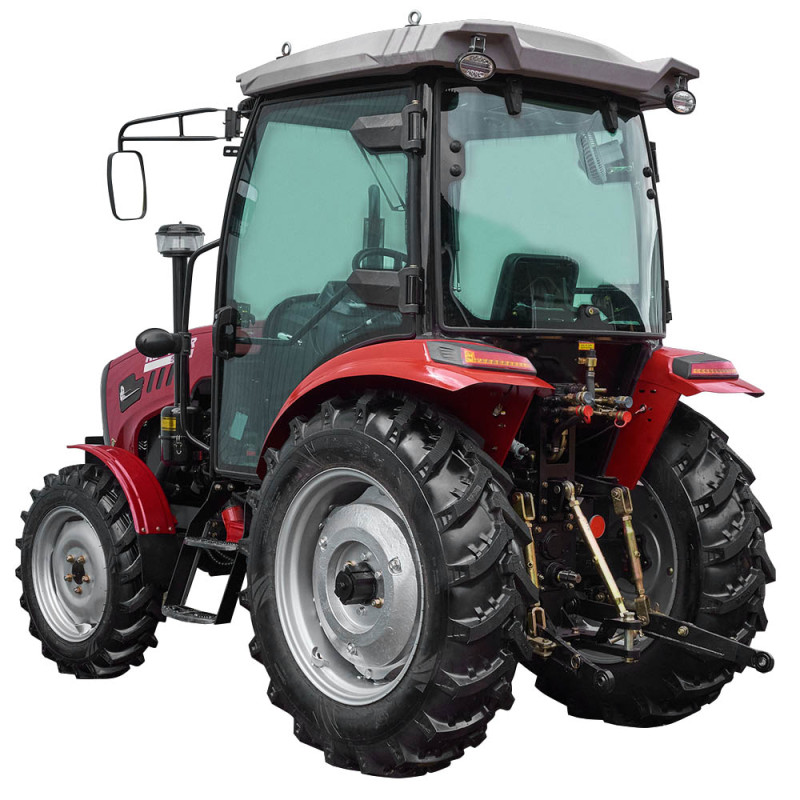

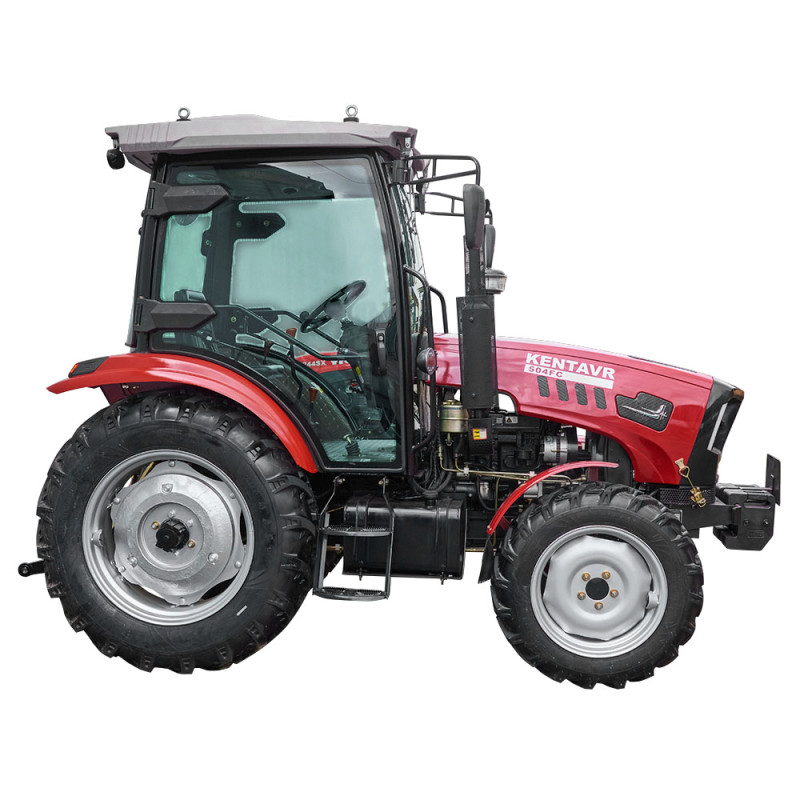

KENTAVR 504FC Tractor

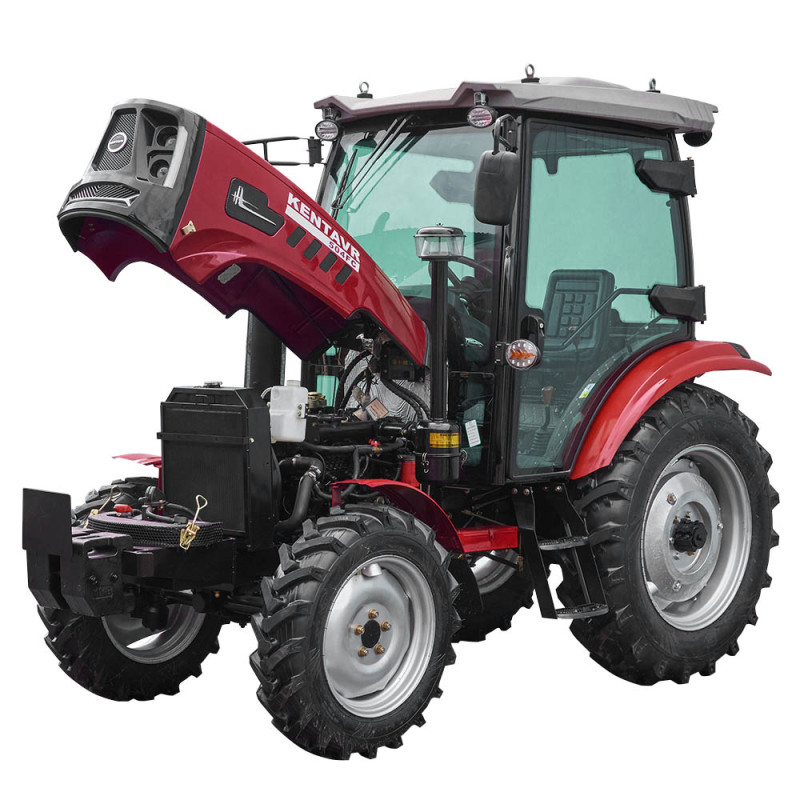

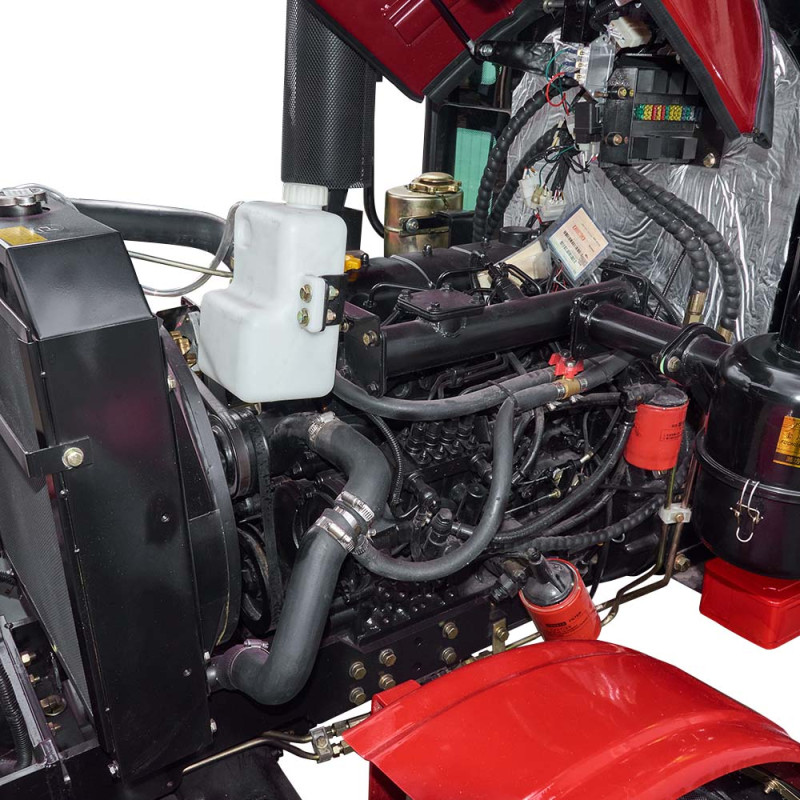

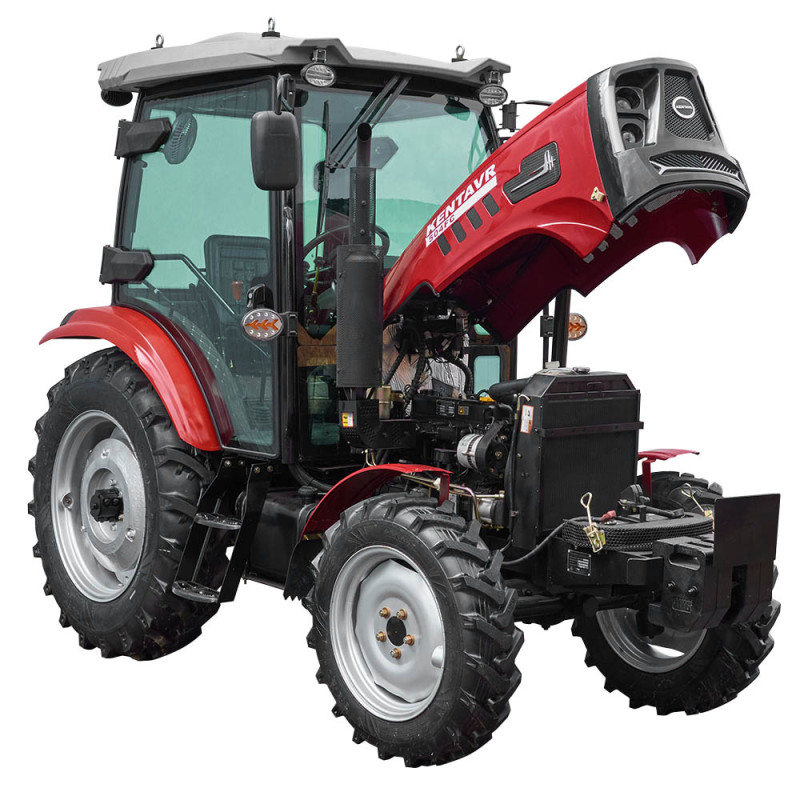

The KENTAVR 504FC tractor is equipped with a 4-cylinder KM495 diesel engine with a displacement of 3170 cm³ and a power of 50 hp, which provides reliable traction even when working with heavy attachments. The liquid cooling system with a 12-liter expansion tank maintains optimal engine temperature under any load. The electric starter system, combined lubrication system with a pump, and JX0810 oil filter contribute to stable operation in field conditions.
Efficient Fuel and Filtration System
The fuel system consists of a coarse filter in the form of a mesh in the tank and a fine filter WBF7608. The air filter is three-stage: an intake with a cyclone, a metal mesh, and an oil bath — it works perfectly in dusty environments. The engine is also equipped with an electric glow plug for heating air in the intake manifold.
Reliable Transmission and Control
The KENTAVR 504FC tractor has a mechanical transmission with a main 4-speed gearbox, two reduction ranges, and a separate reverse gearbox, providing 8 forward and reverse gears. The braking system is mechanical on the rear wheels, with dual pedals. Hydrostatic power steering ensures comfortable maneuverability, and the front axle switching system allows instant switching between 4x2 and 4x4 modes.
Chassis and Stability
The 4×4 wheel formula, weights (front — 4×11 kg, rear — 2×26 kg), ag clearance of 410 mm, and ground clearance of 350 mm allow the tractor to easily navigate difficult terrain. Wheels: front 8.3-20, rear 12.4-28, track width is adjustable.
Professional Hydraulic System and Attachments

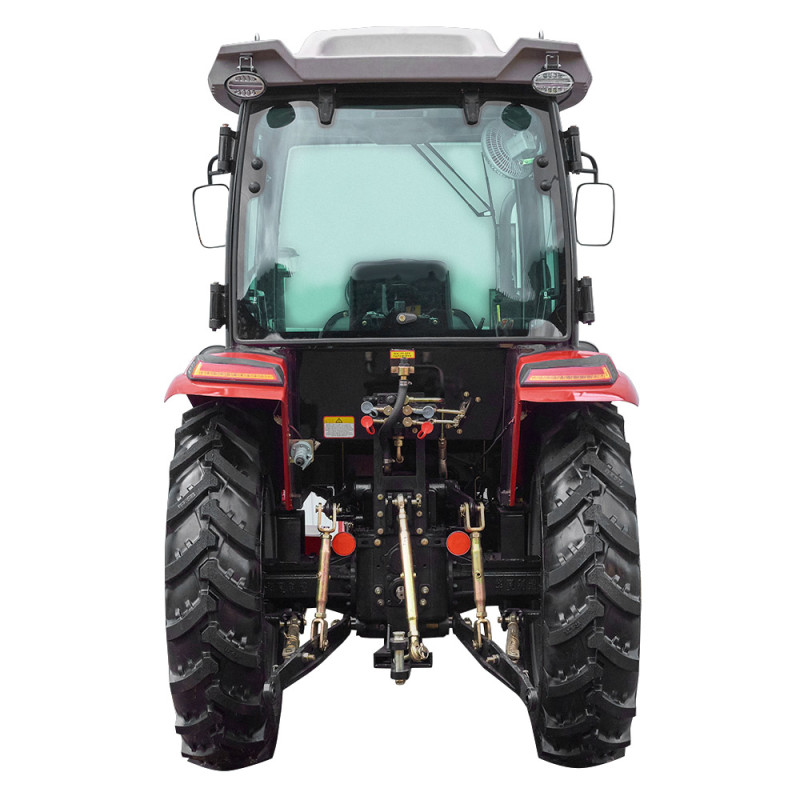

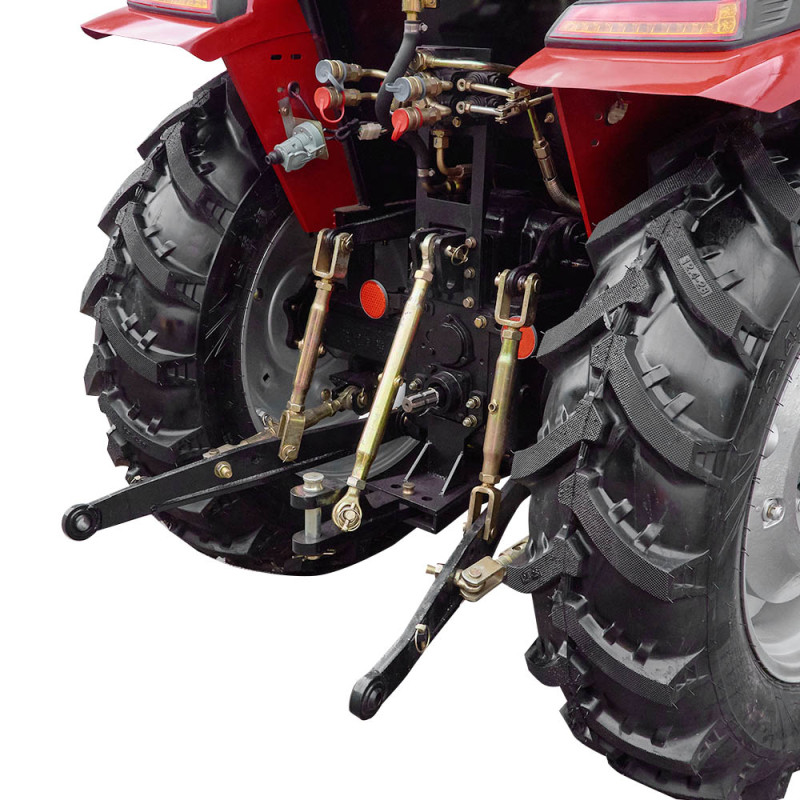

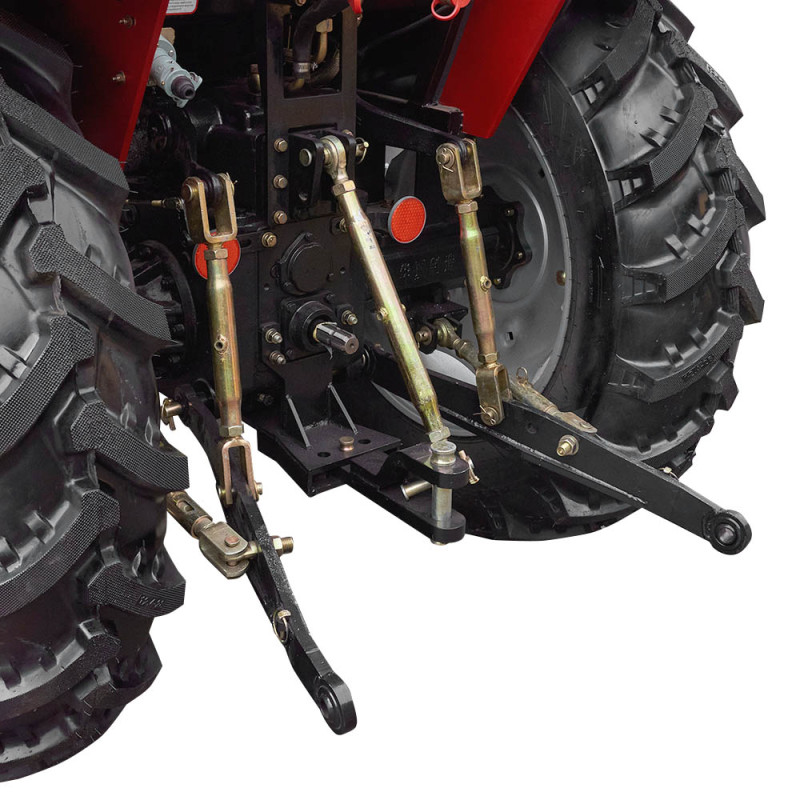

The tractor is equipped with a three-point hitch system with 4 hydraulic power outlets. The hydraulic system operates from a separate pump and has a 7.5-liter tank. The power take-off shaft with frequencies of 540/1000 rpm allows connecting various types of implements.
Comfort and Ergonomics

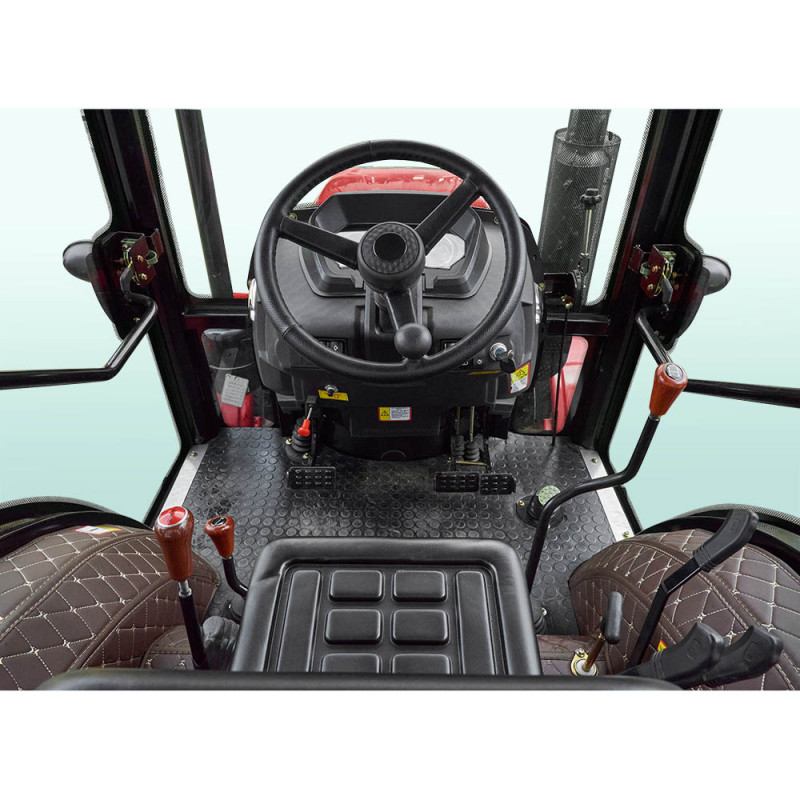

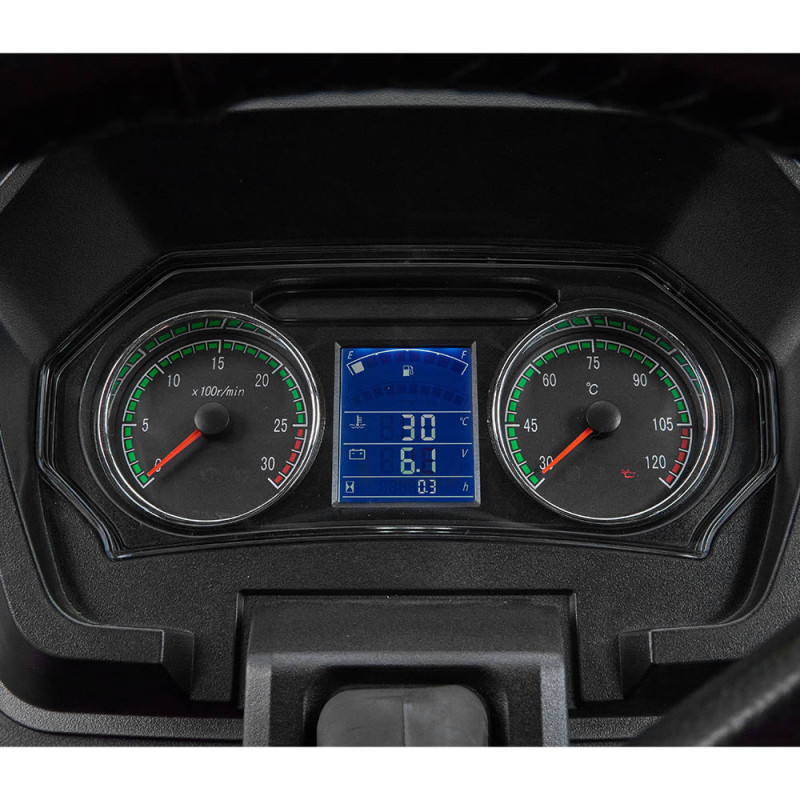

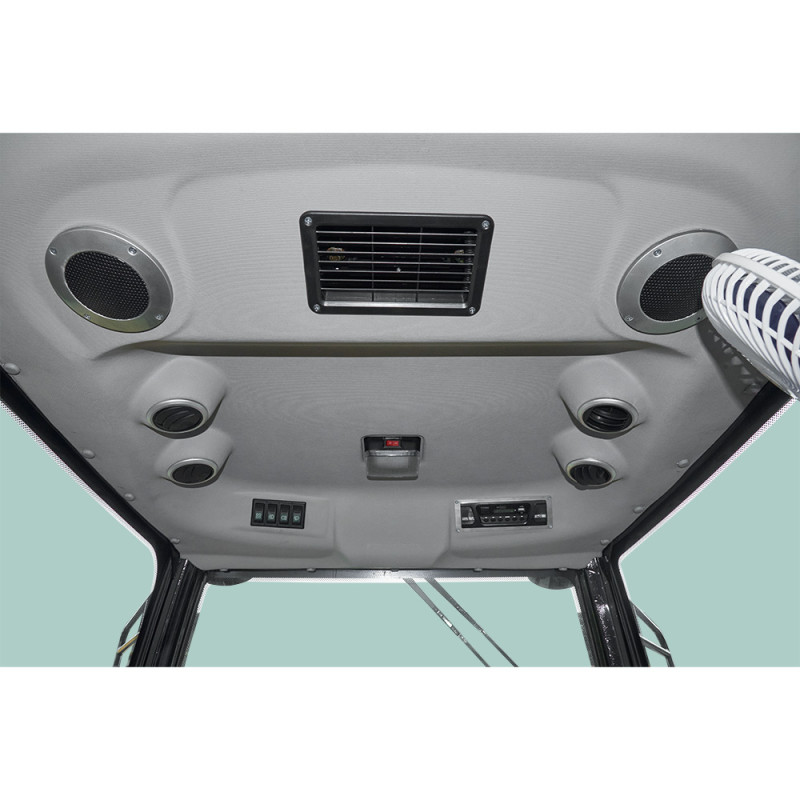

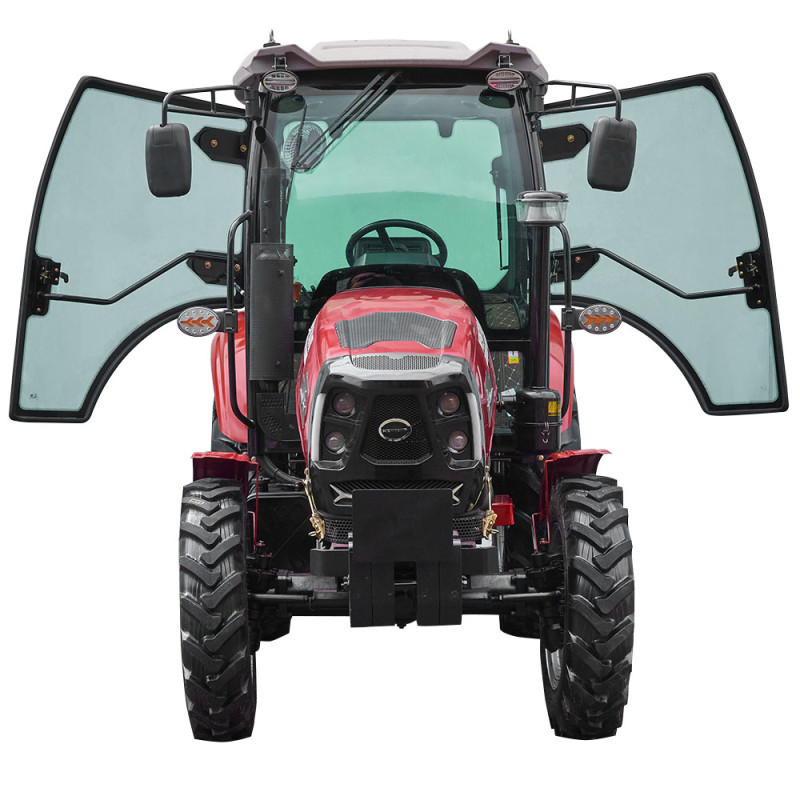

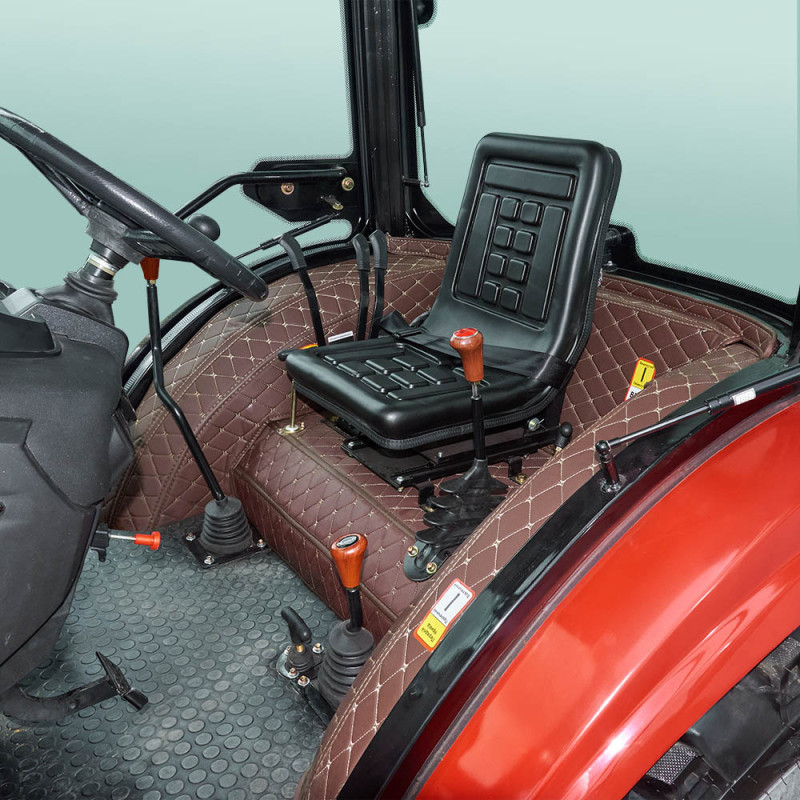

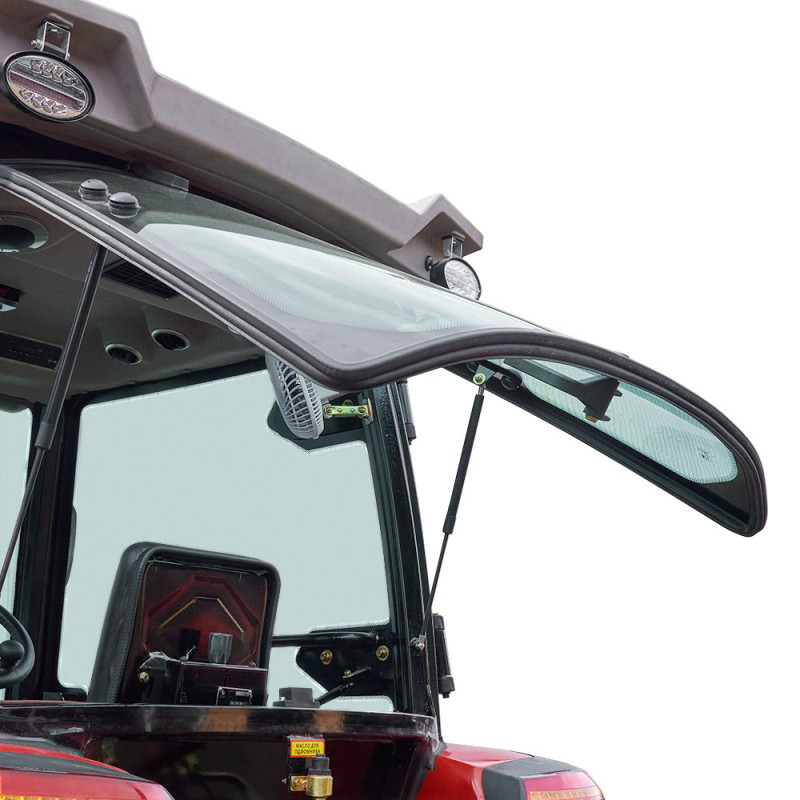

The cabin is fully enclosed, with heating, a fan, a radio, and a windshield wiper. The seat is on a shock absorber with adjustment capability. The instrument panel is combined, with indicators. Lighting: front lenticular headlights, rear LED. Battery 12 V/100 Ah, generator 350 W.
