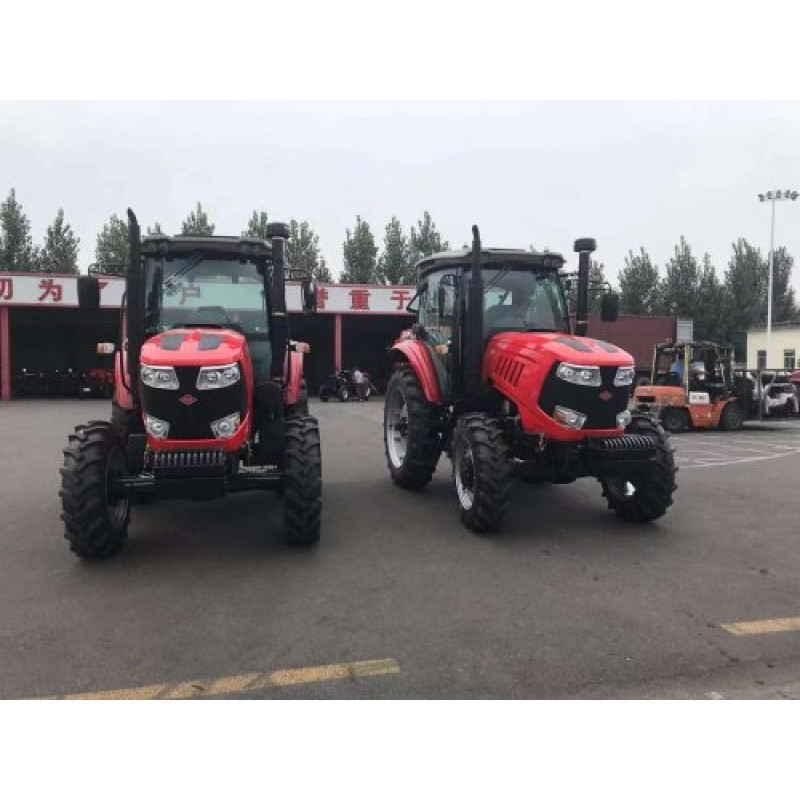

KATA KF1854 Tractor by KATA

Introducing the powerful and reliable KATA KF1854 tractor from the manufacturer KATA, product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. This model is designed for intensive agricultural and utility work, combining high performance, robust construction, and a comfortable cabin. The tractor is equipped with a WEICHAI WP6G185E330 4-stroke diesel engine with a displacement of 6860 cm3, a rated power of 185 hp (136 kW), and a nominal fuel consumption of ≤225 g/kWh.

The KATA KF1854 features 4x4 all-wheel drive, ensuring excellent cross-country capability in challenging soil and climatic conditions. The engine has 6 vertically arranged cylinders, an electric starter system, and a closed liquid cooling system with forced circulation, which enhances reliability during prolonged operation.

The transmission features a 16+8 gearbox with a direct main drive. The clutch is a dry 2-disc, constantly closed type. The model is equipped with a rear differential lock and brakes on the secondary shaft of the gearbox with brake drums. The steering is hydraulic, ensuring easy maneuvering even under load.

The hydraulic system includes a gear pump (NSh) for implement drive and an NSh for power steering operation. The number of hydraulic outlets is 3. The lifting capacity of the hitch mechanism is 3350 kg. The power take-off (PTO) shaft is located at the rear, splined, with speeds of 540 / 1000 rpm.

Comfort and additional equipment: the cabin has air conditioning, a compressor, and a trailer connector (socket), making operation more versatile and convenient. The tractor's curb weight is 5100 kg, ground clearance is 470 mm, and overall dimensions (LxWxH) are 5205x2375x3175 mm.

The front wheel track is available in variants: 1720, 1815, 1934, 2100 mm (according to technical options), rear track is 1700-2300 mm. Tire size: front 14.9-26, rear 18.4-38. Nominal traction force is 28.7 kN. The tractor is ideal for heavy field work, tillage, sowing, transportation, and working with various mounted equipment.

Technical Specifications

The reliable WEICHAI power unit combined with a powerful transmission and advanced hydraulics makes the KATA KF1854 an excellent choice for farms and enterprises requiring efficient and durable machinery for a wide range of tasks. This model ensures stable operation under load, ease of maintenance, and versatility of application.
