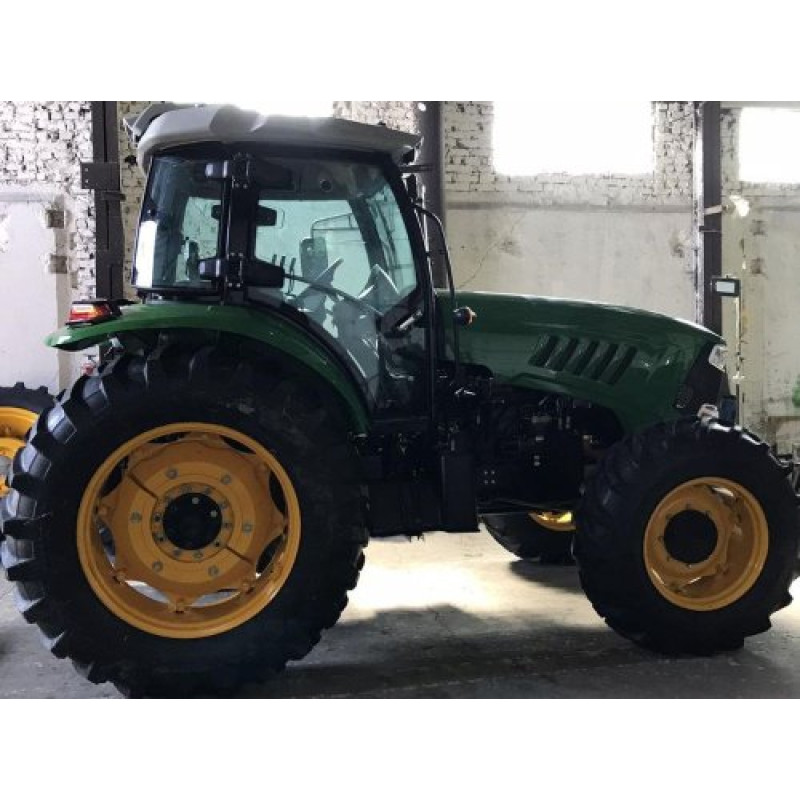

KATA KF1304 Tractor
Brand: KATA. Category: Tractors > Mini Tractors.
The KATA KF1304 is a powerful and reliable mini tractor designed for a wide range of agricultural, municipal, and loading/unloading tasks. This diesel 4-stroke tractor combines high traction performance, an efficient forced-circulation liquid cooling system, and a modern transmission, ensuring long-lasting and stable operation in the field and on farm plots. The cabin is equipped with air conditioning and an electric starter for comfortable and quick operation, and it features hydraulic power steering, a compressor, and a trailer hitch for convenience when working with towed equipment.
Key advantages of the model include: high power of 130 hp (95.6 kW), 4x4 all-wheel drive for enhanced off-road capability, a 6-cylinder vertical YTO LR6M5 engine with a displacement of 7700 cm3, and a nominal traction force of 28.7 kN. The presence of a reliable 16+8 gearbox, a dry 2-disc constantly closed clutch, a direct main drive, and a rear differential lock guarantees productive work even in challenging conditions. The 4500 kg lifting capacity of the three-point hitch makes the tractor versatile for working with heavy implements and trailers.
- Engine power: 130 hp (95.6 kW)
- Wheel formula: 4x4
- Engine type: diesel, 4-stroke, YTO LR6M5
- Number and arrangement of cylinders: 6, vertical
- Starting system: electric starter
- Cooling system: liquid, closed, with forced circulation
- Engine displacement: 7700 cm3
- Nominal traction force: 28.7 kN
- Gearbox: 16+8
- Rear differential lock: yes
- Clutch: dry 2-disc constantly closed type
- Main drive: direct
- Steering: hydraulic
- Brakes: on the secondary shaft of the gearbox, drum brakes
- Power take-off (PTO) shaft: rear, splined
- Hydraulic pump type: gear pump (NSH) for implement drive / NSH for power steering operation
- Three-point hitch lifting capacity: 4500 kg
- PTO speed: 540 / 1000 rpm
- Wheel track: front 1720181519342100, rear 1700-2300
- Tire size: front 14.9-26, rear 18.4-38
- Ground clearance: 470 mm
- Number of hydraulic outlets: 3
- Trailer hitch (socket): yes
- Compressor: yes
- Air conditioner: yes
- Dimensions LxWxH: 4985x2375x3175 mm
- Curb weight: 5100 kg
Specifications
| Engine power, hp (kW) | 130 (95.6) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, YTO LR6M5 |
| Number and arrangement of cylinders | 6, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Engine displacement, cm3 | 7700 |
| Nominal traction force, kN | 28.7 |
| Gearbox (КП) | 16+8 |
| Rear differential lock | + |
| Clutch | dry 2-disc constantly closed type |
| Main drive | direct |
| Steering | hydraulic |
| Brakes | on the secondary shaft of the gearbox, drum brakes |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump (NSH) for implement drive / NSH for power steering operation |
| Three-point hitch lifting capacity | 4500 kg |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Wheel track | front 1720181519342100, rear 1700-2300 |
| Tire size | front 14.9-26, rear 18.4-38 |
| Ground clearance, mm | 470 |
| Number of hydraulic outlets | 3 |
| Trailer hitch (socket) | + |
| Compressor | + |
| Air conditioner | + |
| Dimensions LxWxH mm | 4985х2375х3175 |
| Curb weight, kg | 5100 |
The KATA KF1304 is suitable for tillage, cargo transportation, working with mounted equipment, and municipal tasks thanks to its reliable PTO drive and high three-point hitch lifting capacity. It is an optimal choice for farms, agricultural enterprises, and municipal services that require a powerful, durable, and versatile tractor in the 130 hp class.
