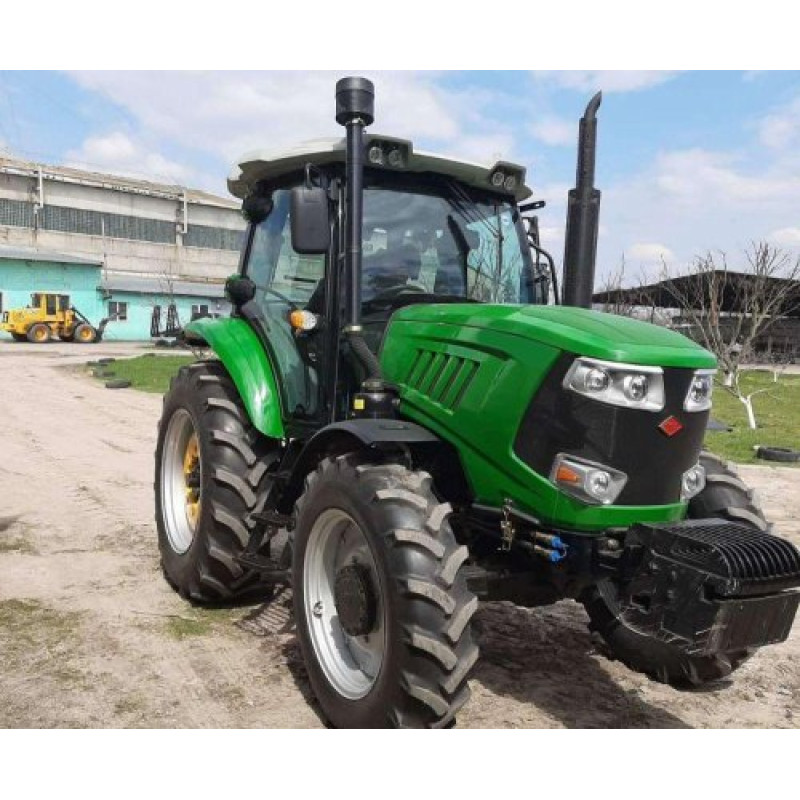

The KATA KD1204 tractor from the manufacturer KATA is a powerful and reliable 4x4 mototractor designed for heavy field, garden, and municipal work. The model combines a modern chassis design with an economical diesel 4-stroke YTO LR6B5 engine, featuring 6 vertically arranged cylinders, a displacement of 7420 cm3, and an electric starter that ensures quick and reliable starting in all conditions. The liquid-closed cooling system with forced circulation maintains a stable engine temperature under load.

Advantages of the KATA KD1204 model

The KD1204 stands out with high performance: nominal power is 120 hp (88.2 kW), nominal traction force is 28 kN, and the lifting capacity of mounted equipment reaches 2785 kg. The 4x4 all-wheel drive, hydraulic power steering, and rear differential lock enhance off-road capability in challenging soil and terrain conditions. A ground clearance of 405 mm provides additional confidence when working on uneven surfaces.

Brief technical specifications

• Engine: diesel, 4-stroke YTO LR6B5, 6 cylinders, vertical arrangement, 7420 cm3 displacement, electric starter.
• Power: 120 hp (88.2 kW).
• Transmission: 16+8 gearbox, direct main drive, dry 2-disc constantly closed clutch.
• Chassis and braking system: 4x4 wheel formula, hydraulic power steering, brakes on the secondary shaft of the gearbox with brake drums.
• Power Take-Off (PTO): rear splined, speeds 540 / 1000 rpm.
• Hydraulics: gear pump for implement drive and pump for power steering operation, 3 hydraulic outlets.
• Comfort and additional options: air conditioner, compressor, trailer connector (socket).
• Dimensions and weight: 4810x2380x3100 mm, curb weight 4510 kg, ground clearance 405 mm.
• Track and tires: front 15951675 17551855, rear 1650-2050; tire size front 12.4-24, rear 16.9-34.

Below is a detailed table of technical data containing all key parameters of this model, which will help you navigate when choosing a tractor for your farm.

The robust transmission combined with a wide range of gears (16+8) allows for efficient execution of both slow, heavy traction operations with plows and cultivators, and fast movement across the farm with trailers and other implements. The presence of a PTO with 540/1000 rpm modes makes the KD1204 compatible with a wide range of mounted and trailed equipment.

This tractor is ideal for medium and large farms, municipal services, and enterprises that require a combination of high traction, large lifting capacity for mounted equipment, and reliability in challenging operating conditions. If you need a versatile and durable tractor for various agricultural tasks — the KATA KD1204 will be an excellent choice.
