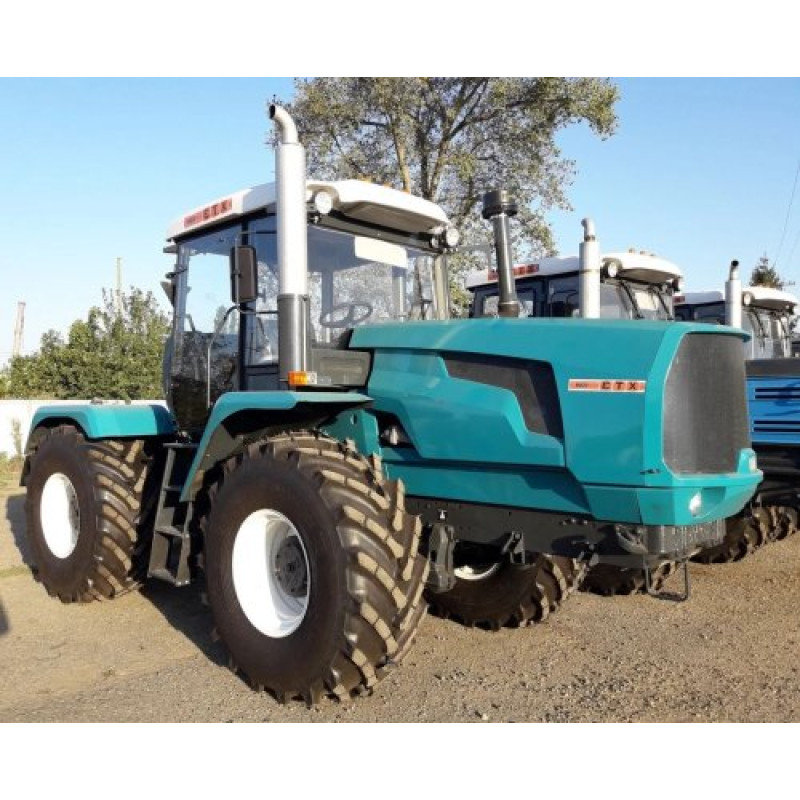

Tractor KhTZ-248K.20 — a powerful choice for agriculture
The KhTZ-248K.20 Tractor model from the manufacturer KhTZ combines the proven reliability of the Kharkiv Tractor Plant with modern technical solutions. This tractor is designed for large agricultural enterprises, construction organizations, and businesses that require a powerful, versatile machine for various operations in the field and on the road. The KhTZ plant, operating since the 1930s, produces a wide range of equipment — from tracked and wheeled heavy models to dual wheels and less powerful mini-tractors, allowing for the selection of an optimal base for specific tasks and soil conditions.
Key advantages of KhTZ-248K.20
The model is equipped with a number of improvements that enhance operational efficiency and operator comfort. The main advantages include:
- Modernized gearbox with an improved oil cleaning system, reducing wear and increasing transmission reliability.
- 12/4 transmission (12 forward and 4 reverse speeds) allows for selecting the most comfortable working pace for various agricultural operations.
- Six-cylinder FPT-Iveco N67 ENT diesel engine, with a power of 240 hp (176 kW), ensures stable traction and high productivity.
- The wheelbase and design allow for a maximum speed of up to 33.6 km/h, facilitating prompt cargo transportation and legal movement on public roads.
- Efficient hydraulic system and hitch system enable the aggregation of a wide range of mounted and trailed equipment.
- Comfortable cabin with well-designed sound insulation, ventilation, air conditioning, and heating systems ensures operator comfort during long-term operation.
- Increased ground clearance of 400 mm minimizes the risk of crop damage when moving across the field.
- Ergonomic design and modern cladding improve visibility and simplify access for servicing main components.
If the KhTZ-248K.20 model is not suitable for any reason, other KhTZ equipment options are available on the website — with different wheelbases, dual-wheel variants, and tracked tractors with increased cross-country capability, allowing for the selection of equipment according to soil structure and tillage technology.
Technical specifications:
| Engine | FPT-Iveco N67 ENT |
| Max power, hp (kW) | 240 (176) |
| Engine displacement, L | 6.7 |
| Number of cylinders | 6 |
| Rated speed, rpm | 2200 |
| Transmission | 12/4 |
| Fuel tank capacity, L | 430 |
| Max speed, km/h | 33.6 |
| Hydraulic distributor | five-section, 5RPS-100 |
| PTO | independent |
| PTO rpm | 540/1000 |
| Hitch lifting capacity, kg | 4500 |
| Hydraulic system output, L/min | 100 |
| Tire size | 23.1R26 |
| Battery | 6ST-190A3, 2 pcs |
| Turning radius, m | 6.7 |
| Ground clearance, mm | 400 |
| Overall dimensions: LxWxH, mm | 6596× 2460×3565 |
| Track width, mm | 1860 |
| Curb weight, kg | 8350 |
| Additional equipment | Audio preparation, air conditioning system, ventilation, heating, additional folding seat |
This tractor combines a reliable FPT-Iveco engine, a well-designed transmission, and a spacious 430 L fuel system, making it suitable for long working hours without frequent refueling. The independent PTO with 540 and 1000 rpm modes provides flexibility when working with various mounted and trailed equipment, and a lifting capacity of 4500 kg allows for the use of a wide range of implements. The hydraulic system's output of 100 L/min guarantees stable operation of hydraulic units under load.
By choosing the KhTZ-248K.20 tractor, you get a machine with 240 hp, high durability, a comfortable cabin, and versatile capabilities for performing field, transport, and special construction tasks.
