Product Code: FA101-153391-101
429 460 грн.
Buy this product in 1 click:
Main specifications
Bore/stroke:
85/95
Brakes:
rear drum mechanical
Clutch coupling:
2-disc dry, constantly closed
Compressor:
-
Cooling System:
liquid forced
All specifications
We will deliver this product:
Payment
Description

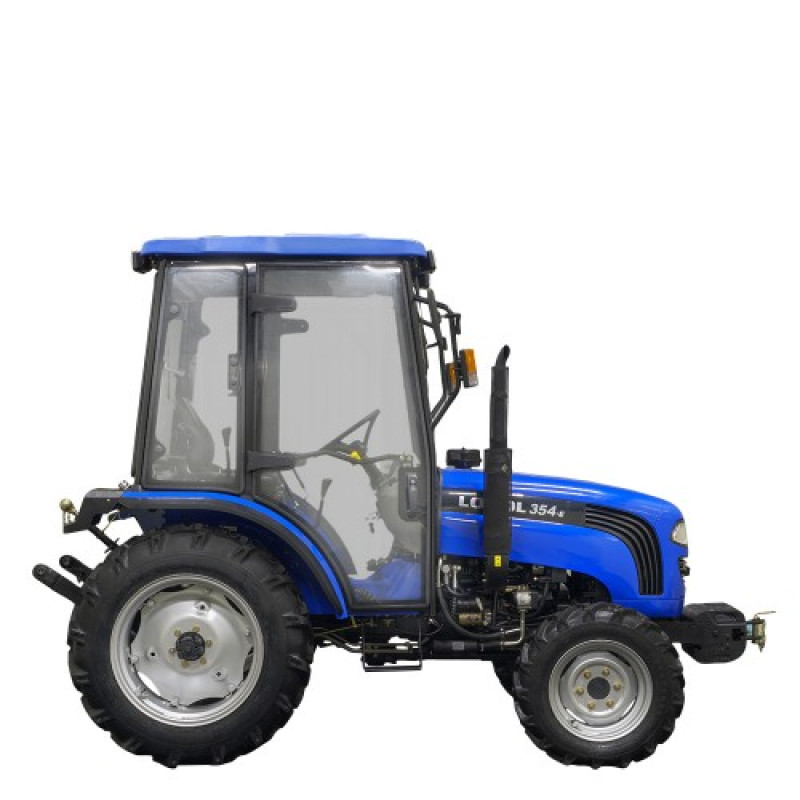

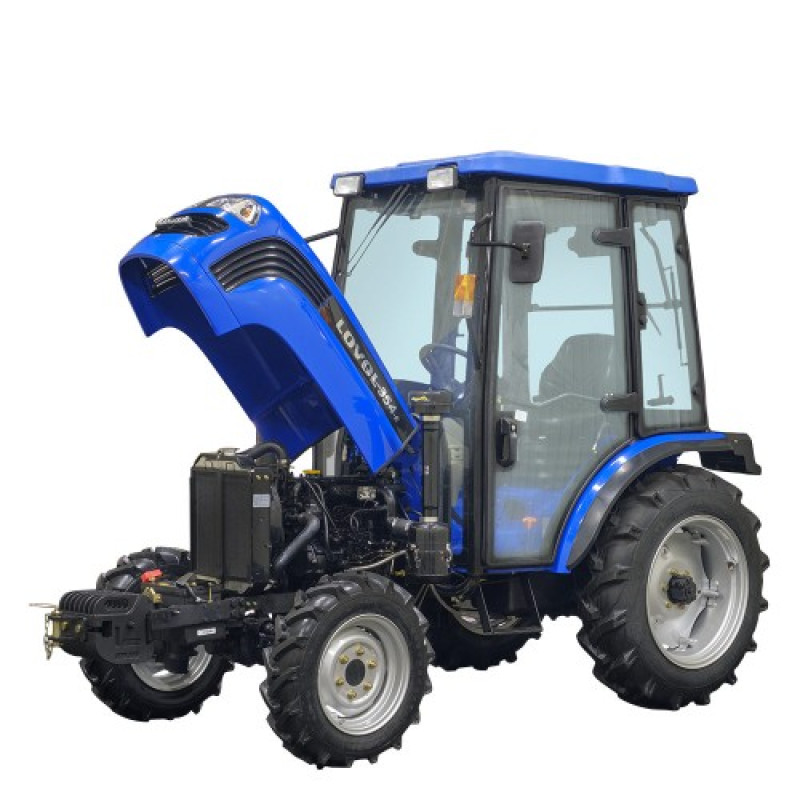

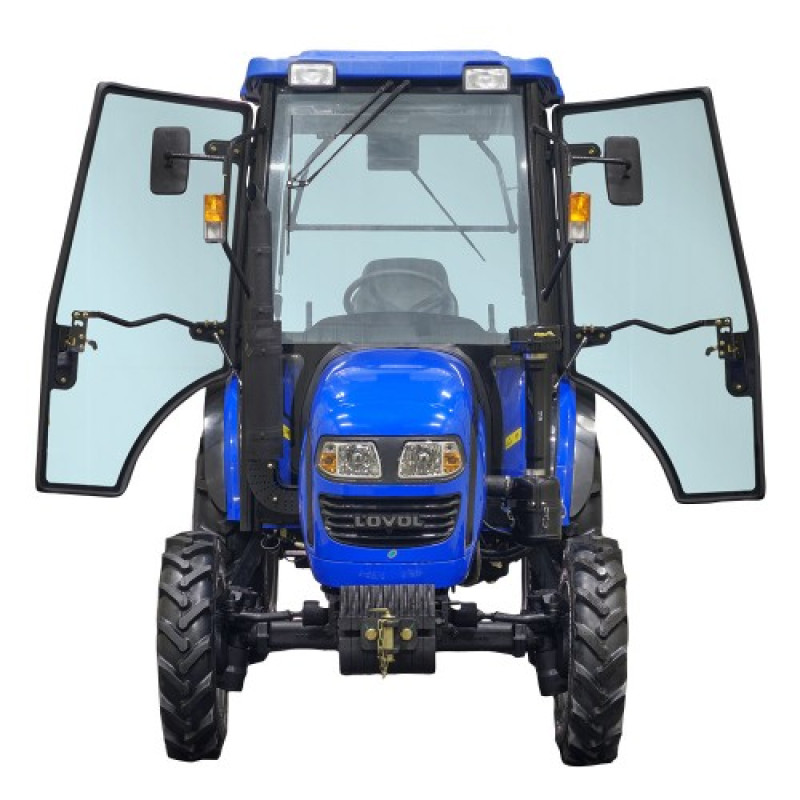

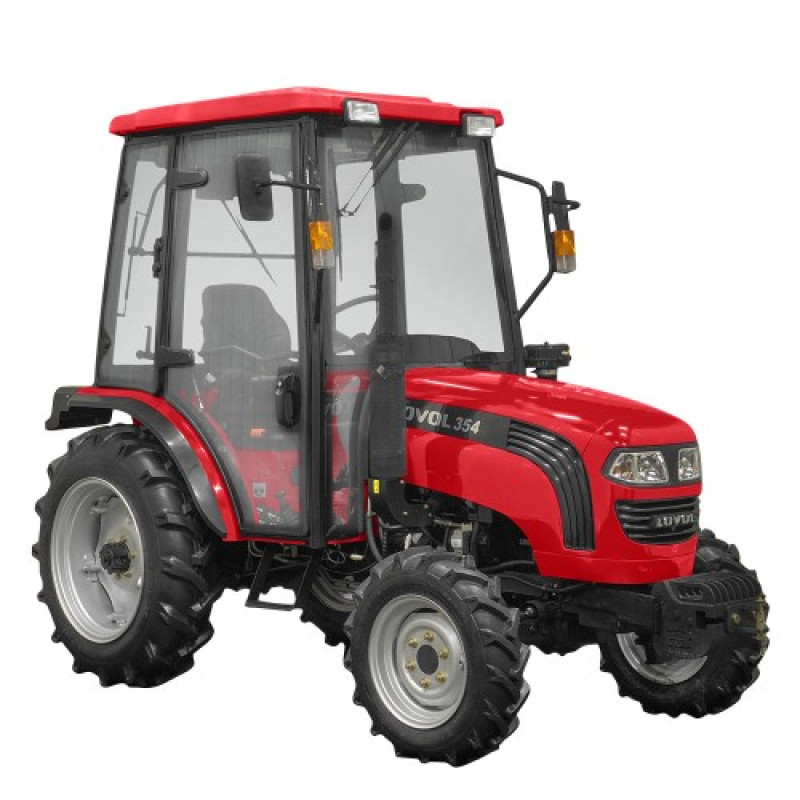

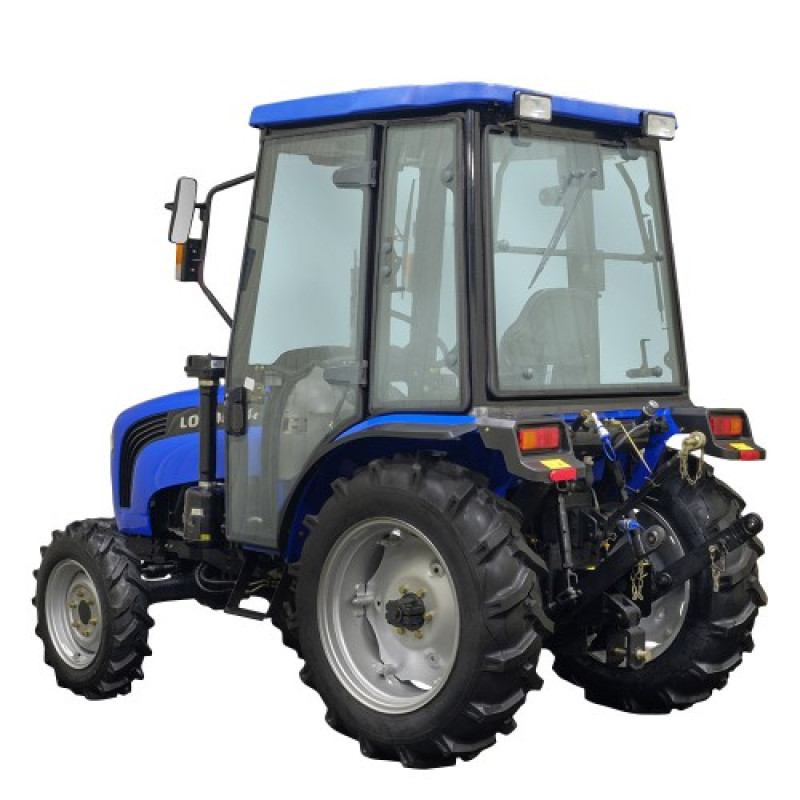

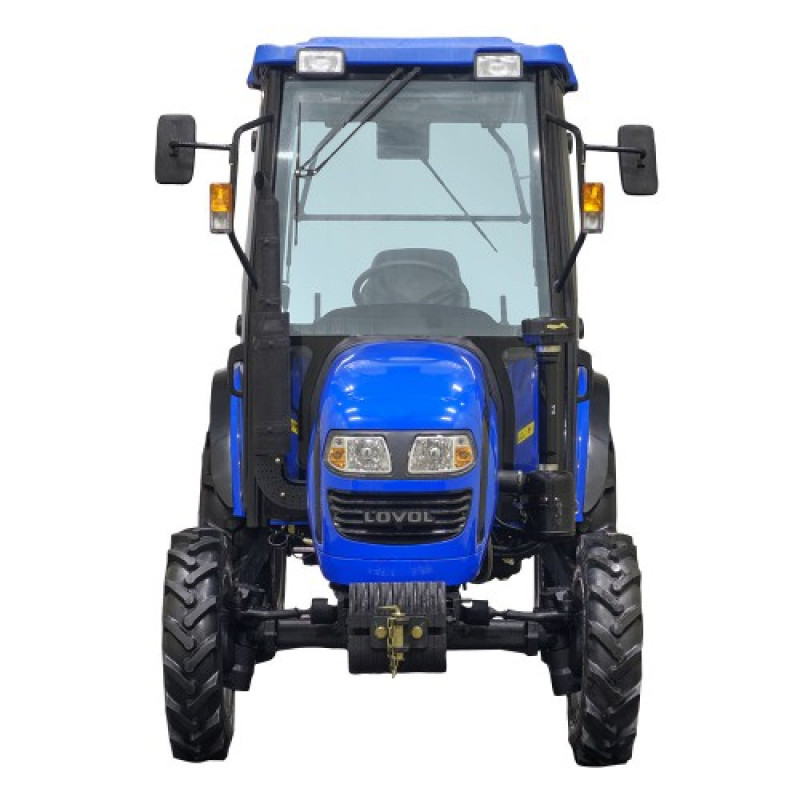

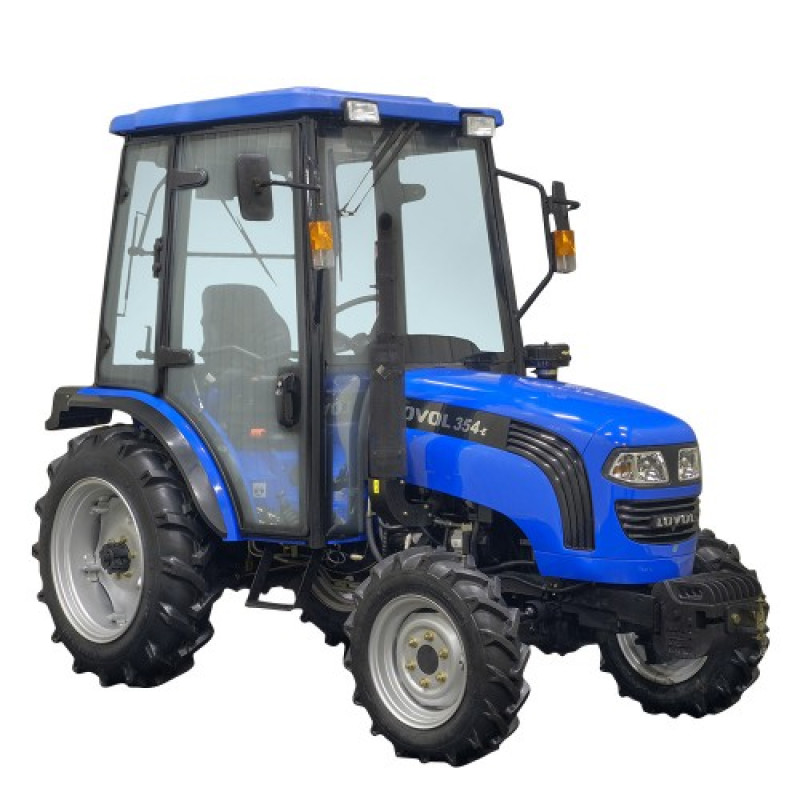

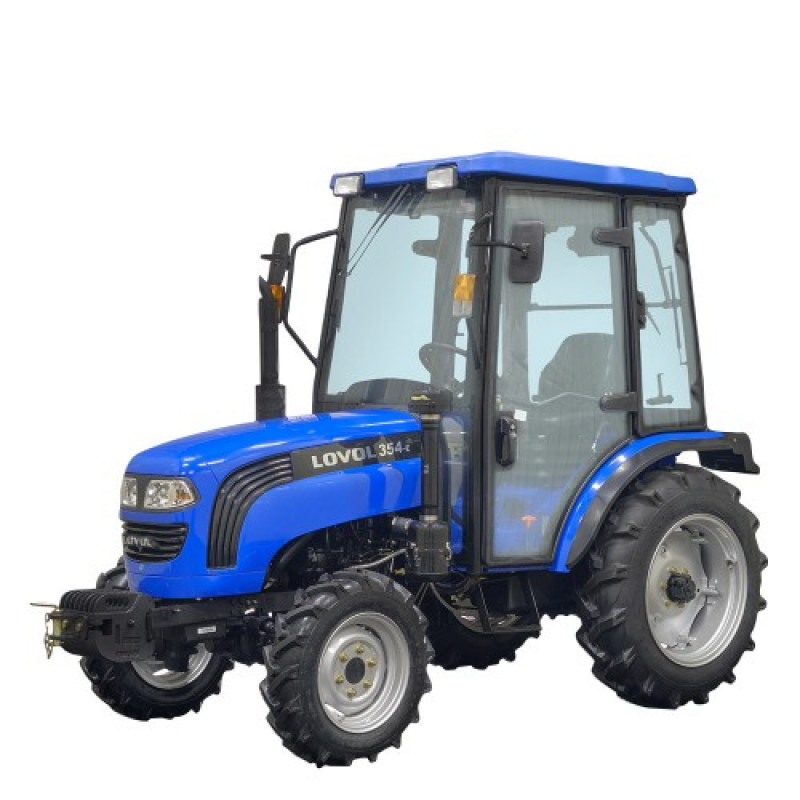

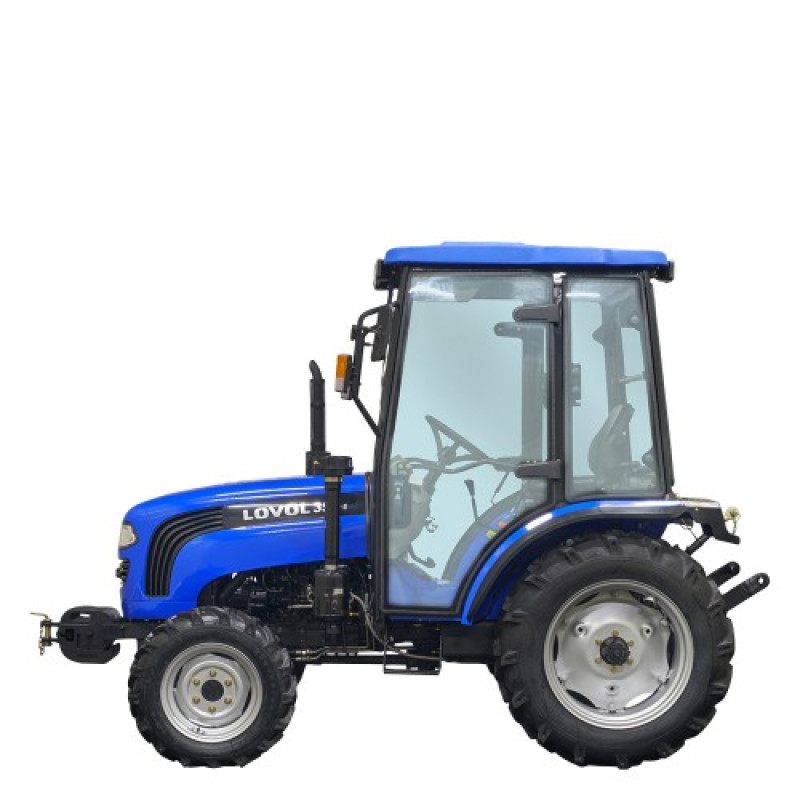

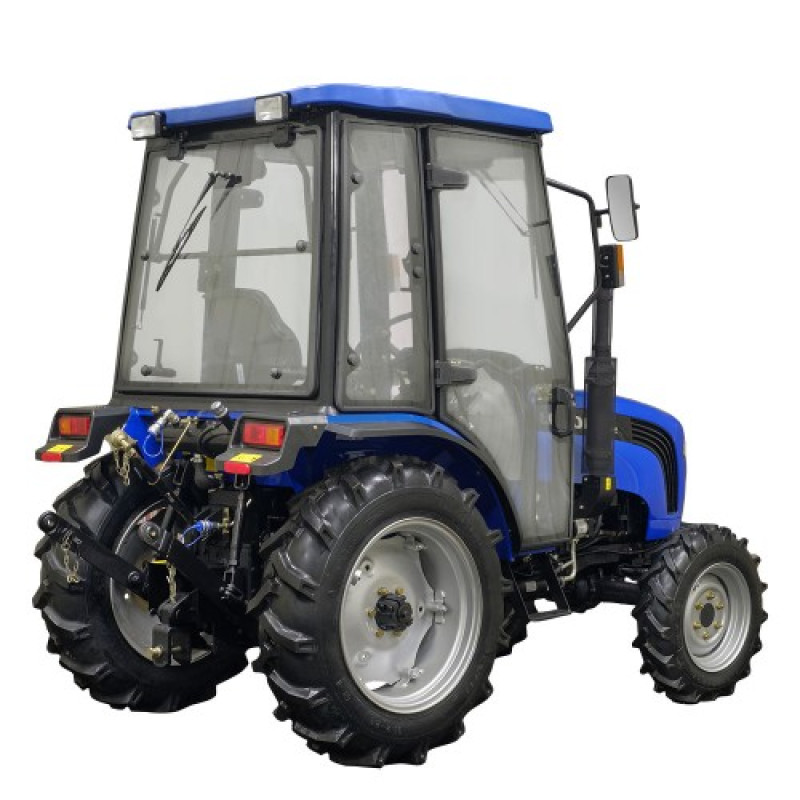

Description of Foton/Lovol FT354HXSС Tractor
The FT 354HXSC is a full-wheel-drive tractor with a cabin, featuring a modern design and a wide range of capabilities. It is approved for use on public roads. It can be used in various fields of activity: agriculture, horticulture (including working with pesticides and liquid fertilizers), forestry, municipal services, construction work, and more.

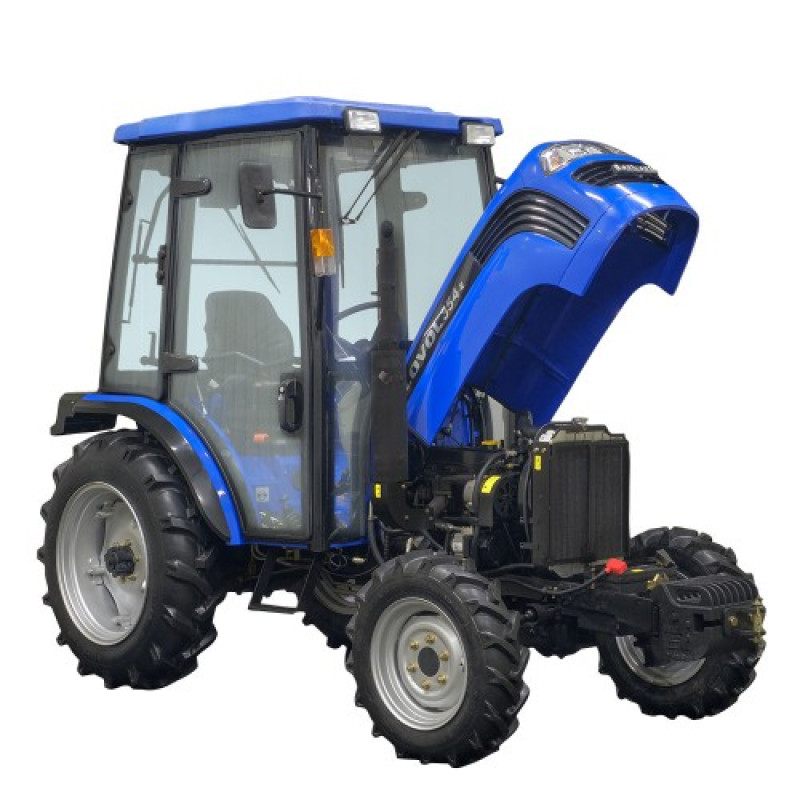

The reversible gearbox (4x2)+(4x2), a reliable and easy-to-maintain four-cylinder engine, and a warm, spacious cabin with good visibility are key factors when choosing this tractor.
Design Features of the Foton/Lovol FT354HXSС Model:
- Gearbox lever shifted to the right side;
- Plastic fuel tank located under the cabin with a filler neck at the rear of the tractor;
- Expanded hydraulic tank with a quick-release coupling for oil drainage;
- 8-spline PTO shaft;
- Increased number of front counterweights: 8 units of 10 kg (80 kg);
- 750 W brushless alternator;
- Narrower instrument panel and button housing, providing more cabin space.
Foton/Lovol FT354HXSС Model Configuration:

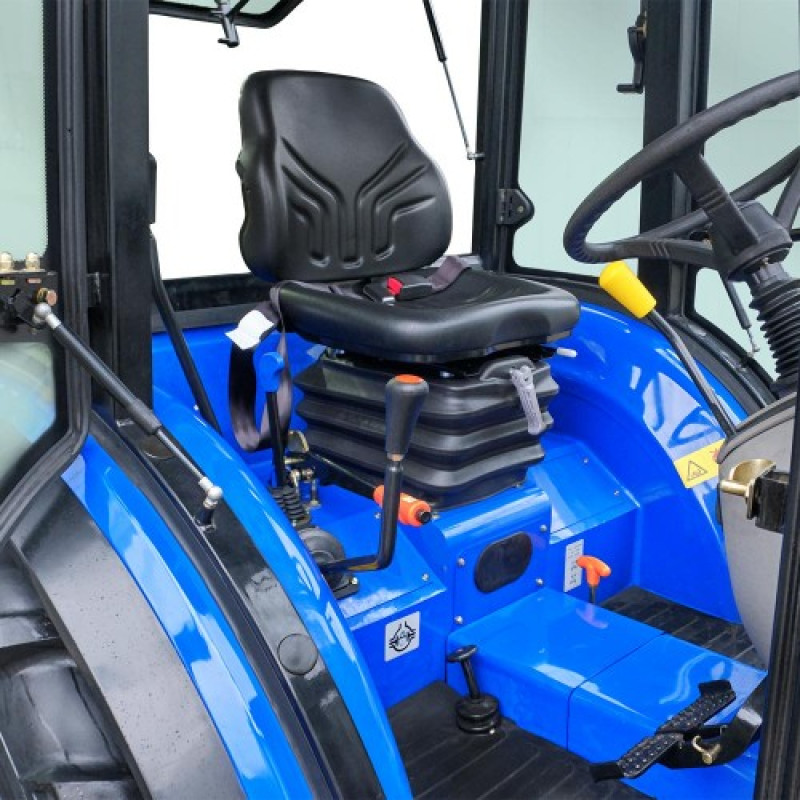

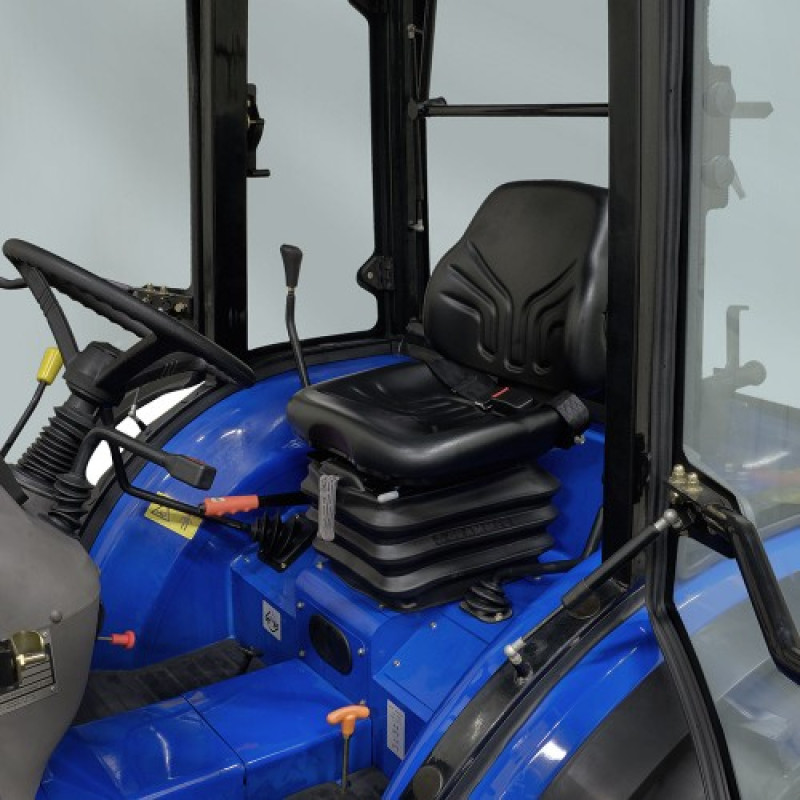

- Comfortable adjustable seat with suspension;

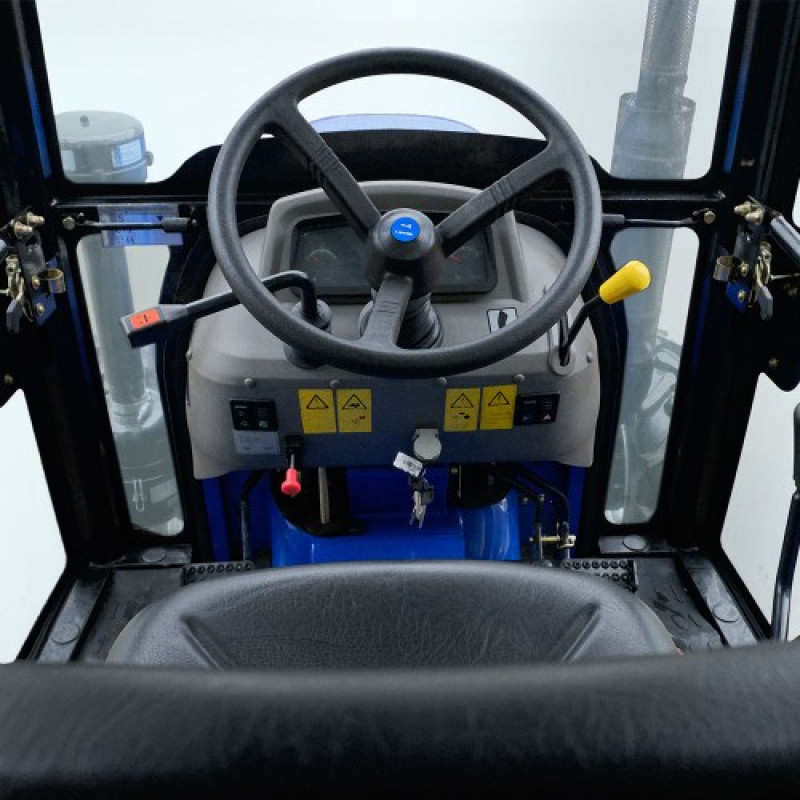

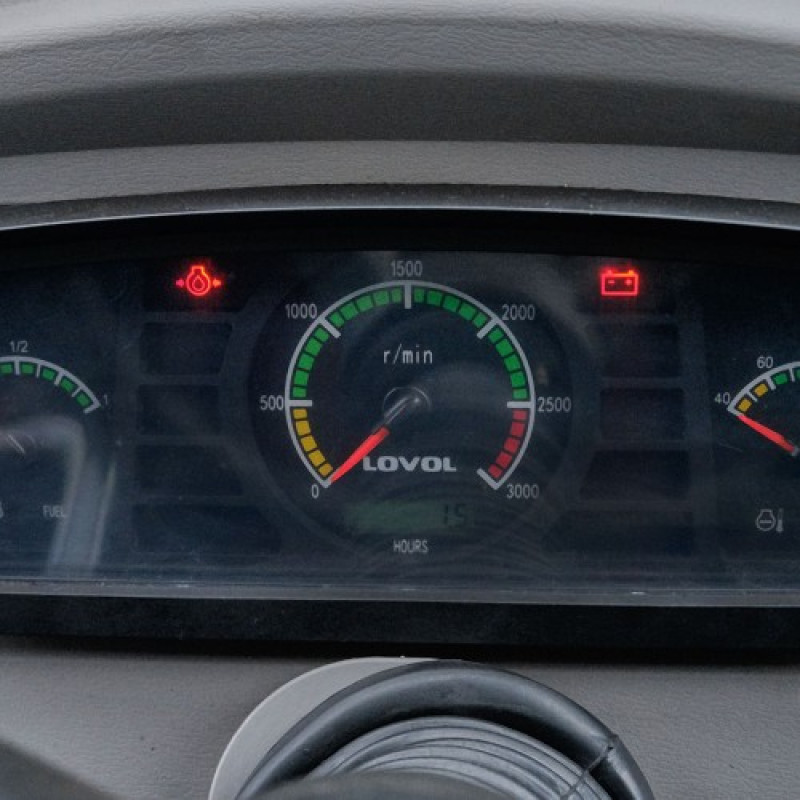

- Instrument panel (hour meter, fuel level gauge, water temperature gauge, ammeter);
- Electrical socket for trailer;

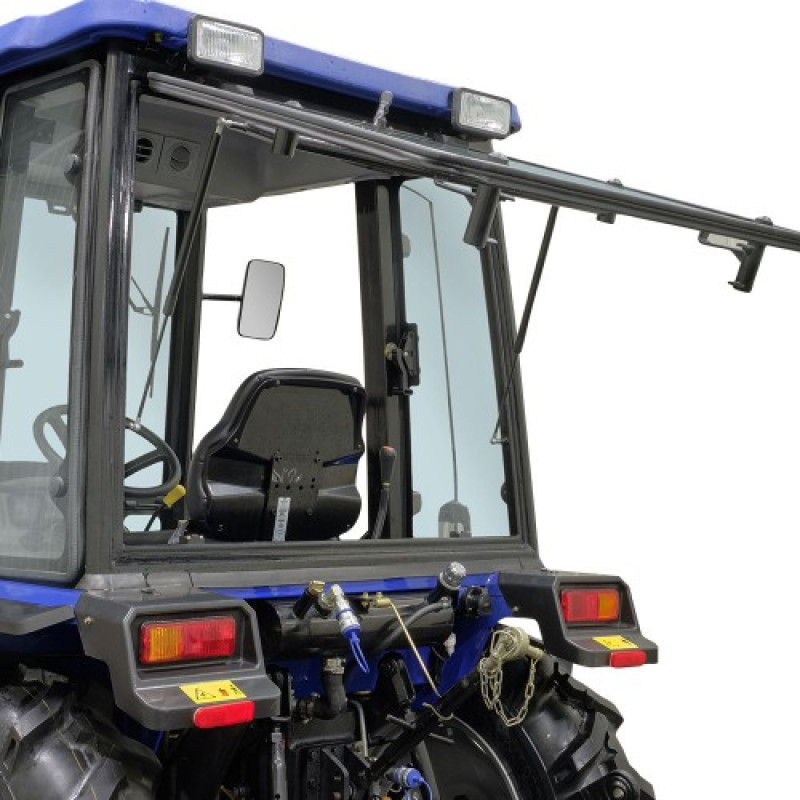

- 2 rear auxiliary lights;
- Rearview mirrors;

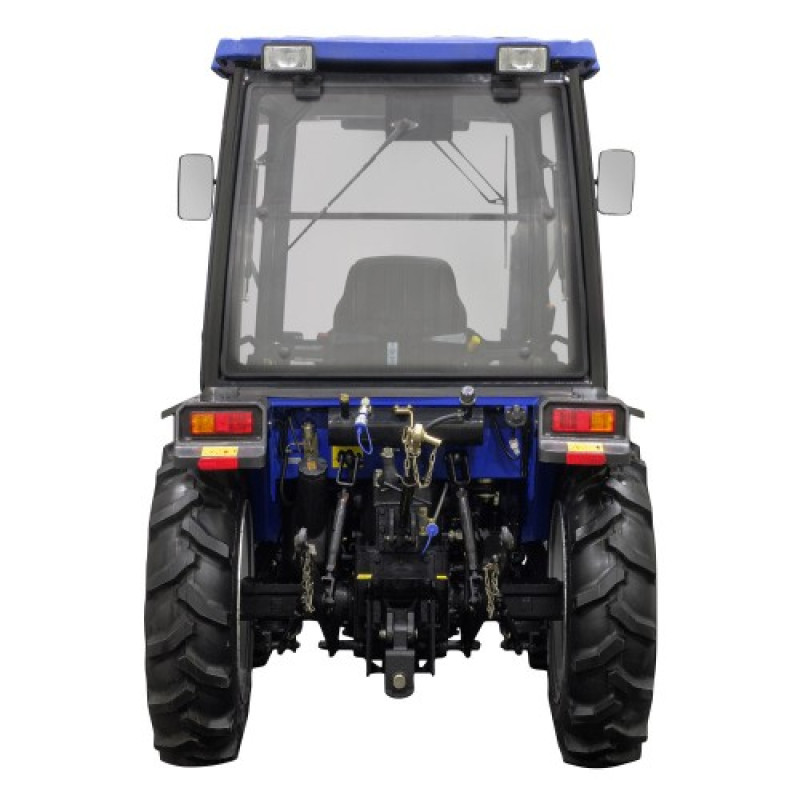

- Hydraulic outlets with quick-release couplings;

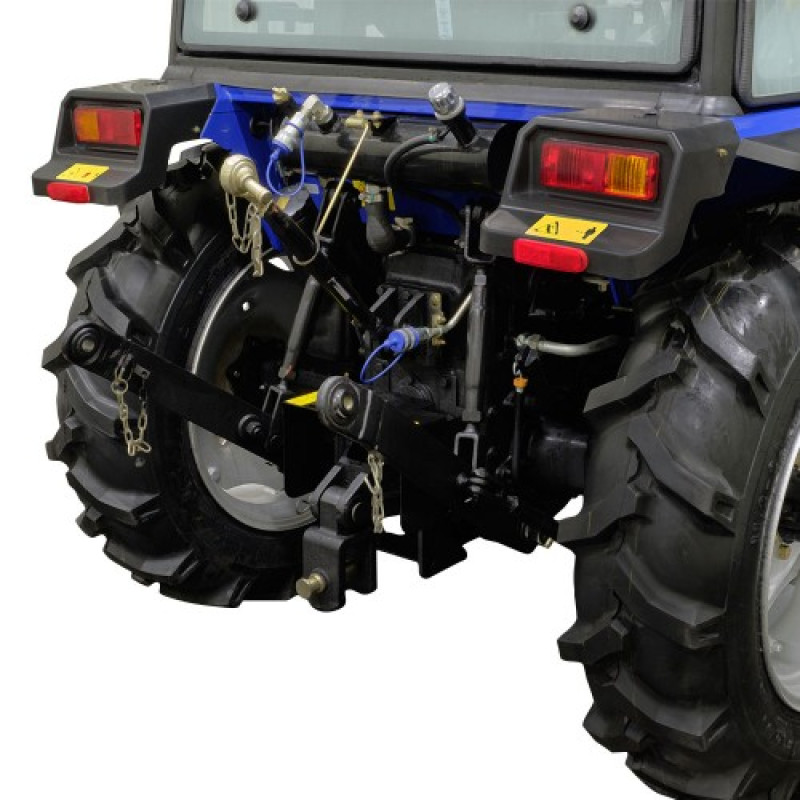

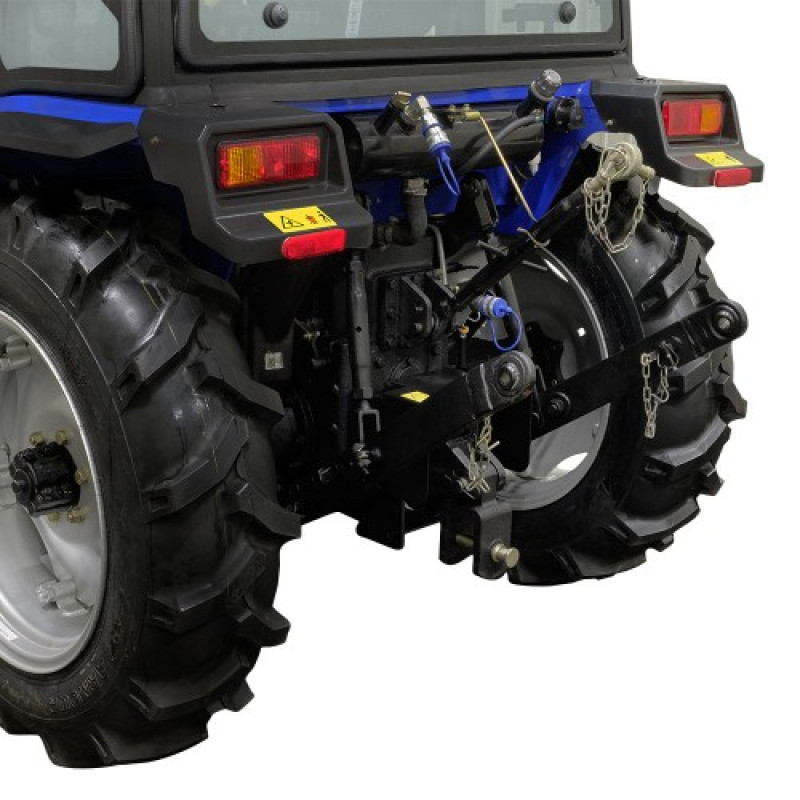

- Trailer hitch.
Specifications
Bore/stroke
85/95
Brakes
rear drum mechanical
Clutch coupling
2-disc dry, constantly closed
Compressor
-
Cooling System
liquid forced
Cooling system fan drive
V-belt drive
Driver's Cab
digital
Driver's Seat
on a shock absorber, adjustable for height and distance to the handlebars, without armrests
Engine cooling system capacity, L
12
Engine displacement, cm³
2155

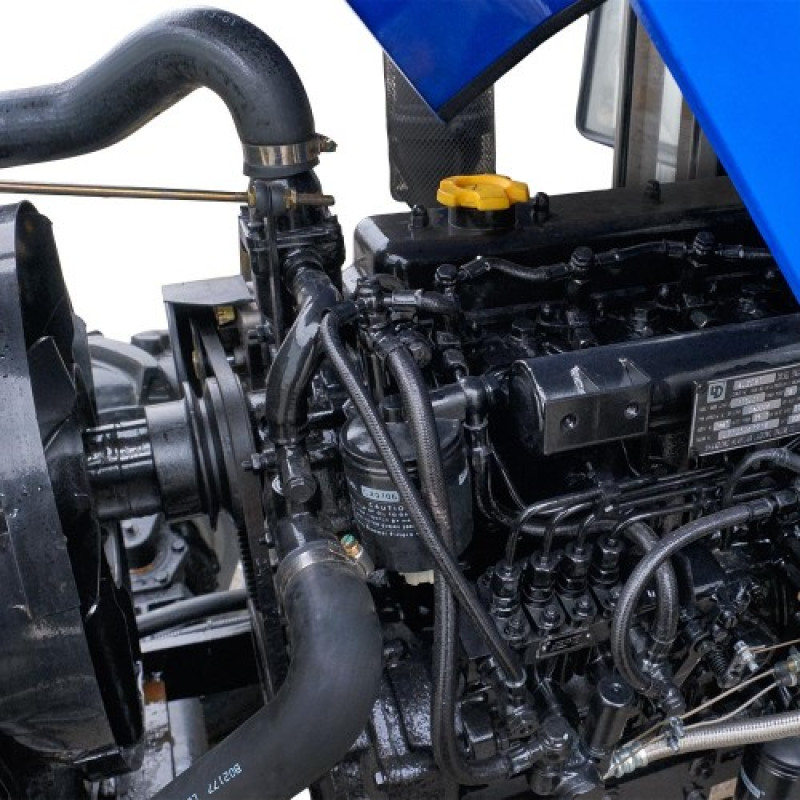

Engine model
4L22BT
Engine oil capacity, L
5
Engine oil type
mineral or semi-synthetic for diesel engines
Engine type
diesel
Forward/reverse speed (theoretical)
2.23/10.29
Front axle crankcase volume, L
3.5
Front axle lubricant type
TM "DTZ" TAD-17i API GL-5
Front Loads
8x10
Front tire size
6.50-16
Front track, mm
1290, 1390
Fuel tank capacity, L
38
Gearbox
(4x2)+(4x2)
Gearbox and rear axle crankcase volume, L
20
Hydraulic pump type
gear-driven
Loaded weight, kg
1875
Main Gear
direct
Maximum payload capacity of the attachment mechanism, kg
550
Minimum clearance, mm
290
Minimum turning radius with brakes, m
3
Minimum turning radius without brakes, m
3.75
Nominal engine crankshaft speed, rpm
2350
Nominal engine oil consumption, g/kWh
1.6
Nominal fuel consumption, g/kW*h
≤275
Nominal pulling force, kN
5.8
Number and arrangement of cylinders
4, vertically
Number of Hydration Ports
2 (1 pressure/drain + 1 drain)
Overall dimensions (L x W x H), mm
3240x1400x2380
Power Steering Pump
UP
Power Take-Off (PTO)
rear longitudinal
Power take-off (PTO) shaft speed, rpm
540 / 1000
Rated engine power, hp (kW)
35 (25.7)
Rear axle differential lock
+
Rear Tire Size
11.2-24
Rear track, mm
1155-1520
Trailer Socket
1
Wheel formula
4x4
Wheelbase, mm
1790
