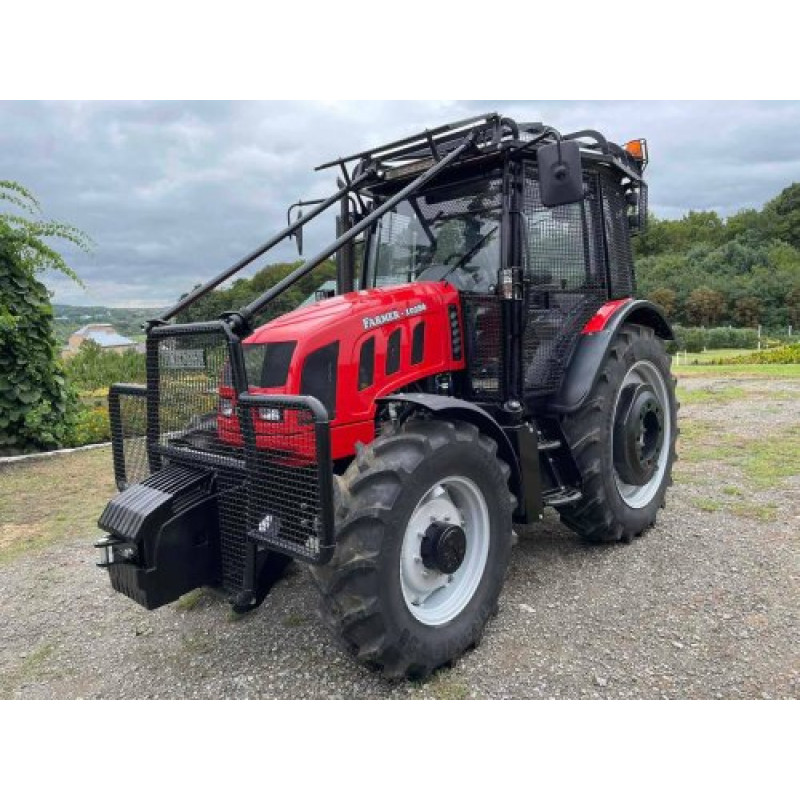

Farmer 10286 Tractor with Protective Frame — A Reliable All-Rounder for Heavy-Duty Work

Brand: FARMER. Product Type: Tractors > Mini Tractors. The Farmer 10286 combines a powerful turbodiesel engine, a reliable transmission, and a protective frame that ensures operator safety during field work, on plantations, or on the farm. This model is designed for a wide range of tasks: soil cultivation, working with a large variety of attachments, cargo transportation, and operating intensive implements.

Key Advantages: Powerful Perkins turbodiesel engine, 4x4 all-wheel drive, synchronized VALTRA mechanical transmission, high hitch lifting capacity, universal PTO speeds of 540/1000 rpm, and a large fuel tank for long work shifts.

Technical Specifications:

These technical parameters make the Farmer 10286 an effective solution for demanding tasks: the Perkins 1104C-44T diesel engine with a displacement of 4400 cm3 develops 98 hp (73 kW) at 2200 rpm, ensuring stable traction and economical fuel consumption under load. The reliable LUK dual-disc dry clutch, combined with the synchronized VALTRA mechanical transmission and 12/12 gearbox, provides precise gear selection and ease of maneuvering in the field.

The 4x4 all-wheel drive, along with a ground clearance of 470 mm, guarantees confident operation on difficult terrain and off-road conditions, while a minimum turning radius of 4.7 m makes the unit maneuverable in confined spaces. A lifting capacity of 3500 kg allows for efficient work with a wide range of heavy attachments.

The hydraulic system's flow rate of 60 l/min and the presence of three pairs of hydraulic outlets allow for simultaneous connection of several working tools or hydraulic cylinders. The PTO with speeds of 540/1000 rpm and a rated power of 88.74 hp (65.25 kW) makes the tractor a versatile tool for mowers, balers, rotary cultivators, and other equipment.

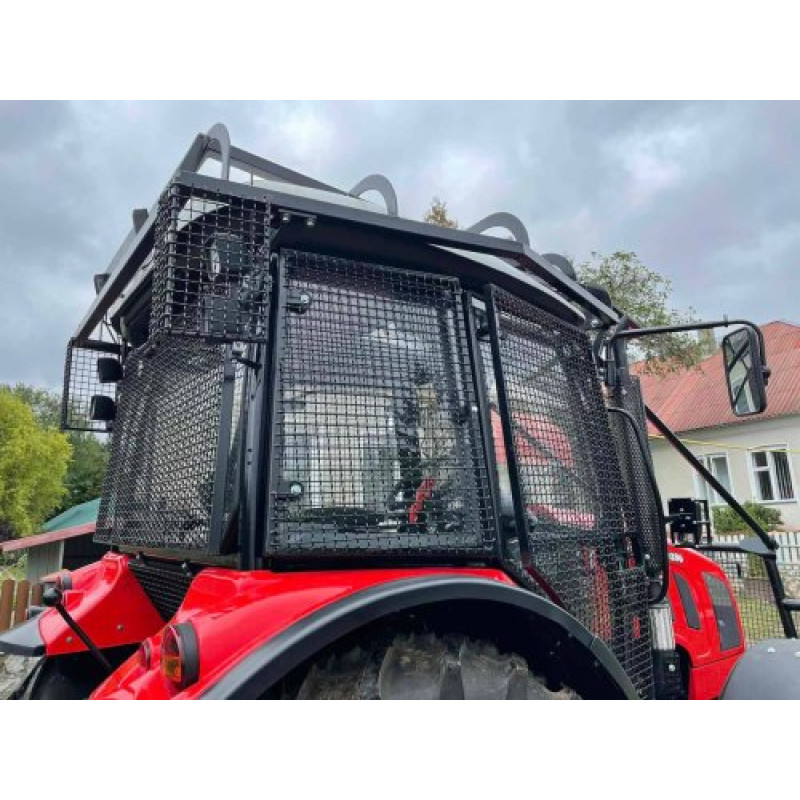

The 145-liter fuel tank capacity allows for long work shifts without frequent refueling. Dimensions of 4066x2400x2715 mm and a weight of 4680 kg reflect the structural stability and reliability of the Farmer 10286, and the protective frame enhances operator safety during complex field operations.

Operating Recommendations

• For intensive field work, select gears that provide optimal PTO speeds of 540 or 1000 rpm.
• Regularly inspect and service the LUK dual-disc clutch and perform transmission maintenance to extend the unit's lifespan.
• Use the hydraulic system considering its flow rate of 60 l/min and do not overload the number of connected tools beyond calculated capabilities simultaneously.

The Farmer 10286 is a balanced combination of power, lifting capacity, and maneuverability, making it an optimal choice for small and medium-sized farms. The protective frame adds confidence to the operator when working on difficult terrain and during heavy field operations.
