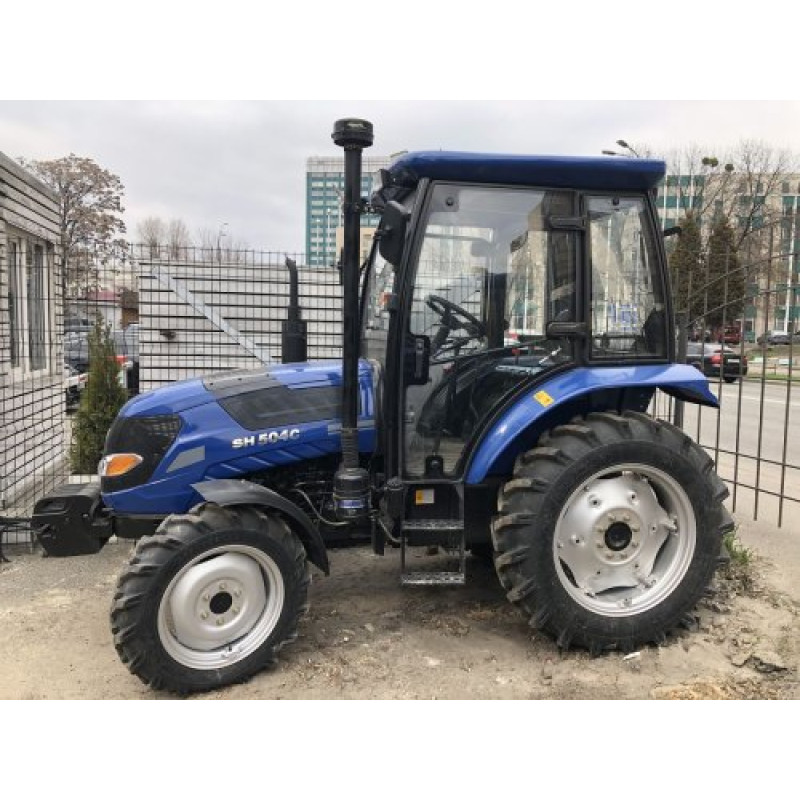

Deutz-Fahr SH-504 C Tractor — Reliable 50-hp Mototractor for Professional Tasks
Introducing the Deutz-Fahr SH-504 C from manufacturer DEUTZ-FAHR — a compact 4x4 mototractor with 50 hp, designed for intensive use in agriculture and the municipal sector. This model combines German components, a well-engineered transmission, and ease of maintenance, making it a versatile tool for soil cultivation and working with mounted and trailed equipment.
Key advantages: high traction and lifting capacity; modern components and parts of German origin; comfortable steering control thanks to power steering; reliable hydraulic disc brake system and durable LUK twin-disc clutch.
Technical specifications:
| Tractor power: | 50 hp |
| Wheel drive: | 4x4 |
| Engine model: | QUANCHAI Q13123120G (DEUTZ-FAHR, Germany) |
| Number and arrangement of cylinders: | 4, vertical |
| Rated crankshaft speed: | 2400 rpm |
| Engine cooling: | liquid |
| Fuel tank capacity: | 42 L |
| Rated traction force: | 10.2 kN |
| Power steering: | yes |
| Transmission: | 8+8R, reverse gearbox with creeper gear, Germany |
| Clutch: | dry, LUK twin-disc (Germany) |
| Brake system: | hydraulic disc brakes |
| Hydraulic lift drive: | integrated hydraulic cylinder, separate gear hydraulic pump |
| Power take-off (PTO) speed: | 540/1000 rpm |
| Maximum lifting capacity of mounted mechanism: | 650 kg |
| Tire size: | front: 8.3-20; rear: 12.4-28 |
| Dimensions, LxWxH: | 3303x1460x1996 mm |
| Weight: | 2070 kg |
The heart of the tractor is the QUANCHAI Q13123120G engine in DEUTZ-FAHR specification (manufactured in Germany), which ensures stable operation under high loads and an optimal balance between power and fuel efficiency. The 42 L fuel tank capacity is sufficient for a long work cycle without frequent refueling.
The transmission features an 8+8R gearbox with reverse and a creeper gear, manufactured in Germany, allowing for precise selection of operating modes and increased maneuverability. The clutch is a dry twin-disc from LUK (Germany), which increases the unit's lifespan and reliability. The hydraulic disc brake system guarantees safe braking under load.
The tractor's hydraulics are equipped with an integrated hydraulic cylinder and a separate gear hydraulic pump, ensuring stable operation of mounted equipment with a maximum lifting capacity of up to 650 kg. The power take-off operates at 540/1000 rpm, providing compatibility with a wide range of agricultural implements. The rated traction force of 10.2 kN allows for effective soil cultivation and trailer towing.
The model's dimensions are 3303x1460x1996 mm, and its weight is 2070 kg. The tire combination (front 8.3-20, rear 12.4-28) ensures reliable grip and stability on slopes. The presence of power steering makes maneuvering easy even during intensive work.
Who is the Deutz-Fahr SH-504 C suitable for?
- Farms requiring a 50-hp universal tractor for fields and homestead plots.
- Municipal enterprises for performing work on roads, in parks, and for landscaping.
- Owners of small agricultural businesses for a wide range of mounted and trailed tasks.
The Deutz-Fahr SH-504 C model combines German components, a reliable transmission, and well-designed hydraulics, making it an excellent choice for those seeking a powerful and economical mototractor for daily intensive use. Product category: Tractors > Mototractors. Manufacturer: DEUTZ-FAHR.
