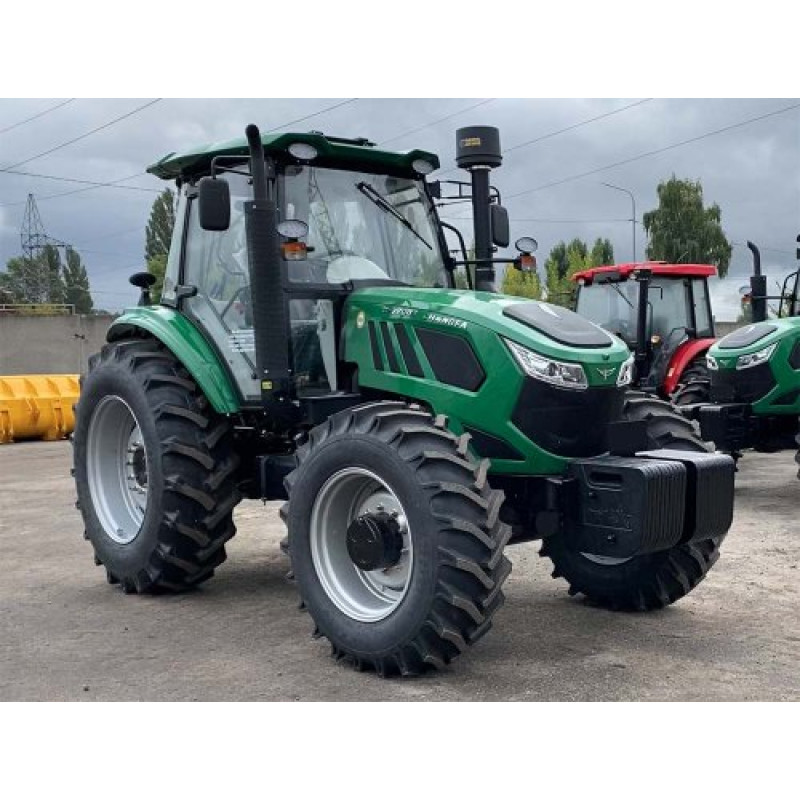

Changfa CFJ2204 Tractor — Powerful Universal Unit for Heavy-Duty Work

Brand: Changfa. Model: CFJ2204. Category: Tractors > Mini Tractors. This tractor combines high power, reliable components, and modern cabin equipment, making it an optimal choice for agricultural, transport, and other heavy-duty tasks.

The heart of the machine is the Yuchai YCA07235-T301 diesel engine, compliant with Euro III standards, equipped with a turbocharger and intercooler. The engine's nominal power is 220 hp (161.8 kW), ensuring high traction and productivity in the field and on the road. An ultra-efficient 2-stage air filter (Luxurious) is used to protect the engine.

Transmission and control system: clutch — 14-inch LUK double-acting, single-disc with hydraulic drive; the gearbox fundamentally has 32 forward and 32 reverse speeds, with an optional Power Shift 46+32 available. PTO power is 176.7 hp (130 kW) with speeds of 540/1000 rpm. Number of PTO splines in base: 8-48x40x8, options: 8-38х29.4х6 or 6-34.8х28.9х8.7.

The split-type hydraulic system with three pairs of hydraulic outlets and a capacity of 64 l/min ensures efficient operation of mounted equipment. The hydraulic pump type is gear-driven from the engine. Implement control is implemented by the BOSCH Rexroth (Germany) electronic system. The lifting capacity of the hitch mechanism reaches 5800 kg. Rear differential lock — mechanical.

Chassis and steering: steering — hydraulic, independent; front track available in options 1610/1700/1770/1800 mm, rear track — 1640-2170 mm. Front/rear tire size: 16.9-28 / 20.8-38. Wheel turning radius — 5.2 m, ground clearance is 530 mm.

Dimensions and weight: overall dimensions LхWхH — 5300×2330×3170 mm, wheelbase — 2825 mm, curb weight — 7900 kg. Ballasting: front/wheel counterweights — 800/600 kg. The fuel tank with a capacity of 335 l ensures long operation without frequent refueling.

Brakes are disc, wet-type, with hydraulic drive, guaranteeing reliable braking even under load. Cabin equipment includes a sealed cabin with heating and air conditioning, cabin filters, a roof hatch, an engine operating mode switch, a Grammer Luxury seat, and an additional seat for an assistant — all for operator comfort during long-term operation.

Key technical parameters for quick overview:

• Engine: Yuchai YCA07235-T301 Euro III with turbocharger and intercooler;
• Power: 220 hp (161.8 kW);
• Air filter: ultra-efficient 2-stage (Luxurious);
• Clutch: 14" LUK double-acting, single-disc with hydraulic drive;
• Gearbox: 32F+32R (Power Shift 46+32 — option);
• Hydraulic system: split, 3 pairs of hydraulic outlets; capacity 64 l/min;
• Implement control: BOSCH Rexroth electronic system;
• PTO: 176.7 hp (130 kW), 540/1000 rpm;
• Lifting capacity: 5800 kg;
• Dimensions: 5300×2330×3170 mm; wheelbase 2825 mm; curb weight 7900 kg;
• Fuel tank: 335 l;
• Brakes: disc, wet-type, with hydraulic drive.

Detailed technical specifications:

The Changfa CFJ2204 is suitable for those seeking a reliable and productive tractor with a powerful engine, modern electronic implement control, and a comfortable cabin for long shifts. In terms of power, lifting capacity, and equipment, this model holds a leading position in its class.
