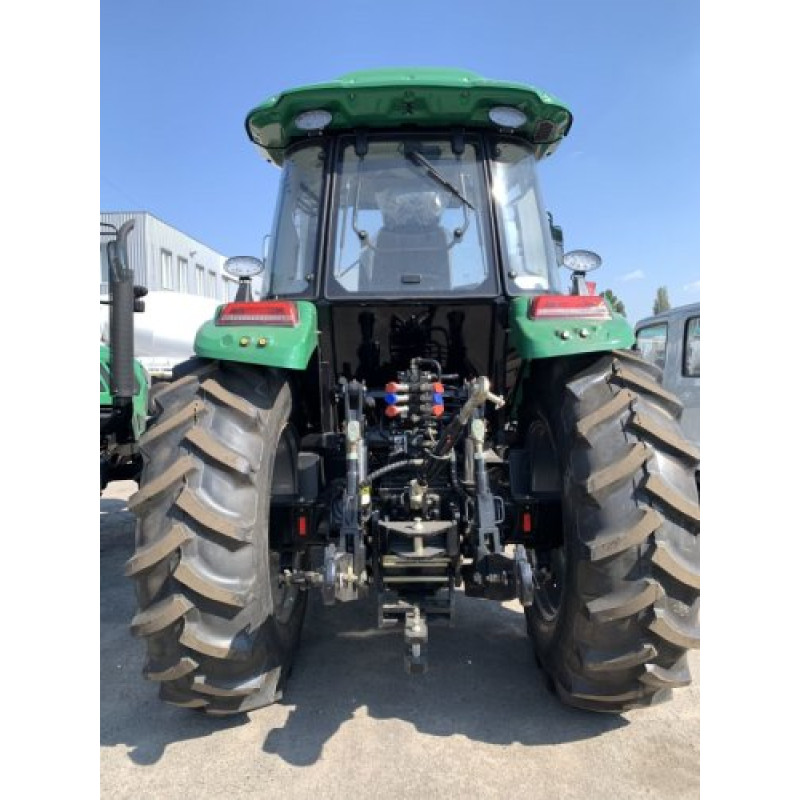

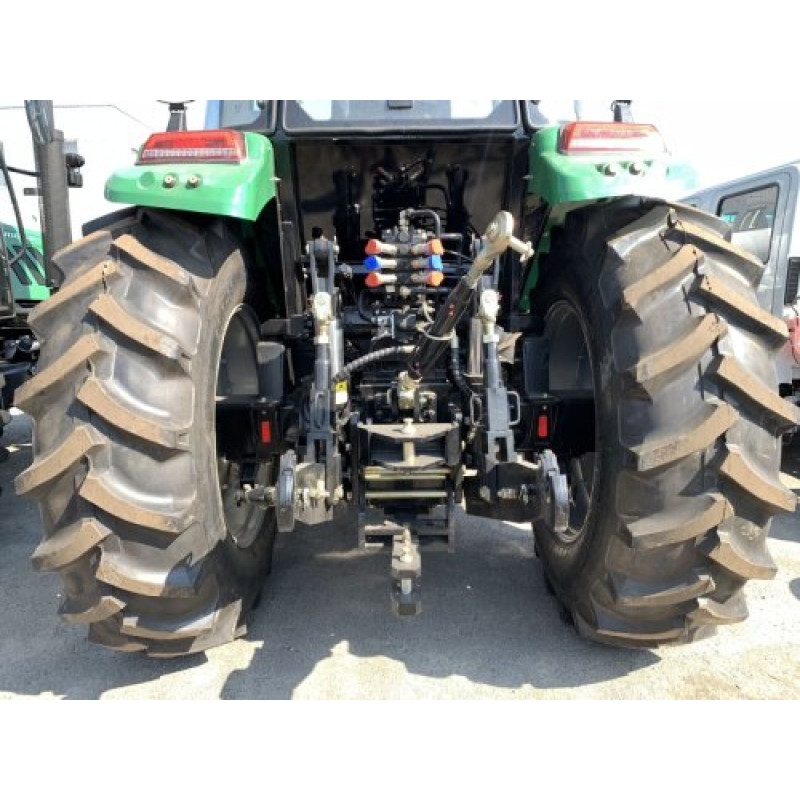

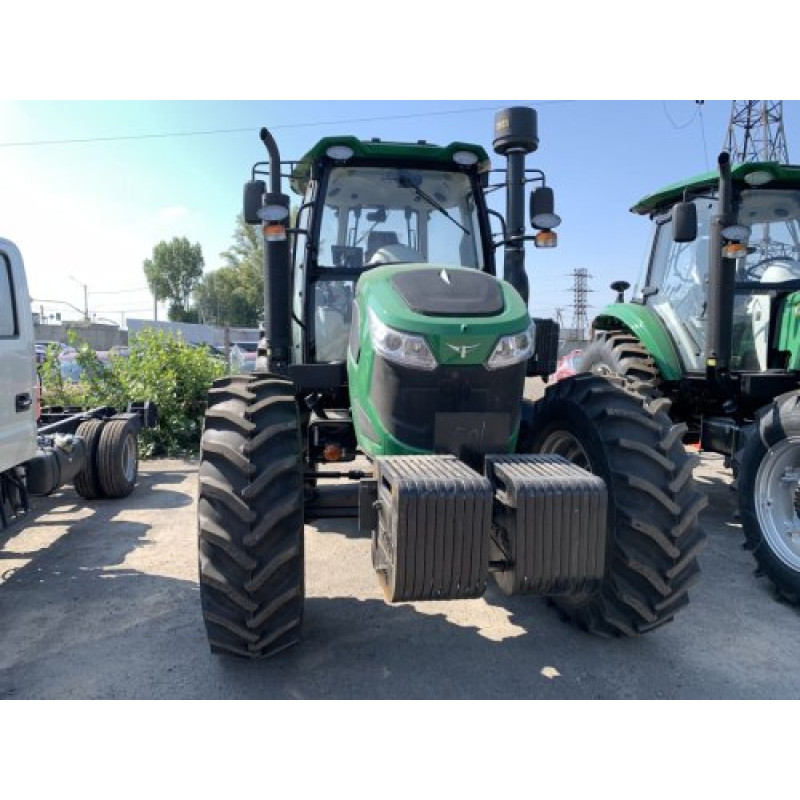

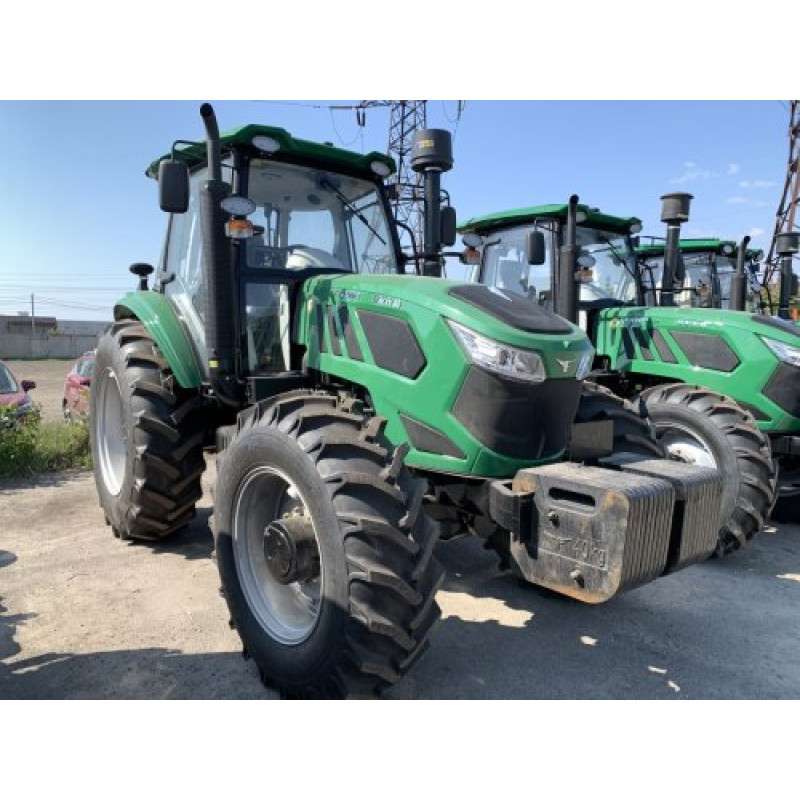

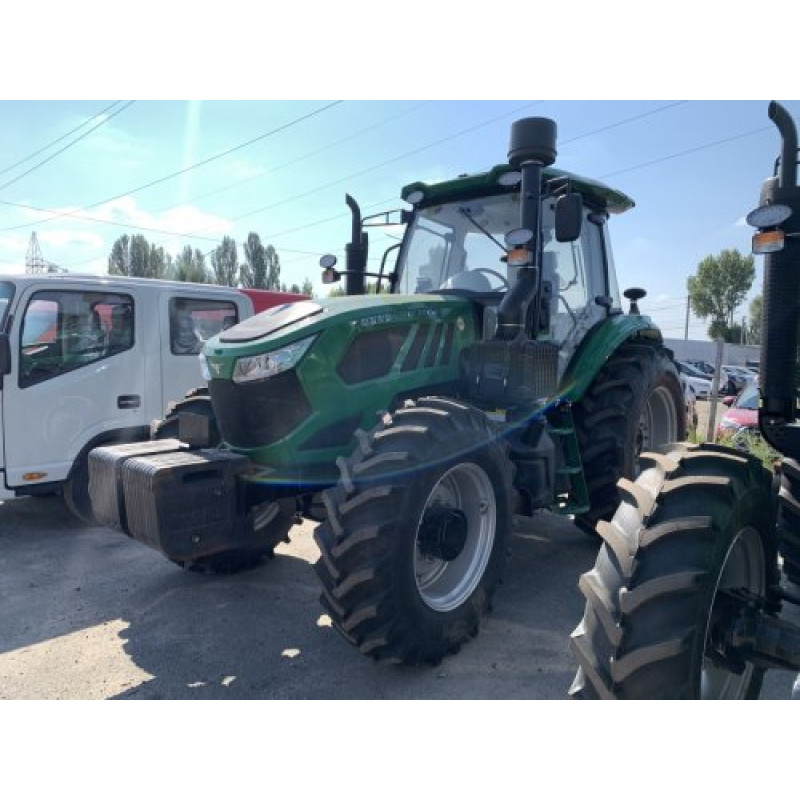

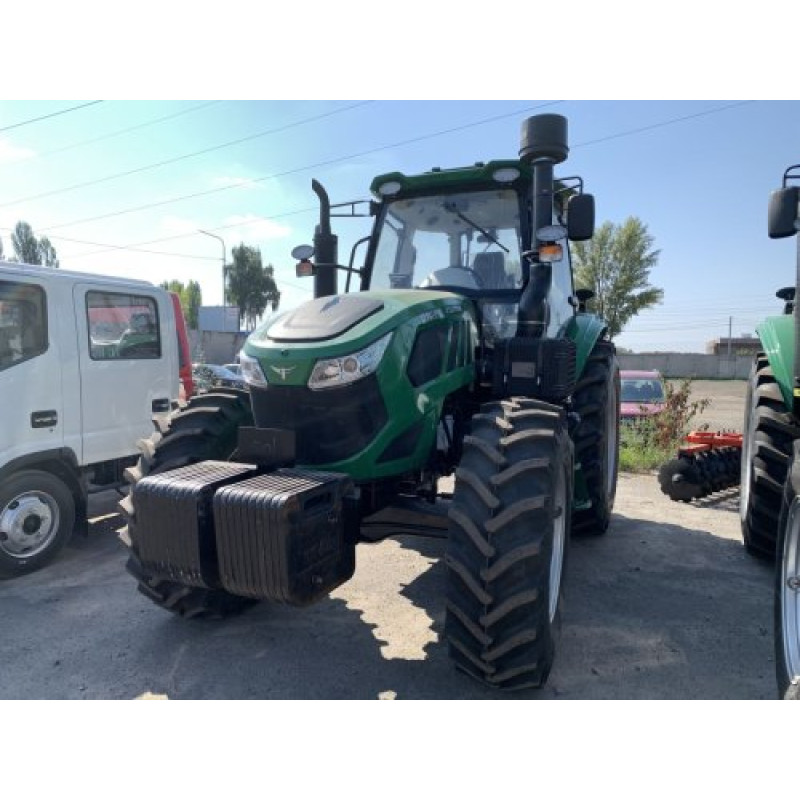

Changfa CFH2004L Tractor Review — A Powerful All-Rounder for Agricultural Production
The Changfa CFH2004L tractor is a high-performance machine from the manufacturer Changfa, designed for heavy field work and tractor rental operations. At the heart of the model is a six-cylinder Yuchai YC6J220-T304 Euro III engine with turbocharging, intercooler, and pre-start heating system, delivering a nominal power of 200 hp (147.1 kW). The reliable engine ensures stable operation in various climatic conditions and withstands prolonged loads.
Key Advantages of the Model
- High traction and stable operation of the Yuchai engine with turbocharging and intercooler ensure productivity in demanding conditions.
- Electronic engine and hitch control system increases setting precision and operational efficiency.
- Sealed cabin with heating, air conditioning, air filtration, roof hatch, rear-view camera with monitor, and comfortable suspension seat guarantees operator comfort throughout the work shift.
- Reliable transmission with 32 forward + 32 reverse (with synchronizer and creeper gear) allows selecting optimal speeds for various operations.
Operational Capabilities and Equipment
The standard configuration of the Changfa CFH2004L includes an electronic hitch control system from Rexroth (Germany), which enhances precision when working with mounted implements. The separate hydraulic system has 4 pairs of hydraulic outlets, and the hydraulic system's flow rate is 64 l/min. The hydraulic pump type is gear-driven by the engine; rear differential lock is hydraulic, and steering is independent hydraulic.
The power take-off (PTO) has a power of 170/125 and speeds of 540/1000 rpm. The number of PTO splines is 8-48x40x8 (base) with options for 8-38x29.4x6 or 6-34.8x28.9x8.7. The lifting capacity of the hitch mechanism is 5800 kg, allowing work with heavy implements.
The clutch system features a 14-inch LUK clutch, double-acting, single-disc with hydraulic drive. Brakes are wet-type disc brakes with hydraulic drive, ensuring reliable braking and component longevity. For dusty conditions, an ultra-efficient two-stage air cleaner (Luxurious) is provided, which extends engine life.
Technical parameters important for agricultural production: ground clearance — 500 mm, turning radius — 5.4 m, front/rear tire size — 16.9-28 / 20.8-38. Front/rear ballasting — 800/600 kg.
Machine dimensions and weight: length × width × height — 5300×2330×3170 mm, wheelbase — 2825 mm, curb weight — 7900 kg. Fuel tank capacity is 270 l.
The Changfa CFH2004L combines engineering solutions for enhanced reliability, convenient operation, and a powerful technical base, making it an optimal choice for large farms and agricultural enterprises requiring versatile and robust machinery.
Product Type: Tractors > Mini Tractors. Manufacturer: Changfa. Model: CFH2004L.
Specifications:
| Engine Type | Yuchai YC6J220-T304 Euro III with turbocharger and intercooler, pre-start heating |
| Engine Power, hp (kW) | 200 (147.1) |
| Air Filter | Ultra-efficient 2-stage air cleaner (Luxurious) |
| Clutch | 14-inch LUK double-acting, single-disc with hydraulic drive |
| Transmission | With synchronizer and creeper gear: 32 forward + 32 reverse |
| Hydraulic System: type / number of hydraulic outlets | Separate / 4 pairs |
| Hydraulic Pump Type | Gear pump driven by engine |
| Hitch Control | Electronic system Rexroth (Germany) |
| PTO: power, hp / kW | 170/125 |
| PTO: speed, rpm | 540/1000 |
| Number of PTO Splines | 8-48x40x8 (base) / option 8-38x29.4x6 or 6-34.8x28.9x8.7 |
| Hitch Mechanism Lifting Capacity, kg | 5800 |
| Hydraulic System Flow Rate, l / min | 64 |
| Rear Differential Lock | Hydraulic |
| Front / Rear Wheel Track, mm | 1800-1912-2080 / 1750-1854 |
| Steering | Hydraulic, independent |
| Front / Rear Tire Size, inch | 16.9-28 / 20.8-38 |
| Turning Radius, m | 5.4 |
| Ground Clearance, mm | 500 |
| Overall Dimensions: LxWxH, mm | 5300×2330×3170 |
| Wheelbase, mm | 2825 |
| Curb Weight, kg | 7900 |
| Ballasting: front / wheel counterweights, kg | 800/600 |
| Brakes | Disc, wet-type, with hydraulic drive |
| Fuel Tank Capacity, l | 270 |
| Cabin Equipment | Sealed cabin with heating and air conditioning system, cabin filters, roof hatch, engine operating mode switch, rear-view camera with monitor |
You can buy the Changfa CFH2004L tractor in Ukraine through the official dealer — the "Flash Army" online store. We provide a warranty of 1 year or more on all equipment, arrange delivery throughout Ukraine, and accept cash or cashless payments. To order, leave your number in the form on the website, and a manager will contact you to clarify delivery and configuration details.
