Product Code: FA101-43596-101
287 760 грн.
Buy this product in 1 click:
Main specifications
Bore/stroke:
85x90
Braking Mechanism:
drum-type
Clutch:
dry, single-disc
Cooling system fan drive:
V-belt drive
Engine cooling system capacity, L:
6
All specifications
We will deliver this product:
Payment
Description

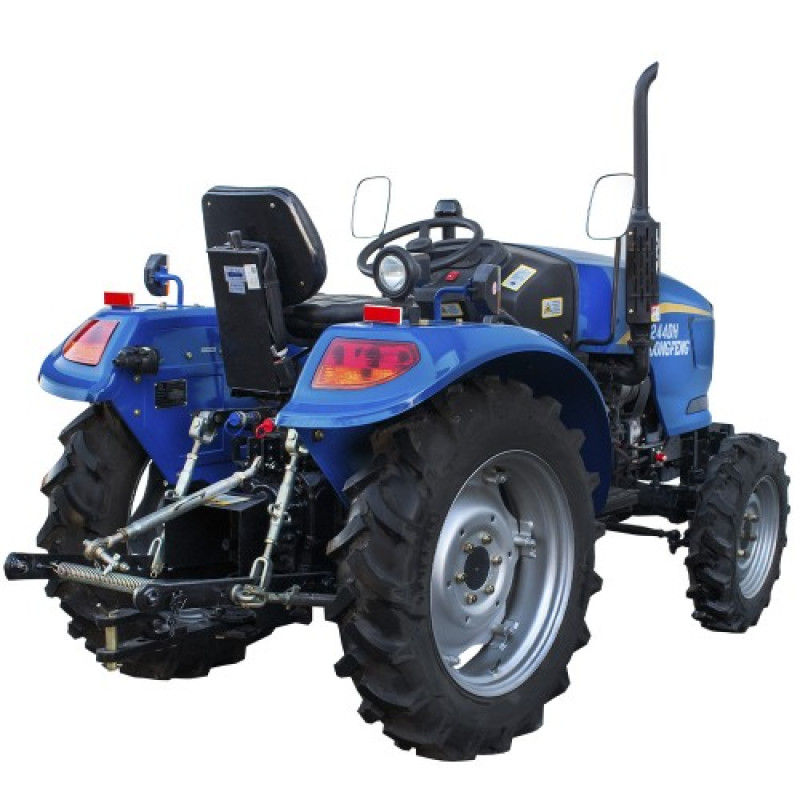

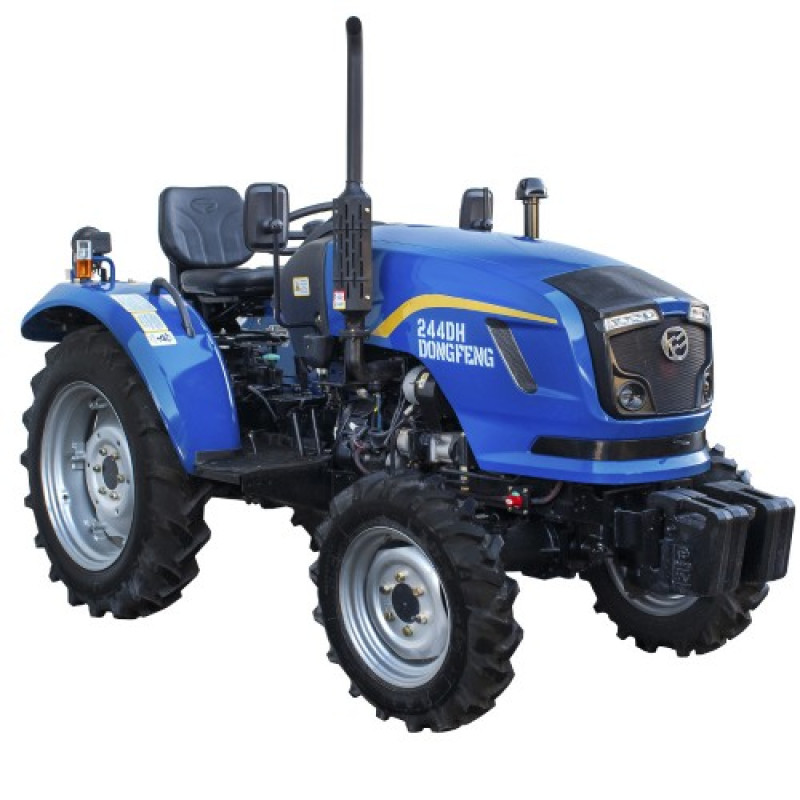

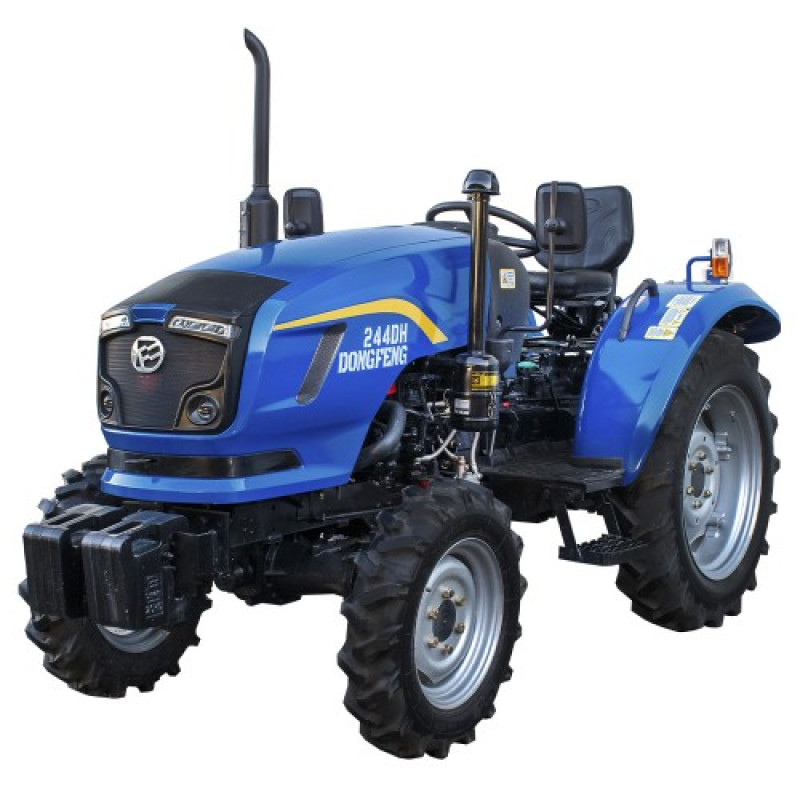

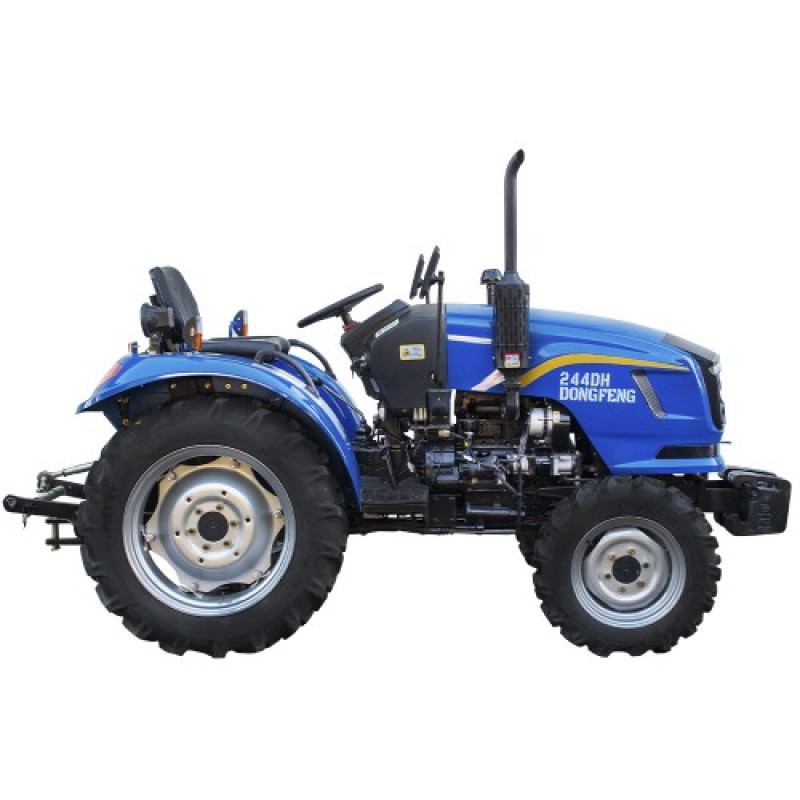

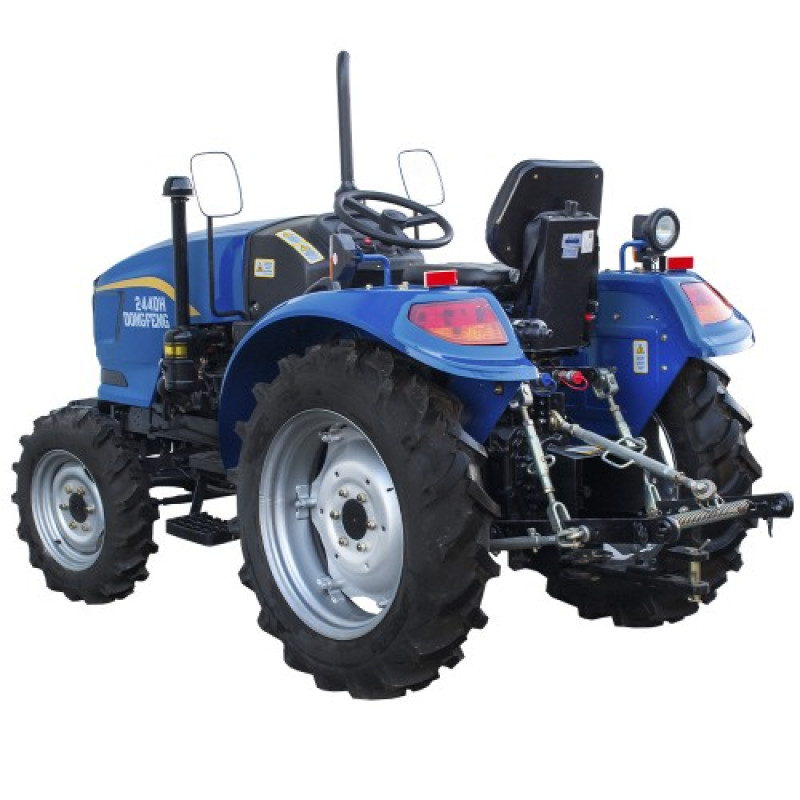

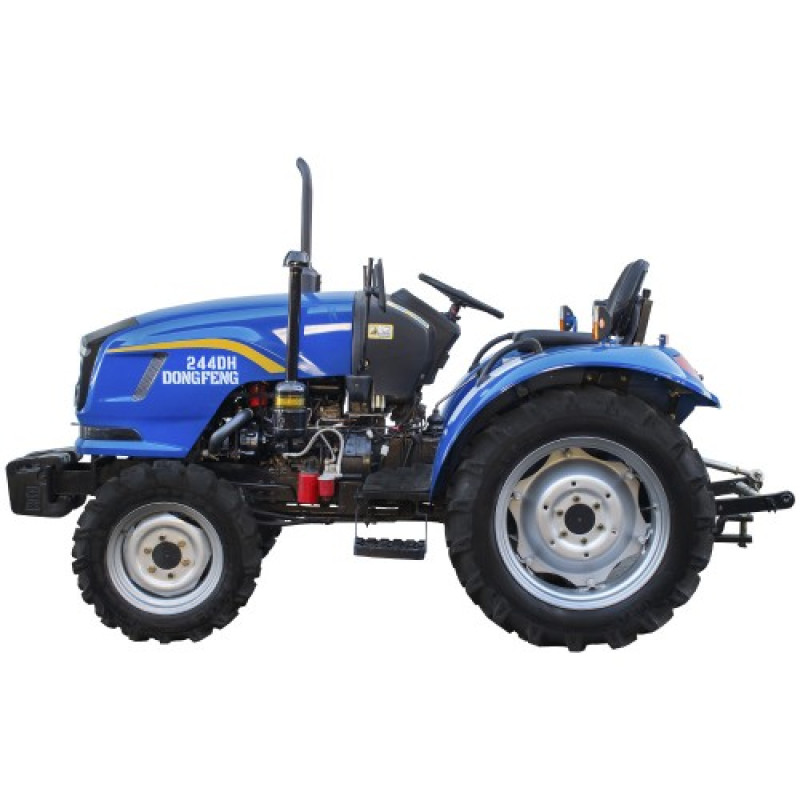

Description of the Dongfeng 244DH Tractor
The 24 hp all-wheel-drive row-crop tractor has all the advantages of the 244D tractor and, in addition, is equipped with hydraulic power steering, which significantly increases operating comfort and reduces driver fatigue.
Design Features of the Dongfeng 244DH Tractor:
- New, modern design;

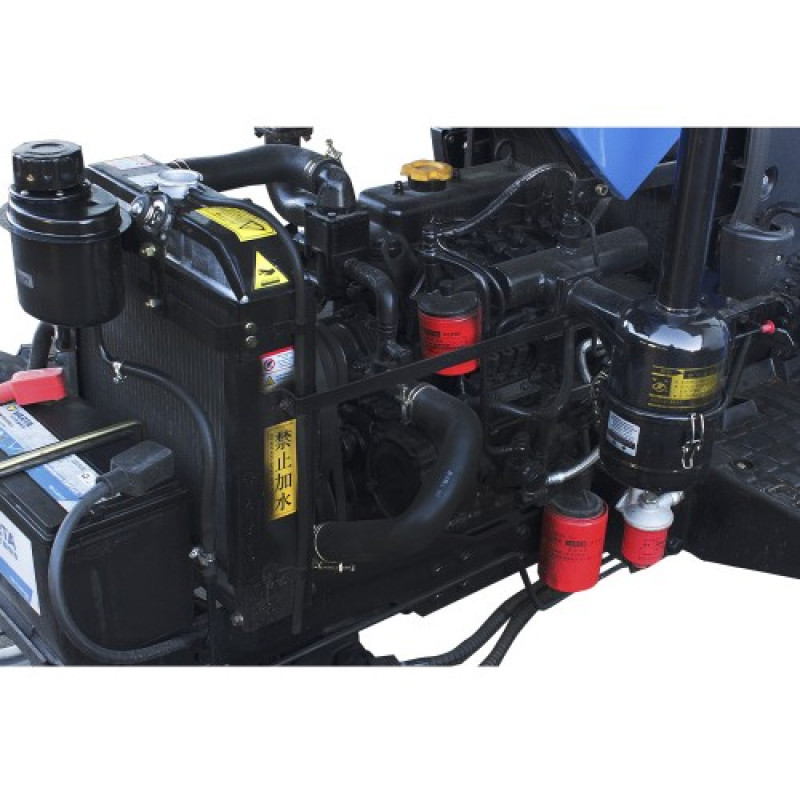

- Reliable 3-cylinder 24 hp engine;
- 8 + 2 gearbox;
- Front drive axle;
- Power steering with a separate reservoir and hydraulic pump;
- 2-speed PTO 540 / 730 rpm;
- Adjustable front and rear tracks;
- Separate rear-wheel brakes;
- Parking brake;
- Double fuel filtration;
- Rear axle differential lock;
- Tall and wide front wheels 6.00-16;

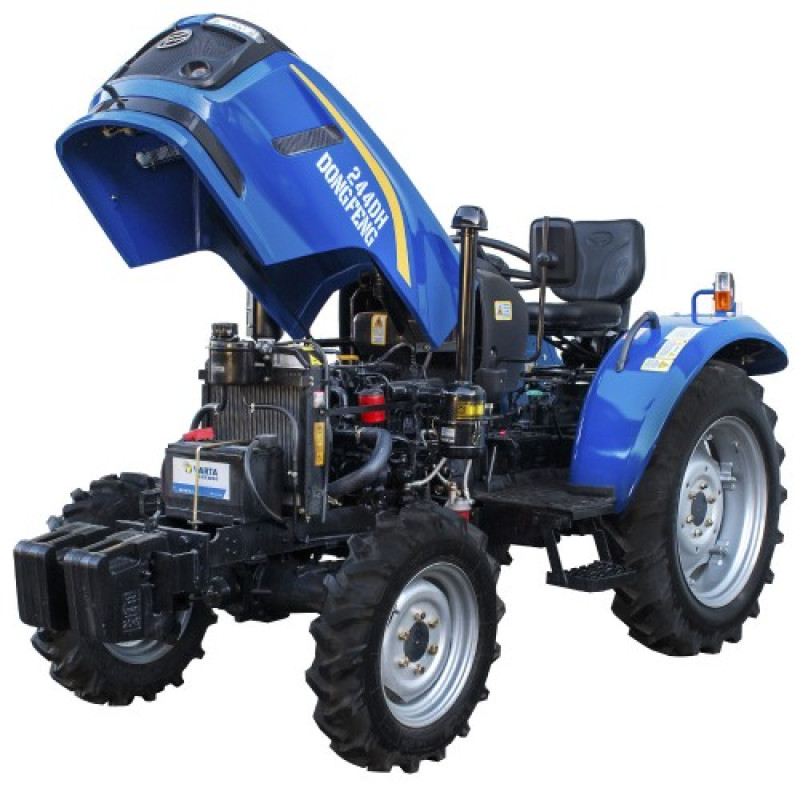

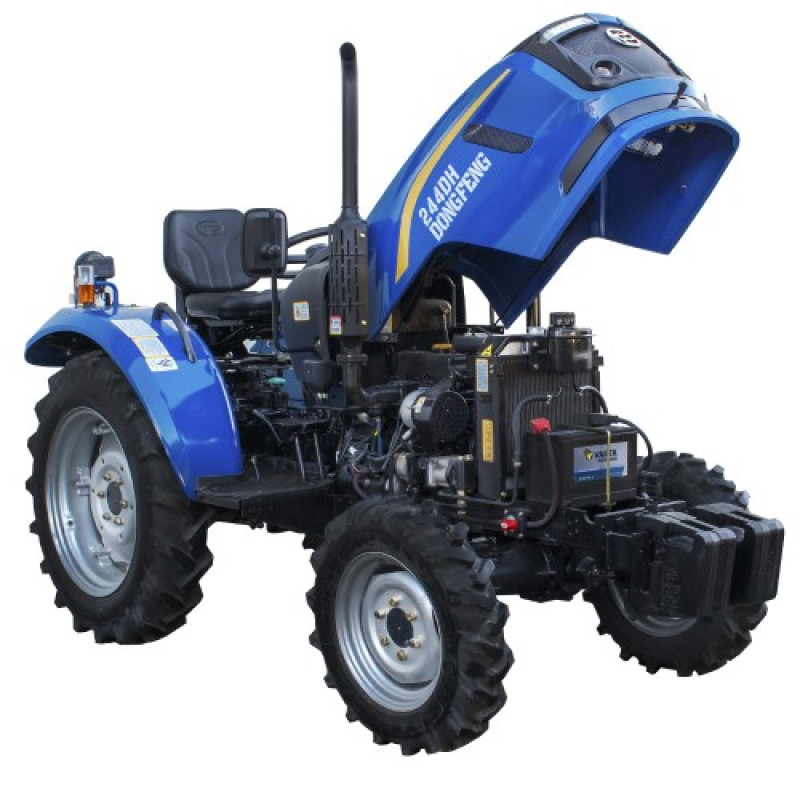

- Shock absorber for easy and convenient hood lifting;
- Headlights equipped with projector optics;
- Improved parking brake.
Dongfeng 244DH Model Configuration:

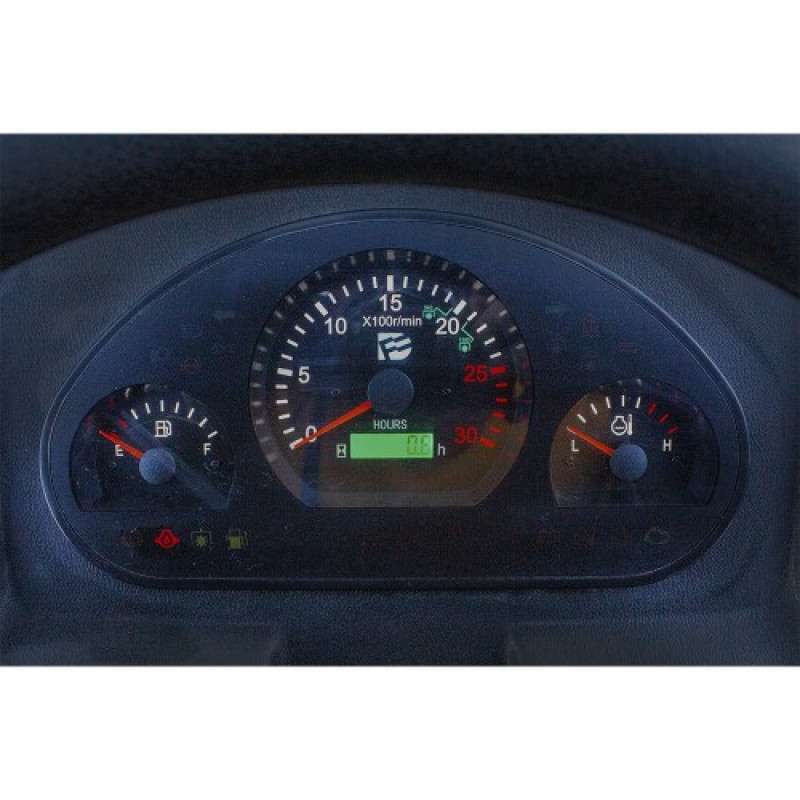

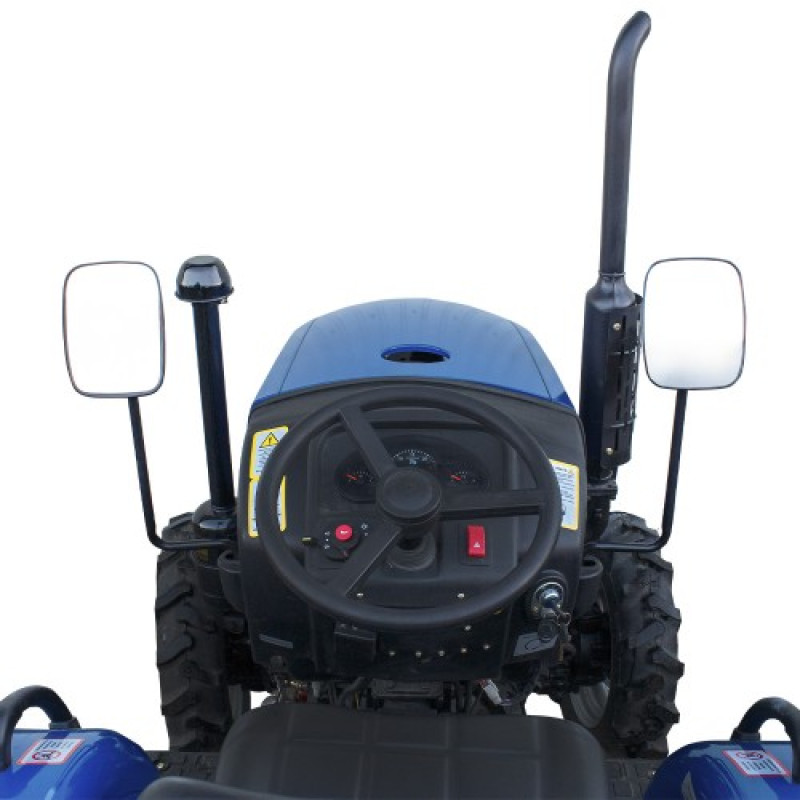

- Oil pressure gauge, coolant temperature gauge, ammeter, fuel level gauge;
- Hydraulic output;

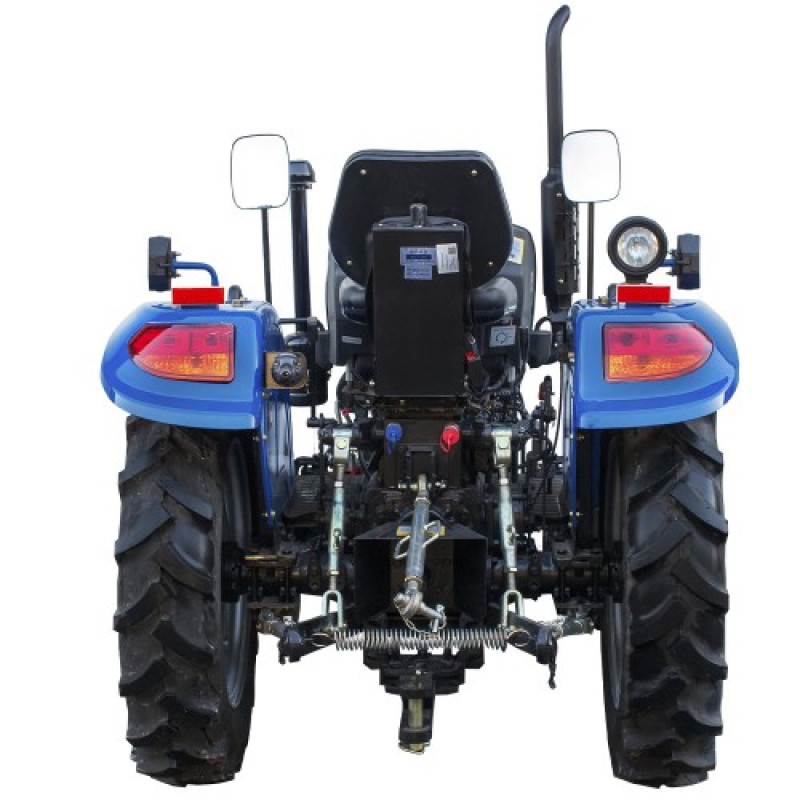

- Rear auxiliary light;

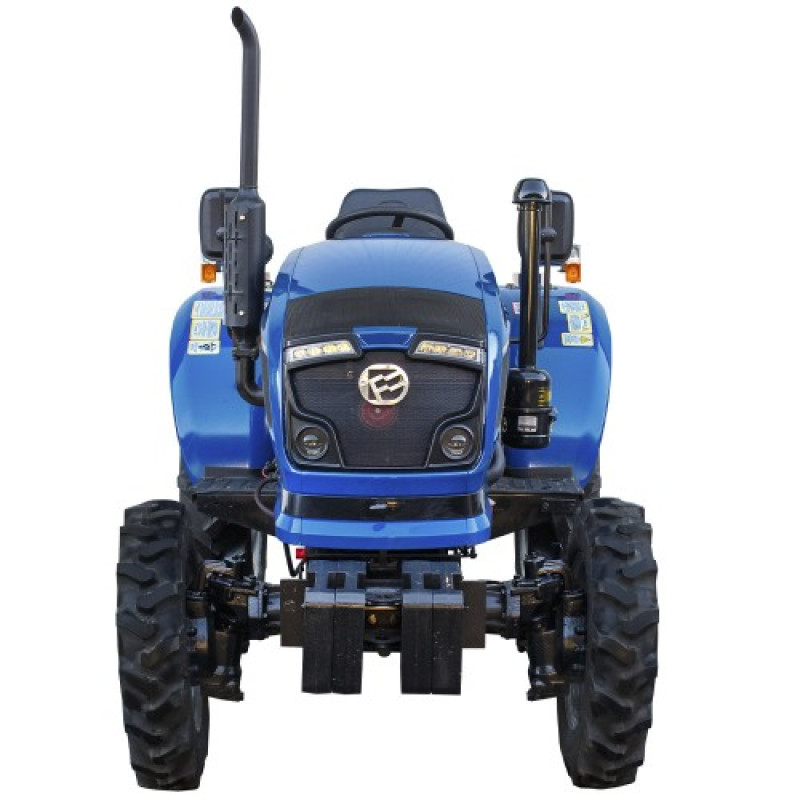

- Front mounted weights 4x20 kg;

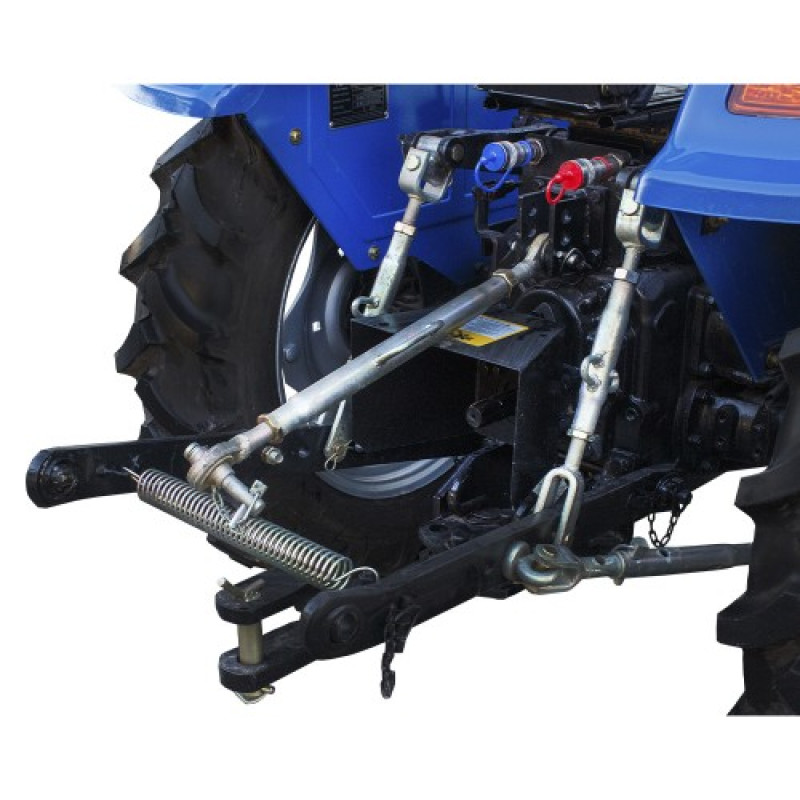

- Trailer hitch;
- Rearview mirrors;
- Turn signal and marker light repeaters installed on fenders;
- Emergency stop signal;
- Rubber mat.
You can buy the Dongfeng 244DH tractor throughout Ukraine through our official representatives, or order it using the special feedback form in the "Contacts" section. All Dongfeng tractors come with a 2-year warranty period.
Specifications
Bore/stroke
85x90
Braking Mechanism
drum-type
Clutch
dry, single-disc
Cooling system fan drive
V-belt drive
Engine cooling system capacity, L
6
Engine displacement, cm³
1532
Engine oil capacity, L
6.6
Engine oil type
mineral or semi-synthetic for diesel engines
Engine Start
electric starter with safe start
Engine type
vertical, 3-cylinder 4-stroke diesel with forced water cooling and direct injection
Front axle crankcase volume, L
6
Front axle lubricant type
TAP-15 or Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)
Front tire size
6.00-16
Front track, mm
1140
Fuel pump type
plunger, in-line
Fuel tank capacity, L
25
Gearbox
(4+1)x2
Gearbox and rear axle crankcase volume, L
20
Hydraulic pump type
gear pump
Loaded weight, kg
1472

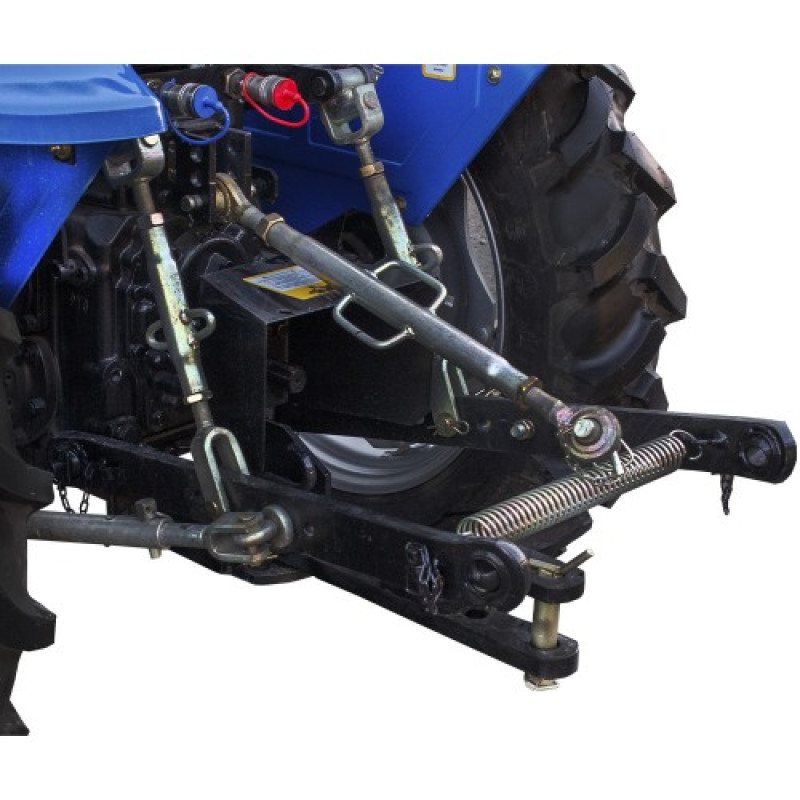

Maximum payload capacity of the attachment mechanism, kg
423
Minimum clearance, mm
292
Minimum turning radius with brakes, m
2.8±0.2
Minimum turning radius without brakes, m
3.0±0.2
Nominal engine crankshaft speed, rpm
2350
Nominal engine oil consumption, g/kWh
2.04
Nominal fuel consumption, g/kW*h
248
Nominal pulling force, kN
5.8
Overall dimensions (L x W x H), mm
3200 x 1440 x 2000
Power Steering Pump
+
Power take-off (PTO) shaft speed, rpm
540 / 730
Rated engine power, hp (kW)
24 (17.6)
Rear axle differential lock
+
Rear Tire Size
9.5-24
Rear track, mm
1140 / 1020, 1120
Theoretical forward speed, km/h
1.32-30.48
Theoretical reverse speed, km/h
1.73-8.96
Type of oil in gearbox and rear axle
TAP-15 or Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)
Wheel formula
4x4
Wheelbase, mm
1630
