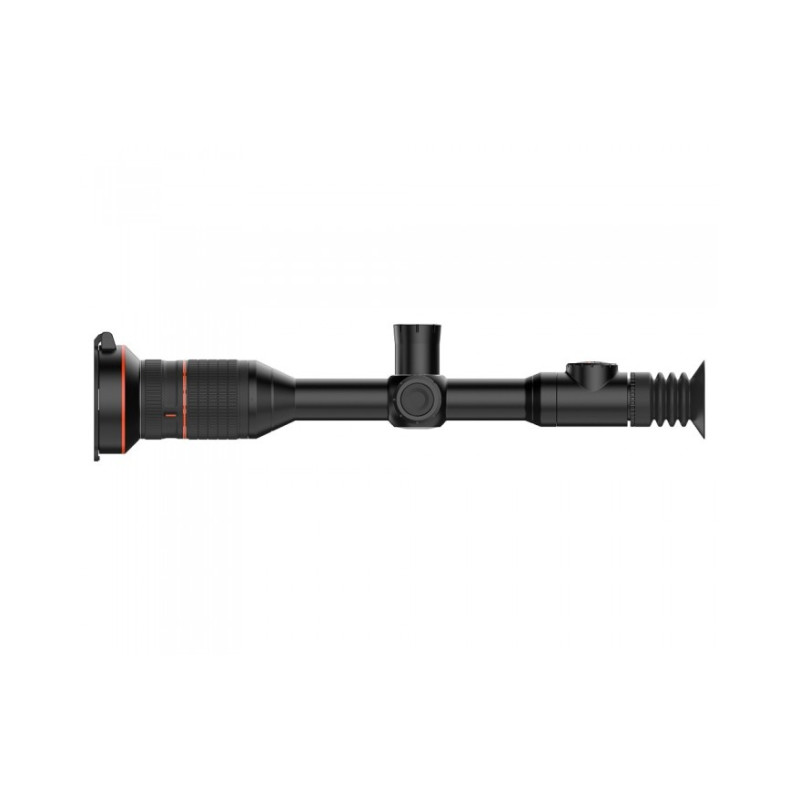

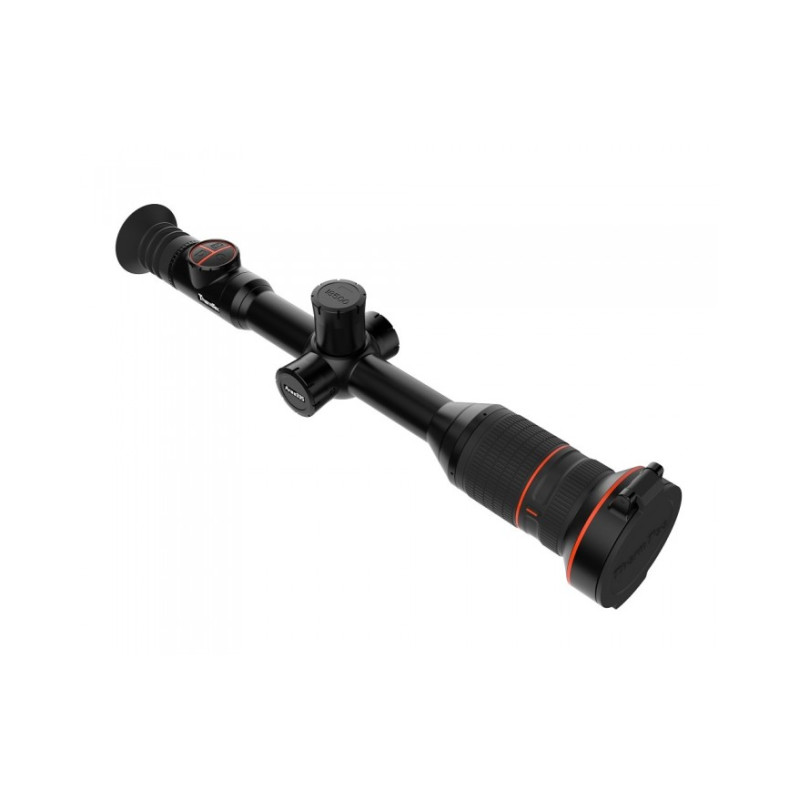

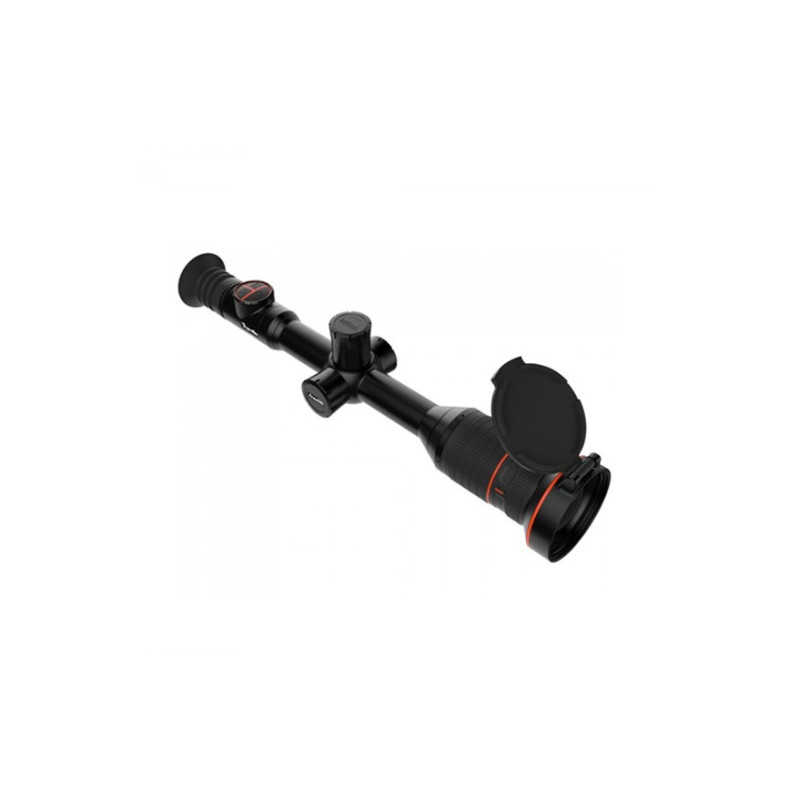

Thermal Imager ThermTech ARES335 Black
The ThermTec ARES 335 thermal imager is a handheld, dual-purpose thermal imaging device from the manufacturer ThermTec. This device combines a compact and well-thought-out design, a reliable aircraft-grade aluminum construction, and modern electronic solutions for high-quality thermal imaging.
Key advantages of the device:
- Automatic rangefinder for measuring distance to target.
- Convenient ergonomic design and compact size for extended use in the field.
- High-quality OLED/AMOLED display with 1024 × 768 pixel resolution for clear image display.
- Simple control using rotary buttons.
- Continuous 1×–6× zoom in HD mode.
- Continuous brightness and contrast adjustment for optimal visibility in various conditions.
- Precise lens focusing for detailed target identification.
- Durable hard-anodized surface, resistant to rust and scratches.
- Lightweight and improved aircraft-grade aluminum construction.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor Resolution | 384 × 288 pixels, 12 μm pixel size |
| Spectral Range | 8–14 μm |
| NETD | ≤35 mK |
| Frame Rate | 50 Hz |
| Lens | 35 mm, F1.0 |
| Field of View | 7.5° × 5.6° |
| Magnification | 1–6× (continuous) |
| Color Palettes | 6 options |
| Display Type | AMOLED (OLED), 1024 × 768 resolution, 0.39" size |
| Eye Relief | 50 mm |
| Exit Pupil | 6 mm |
| Diopter Adjustment | -5 ~ +5 |
| Max Recoil Force (Rifled Weapons) | 850 Gs |
| Mounting Brackets | Standard 30 mm rings |
| Reticle | 7 |
| Reticle Color | Black, white, red, blue |
| Media Support | Photo/video playback and recording |
| Memory Card | 16 GB |
| Zeroing | Automatic and manual zeroing, 5 zeroing profiles |
| Additional Features | Reverse battery connection support, picture-in-picture mode, Wi‑Fi |
| Image Calibration | Lens cap |
| Interface | USB Type-C |
| Battery | Replaceable 18650 or 18500 battery |
| Battery Life | Up to 6 hours |
| Operating Temperature | -20 … +50 ℃ |
| Protection Rating | IP67 |
The ThermTech ARES335 Black device is designed for use in demanding conditions — for both civilian and professional military or hunting tasks. The combination of high sensor sensitivity (NETD ≤35 mK), high frame rate (50 Hz), and a clear AMOLED display ensures fast and accurate detection of thermal targets. The integrated rangefinder, support for photo and video recording, Wi‑Fi, and 16 GB memory card storage make this device a versatile tool for observation and documentation.
The model features a durable construction with an anodized surface for protection against corrosion and wear, a standard 30 mm ring mounting interface, and withstands recoil from rifled weapons up to 850 Gs. Convenient control with rotary buttons and fine-tuning options (brightness, contrast, diopter) make operation intuitive even in the field.
Other technical and structural solutions, such as support for zeroing profiles, manual and automatic calibration, picture-in-picture, and IP67 protection, underscore the versatility and reliability of the ThermTec ARES 335.
