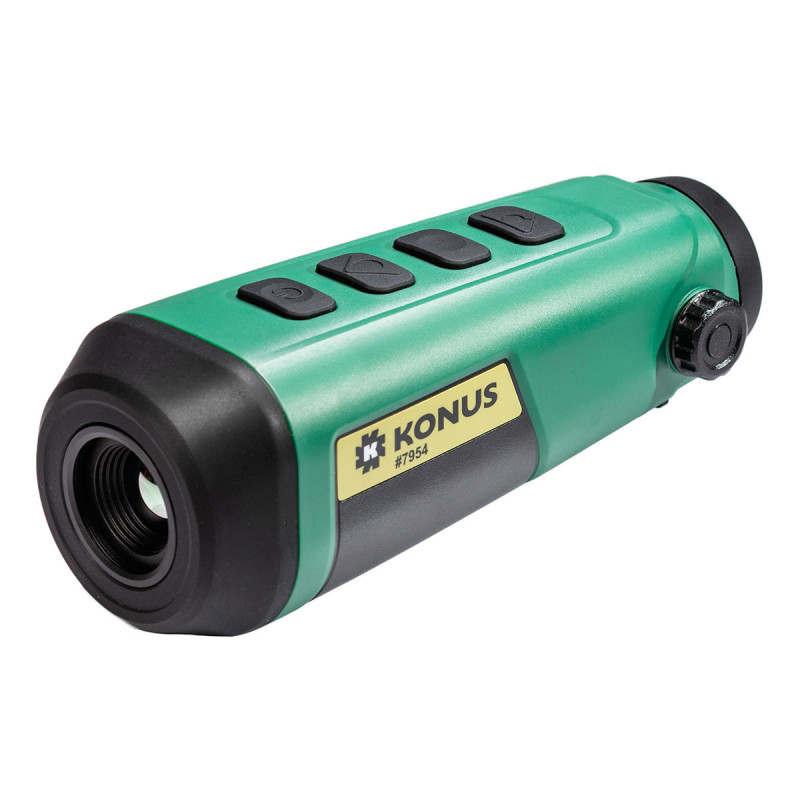

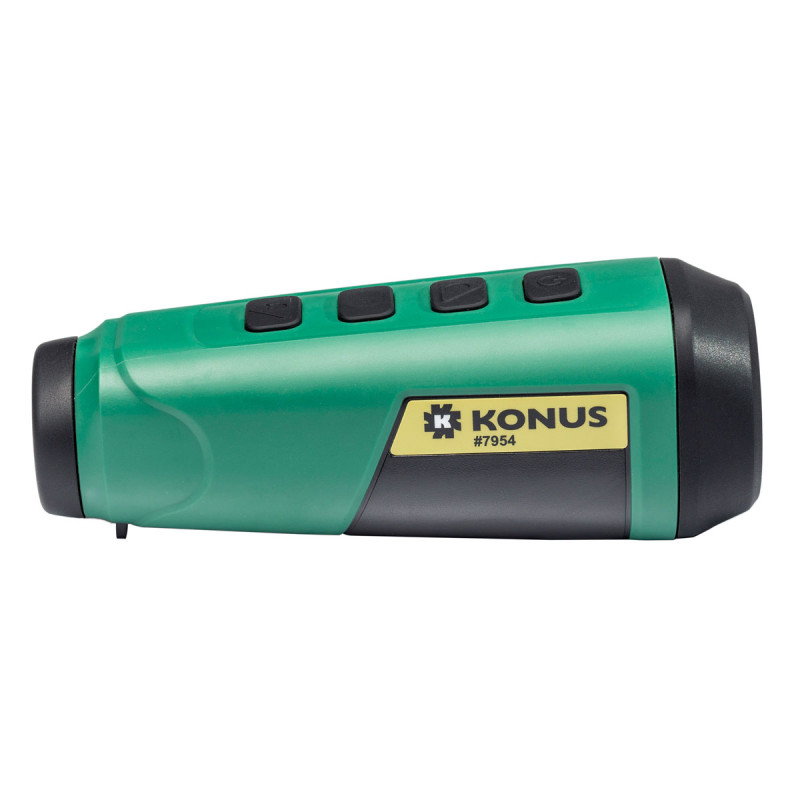

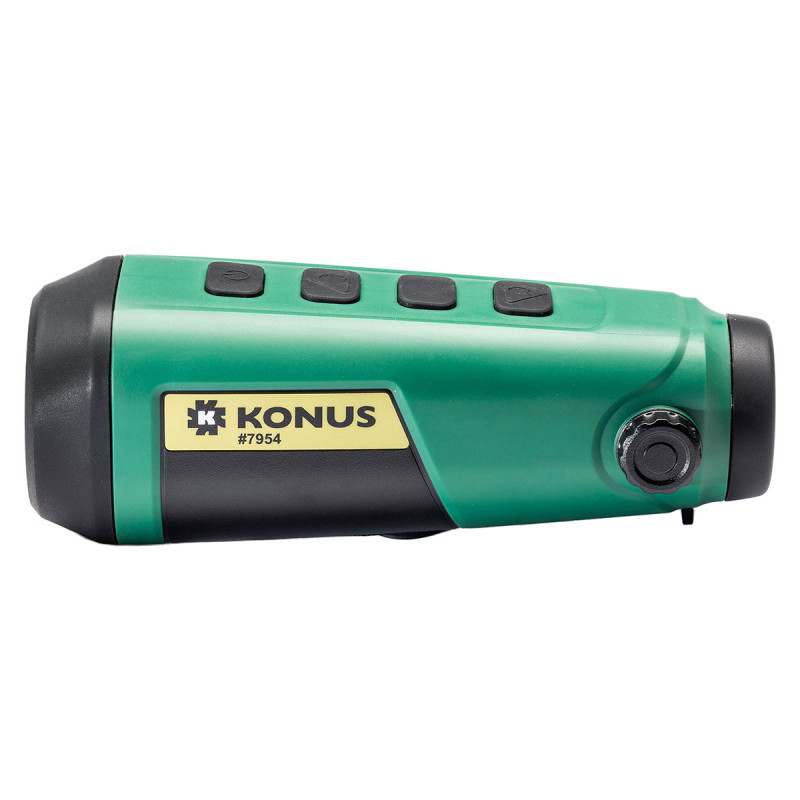

KONUS FLAME 384x288 Thermal Monocular — a compact and powerful portable device from the KONUS brand, designed for hunting, patrolling, security, search and rescue operations, and wildlife observation. Thanks to its 384 x 288 px microbolometer matrix and 15 mm focal length lens, the monocular provides a detection range of up to 1353 meters with a convenient weight of only 309 g and dimensions of 158 x 58 x 57 mm, making it easy to carry in an outer garment pocket or mount on a tactical helmet or tripod (tripod not included).

Detection and Recognition Range

Key metrics for typical objects (detection / recognition / identification):

• Vehicle — 1353 / 338 / 169 m
• Human — 400 / 110 / 55 m

Functionality

• Built-in 8 GB memory with photo and video recording support
• Four operating palettes: white hot, black hot, red hot, fusion
• Object distance measurement function (requires input of object height and upper/lower boundary markers)
• Hot spot tracking mode
• Diopter adjustment for individual vision correction
• Tripod mounting thread
• Wi-Fi support and proprietary app for Android and iOS for photo/video transfer to smartphone or tablet
• IP67 water and dust protection (withstands submersion up to 1 m)

Technical Specifications

• Thermal sensor: uncooled VOx (vanadium oxide) microbolometer matrix
• Microbolometer resolution: 384 x 288 px
• Spectral range: 8 μm — 14 μm
• Thermal sensitivity (NETD): ≤ 35 mK at 25°C, f#=1.0
• Lens aperture: F1.0
• Focal length: 15 mm
• Field of view: 24.55° x 18.9°
• Digital zoom: 2x, 4x, 8x
• Display: 0.39" LCOS, 1024 x 768 px, 50 Hz
• Power supply: built-in 18650 type lithium battery
• Operating time: more than 7.5 hours (with Wi-Fi off)
• Interface: USB Type-C
• Device power: 5 VDC / 2 A, consumption 1.5 W
• Operating temperature: -20 °C to +55 °C
• Wi-Fi module for streaming and control

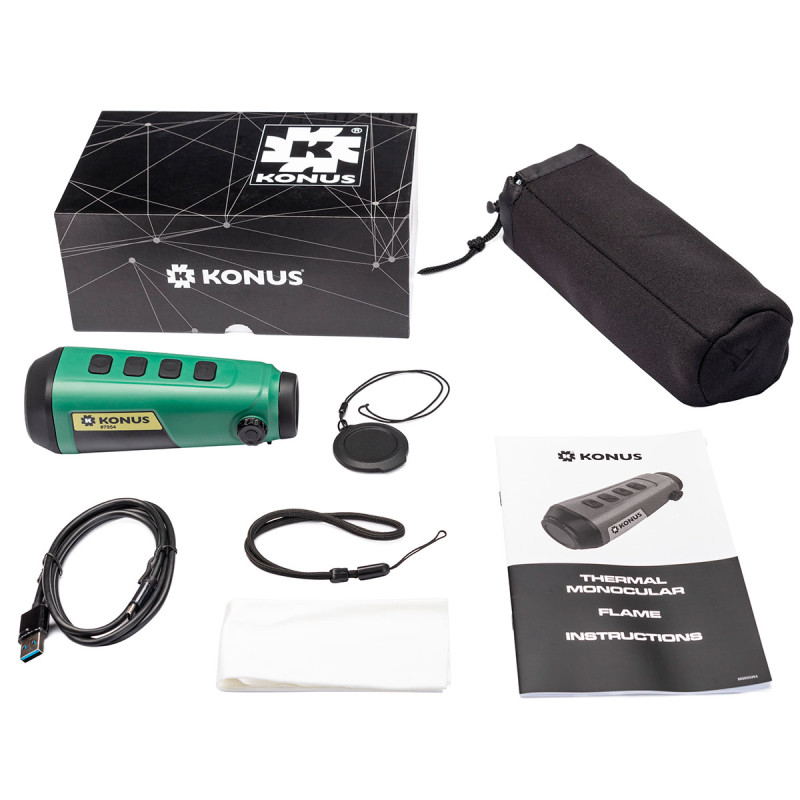

Package Contents

• KONUS FLAME 384x288 Thermal Imager
• USB cable
• Soft case
• Wrist strap
• Optics cleaning cloth
• User manual

Package Dimensions and Weight

• Device dimensions: 158 x 58 x 57 mm
• Device weight: 309 g
• Package dimensions: 220 x 143 x 90 mm
• Package weight: 764 g

The KONUS FLAME 384x288 combines high thermal sensor sensitivity with a practical set of features: photo/video recording to 8 GB internal memory, multiple operating palettes for various observation conditions, Wi-Fi connectivity, and smartphone control. The robust IP67-rated housing ensures operation in challenging weather conditions, while its light weight and compact dimensions provide convenience for transport and field use. With a USB Type-C interface and an energy-efficient 18650 battery, the device is ready for extended operations without frequent recharging.
