Product Code: FA94-18274-94
167 940 грн.
Buy this product in 1 click:
Main specifications
Cooling:
natural
Dimensions (HxWxD), mm:
(650 х 420 х 190)*3
Efficiency, %:
98
Humidity, max:
40…80%
Max. power at Umin, kW:
26.7
All specifications
We will deliver this product:
Payment
Description

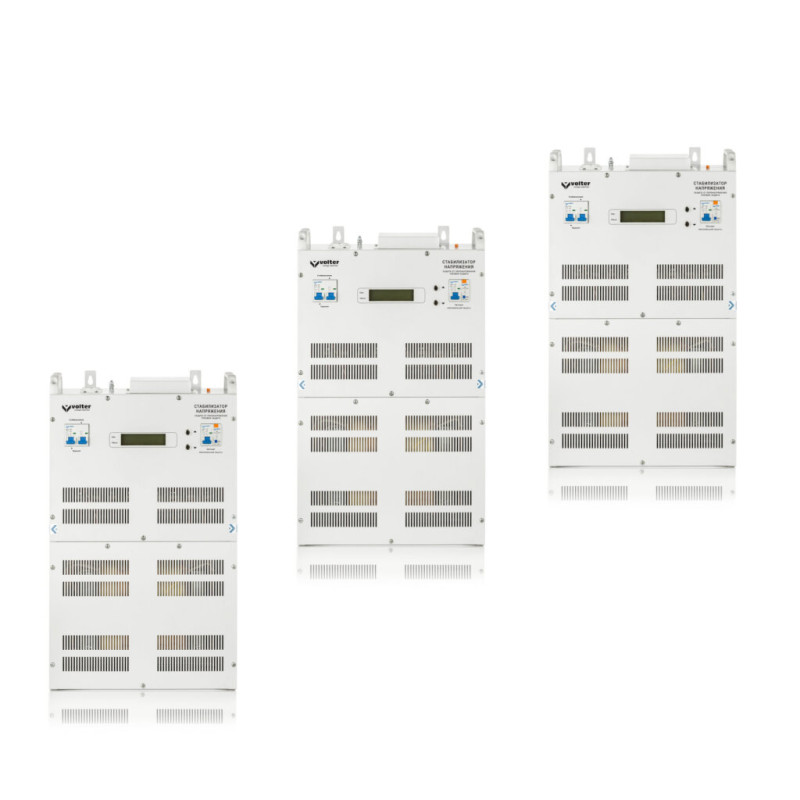

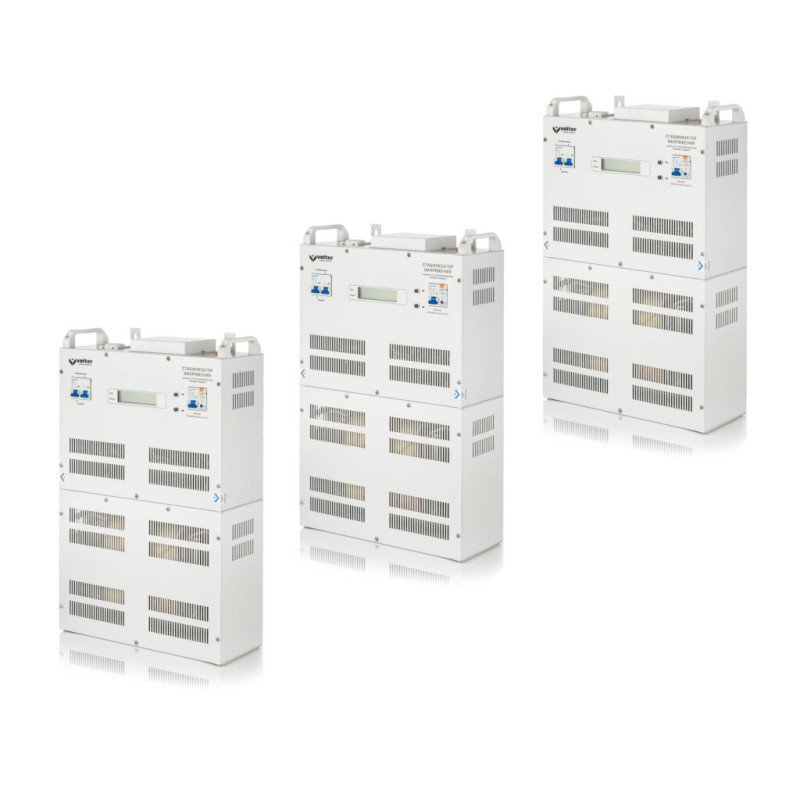

Volter 54 PTSh is a three-phase voltage stabilizer for an apartment or house with a maximum power of 54 kW, belonging to the Volter PTSh series – enhanced precision with a wide input voltage range, designed to provide stabilized voltage to all types of electrical consumers when powered from a grid with unsatisfactory voltage quality.
Volter stabilizers are designed for continuous 24/7 operation indoors and are permanently installed for the entire house (apartment, office, production equipment). It connects via a terminal block, in the phase break at the input immediately after the meter.
Specifications
Cooling
natural

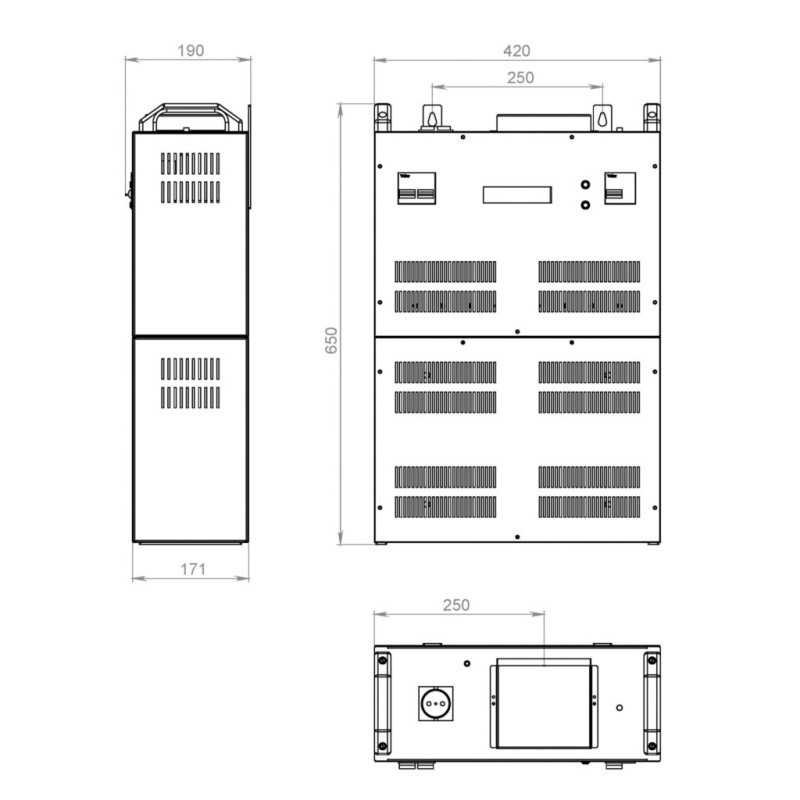

Dimensions (HxWxD), mm
(650 х 420 х 190)*3
Efficiency, %
98
Humidity, max
40…80%
Max. power at Umin, kW
26.7
Maximum current, A
80
Maximum power, kW
54
Mounting method
wall-mounted/floor-standing
Noise level, dB
34-40, depending on the load
Number of stages
16
Output voltage
220 V (per phase)
Phase
three phases
Protection class
IP20
Response time, ms
20
Stabilization accuracy
+3.5 -5.5%
Temperature range
Operating temperature range from +1°C to 40°C indoors
Temperature range, custom
Operating range from minus 25°C to plus 40°C indoors - additional cost for a three-phase stabilizer - 1500
Type
electronic thyristor
Warranty, months
LIFETIME
Weight, kg
150.3
Weight, kg
50.1*3
Color
light gray
