Product Code: FA94-18273-94
167 940 грн.
Buy this product in 1 click:
Main specifications
Cooling:
natural
Dimensions (HxWxD), mm:
(650 х 420 х 190)*3
Efficiency, %:
98
Humidity, max:
40…80%
Max. power at Umin, kW:
40.8
All specifications
We will deliver this product:
Payment
Description

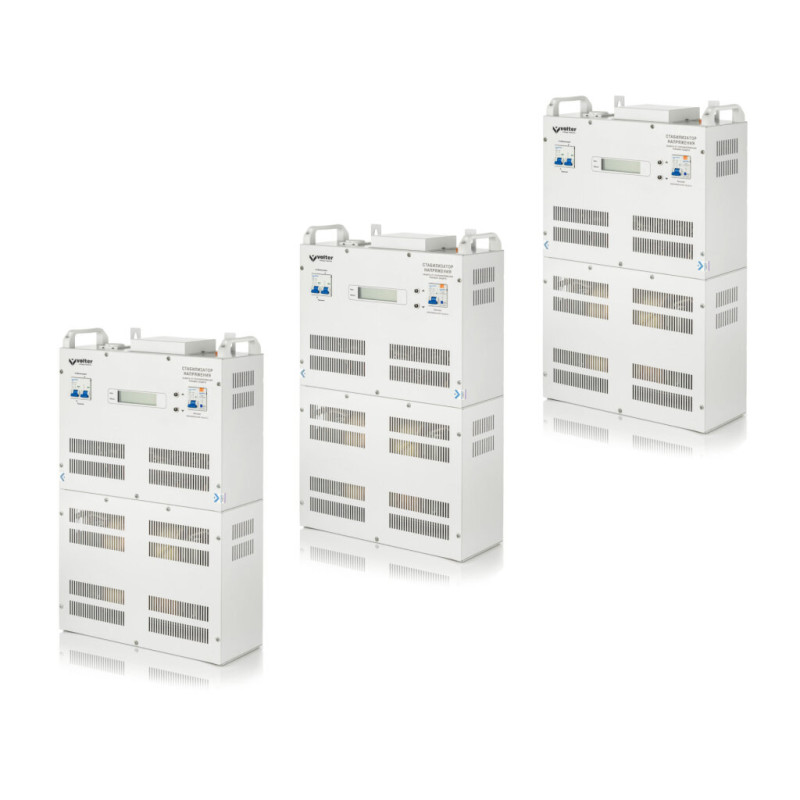

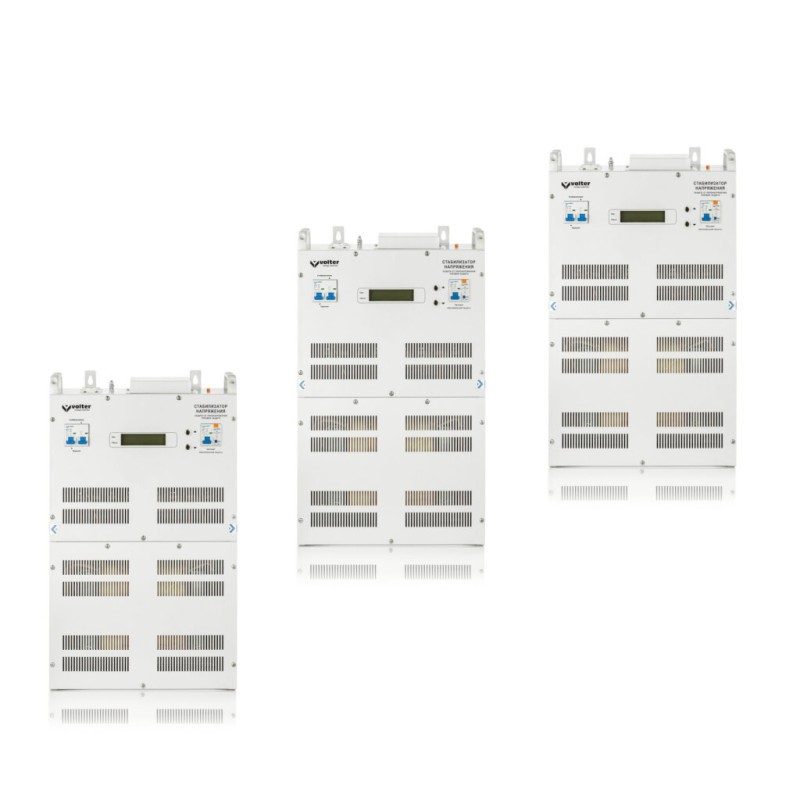

Volter 54 PTS is a three-phase voltage stabilizer for an apartment or house with a maximum power of 54 kW, belonging to the Volter PTS series – enhanced precision with a wide symmetrical input voltage range.
Volter stabilizers are designed for continuous 24/7 operation in enclosed spaces and are installed permanently for the entire house (apartment, office, industrial equipment). It connects via a terminal block, in the phase break at the input immediately after the meter.
Specifications
Cooling
natural

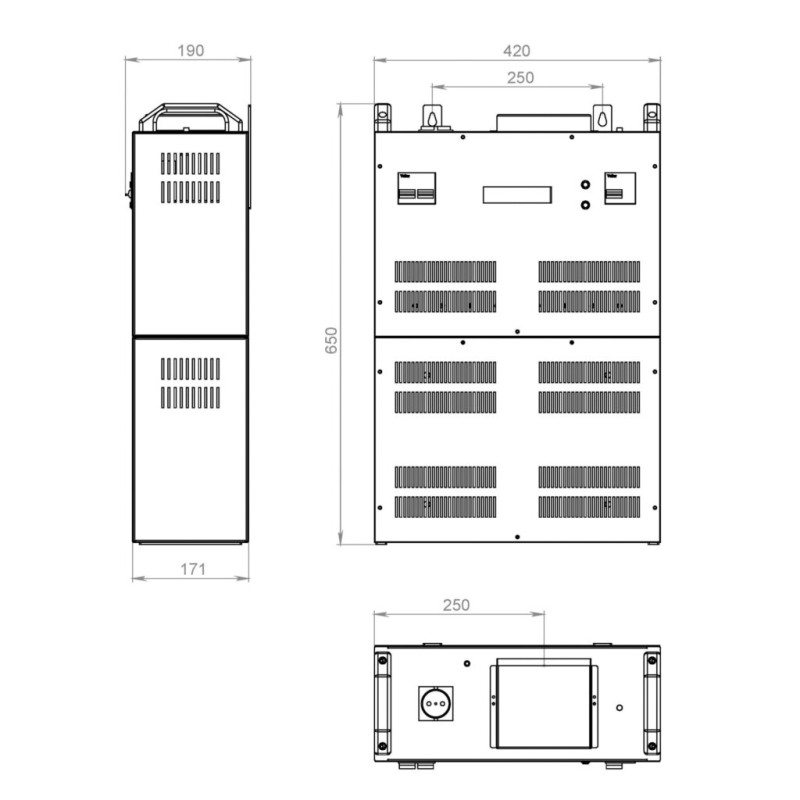

Dimensions (HxWxD), mm
(650 х 420 х 190)*3
Efficiency, %
98
Humidity, max
40…80%
Max. power at Umin, kW
40.8
Maximum current, A
80
Maximum power, kW
54
Mounting method
wall-mounted/floor-standing
Noise level, dB
34-40, depending on the load
Number of stages
16
Output voltage
220 V (per phase)
Phase
three phases
Protection class
IP20
Response time, ms
20
Stabilization accuracy
+2 -3%
Temperature range
Operating temperature range from +1°C to 40°C indoors
Temperature range, custom
Operating range from minus 25°C to plus 40°C indoors - additional cost for a three-phase stabilizer - 1500
Type
electronic thyristor
Warranty, months
LIFETIME
Weight, kg
150.3
Weight, kg
50.1*3
Color
light gray
