Product Code: FA94-18265-94
133 200 грн.
Buy this product in 1 click:
Main specifications
Cooling:
natural
Dimensions (HxWxD), mm:
(350 x 420 x 190)*3
Efficiency, %:
98
Humidity, max:
40…80%
Max. power at Umin, kW:
23.4
All specifications
We will deliver this product:
Payment
Description

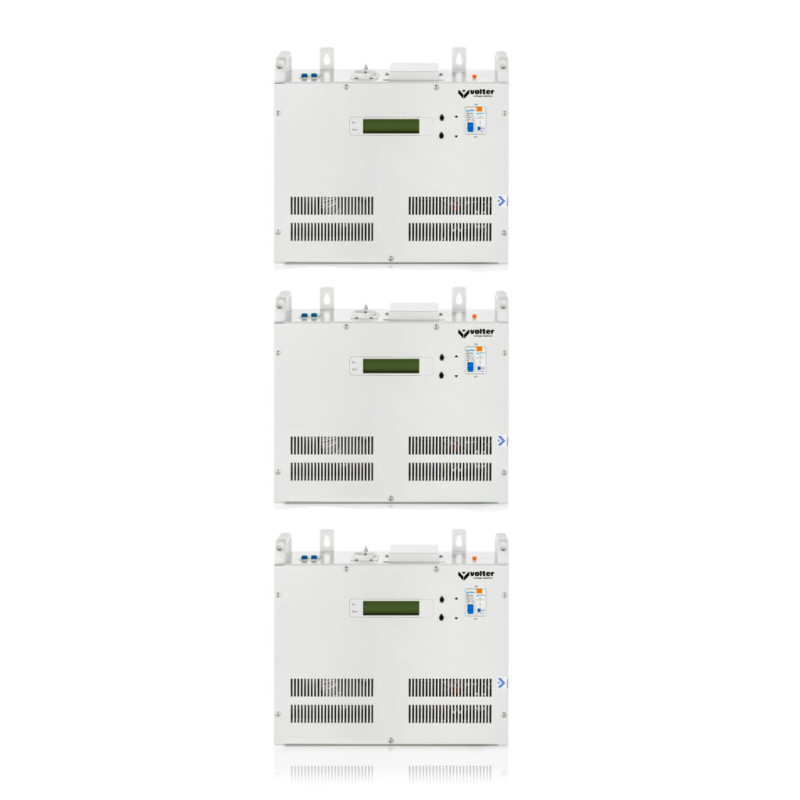

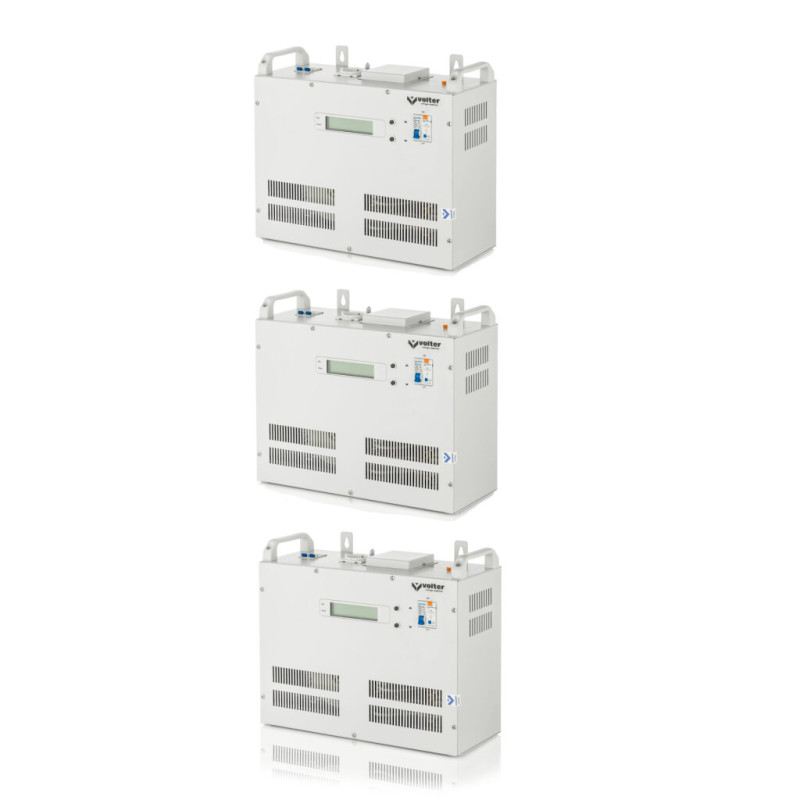

The Volter™-42 is capable of "pulling" phase voltage up to the required GOST standard from 125 volts. It has 9 stabilization steps. Three-phase voltage stabilizers 42s (3*14) are built on the basis of three single-phase stabilizers connected in a "star" configuration with a mandatory input neutral.
We provide a warranty for Volter brand products. The operating range for phase voltage stabilization is from 125 to 265V; this device adjusts the phase voltage to a nominal 220V, accounting for GOST deviations.
Specifications
Cooling
natural

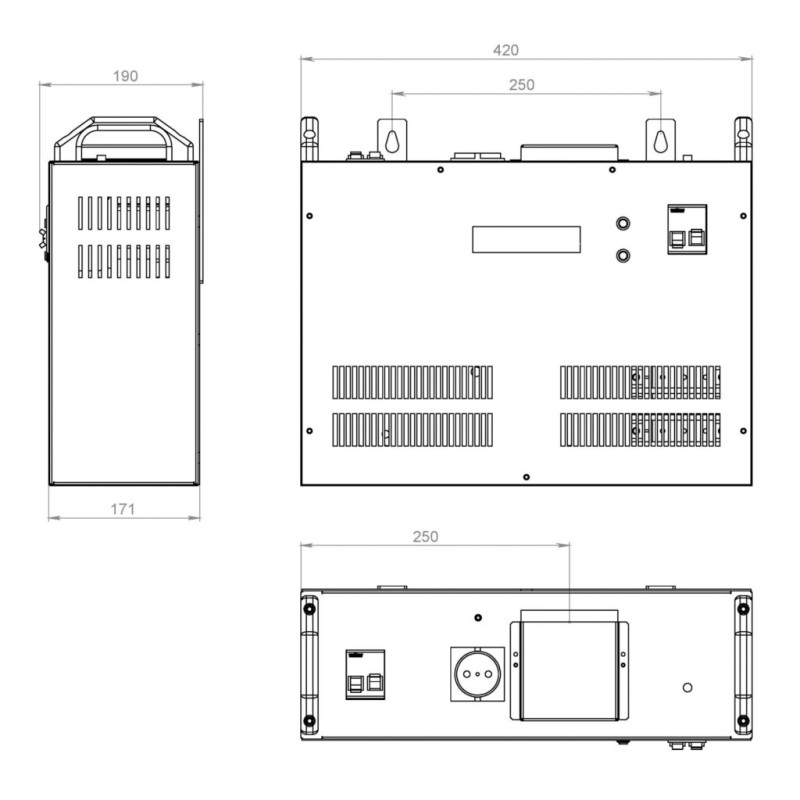

Dimensions (HxWxD), mm
(350 x 420 x 190)*3
Efficiency, %
98
Humidity, max
40…80%
Max. power at Umin, kW
23.4
Maximum current, A
63
Maximum power, kW
42
Mounting method
wall-mounted/floor-standing
Noise level, dB
34-40, depending on the load
Number of stages
9
Output voltage
220 V (per phase)
Phase
three phases
Protection class
IP20
Response time, ms
20
Stabilization accuracy
+6.5 -6.5%
Temperature range
Operating temperature range from +1°C to 40°C indoors
Temperature range, custom
Operating range from minus 25°C to plus 40°C indoors - additional cost for a three-phase stabilizer - 1500
Type
electronic thyristor
Warranty, months
LIFETIME
Weight, kg
112.5
Weight, kg
37.5*3
Color
light gray
