All about product
Description
Specification
Reviews 0
Questions0

0 Leave a review
Product Code: FA94-18268-94
139 680 грн.
Buy this product in 1 click:
Main specifications
Cooling: natural
Dimensions (HxWxD), mm: (350 x 420 x 190)*3
Efficiency, %: 98
Humidity, max: 40…80%
Max. power at Umin, kW: 20.7
All specifications
We will deliver this product:
Payment
Description

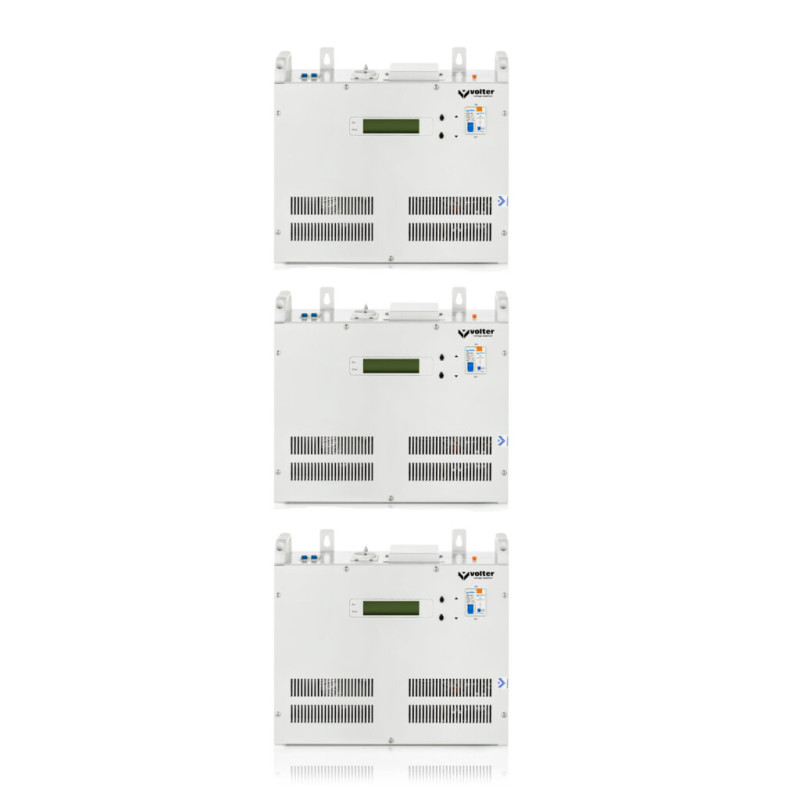

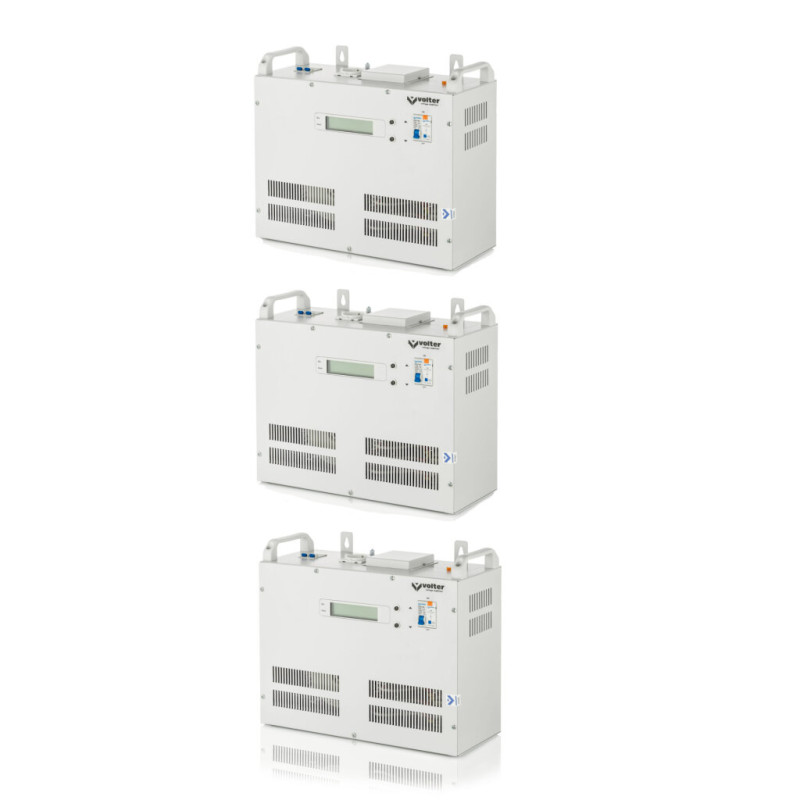

Volter 42 ptsh is a three-phase voltage stabilizer for an apartment or house with a maximum power of 42kW. It belongs to the Volter PTSH series, known for increased accuracy and a wide input voltage range. It is designed to provide stabilized voltage to all types of electrical consumers when powered from a grid with unsatisfactory voltage quality.

Volter stabilizers are designed for continuous 24/7 operation in enclosed spaces and are permanently installed for the entire house (apartment, office, production equipment). They are connected using a terminal block, in the phase break at the input immediately after the meter.

Specifications
Cooling natural

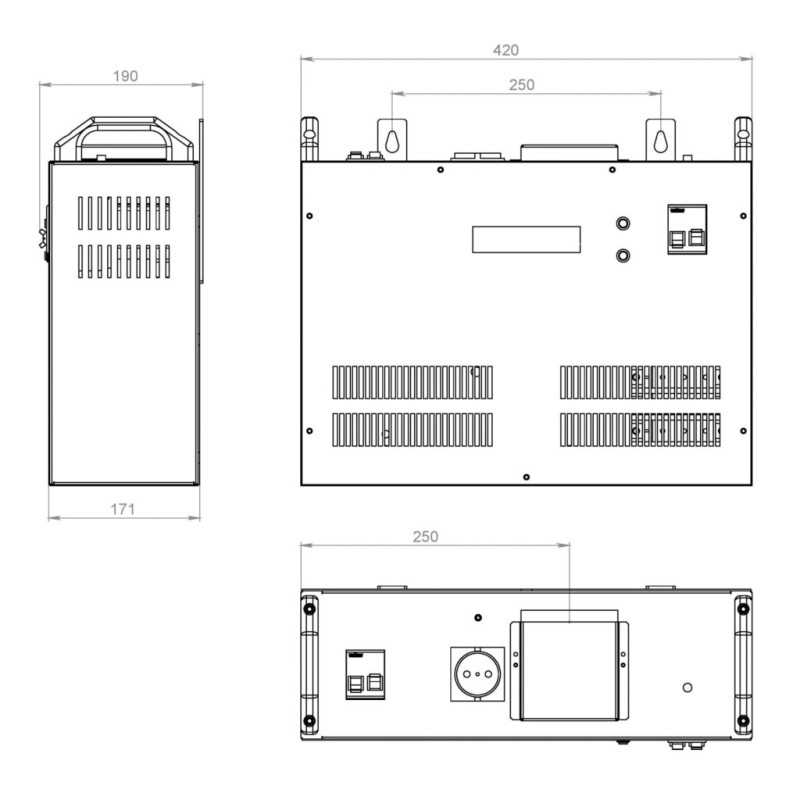

Dimensions (HxWxD), mm (350 x 420 x 190)*3
Efficiency, % 98
Humidity, max 40…80%
Max. power at Umin, kW 20.7
Maximum current, A 63
Maximum power, kW 42
Mounting method wall-mounted/floor-standing
Noise level, dB 34-40, depending on the load
Number of stages 16
Output voltage 220 V (per phase)
Phase three phases
Protection class IP20
Response time, ms 20
Stabilization accuracy +3.5 -5.5%
Temperature range Operating temperature range from +1°C to 40°C indoors
Temperature range, custom Operating range from minus 25°C to plus 40°C indoors - additional cost for a three-phase stabilizer - 1500
Type electronic thyristor
Warranty, months LIFETIME
Weight, kg 111
Weight, kg 37*3
Color light gray
