Product Code: FA94-18307-94
112 860 грн.
Buy this product in 1 click:
Main specifications
Cooling:
natural
Dimensions (HxWxD), mm:
(350 x 420 x 160)*3
Efficiency, %:
98
Humidity, max:
40…80%
Maximum current, A:
40
All specifications
We will deliver this product:
Payment
Description

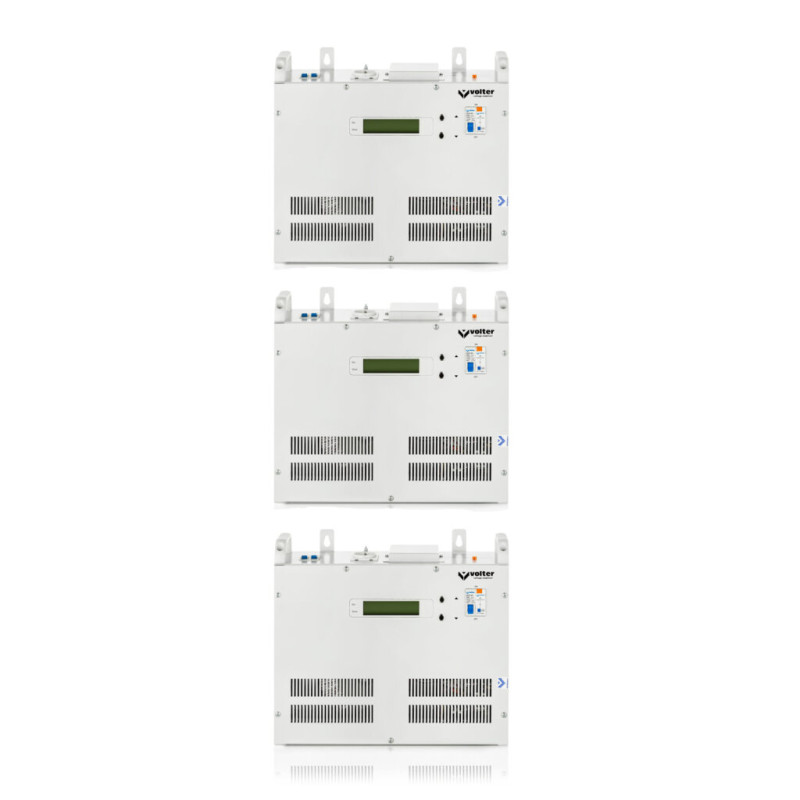

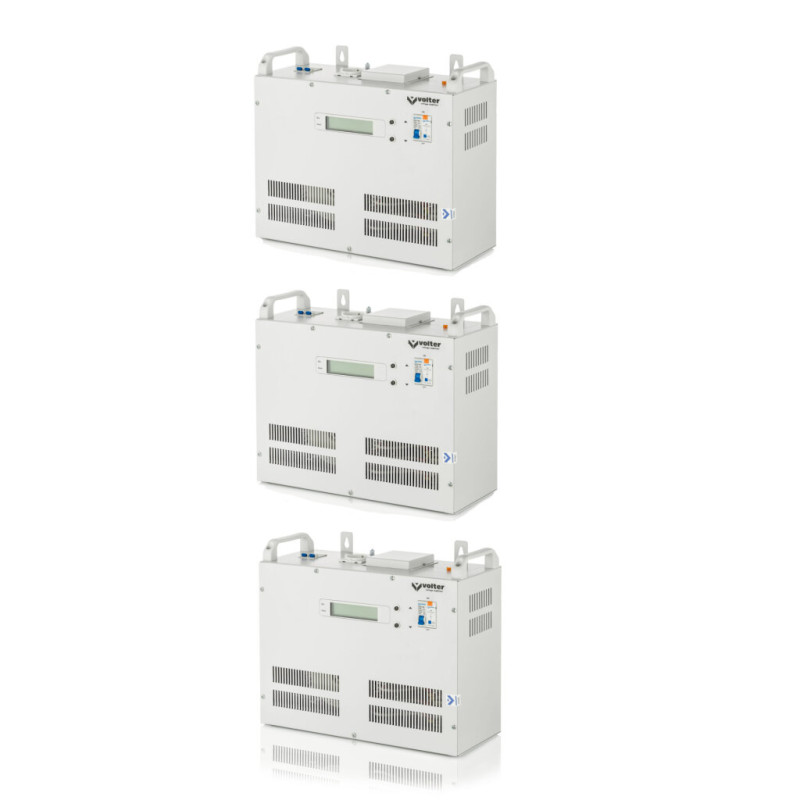

Volter-27 pts-sh – a three-phase voltage stabilizer with a maximum power of 27 kW, enhanced accuracy, and a wide symmetrical input voltage range.
Volter stabilizers are designed for continuous 24/7 operation indoors and are permanently installed for the entire house (apartment, office, production equipment). It connects via a terminal block, in the phase break at the input immediately after the meter.
Specifications
Cooling
natural

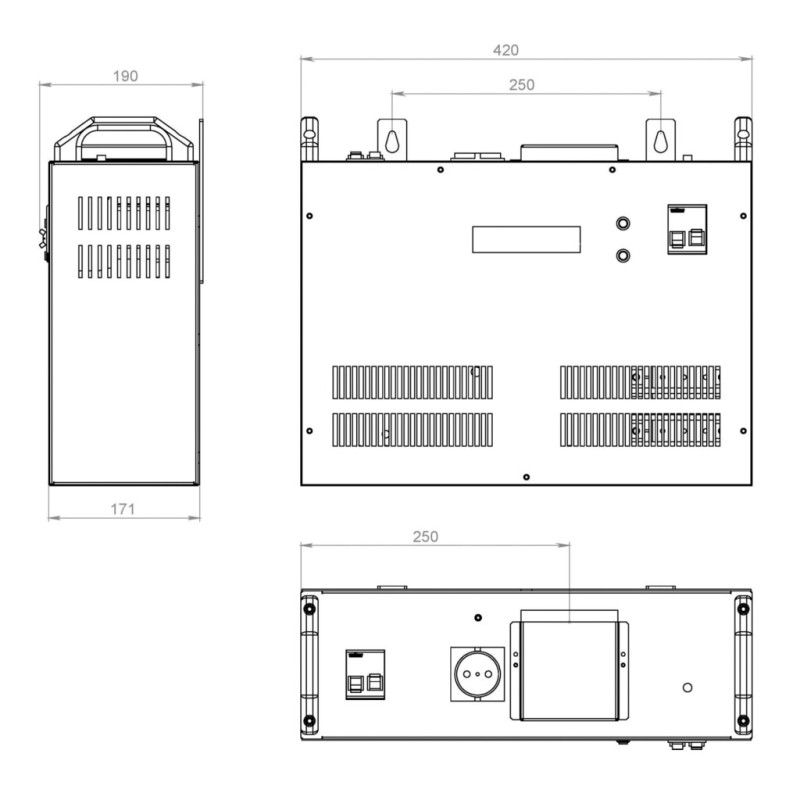

Dimensions (HxWxD), mm
(350 x 420 x 160)*3
Efficiency, %
98
Humidity, max
40…80%
Maximum current, A
40
Maximum power, kW
27
Mounting method
wall-mounted/floor-standing
Noise level, dB
34-40, depending on the load
Number of stages
16
Output voltage
220 V (per phase)
Phase
three phases
Protection class
IP20
Response time, ms
20
Stabilization accuracy
+3.5 -5.5%
Temperature range
Operating temperature range from +1°C to 40°C indoors
Temperature range, custom
Operating range from minus 25°C to plus 40°C indoors - additional cost for a three-phase stabilizer - 1500
Type
electronic thyristor
Warranty, months
LIFETIME
Weight, kg
87.6
Weight, kg
29.2*3
Color
light gray
