Product Code: FA94-18423-94
112 860 грн.
Buy this product in 1 click:
Main specifications
Cooling:
natural

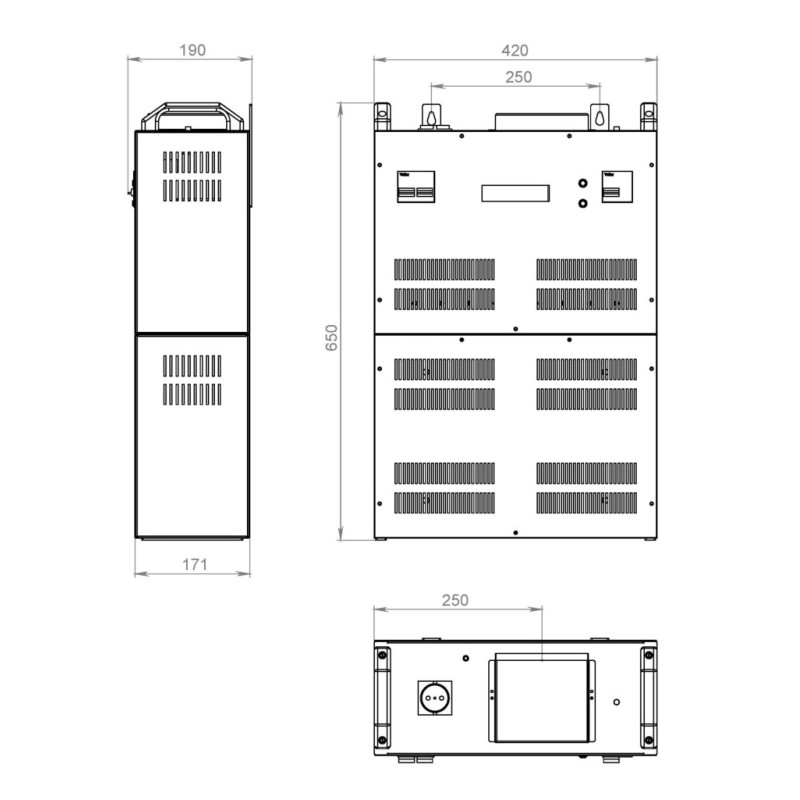

Dimensions (HxWxD), mm:
650 x 420 x 190
Efficiency, %:
98
Humidity, max:
40…80%
Max. power at Umin, kW:
17.5
All specifications
We will deliver this product:
Payment
Description

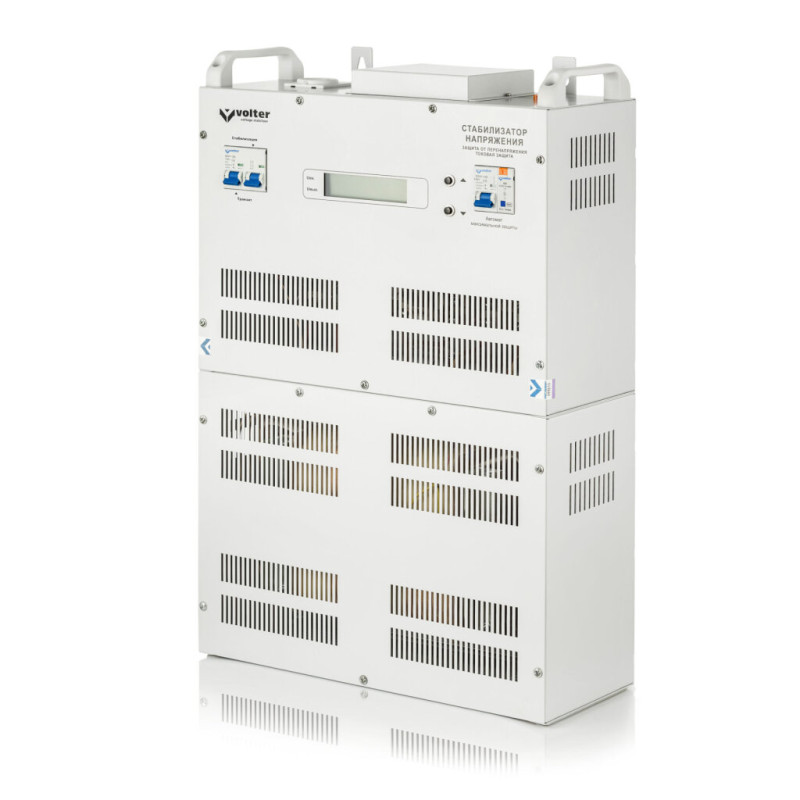

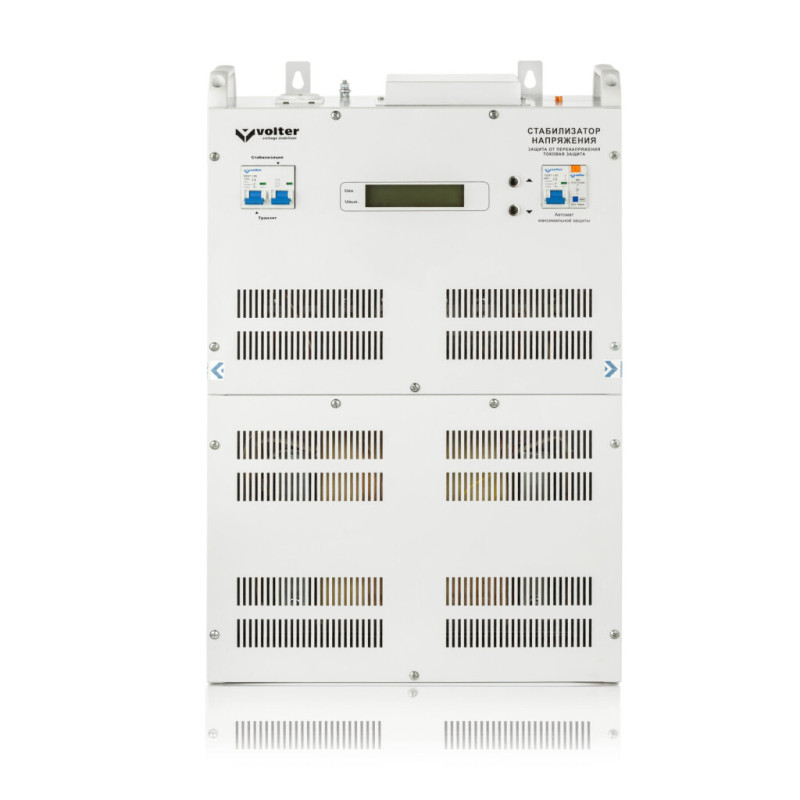

The Volter-27 pt is a single-phase voltage stabilizer with a power of 27 kW and enhanced accuracy.
The stabilizer contains no mechanical elements, including a fan (convection cooling is implemented). This allows you to operate the stabilizer in environments where silent operation is required.
Volter stabilizers are designed for continuous 24/7 operation indoors and are permanently installed for the entire house (apartment, office, production equipment). It connects via a terminal block, in the phase break at the input immediately after the meter.
Specifications
Cooling
natural
Dimensions (HxWxD), mm
650 x 420 x 190
Efficiency, %
98
Humidity, max
40…80%
Max. power at Umin, kW
17.5
Maximum current, A
125
Maximum power, kW
27
Mounting method
wall-mounted/floor-standing
Noise level, dB
34-40, depending on the load
Number of stages
16
Output voltage
220 V
Phase
One phase
Protection class
IP20
Response time, ms
20
Stabilization accuracy
+2.5 -3.5%
Temperature range
Operating temperature range from +1°C to 40°C indoors
Temperature range, custom
Operating temperature range from minus 25°C to plus 40°C indoors - additional 500 UAH to the price.
Type
electronic thyristor
Warranty, months
LIFETIME
Weight, kg
87.9
Weight, kg
64.6
Color
light gray
