Product Code: FA94-18412-94
46 560 грн.
Buy this product in 1 click:
Main specifications
Cooling:
natural
Dimensions (HxWxD), mm:
350 x 420 x 190
Efficiency, %:
98
Humidity, max:
40…80%
Max. power at Umin, kW:
10.7
All specifications
We will deliver this product:
Payment
Description

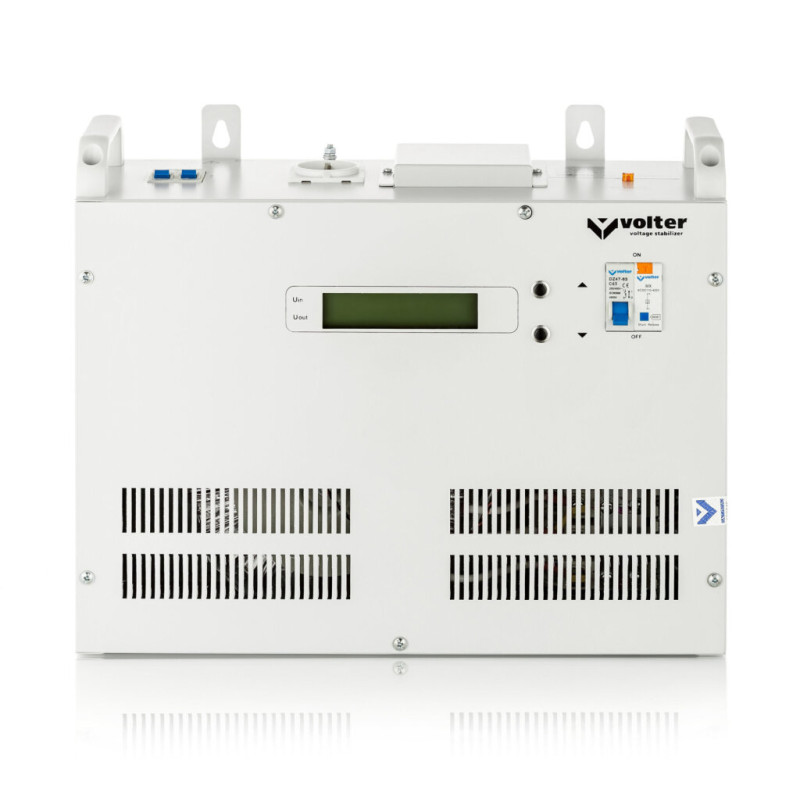

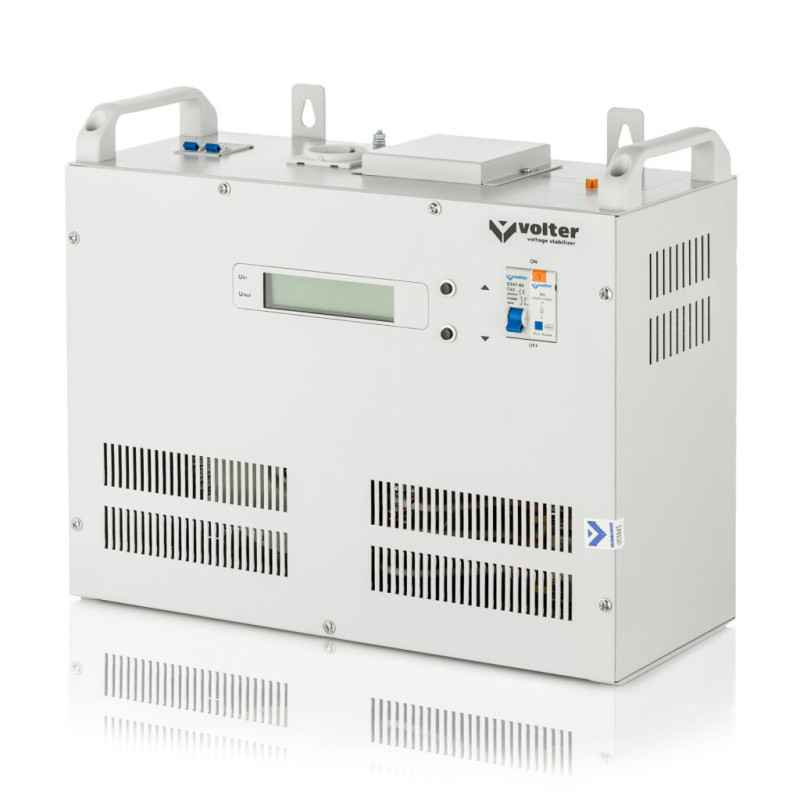

Volter-14 PTS is a single-phase voltage stabilizer with a power of 14 kW, enhanced accuracy, and a wide symmetrical input voltage range.
Versatile for installation – suitable for both unheated and residential premises.
Volter stabilizers are designed for continuous 24/7 operation in enclosed spaces and are permanently installed for the entire house (apartment, office, production equipment). It connects via a terminal block, in the phase break at the input immediately after the meter.
Specifications
Cooling
natural

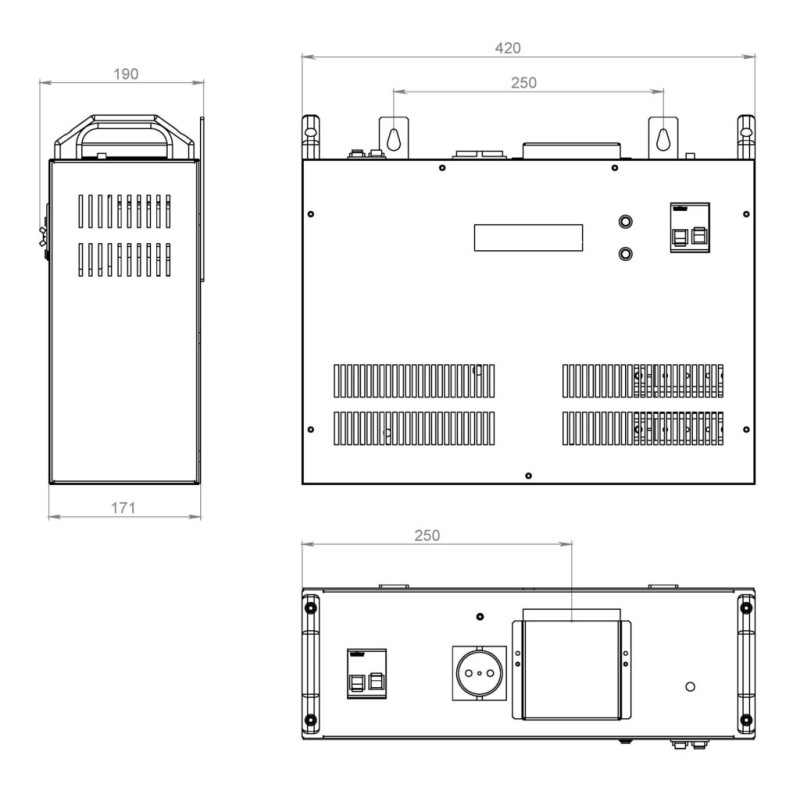

Dimensions (HxWxD), mm
350 x 420 x 190
Efficiency, %
98
Humidity, max
40…80%
Max. power at Umin, kW
10.7
Maximum current, A
63
Maximum power, kW
14
Mounting method
wall-mounted/floor-standing
Noise level, dB
34-40, depending on the load
Number of stages
16
Output voltage
220 V
Phase
One phase
Protection class
IP20
Response time, ms
20
Stabilization accuracy
+2 -3%
Temperature range
Operating temperature range from +1°C to 40°C indoors
Temperature range, custom
Operating temperature range from minus 25°C to plus 40°C indoors - additional 500 UAH to the price.
Type
electronic thyristor
Volume, m³
0.02793
Warranty, months
LIFETIME
Weight, kg
37
Weight, kg
37
Color
light gray
