Product Code: FA94-18994-94
89 775 грн.
Buy this product in 1 click:
Main specifications
Consumer connection type:
Terminals
Cooling:
active
Delay function, sec:
from 6 to 180 (selectable)
Frequency range, Hz:
50/60±1
Height, mm:
1095
All specifications
We will deliver this product:
Payment
Description

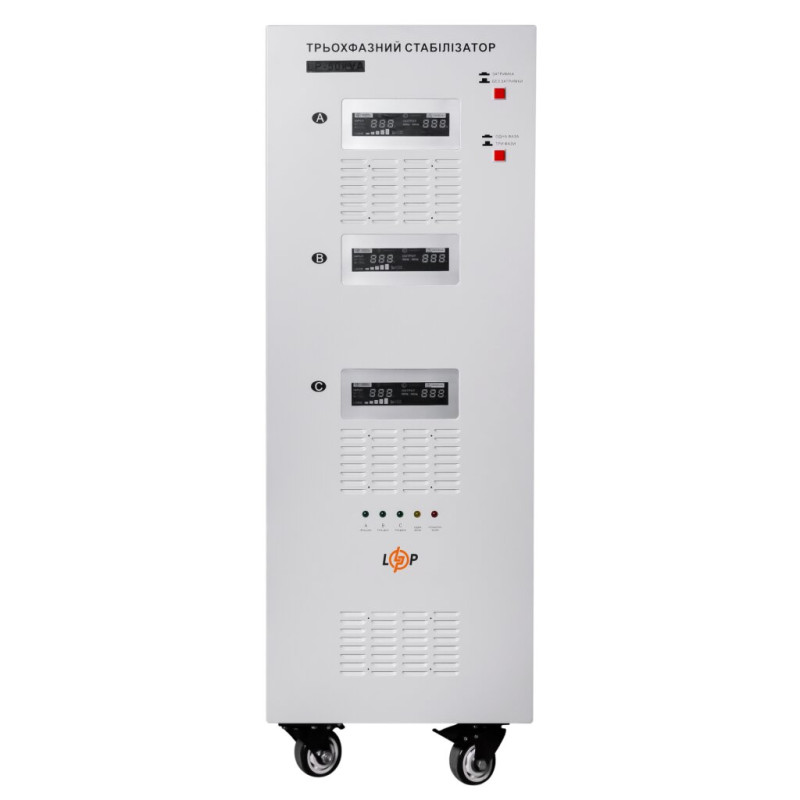

Industrial facilities, modern residential complexes, large public institutions, and other large-scale objects are typically equipped with three-phase power supply sources with a voltage of 380V. The LP-50kVA 3 phase (35000W) servo-driven voltage stabilizer is used to protect against voltage fluctuations, short circuits, impulse, and other current interferences in such power supply networks.
Specifications
Consumer connection type
Terminals
Cooling
active
Delay function, sec
from 6 to 180 (selectable)
Frequency range, Hz
50/60±1
Height, mm
1095
Housing material
metal
Indication type
LCD
Length, mm
705
Maximum input voltage, V
430
Minimum input voltage, V
173
Mounting type
floor-standing
Network Connection Type
Terminals
Number of Outputs
1
Number of Phases
3
Operating temperature, °C
0 ~ +40
Output voltage, V
380±2%
Power, VA/W
50000/35000
Protection against
over- and undervoltage, overload, short circuit
Type
servo-driven
Volume, m³
0.00053
Warranty, months
24
Weight, kg
172
Width, mm
390
Color
white
