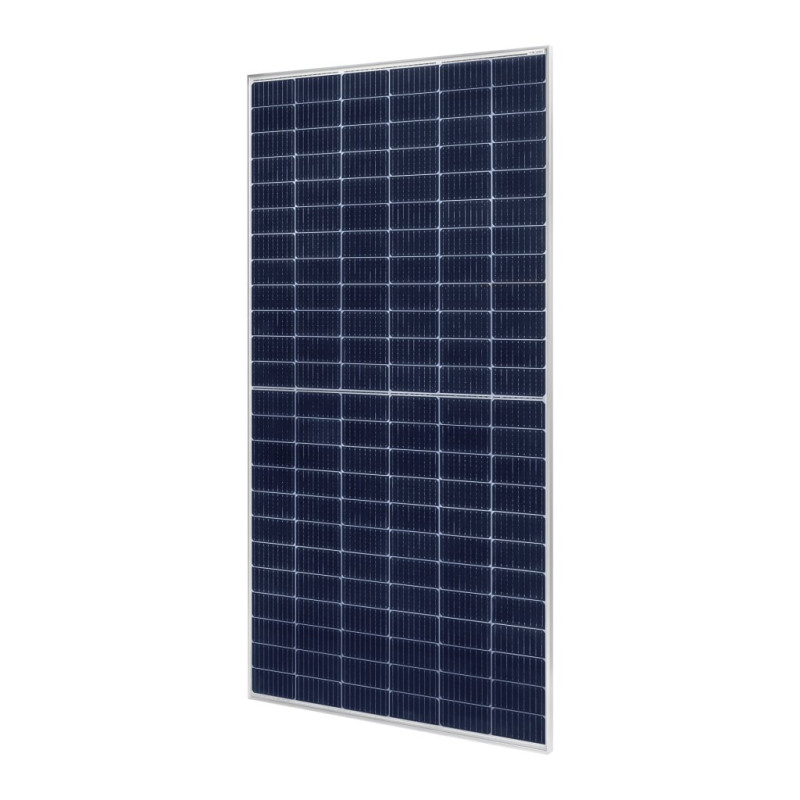

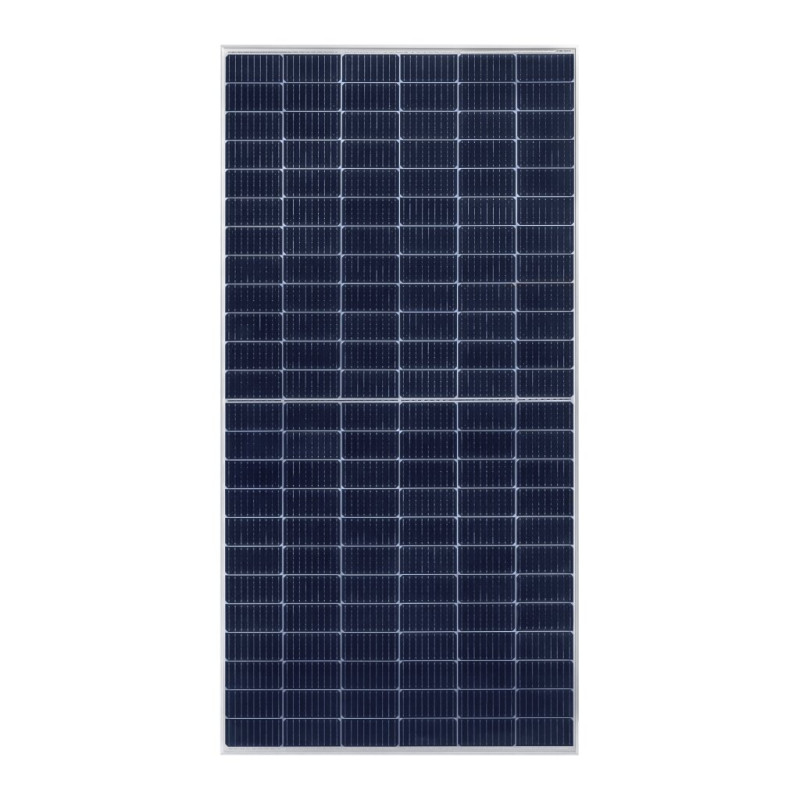

The Trina Solar TSM19DE-450 FB solar panel is an innovative and high-power panel from Trina Solar. This model belongs to the TallMax series, which is the most powerful option from Trina Solar. The PV module architecture is Half-Cell. The panel's efficiency reaches 20.6%, which is the highest indicator even for Tier1 brands. The panel's high power of 450 W allows for a reduction in the total number of PV modules in the solar power plant and, as a result, some savings in space or budget.
Despite its high power, the panel weighs 24 kg, and its dimensions can be called relatively compact – 2102 by 1040 by 35 mm. The anodized aluminum frame is corrosion-resistant, which increases the module's service life. EVA film is used for encapsulation, and the overall ingress protection level complies with the IP68 standard. The panel has passed technical tests and is certified for front loads up to 5400 Pa and rear loads up to 2400 Pa.
