Product Code: FA94-10368-94
4 916 грн.
Buy this product in 1 click:
Main specifications
Height, mm: 35
Length, mm: 1600
Maximum current, A: 9
Operating temperature, °C: -40 ~ +85
Power, W: 340
All specifications
We will deliver this product:
Payment
Description

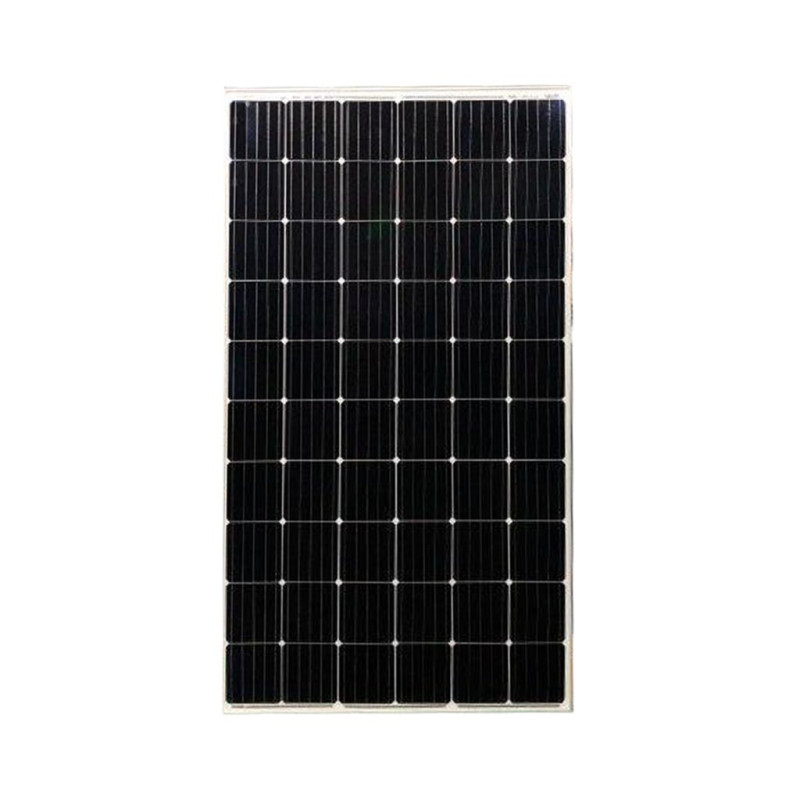

The LP-340W solar panel (35 profile, monocrystalline) is a device designed to convert solar energy into electrical energy. The LP-340W solar module (35 profile, monocrystalline) is manufactured using modern equipment from materials of exceptional quality, which makes it possible to increase the service life and efficiency of solar panels. Technical characteristics of the LP-340W solar panel (35 profile, monocrystalline): - Type - monocrystalline; - Power - 340 W; - Maximum voltage - 37.15 V; - Maximum fuse voltage - 1500 V; - Open circuit voltage - 44.58 V; - Nominal cell temperature - 45 °С±2; - Maximum load current - 9.16 A; - Short circuit current - 9.8 A; - Temperature range - (-40 + 85) °C; - Overall dimensions - 1658x996x35 mm; - Weight - 17 kg.

Specifications
Height, mm 35
Length, mm 1600
Maximum current, A 9
Operating temperature, °C -40 ~ +85
Power, W 340
Profile thickness, mm 35
Protection level IP65
Short-circuit current, A 9.8
Type monocrystalline panels
Voltage at maximum point, V 37.15
Volume, m³ 0.056
Warranty, months 120
Weight, kg 17.2
Width, mm 1000
