Product Code: FA94-6785-94
76 608 грн.
Buy this product in 1 click:
Main specifications
Battery connection type to UPS: Anderson connector
Built-in battery capacity, Ah: 9
Charge current from mains, A: 1
Frequency range, Hz: 50/60
Height, mm: 715
All specifications
We will deliver this product:
Payment
Description

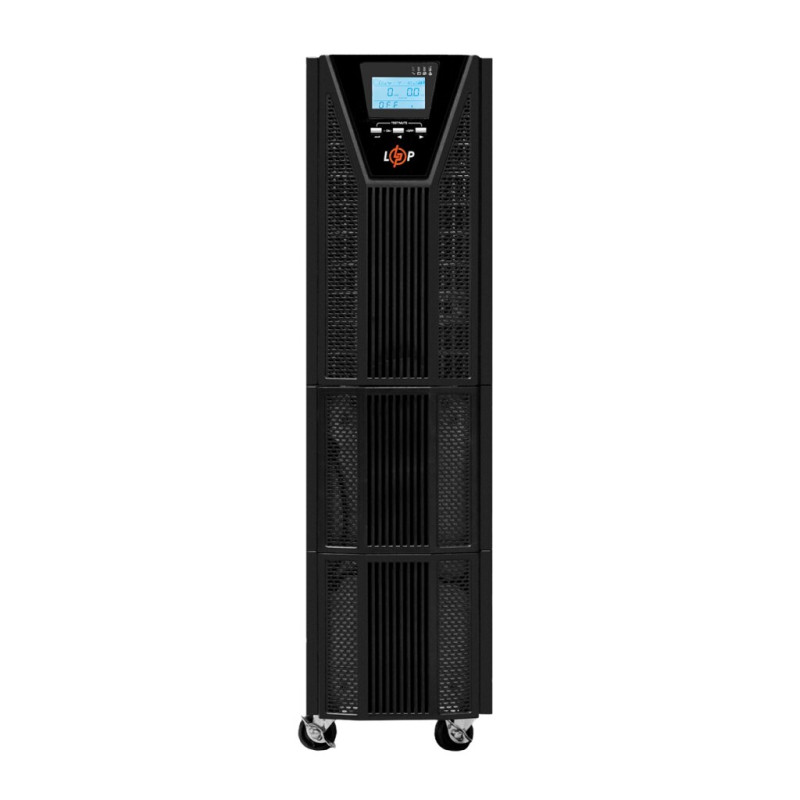

LogicPower presents the innovative Smart-UPS LogicPower 10000 PRO (with battery). This is high-tech equipment for providing backup power during sudden or emergency power outages.
Currently, it is the most affordable and economical uninterruptible power supply with voltage stabilization and cold start functions.
The scope of application for Smart-UPS LogicPower 10000 PRO (with battery) is suitable for providing backup power to cash registers, terminals, server and network devices. In addition, this model can be used for:
- personal computers;
- small network equipment;
- office equipment;
- audio and video equipment;
- network storage.
The Smart-UPS LogicPower 10000 PRO (with battery) uninterruptible power supply (UPS) with a pure sine wave has the following technical characteristics:
- power - 10000VA/9000W;
- input voltage range - 140-290V;
- frequency range - 50/60 Hz;
- output voltage waveform - pure sine wave;
- output voltage waveform distortion - < 1 %;
- voltage stabilization function - AVR;
- cold start (ability to start equipment without connecting to the mains);
- battery - 192V 9 Ah;
- active cooling (fan);
- interface for connecting to a personal computer - RS232 (optional), as well as via USB port;
- RJ11/RJ45 data transmission channel protection with guaranteed high operating speed;
- protection against: short circuit, overload, overvoltage in the mains, battery discharge and overcharge, high/low voltage;
- ability to control sound signals.

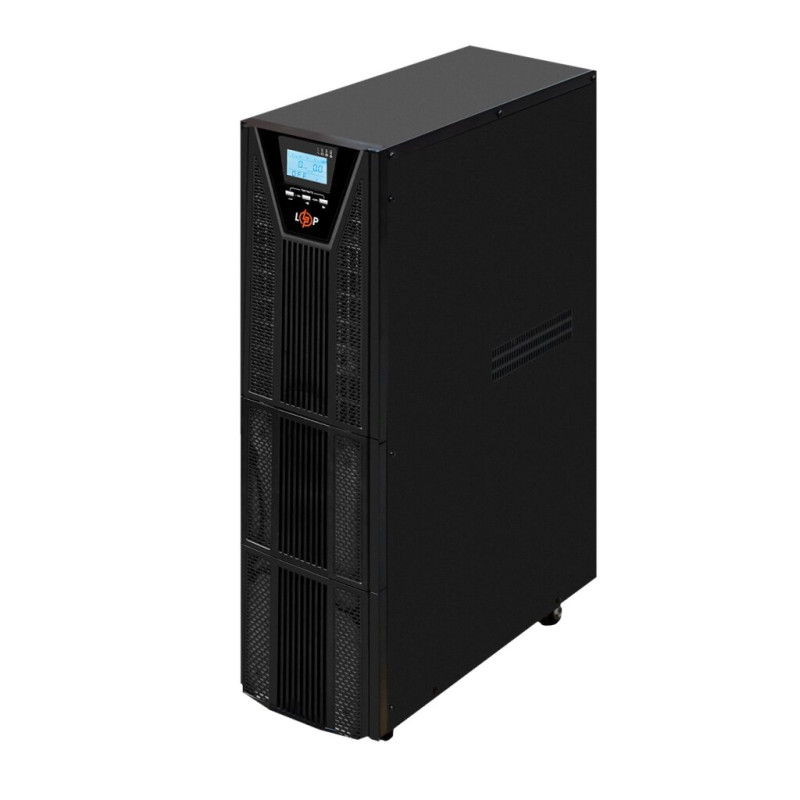

The Smart-UPS LogicPower 10000 PRO (with battery) casing is made of metal alloy. An LCD screen is located on the front panel to monitor device operating parameters.

Specifications
Battery connection type to UPS Anderson connector
Built-in battery capacity, Ah 9
Charge current from mains, A 1
Frequency range, Hz 50/60
Height, mm 715
Housing material metal
Indication type LED + LCD
Input voltage range, V 110-300
Length, mm 540
Network Connection Type Europlug
Nominal battery voltage, V 192
Number of built-in batteries, pcs 16
Number of Phases 1
Operating temperature, °C 0 ~ +40
Output voltage waveform pure sine wave
Output voltage, V 208/220/230/240±1%
PC connection interface RS232 - standard; USB, RS485 - optional
Power, VA/W 10000/10000
Protection against short circuit, voltage surges, overload, discharge, overcharge of batteries
Switching time, ms 0
Type smart online
Type of UPS load connection IEC320 C13
Volume, m³ 0.198
Warranty, months 24 - for UPS, 12 - for battery
Weight, kg 61.5
Width, mm 190
Color black
