Product Code: FA94-6741-94
88 997 грн.
Buy this product in 1 click:
Main specifications
Battery connection type to UPS: Terminals
Built-in battery capacity, Ah: 9
Charge current from mains, A: 1
Frequency range, Hz: 50/60
Height, mm: 440
All specifications
We will deliver this product:
Payment
Description

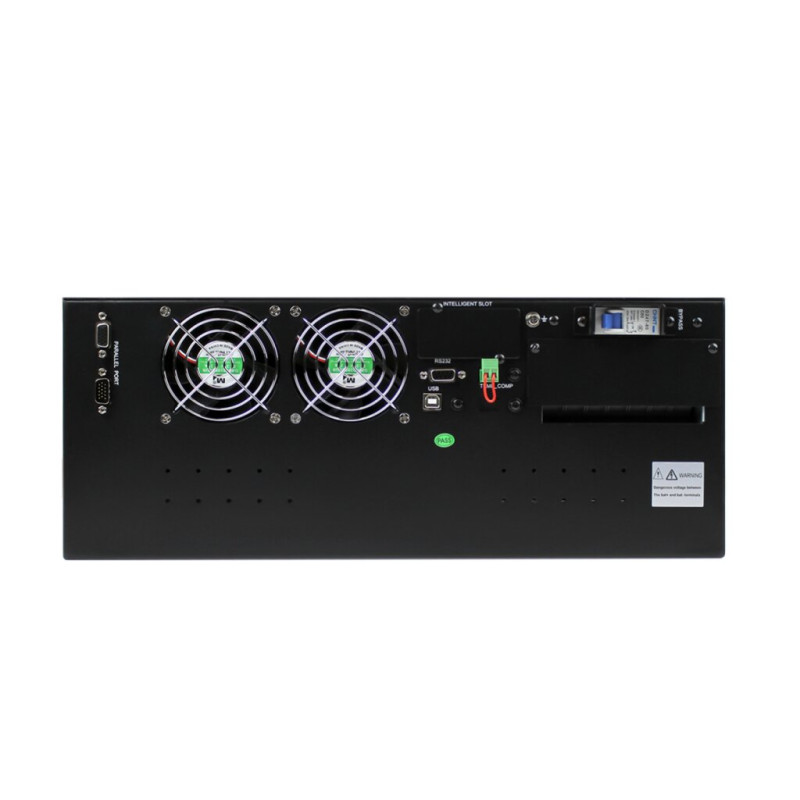

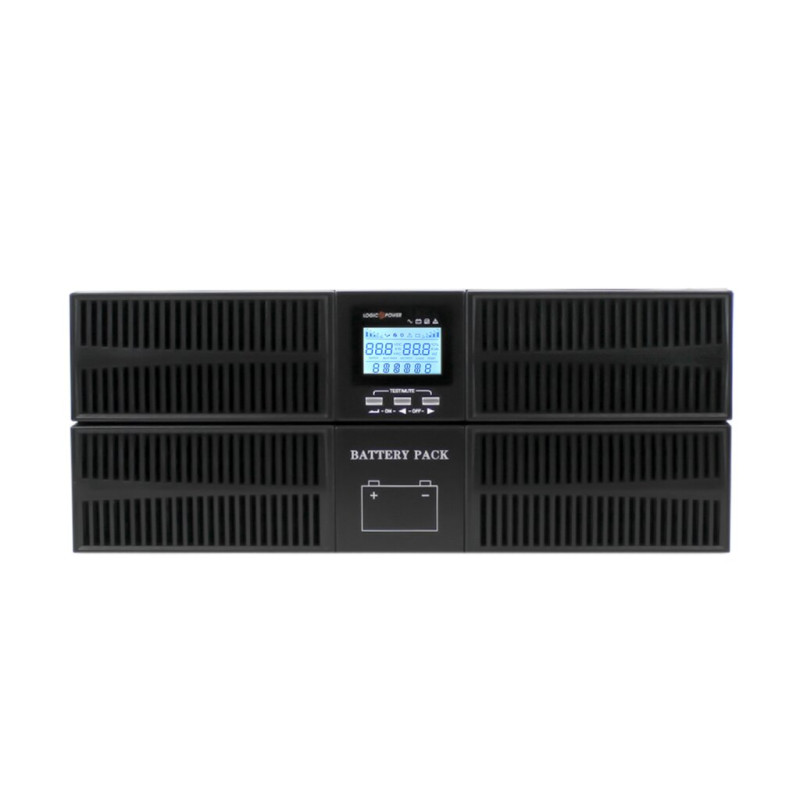

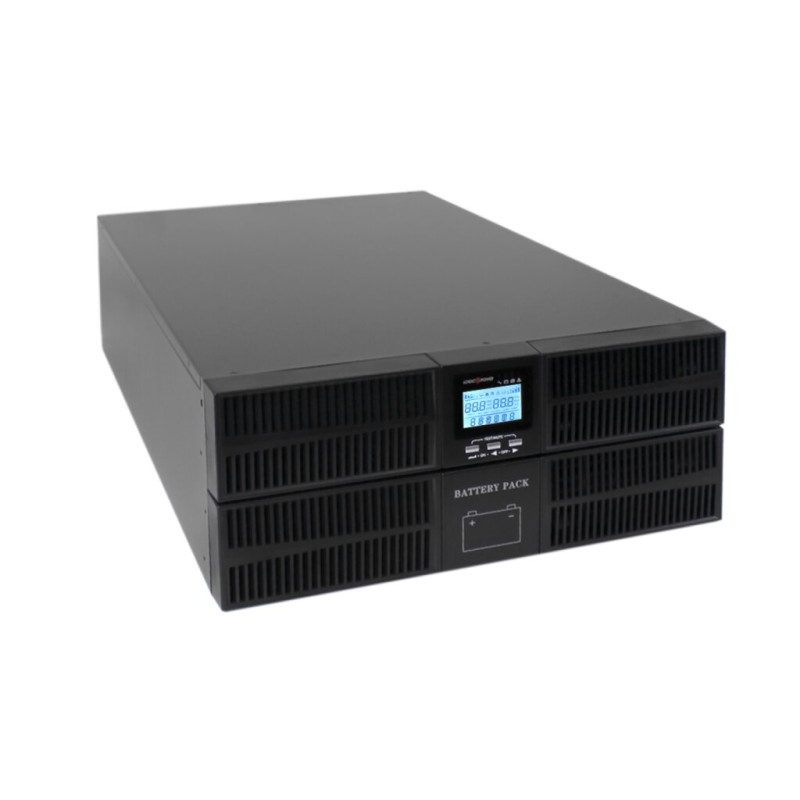

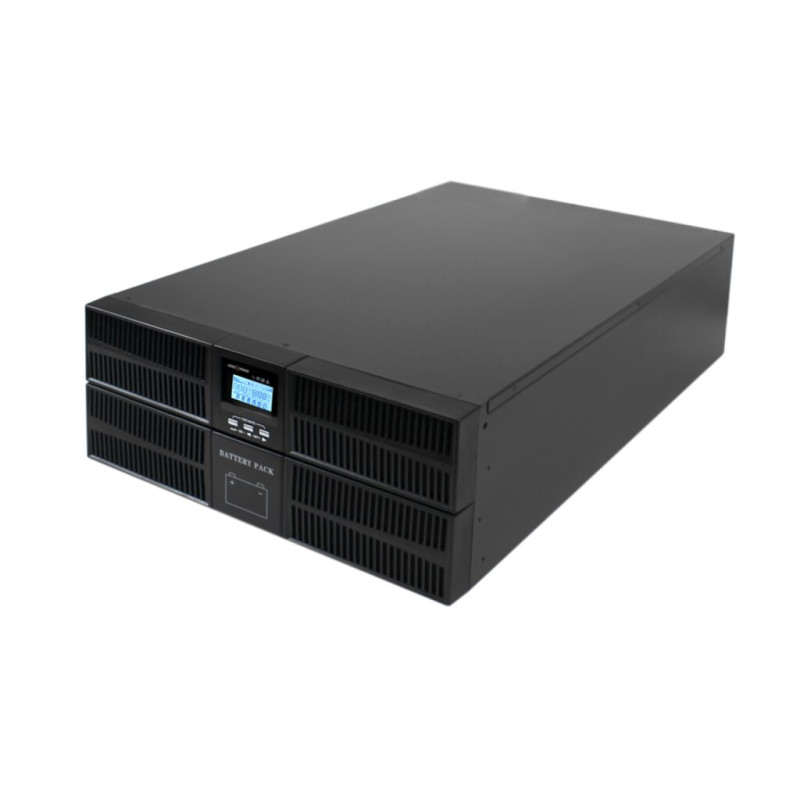

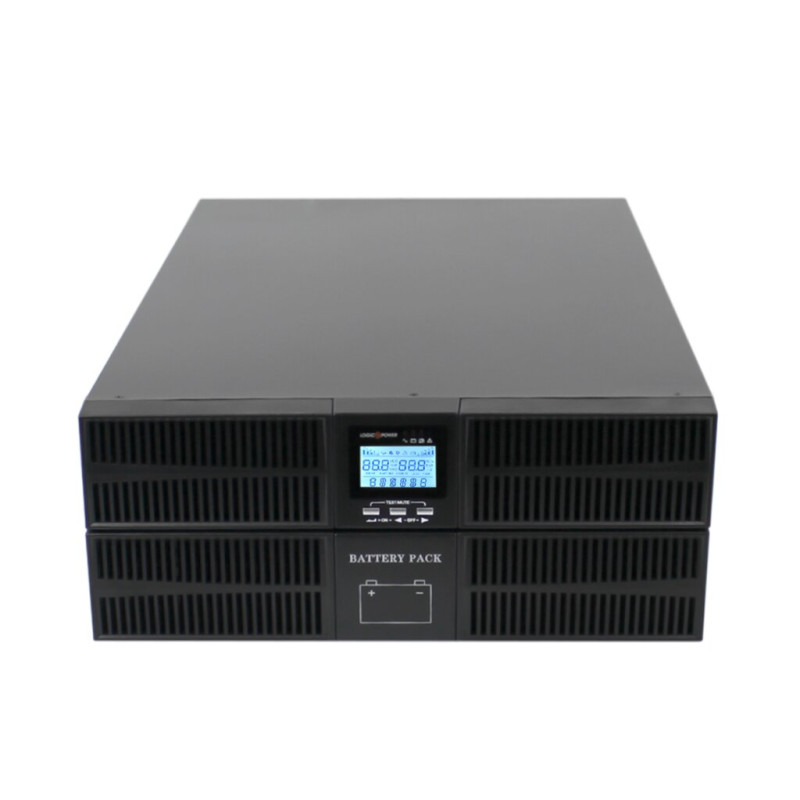

LogicPower presents the innovative Smart-UPS 10000 PRO RM (rack mounts) (with battery). This high-tech equipment provides backup power during sudden or emergency power outages.
Currently, it is the most affordable and economical uninterruptible power supply with voltage stabilization and cold start functions.
The Smart-UPS 10000 PRO RM (rack mounts) (with battery) is suitable for providing backup power to cash registers, terminals, server, and network devices. In addition, this model can be used for:
- personal computers;
- small network equipment;
- office equipment;
- audio and video equipment;
- network storage.
The Smart-UPS 10000 PRO RM (rack mounts) (with battery) uninterruptible power supply (UPS) with pure sine wave output has the following technical specifications:
- power - 10000VA/9000W;
- input voltage range - 140-290V;
- frequency range - 50/60 Hz;
- output voltage waveform - pure sine wave;
- output voltage waveform distortion - < 1 %;
- voltage stabilization function - AVR;
- cold start (ability to start equipment without connecting to the mains);
- battery - 192V 9 Ah;
- active cooling (fan);
- interface for connecting to a personal computer - RS232 (optional), and via USB port;
- RJ11/RJ45 data transmission channel protection with guaranteed high-speed operation;
- protection against: short circuit, overload, overvoltage in the mains, battery discharge and overcharge, high/low voltage;
- ability to control sound signals.
The Smart-UPS 10000 PRO RM (rack mounts) (with battery) case is made of metal alloy. An LCD screen is located on the front panel to monitor device operation parameters.

Specifications
Battery connection type to UPS Terminals
Built-in battery capacity, Ah 9
Charge current from mains, A 1
Frequency range, Hz 50/60
Height, mm 440
Housing material metal
Indication type LED + LCD
Input voltage range, V 110-300
Length, mm 670
Network Connection Type Terminals
Nominal battery voltage, V 192
Number of built-in batteries, pcs 16
Number of Outputs 1
Number of Phases 1
Operating temperature, °C 0 ~ +40
Output voltage waveform pure sine wave
Output voltage, V 208/220/230/240±1%
PC connection interface RS232 - standard; USB, RS485 - optional
Power, VA/W 10000/10000
Protection against short circuit, voltage surges, overload, discharge, overcharge of batteries
Switching time, ms 0
Type smart online
Type of UPS load connection Terminals
Volume, m³ 0.05159
Warranty, months 24 - for UPS, 12 - for battery
Weight, kg 61.15
Width, mm 175
Color black
