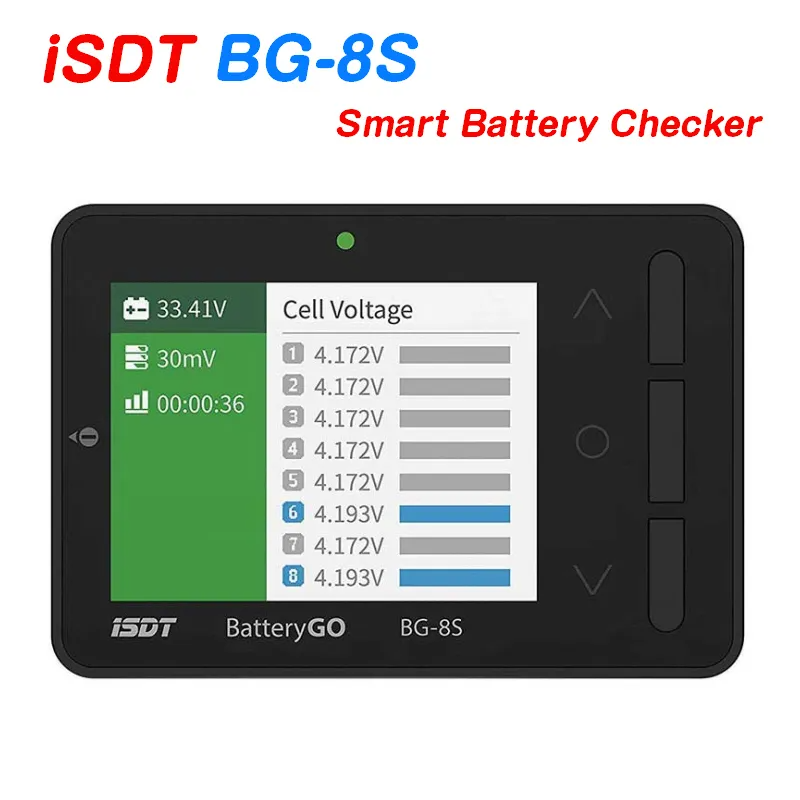

ISDT BG-8S 1-8S BattGO Smart Battery Tester

Brand: iSDT. The BG-8S smart tester is a compact, powerful, and multifunctional device for diagnosing, balancing, and analyzing batteries with full support for BattGO technology. The device is ideal for drone owners, modelers, and anyone who values measurement accuracy and portability: it combines professional measurement capabilities with the convenience of field use.

Specifications

• Operating Voltage: 5.0V-36V
• Input Voltage: 0.8V-15V
• Input Voltage (2-8S): 0.8V-4.8V
• Battery Cells: 1-8S
• Voltage Measurement Accuracy: ±0.005V at 4.2V
• Cell Balancing Accuracy: less than 0.005V
• USB Charging Support: QC 2.0/3.0, BC1.2. Max Output: 12V/2A
• Smart Battery Support: display information, usage history, charging and discharging
• Battery Types: LiHv (1-8S) / LiPo (1-8S) / LiFe (1-8S) / LiIon (1-8S) / NiMH / NiCd (1-10S)
• Display: 2.4″/320×240, 260,000 color IPS LCD
• Dimensions: 80 x 55 x 19 mm
• Weight: 59 g
• Operating Temperature: 0-40°C
• Operating Humidity: 10%-90% RH (non-condensing)
• Storage Temperature: -20-60°C
• Storage Humidity: 5%-90% RH (non-condensing)

Features and Functionality

The ISDT BG-8S is equipped with a bright 260,000-color IPS display, ensuring excellent readability even in direct sunlight. The integration of BattGO technology in conjunction with the XT60i connector provides full "smart" battery control: detailed information on individual cell voltage, charge cycle count, usage history, and additional metadata that simplifies battery maintenance and extends their lifespan.

• Automatic Balancing: an advanced algorithm ensures highly accurate voltage equalization between cells (less than 0.005V); upon completion, the device enters power-saving mode.
• Portable Charging: the BG-8S can act as an external battery for mobile devices thanks to QC 2.0/3.0 and BC1.2 support with an output of up to 12V/2A.
• Signal Testing and Analysis: receiver signal testing and analysis of multiple protocols, including PWM, PPM, and S.BUS, are supported, making the device useful for diagnosing radio equipment and flight control systems.
• Diverse Connections: supports XT60/XT60i, XH2.54 (1-8S), XH2.54 (3 pin), JST, and other connector types for flexible connections.
• Firmware Updates: a Micro USB port is available for easy firmware flashing and updates via PC.
• XT60i for BattGO: the XT60i connector, co-developed by ISDT and Amass, ensures compatibility with original XT60 and full support for BattGO functionality.

The BG-8S combines professional measurement capabilities with the convenience of field use: accurate voltage readings, reliable automatic balancing, the ability to be used as a portable power source, and advanced diagnostic functions for receiver signals. Its compact size (80 x 55 x 19 mm) and light weight (59 g) make the device convenient for transport to flights or to the workshop.

This smart tester is suitable for both amateurs and professionals: monitor the condition of LiHv/LiPo/LiFe/LiIon batteries from 1 to 8S, as well as NiMH/NiCd up to 10S, getting measurement accuracy of ±0.005V and high-quality balancing to extend battery life.

An ideal choice for drone owners, modelers, and technicians who need a reliable, compact, and functional tester with BattGO support and a wide range of interfaces.
