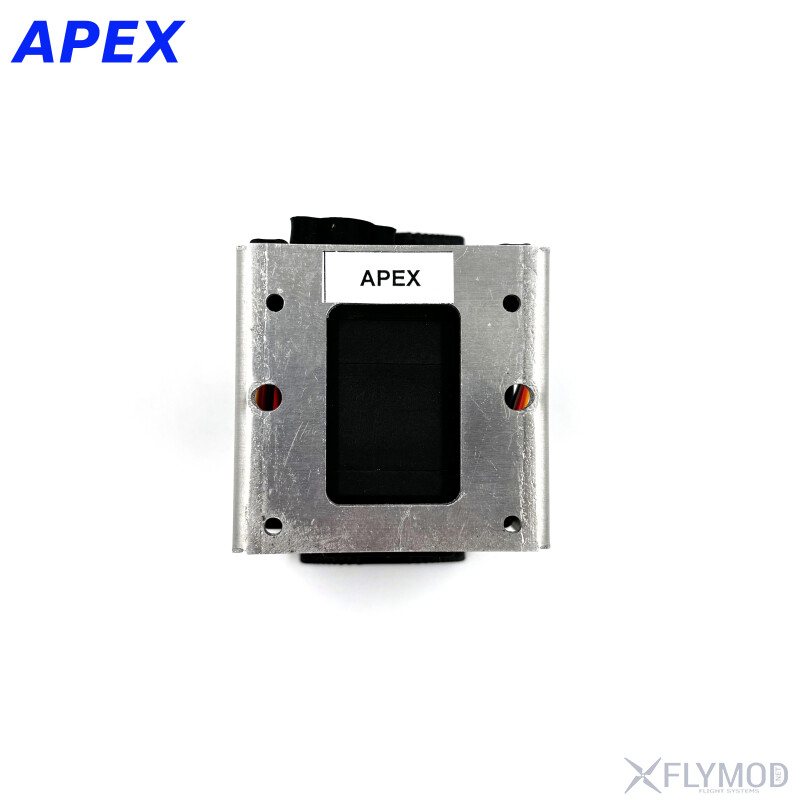

The payload release and retention system for FPV drones is designed for transporting payloads weighing up to 3kg. Control is performed by a flight controller with a PWM output configured to work with a servo. The system has a built-in step-down power stabilizer (3-5A) to avoid overloading the flight controller's standard stabilizer. To increase reliability, the servo used in the system has a metal gearbox. The aluminum bracket allows the use of release systems with frames from 7 to 10 inches of various models and manufacturers. The bracket is designed separately, taking into account the mounting holes for each frame, and is cut with high precision on a laser machine. Ready-made bracket models are available for iFlight, Mark IV, APEX, Diatone, and other frames.

Features

• Payload transport up to 3kg
• Built-in 3-5A step-down power stabilizer
• Controlled by a flight controller with PWM output
• Used with frames from 7 to 10 inches
• Bracket models for iFlight, Mark IV, APEX, Diatone, and other frames

Specifications

• Power supply voltage: 20-28V
• Power stabilizer: 3-5A
• Load capacity: up to 3kg
• Release housing material: ABS Pro plastic
• Bracket material: aluminum
• Size: 79x60x54mm
• System weight: 155g

Package Contents

• 1 x aluminum bracket for frame mounting
• 1 x release system assembly with servo
• 1 x pad for payload attachment
• 1 x screw set (4 pcs)

Files

• Payload attachment pad STL file for 3D printing
