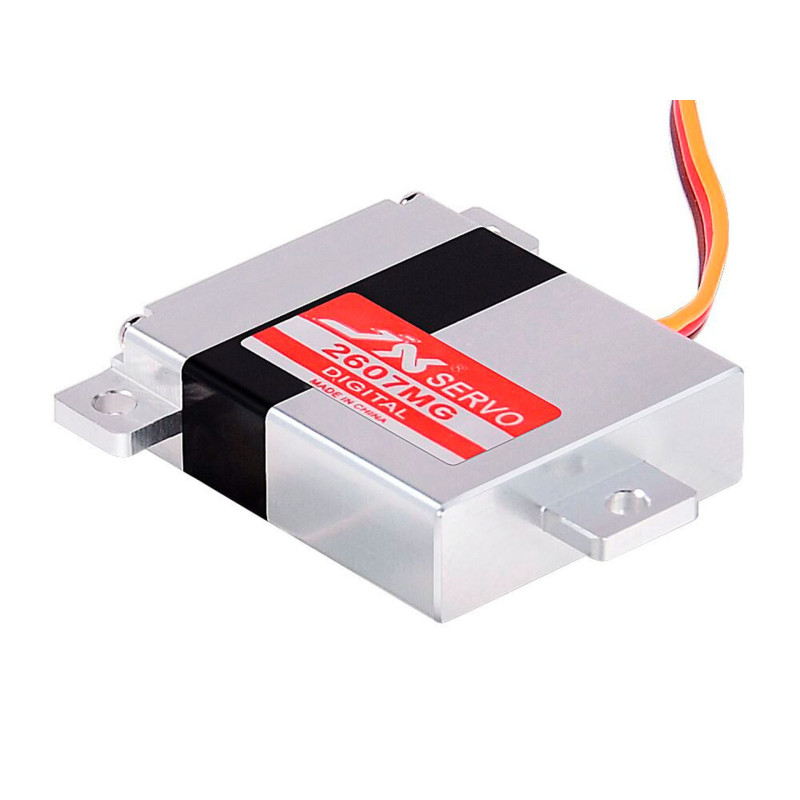

JX PDI-2607MG Servo (26.2g, Digital, Metal Gear)
Brand: JX PDI. This JX PDI-2607MG digital servo combines compactness, power, and high precision for models and robotics. The device weighs only 26.2g, making it ideal for light and medium constructions without significantly increasing overall weight.
Torque: 5.85 kg·cm at 4.8V and up to 7.21 kg·cm at 6.0V, ensuring reliable operation under load. Response Speed: 0.16 s per 60° at 4.8V and 0.13 s per 60° at 6.0V, making the device suitable for high-dynamic tasks.
Electrical Parameters: operating voltage 4.8–6.0V; operating frequency 1520 μs / 330 Hz, guaranteeing compatibility with most standard control systems.
Construction and Materials: metal gears and a metal gearbox increase wear resistance and durability during intensive use. Motor type: brushed. Wire length: 220 mm, facilitating installation and connection in various configurations. Compact dimensions: 30 mm x 10 mm x 35.5 mm.
Key Features
| Features | Value |
|---|---|
| Weight | 26.2 g |
| Torque (4.8V) | 5.85 kg/cm |
| Torque (6.0V) | 7.21 kg/cm |
| Speed (4.8V) | 0.16 s |
| Speed (6.0V) | 0.13 s |
| Operating Voltage | 4.8-6.0 V |
| Operating Frequency | 1520 μs / 330 Hz |
| Motor Type | Brushed |
| Gearbox Material | Metal |
| Wire Length | 220 mm |
| Dimensions (LxWxH) | 30mm x 10mm x 35.5mm |
| Gear Type | Metal (specified in description) |
| Application | Modeling, robotics (specified in description) |
Advantages and Applications
The JX PDI-2607MG stands out for its combination of low weight and high torque, making it a versatile solution for model aircraft, helicopters, quadcopters, robotic platforms, and other projects requiring precise positioning. Metal gears and a metal gearbox significantly increase lifespan during intensive work cycles, while its speed characteristics ensure quick and accurate response to control signals. Thanks to its 4.8–6.0V operating voltage and standard operating frequency, the servo easily integrates into most controllers and receivers.

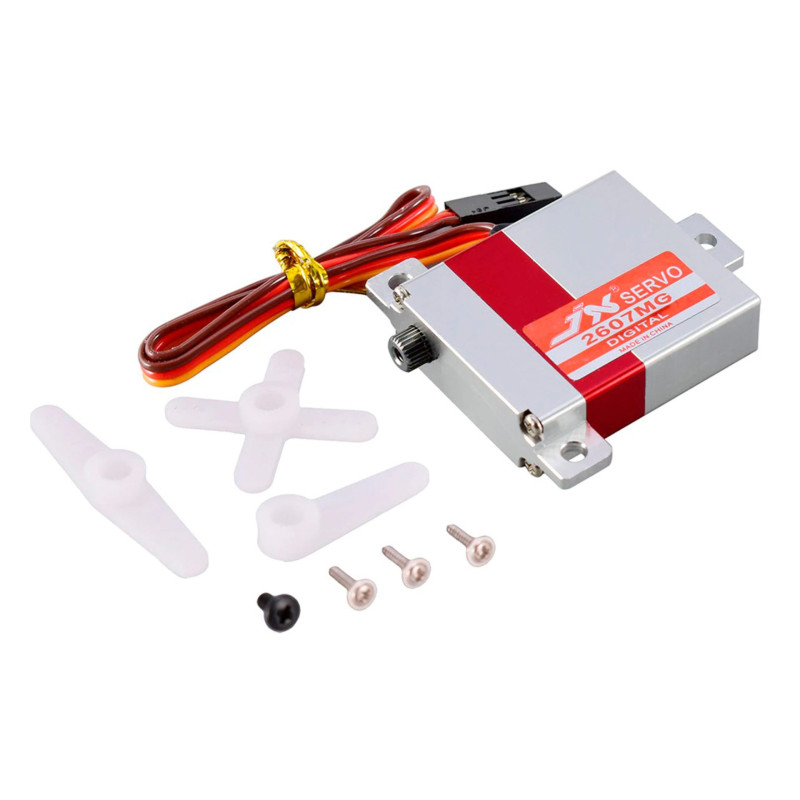

Package Contents
- JX PDI-2607MG Digital Servo — 1 pc;
- Plastic Servo Horns — 3 pcs;
- Mounting Hardware — 1 set.
Product Category: Drones & Quadcopters > Motors. If you need a reliable digital servo with metal gears for hobby or professional projects, the JX PDI-2607MG offers an optimal balance of weight, speed, and torque, making it an excellent choice for designs with limited space and high precision requirements.
