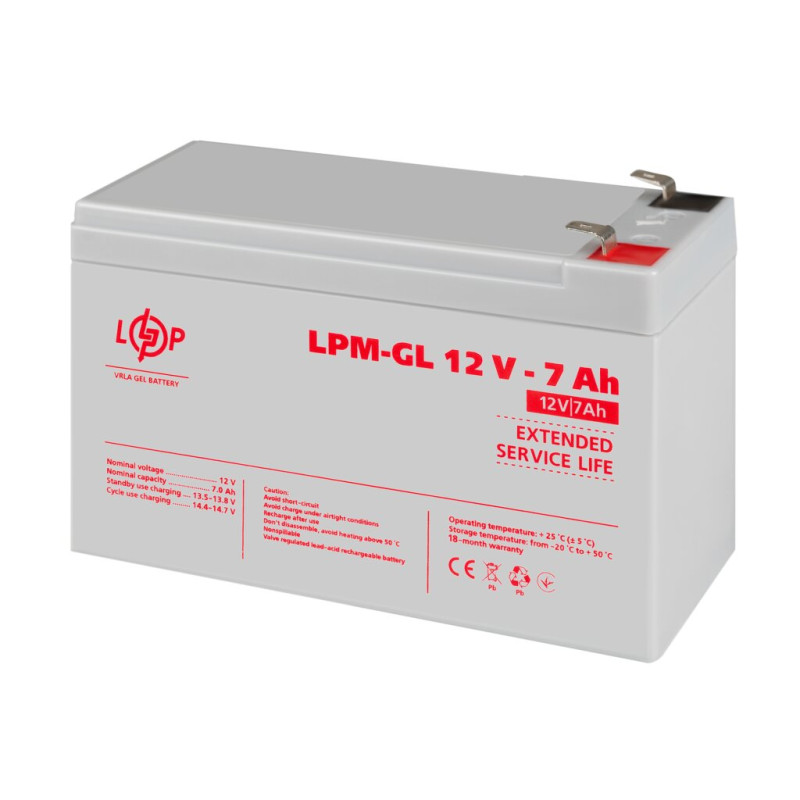

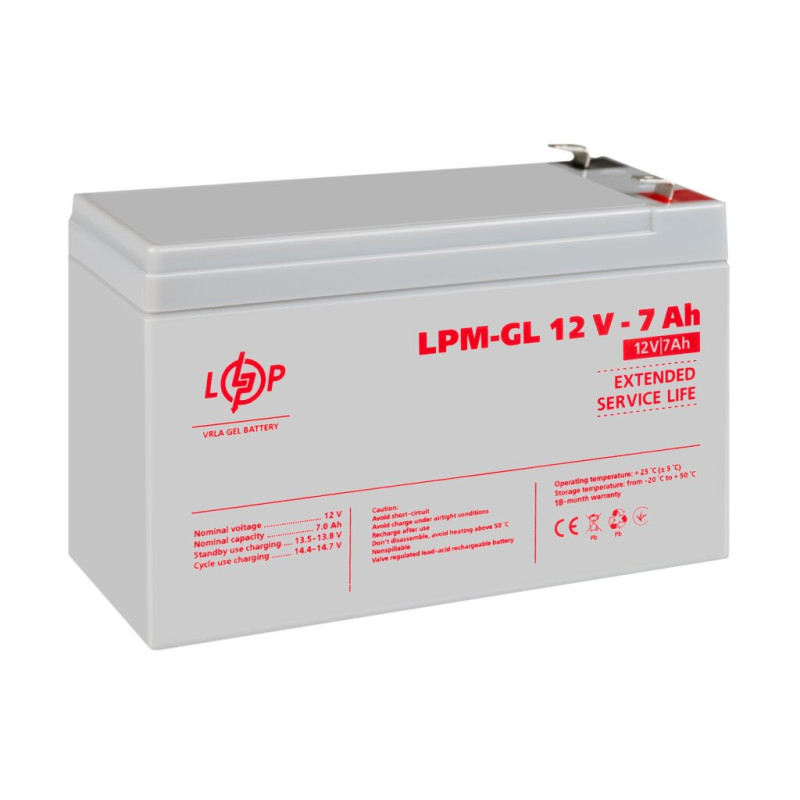

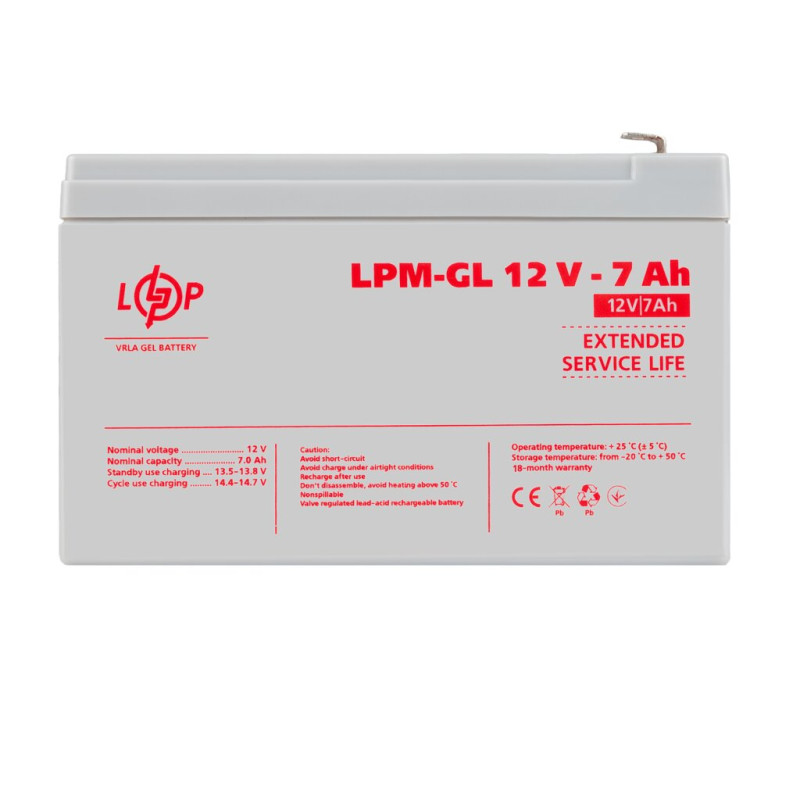

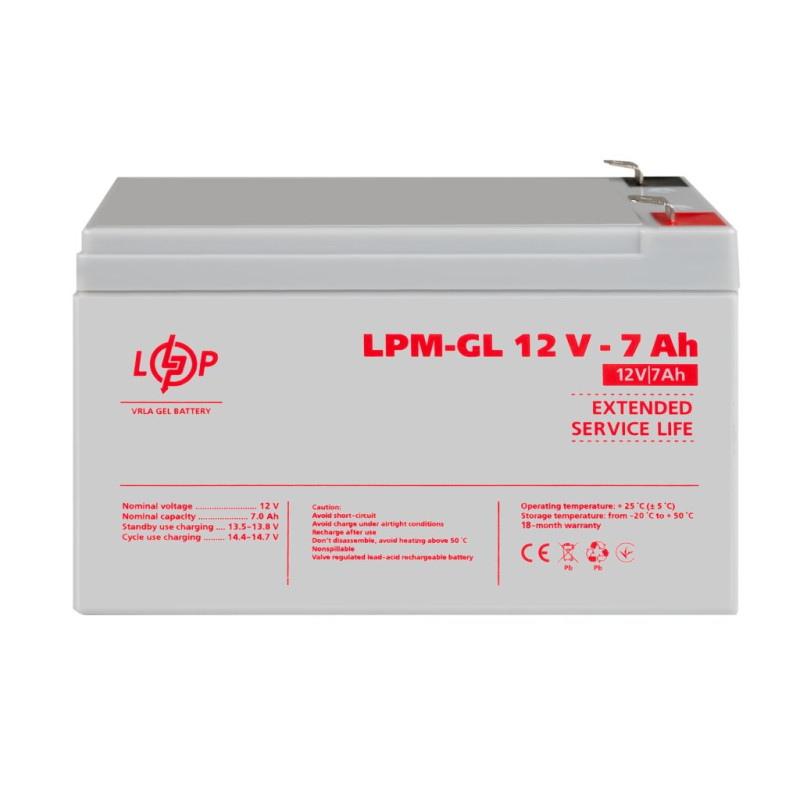

A Gel (GEL) rechargeable battery is a completely sealed power source that requires no maintenance during storage and operation.

Considering the advantages and disadvantages of a gel battery, it can be concluded that GEL-type batteries significantly outperform conventional lead-acid batteries in terms of technical parameters and operational characteristics.

Advantages of a gel battery:

• High charge/discharge cycle life (1200*) and, as a result, longer service life (on average 7-8 years, depending on operating conditions).
• The battery can be installed in residential premises. The viscous electrolyte structure and complete sealing of the casing prevent acid leakage and guarantee the absence of harmful fumes.
• In practical use, gel batteries show stable results when operating in low (-20°C) and high (+50°C) ambient temperatures. The wide operating temperature range allows GEL batteries to be used as batteries for solar power stations.
• The manufacturing technology of gel batteries implies that these batteries are capable of withstanding prolonged discharge, cyclic discharge, deep discharge, and high-current discharge.
• Batteries of this type have low self-discharge rates during long-term storage and reliable self-protection against over-discharge and over-charge.

Features of gel battery production

The main feature of gel batteries is the viscous (gel-like) structure of the electrolyte.

The casing is filled with electrolyte using a vacuum pump, which allows for uniform concentration and high density of contact with the plates.

The separators that divide the lead electrodes of gel batteries are made of a durable microporous material with aluminum additives. This design makes the separator resistant to vibrations and mechanical damage, as well as to chemical effects of the aggressive acidic environment inside the battery.

After filling with electrolyte, the battery undergoes prolonged drying, during which microcracks form in the electrolyte structure. This technology allows for a several-fold reduction in the percentage of evaporated fumes.

Batteries manufactured using GEL technology, compared to AGM batteries with a similar electrolyte volume, have:

• higher capacity,
• stably homogeneous reaction on all parts of the plate,
• less plate corrosion,
• high heat dissipation,
• minimal electrolyte stratification.

What is a gel battery needed for?

Universal external gel-type batteries are used:

• In telecommunication and other communication systems.
• For equipment of video surveillance, security, alarm, fire alarm, and other signaling systems.
• In uninterruptible power supply systems for server stations.
• As a power source for medical, laboratory, commercial, and other specialized equipment.
• In energy storage systems from alternative sources (batteries for solar panels).
• To provide autonomous or emergency lighting.
• As batteries for uninterruptible power supply units and UPS.

Which batteries are best for solar panels, and which battery to buy for a UPS?

The choice of battery for a solar power station depends on the generation volumes of the solar power station, as well as on the required amount of electricity to ensure consumption.

An AGM or gel battery for a solar panel must have a sufficient capacity reserve, a wide operating temperature range, and a long service life.

Before deciding which battery is best to buy for a UPS, carefully study the parameters of the uninterruptible power supply and determine the amount of time required for autonomous operation of electrical equipment.

Gel batteries are in high demand among consumers who purchase backup power kits for heating boilers, emergency lighting systems, or autonomous water supply.

Before buying batteries for solar panels, uninterruptible power supplies, or other purposes, consult a specialist: +38(080)030-99-88

How to avoid battery capacity loss in conditions of frequent power outages?

Two important rules for caring for AGM, GEL, MG batteries:

1. Do not frequently discharge the battery by more than 30% of its capacity (take this into account when calculating battery capacity)
2. After discharge, the battery must be fully charged with a current of 1/10 of the capacity for 10 hours

IMPORTANT! If a group of several batteries connected in parallel or in series is used, then:

• all batteries must have the same capacity,
• be of the same type AGM, GEL, or MG,
• have the same voltage, the same number of charge/discharge cycles,
• be from the same batch of the same brand.

Violation of these requirements leads to premature failure of one or more batteries and is not a warranty case. More detailed information can be found in our article.

On the official LogicPower website, you can order UPS batteries and other types of batteries with delivery across Ukraine. Price – directly from the manufacturer.

Warranty – 6 months.

The company ensures 100% fulfillment of warranty obligations. Maintenance and repair of LogicPower equipment are carried out in certified service centers.

*Depending on operating conditions
