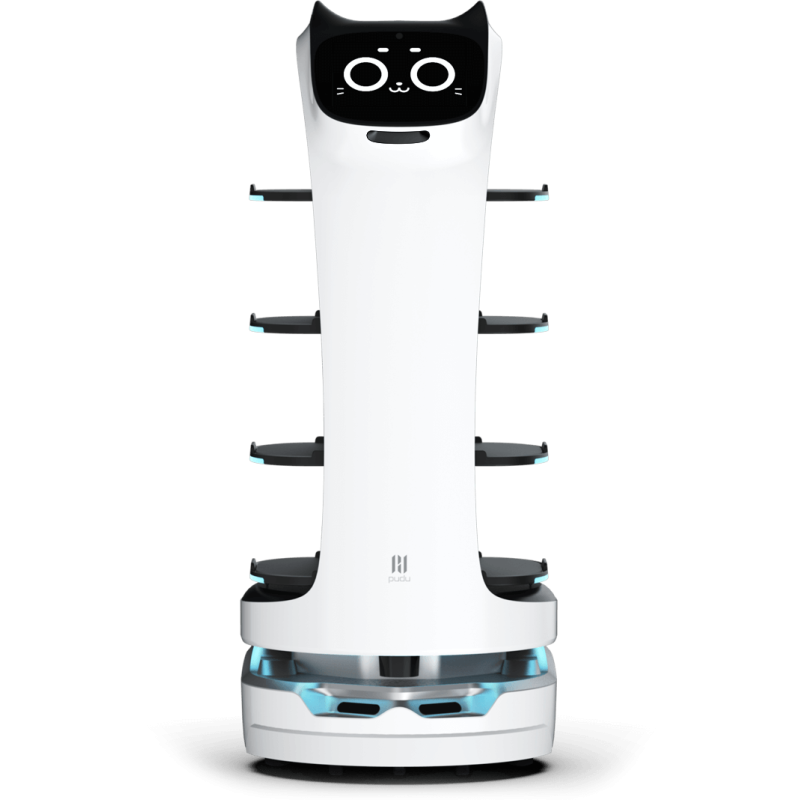

PUDU BellaBot Waiter Robot

BellaBot, the latest delivery robot model developed by Pudu, inherits the outstanding characteristics of the previous generation and boasts superior human-robot interaction capabilities. Featuring an innovative bionic design, attractive style, AI-powered voice functions, multimodal interaction, and many other features, the BellaBot robot provides users with unparalleled capabilities and experience as a food delivery robot.

Industry-leading dual SLAM technology for full operation in any environment

To operate in more diverse scenarios, BellaBot is equipped with two positioning and navigation technologies: visual and laser SLAM. Both technologies are accurate and easy to use. Both positioning technologies used in BellaBot provide the user with the same level of robot performance quality. Although the positioning technologies are different, the level of convenience for BellaBot customers never changes.

Aesthetic design

BellaBot features an innovative bionic design that excels in everything from the height of the machine body to the screen tilt and elegant shape.

Omnidirectional 3D obstacle avoidance method

To ensure enhanced safety, BellaBot is equipped with 3D sensors and a new type of modular chassis. It can stop and bypass obstacles as soon as it detects them from any side.

• Minimum height of recognizable objects - 2cm


• Object recognition frequency - up to 5400 times per minute


• Front viewing angle - up to 192.64°


• Front obstacle recognition range - over 10m

Multi-mode interaction

• Voice


• Light


• Touch


• Attractiveness

Interaction via light

Appropriate light signals are used at different stages of the task; this makes status indication clearer.

Express reaction by touch

The new touch interaction function makes communication with BellaBot more complete and the human-robot interaction experience unforgettable.

Intelligent facial expressions

BellaBot has dozens of unique original facial expressions that diversify the robot's emotional state and make it resemble a real "cat."

Tray with inductive IR sensors

Fast disassembly thanks to modular design and intelligent trays with inductive IR sensors. A more intelligent tray for more efficient delivery.

Power source replacement technology

For accelerated battery replacement, charging and usage scenarios are categorized. 24/7 operation: easy for BellaBot.

RGBD

A depth camera with 3* RGBD sensors gives BellaBot the best volumetric perception among other existing robots. It can accurately recognize an obstacle and stop in just 0.5 seconds.

Stability thanks to automotive-grade independent suspension

Adaptive automotive-grade independent suspension. Damping parameters can be changed depending on floor conditions and movement requirements. Optimal resonant frequency is maintained.

PUDU SCHEDULER

PUDU SCHEDULER uses a decentralized flexible situational communication system and algorithm architecture. Each robot can directly communicate with any robot in the same network, quickly perform calculations and make decisions. This scheme reduces network requirements, simplifies the central computing node, which requires significant computing power, and approaches a human interaction mechanism.

PUDU CLOUD

The PUDU CLOUD platform provides powerful intelligent cloud support for Pudu robots, enabling a smart catering system with special functions such as an enterprise management platform, an automated operation and maintenance platform, a scenario data collection platform, and an intelligent cloud service platform.

•
  Overall dimensions: 565*537*1290 mm



•
  Robot weight 59 kg



•
  Machine material ABS plastic/aviation-grade aluminum alloy



•
  Charging time 4.5 h



•
  Battery life 12-24 h (replaceable battery)



•
  Safety Speed: 0.5-1.2 m/s (adjustable) | Climbing angle: ≤ 5°



•
  Load capacity 40 kg max, 10 kg/tray



•
  Positioning method. Marker positioning: Supports operation in rooms with a maximum ceiling height of 8 m (optional high-level coding). Laser positioning: No coding, no height restrictions
