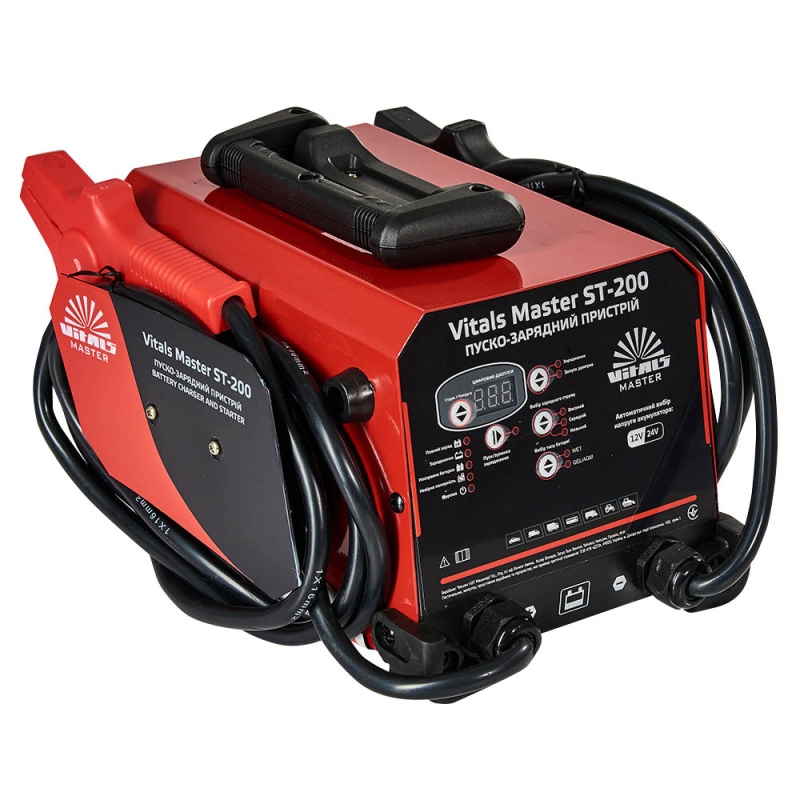

Description of Vitals Master ST-200 Starter-Charger

The Vitals Master ST-200 starter-charger is designed for charging 12/24V lead-acid batteries and Gel batteries of all types for vehicles, other industrial and household equipment, as well as for starting vehicle engines with discharged batteries. The product is powered by a single-phase AC mains with a voltage of 230 V and a frequency of 50 Hz.

The Vitals Master ST-200 model belongs to "intelligent" inverter-type electronic devices and is intended for use in stationary conditions in parking lots, garages, etc., or in "field conditions" with mobile power sources.

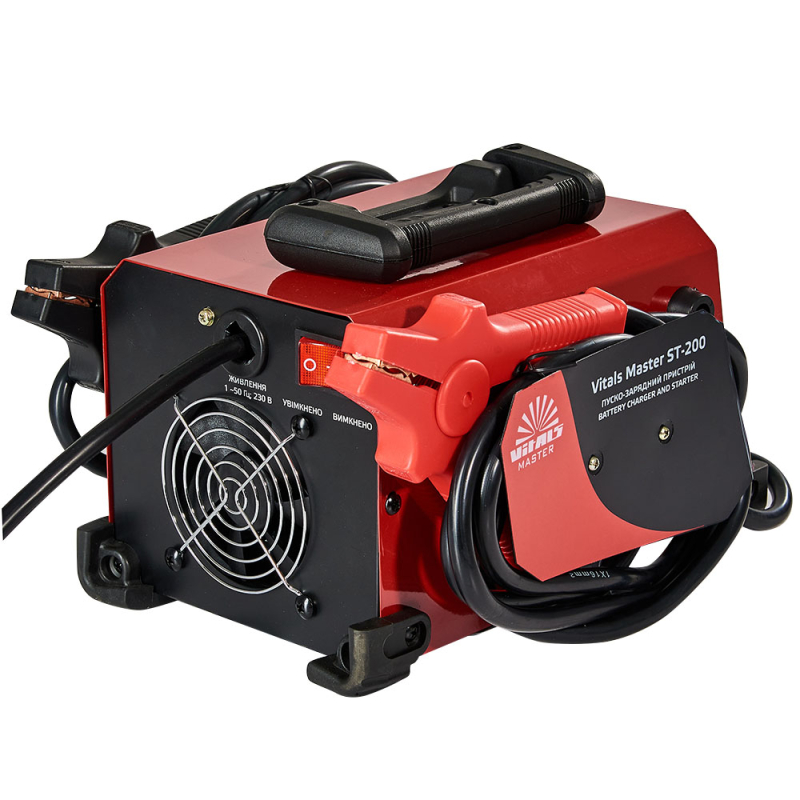

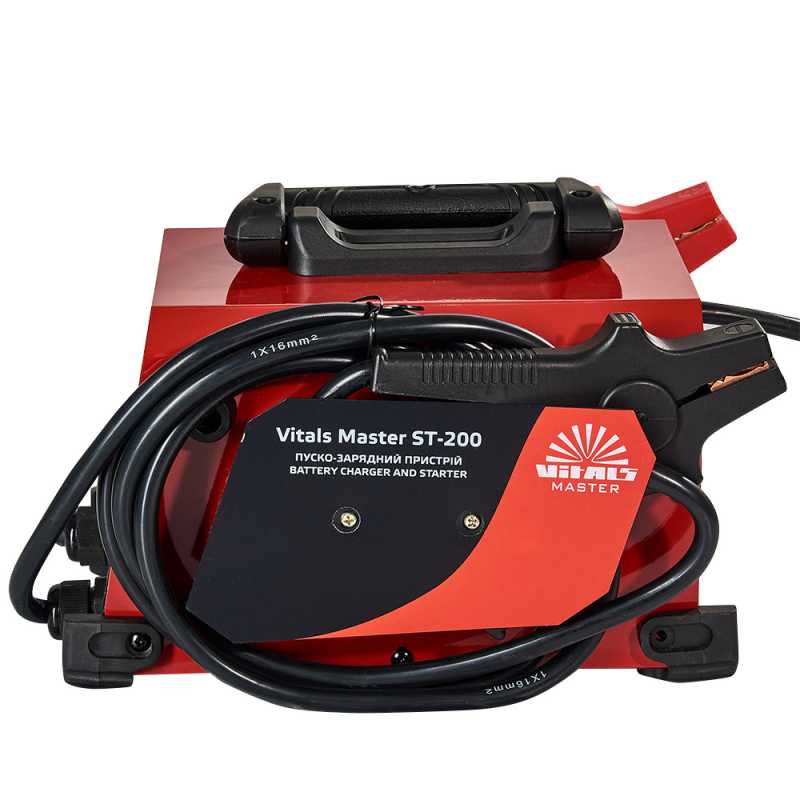

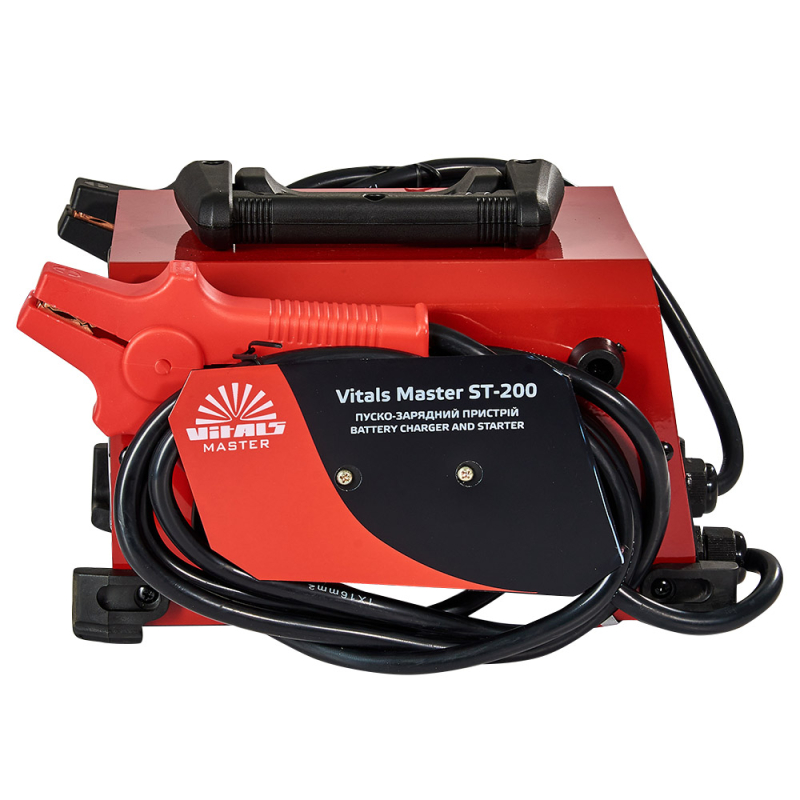

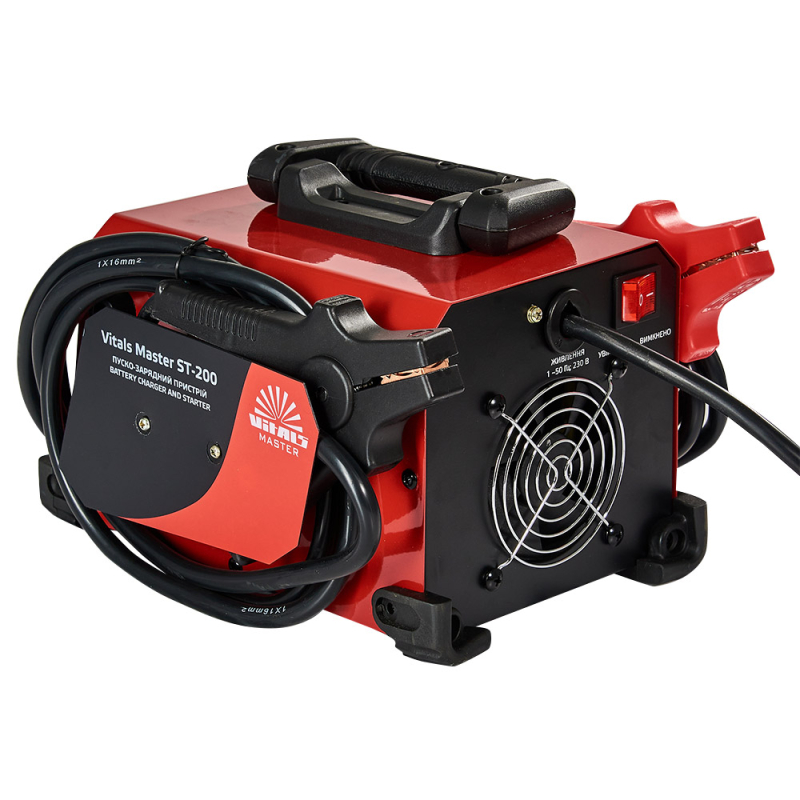

The electronic inverter unit is equipped with a microcontroller that automatically detects 12V or 24V batteries and implements a 3-stage programmed charging cycle. The product body has specially designed niches for storing charging cables with terminals, which ensures convenient storage and transportation of the product in a complete working set without disconnecting the cables.

The operating principle of the product, based on an inverter unit, is built on converting 230V, 50Hz single-phase AC mains current into output DC using pulse-width modulation technology with a high level of stability. Inverter-type products, unlike traditional transformer-based ones with diode current rectification:

• do not cause voltage surges in the electrical network during operation, which allows them to be used in everyday life without interference;
• do not have charging current dependence on input network current fluctuations;
• do not affect the operation of other networked household appliances;
• the product's circuit solutions include protective functions (against incorrect connection to battery terminals; against reverse current after engine start; against short circuit of terminals; against charging damaged batteries that have lost the ability to accumulate energy; against product overheating, when it automatically switches to slow charging mode until normal temperature is restored);
• have compact dimensions and weight, which increases convenience and mobility during operation.

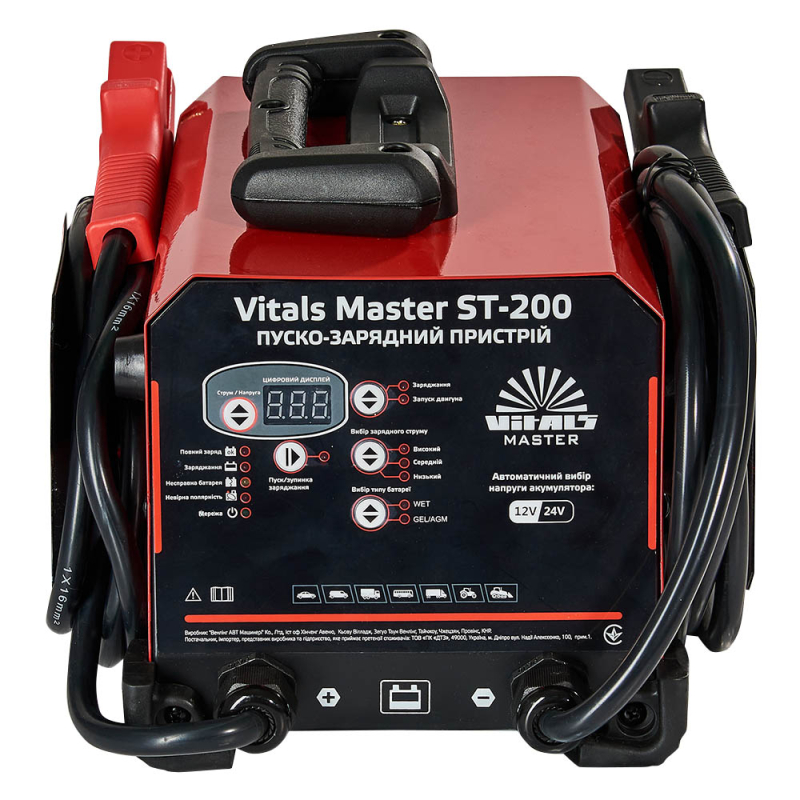

The presence of a bright digital LED display and light indicators in the design facilitates product use in the dark.

The use of modern developments and technologies in product manufacturing ensures optimal operating characteristics, reliable operation, and durability during use.
