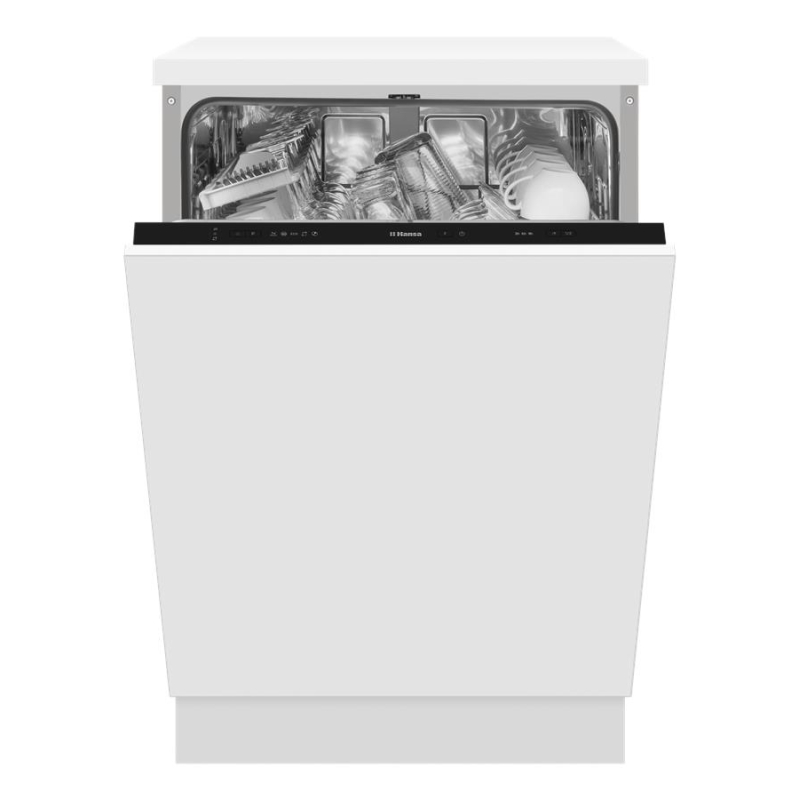

Model ZIM655H

Product Built-in Dishwasher

TECHNICAL DATA

Supply voltage [V] 230 V

Frequency [Hz] 50

Power [W] 1930

Heating element [W] 1800

Washing pump power [W] 98

Drain pump power [W] 30

Maximum current [A] 10

Water pressure range [bar] 0.4 - 10 bar

Hot water connection up to [°C] 25

Certificates CE

Plug (Euro/UK) Euro plug

Power cord length [cm] 150

Water supply hose [cm] 150

Water drain hose [cm] 140

Motor type Standard - two-speed

PRODUCT PARAMETERS - EL 2010 and CIS

Capacity EL 2010 (ps) 12

Energy efficiency class (EL 2010) A++

Cleaning efficiency class A

Drying efficiency class A

Annual energy consumption [kWh/year] 258

Annual water consumption [L/year] 3080

Energy consumption per cycle [kWh] 0.908

Water consumption per cycle [L] 11

Off-mode energy consumption - Po [W] 0.45

Standby mode energy consumption - Pl [W] 0.49

Standby mode duration [min] 15

Noise level [dB(A) re 1 pW] 49

Reference program ECO

Reference program duration [min] 220

PRODUCT PARAMETERS - EL 2019

Rated capacity EL 2019 (ps) 12

Energy Efficiency Index (EEI) 55.9

Energy efficiency class (EL 2019) E

Cleaning Efficiency Index (IC) 1.125

Drying Efficiency Index (ID) 1.065

Energy consumption in eco program (EPEC) [kWh/cycle] 0.923

Energy consumption in eco program (EPEC) per 100 cycles [kWh/100] 92

Energy consumption in standard program (SPEC) [kWh/cycle] 1.65

Water consumption in eco program (EPWC) [L/cycle] 11

Program duration [min] 220

Program duration [h.min] 3:40

Type: built-in

Airborne acoustical noise emissions [dB(A) re 1 pW] 49

Airborne acoustical noise emission class C

Off-mode energy consumption (Po) [W] 0.49

Standby mode energy consumption (Psm) [W] 0.45

Delayed start energy consumption (Pds) (if applicable) [W] 1

Does "standby mode" include information display? No

DESIGN

Panel type (overlay/standard) No overlay (standard)

Product color Galvanized sides and outer door

Door color Galvanized

Panel color Black

Inlay color Black

Panel - language version Pictograms

Display color / LED color White

Button color Black

FEATURES

Drying system Residual heat drying

Number of spray levels 2

Lower sprayer type Standard sprayer

2nd level sprayer type Standard sprayer

Float switch Yes

Buzzer Yes

Memory function Yes

Inner bottom material Metal

Main filter Stainless steel

Steam protection strip/plate on worktop Yes

Salt funnel Yes

Dispenser type Small sliding dispenser

Door balance adjustment / Hinge adjustment Adjustable from front

Maximum front weight [kg] 7

Minimum front weight [kg] 5

Sliding door/sliding hinges No

Adjustable feet 3

PROGRAMS AND CONTROLS

Power on/off button

Number of programs 5

Program 1 Hygiene (Wash 70°C/Rinse 70°C) /200 min

Program 2 Eco (Wash 45°C/Rinse 60°C) /220 min

Program 3 1 hour (Wash 60°C/Rinse 60°C) /60 min

Program 4 Self-cleaning (Wash 70°C/Rinse 70°C) /145 min

Program 5 Quick wash (Wash 50°C/Rinse 45°C) /30 min

Buttons On/Off, Program, Pause/Start, 1/2, Delayed Start, Function

Eco-bar No

Program selection button

Child lock No

Program progress indicator No

Half load Yes

Zone wash No

Delayed start 3/6/9 h

3 in 1 or ALL in 1 switch on panel No

Extra drying Yes

Steam function No

Power wash / Intensive wash No

Rinse aid indicator Yes

Salt indicator Yes

Self-cleaning reminder Yes

Program time adjustment None

Automatic opening No

Automatic opening off No

SHELVES/BASKETS

Color of shelves and accessories Grey

Number of baskets 2

2nd basket - pull-out tray No

2nd basket - height adjustment system Adjustable when empty

2nd basket - handle type Wire / No handle

2nd basket - folding tines Yes

2nd basket - number of cup shelves 1

2nd basket - side plastic shelf/tray for long cutlery Yes

2nd basket - wheels on bearings No

Bottom basket - handle type Wire / No handle

Bottom basket - cutlery basket Yes

Bottom basket - side plastic shelf/tray for long tools No

Bottom basket - folding tines Yes

Bottom basket - bottle holder No

Bottom basket - oven tray holder No

Bottom basket - rear plastic shelves (Jacob's shelf) No

Telescopic rails No

Silicone tine covers No

Wine glass holder (accessory) No

LOGISTIC DATA

Net height [mm] 815

Height without worktop [mm] 815

Width [mm] 598
