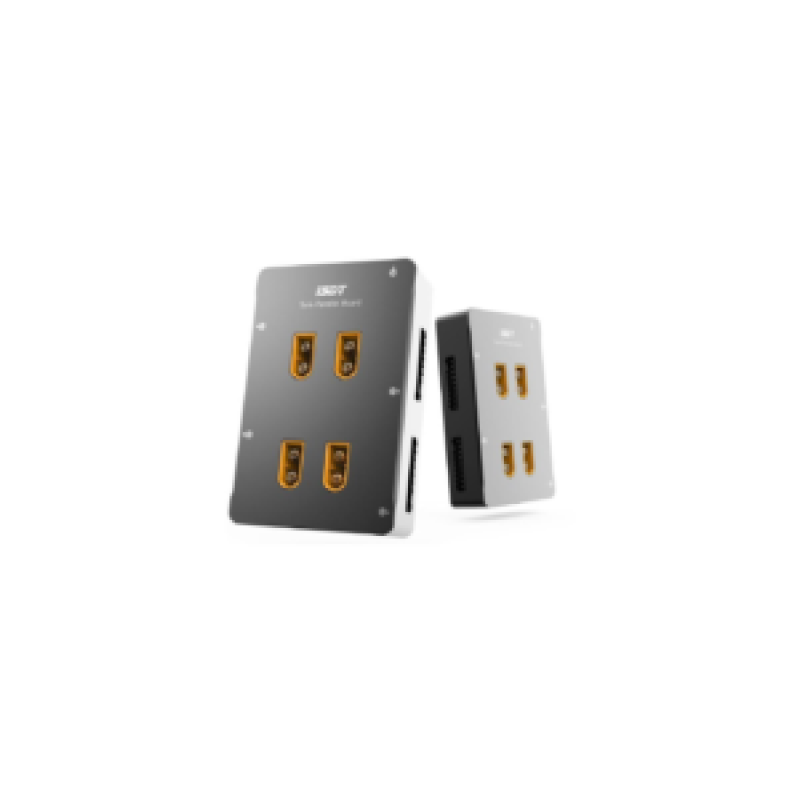

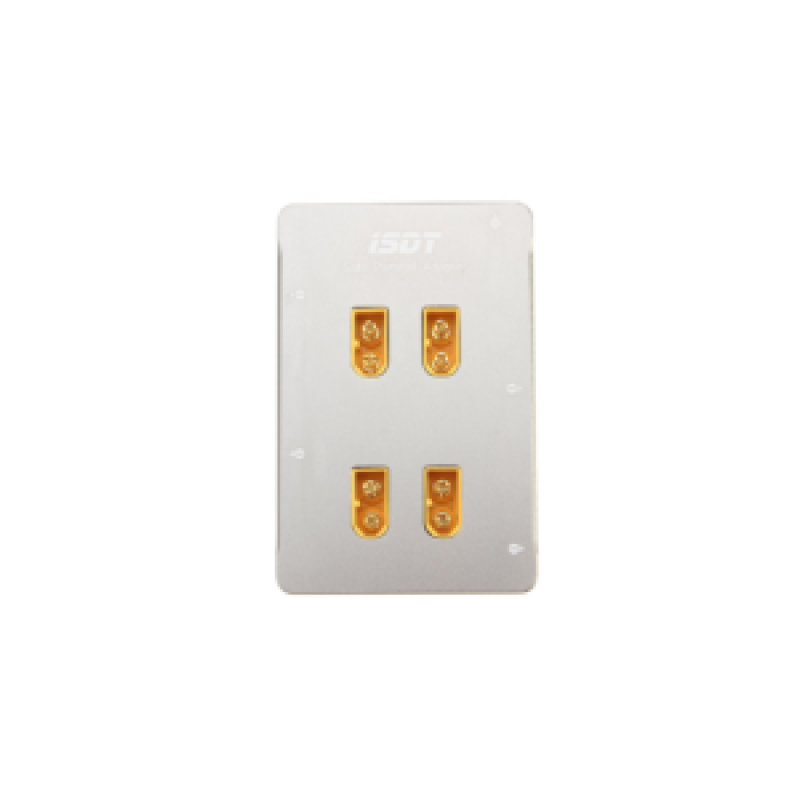

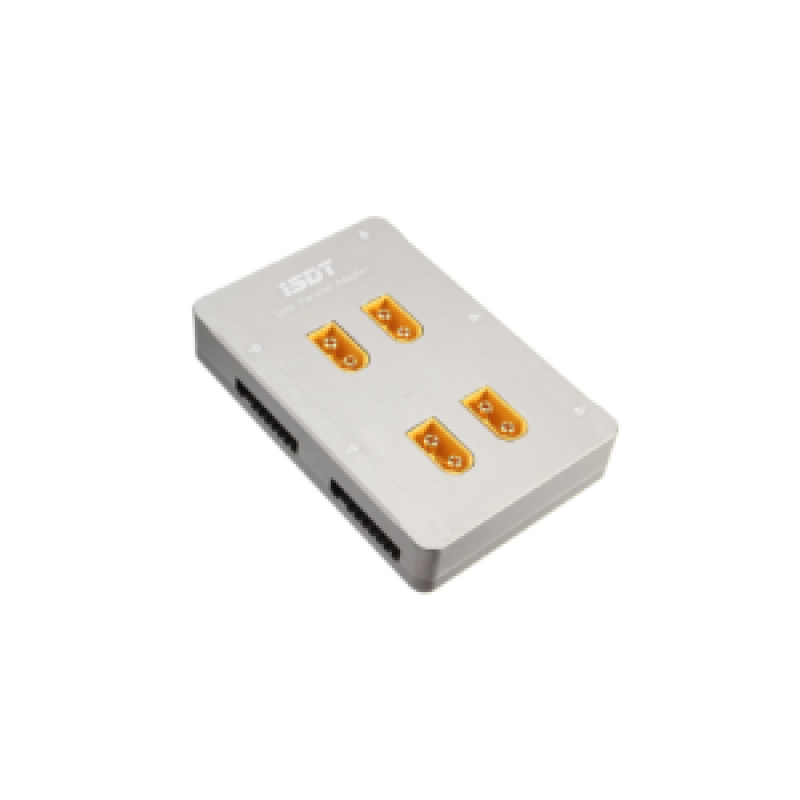

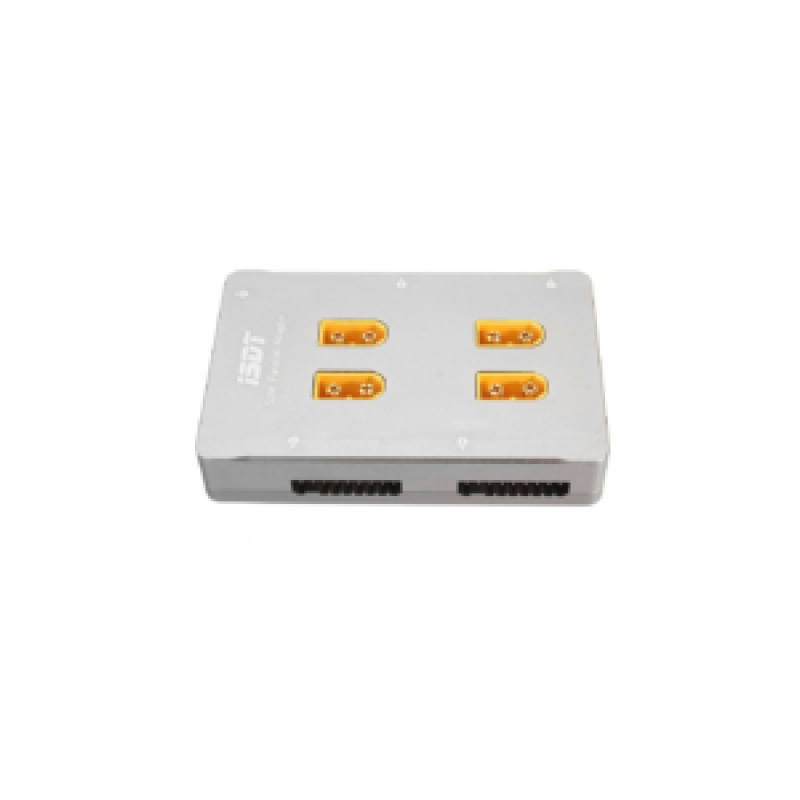

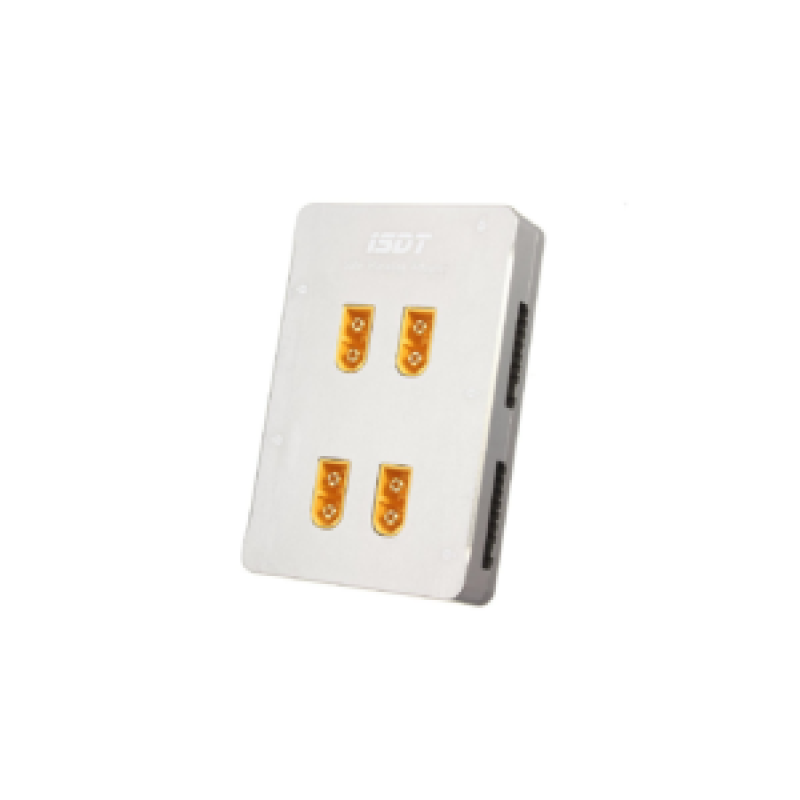

ISDT PC-4860 1-8S Parallel Charging Board — Compact and Safe Battery Charging Solution
Brand: iSDT. Model: PC-4860. This is a high-quality parallel charging board designed for fast and organized simultaneous connection and charging of 1S to 8S LiPo batteries using a single power source and a standard XT60 connector.
Product Description
The ISDT PC-4860 combines reliability, safety, and compactness in one unit. The aluminum casing ensures durability and efficient heat dissipation, reducing the risk of overheating during intensive operation. The optimized design allows the board to be used both in the field and in a workshop, ensuring stable operation while charging multiple batteries simultaneously.
Key Advantages
- Supports batteries from 1S to 8S, providing flexibility for various battery types.
- Input current up to 40 A allows for quick power delivery to multiple batteries simultaneously.
- Output current up to 30 A per port ensures stable current supply for connected batteries.

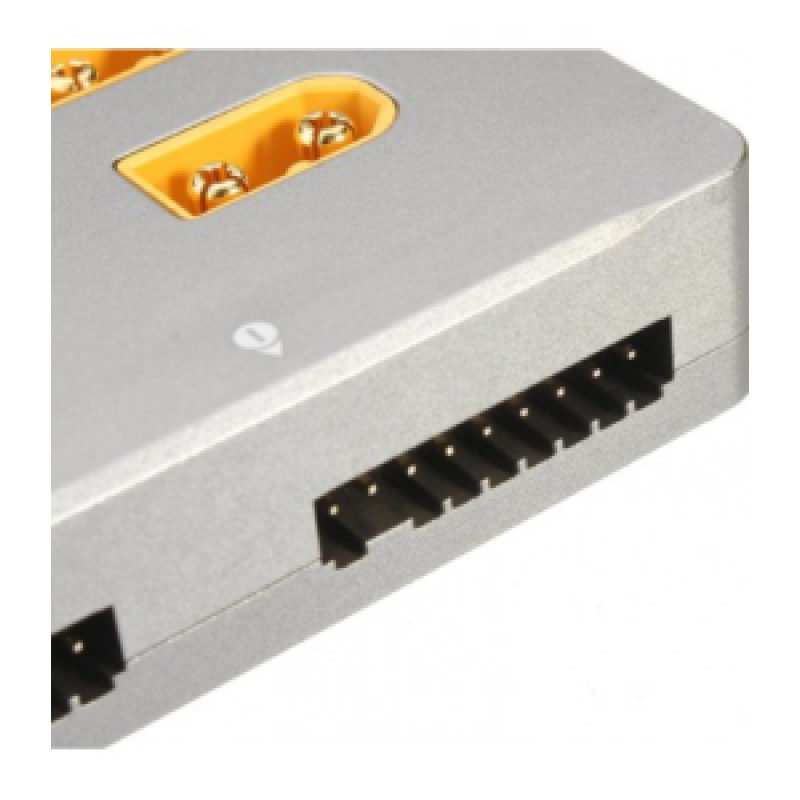

- Balance current of 2 A ensures proper cell balancing and extends battery life.
- Advanced protection system with 32 fuses to enhance the reliability of each channel.
- 4 output channels in an aluminum casing for safe current distribution and better heat dissipation.
- Compact dimensions of 88×58×20 mm and weight of 205 g make the board a portable solution for any charging station.

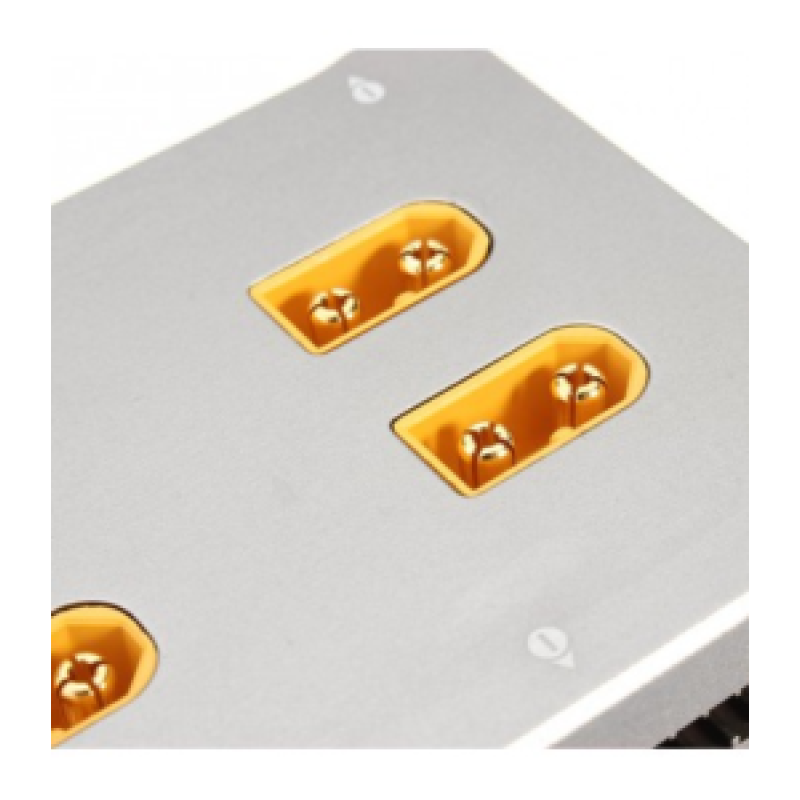

- Compatibility with standard XT60 connectors for power.
Specification
| Parameter | Value |
|---|---|
| Brand | iSDT |
| Model | PC-4860 |
| Balance | 1s - 8s |
| Balance Current | 2 A |
| Input Current | up to 40 A |
| Output Current | up to 30 A per port |
| Size | 88×58×20 mm |
| Weight | 205 g |
Included in the package
- ISDT PC-4860 1-8S parallel charging board

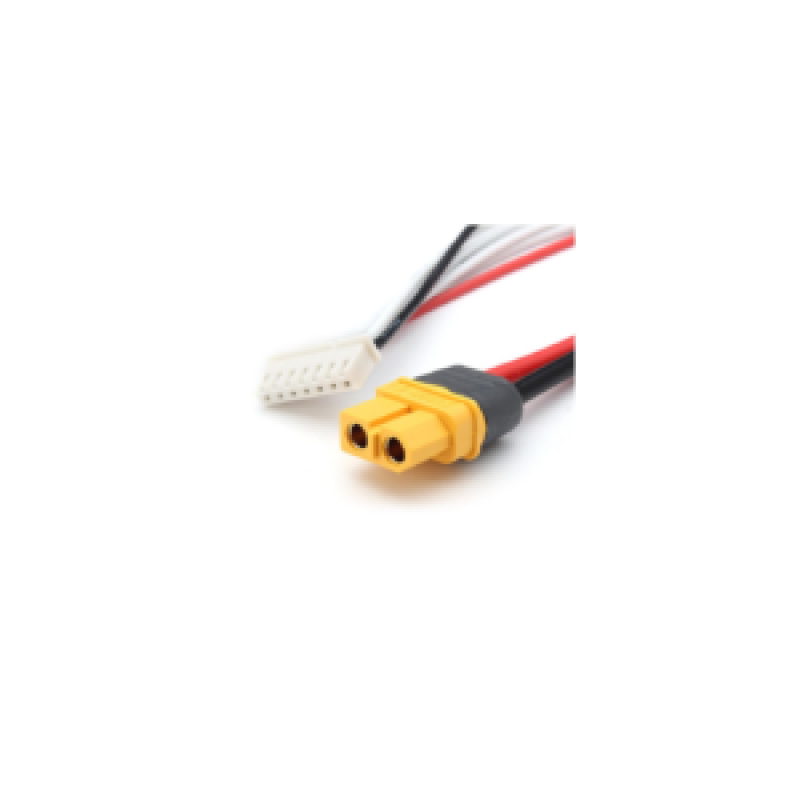

- XT60 power cable
- 6s balance cable
The ISDT PC-4860 board is designed for drone enthusiasts, modelers, and professionals who require fast and safe parallel charging of multiple batteries simultaneously. With built-in fuses (32 fuses), an aluminum casing, and a high maximum permissible current, this board is ideal for intensive use in the field or at base.
Careful 2 A balancing and protection for each channel enhance battery safety and longevity. Use quality cables and a reliable power source with an XT60 connector, monitor temperature during intensive charging, and follow operating instructions for maximum safety.
