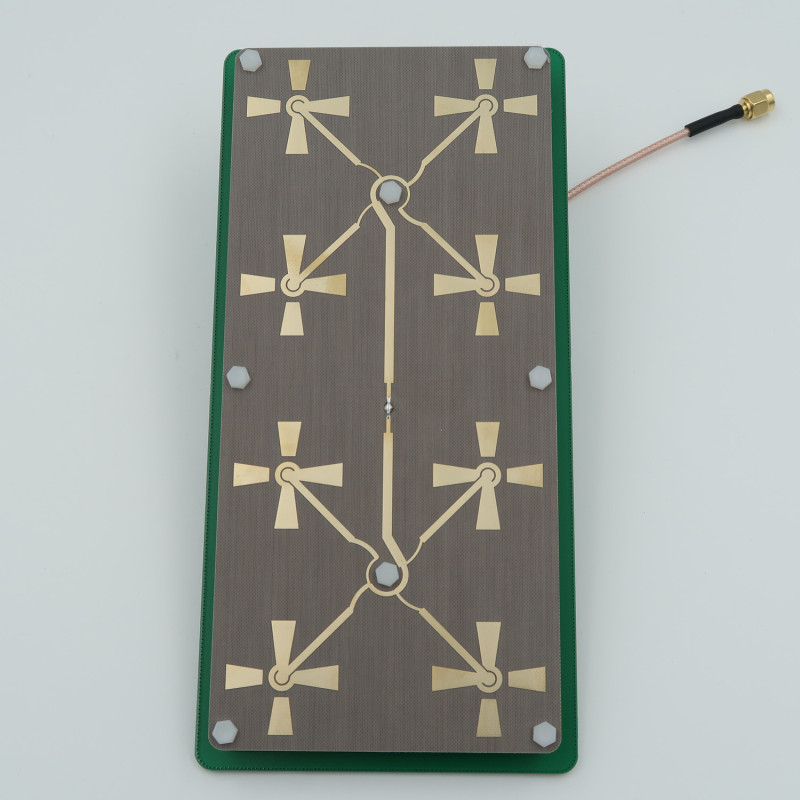

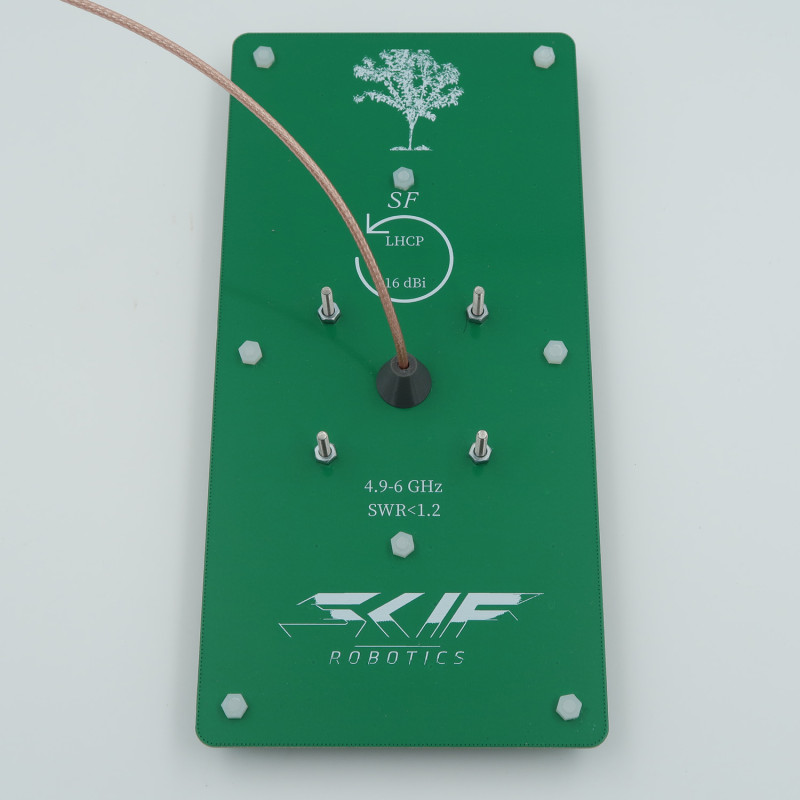

Patch Video Antenna is a flat, high-performance antenna used for receiving and transmitting video signals in various wireless systems, such as video surveillance systems, satellite networks, and other wireless video communications. Thanks to its flat shape, the antenna has compact dimensions and is easily integrated into various systems where aesthetics or space-saving are required.
In military conditions, Patch video antennas are widely used for real-time wireless video transmission. They are used for monitoring and observation on the battlefield, providing video communication between units, command posts, and other important objects. Thanks to their compactness and high efficiency, these antennas provide stable video communication in difficult conditions, such as in combat zones or over long distances, where minimizing physical and technological interference is important.
The Patch antenna is an excellent choice for those who need a high-quality, reliable, and compact solution for video signal transmission in any wireless system, including military operations, where compactness, efficiency, and signal stability are important.
Specifications

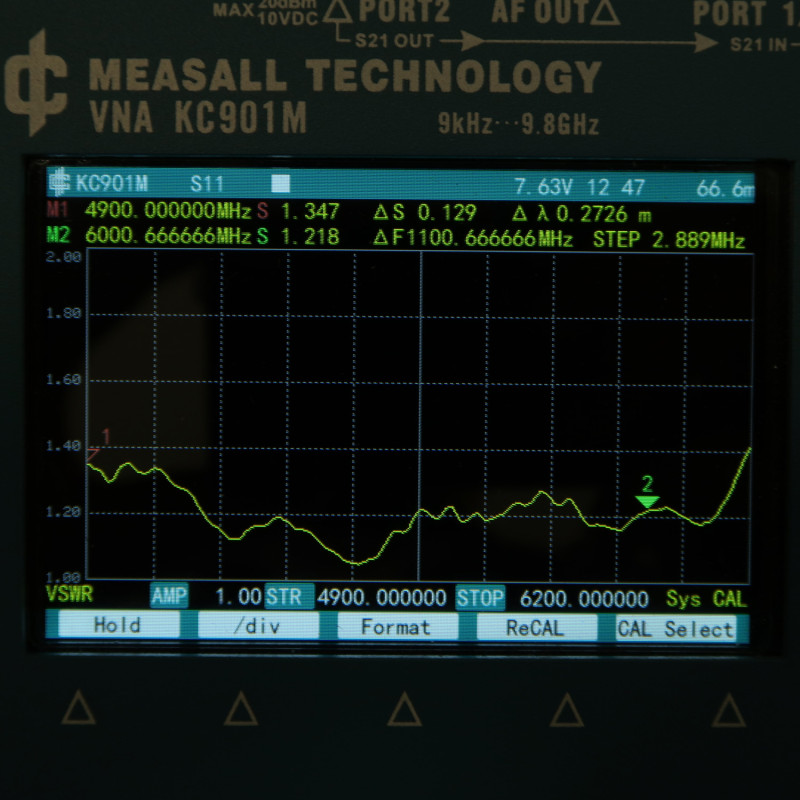

Frequency range 4.8-6.2 GHz
Polarization Left-hand circular (LHCP)
Beam angle 15-30° Connector SMA
Material Composite materials
Gain 16 dBi Size 205*99*30 mm

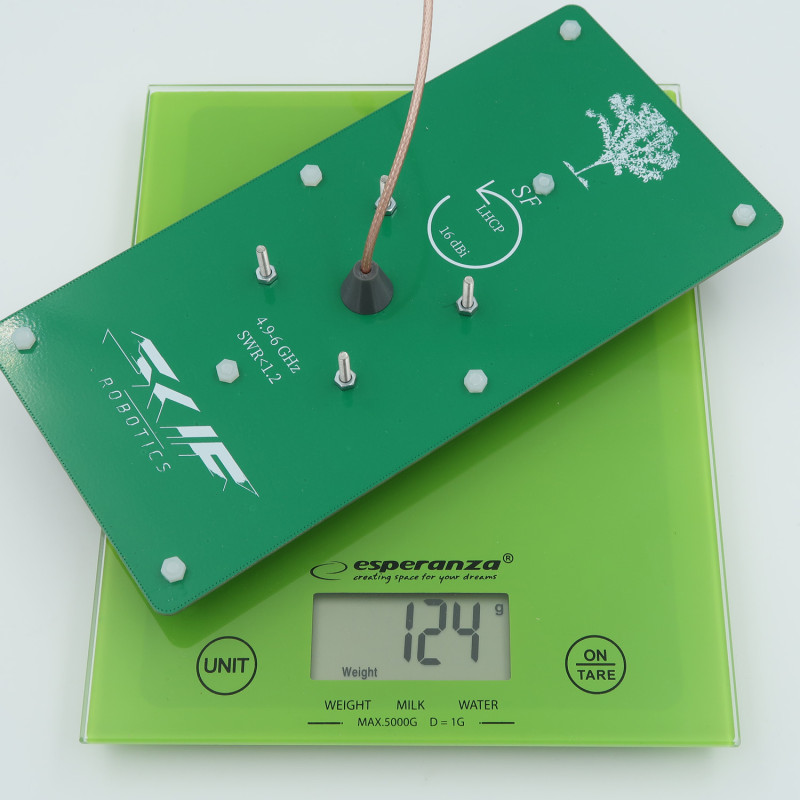

Weight 124 g.
