Linear Patch Antenna 20 dBi 4.9-6.1 GHz — Compact High-Efficiency Video Antenna
The Linear Patch Antenna 20 dBi 4.9-6.1 GHz from the manufacturer is a flat, high-performance video antenna from the Antennas > Patch Antennas category, designed for reliable transmission and reception of video signals in wireless systems. The device combines compactness, low weight, and high gain, making it suitable for video surveillance systems, wireless video communications, monitoring, and specialized solutions where efficiency and ease of integration are crucial.
Description and Design

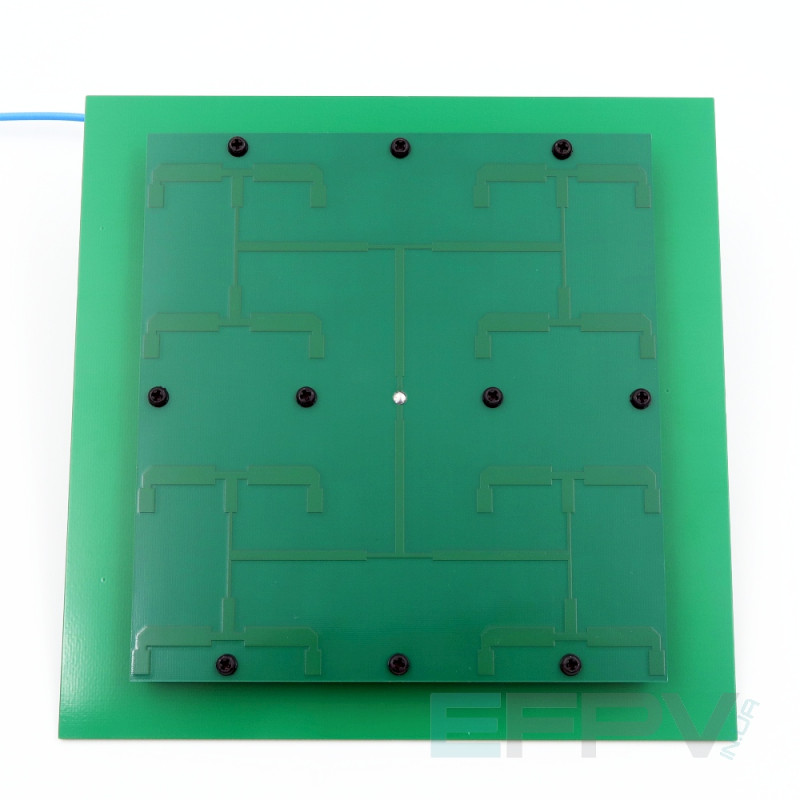

The antenna has dimensions of 180×180×40 mm and weighs 180 g. The casing is made of composite materials and plastic, ensuring resistance to external conditions and long-term operation. The flat shape allows for easy installation of antennas into various structures, casings, and mounting solutions without significantly increasing the weight or size of the equipment.

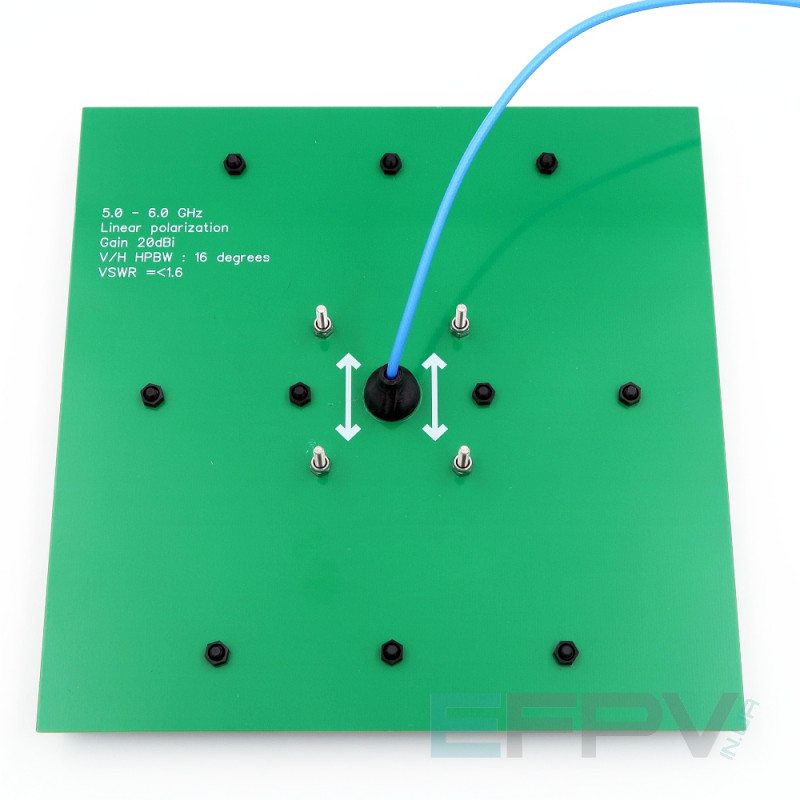

Key Characteristics
- Gain: 20 dBi
- Frequency Range: 4.9-6.1 GHz is indicated in the title, 5.0-6.0 GHz is also provided in the specification — consider both parameters when planning application
- Polarization: Linear
- Beam Angle: 16°
- Connector: SMA
- Material: Composite materials, plastic
- Size: 180×180×40 mm

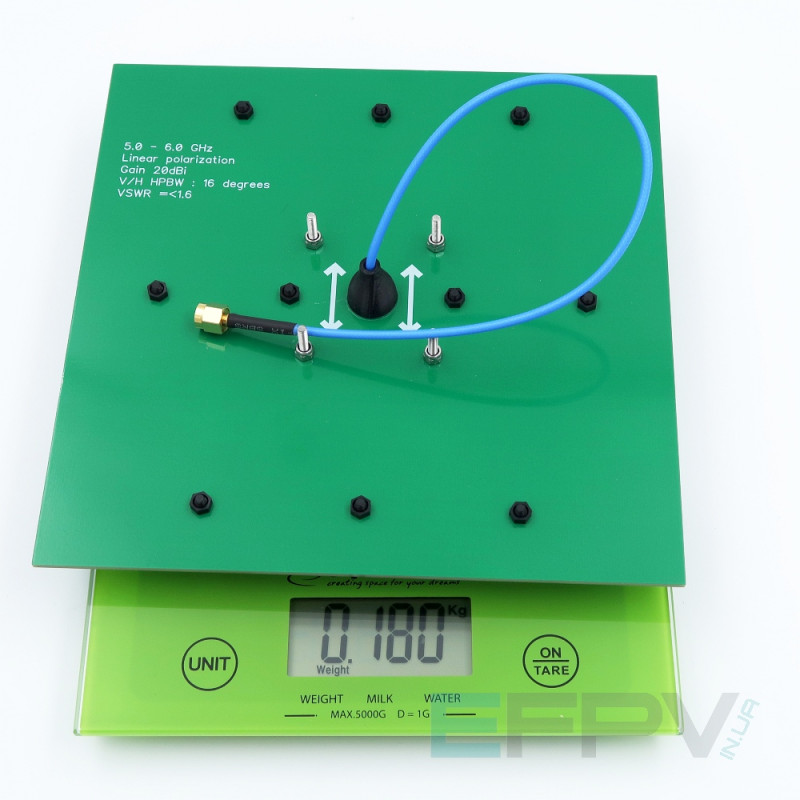

- Weight: 180 g
Practical Application and Advantages
This patch antenna is optimal for use in video surveillance systems, real-time wireless video transmission, monitoring, and communications between units, command posts, and critical facilities. Thanks to its high gain of 20 dBi and narrow beam angle of 16°, it provides stable and long-range communication while minimizing interference. Linear polarization and an SMA connector ensure compatibility with a wide range of transmitters and receivers, and the durable composite material casing enhances reliability in challenging operating conditions.
Advantages of the model: compactness, low weight, easy integration into existing systems, high efficiency, and durability. Before installation and purchase, pay attention to the specified frequency ranges (4.9-6.1 GHz in the title and 5.0-6.0 GHz in the specification) and ensure compatibility with your equipment via the SMA connector and linear polarization.
You can buy tested and high-quality patch antennas from our online store. If you need help selecting an antenna for a specific task or advice on equipment compatibility, please contact our specialists.
