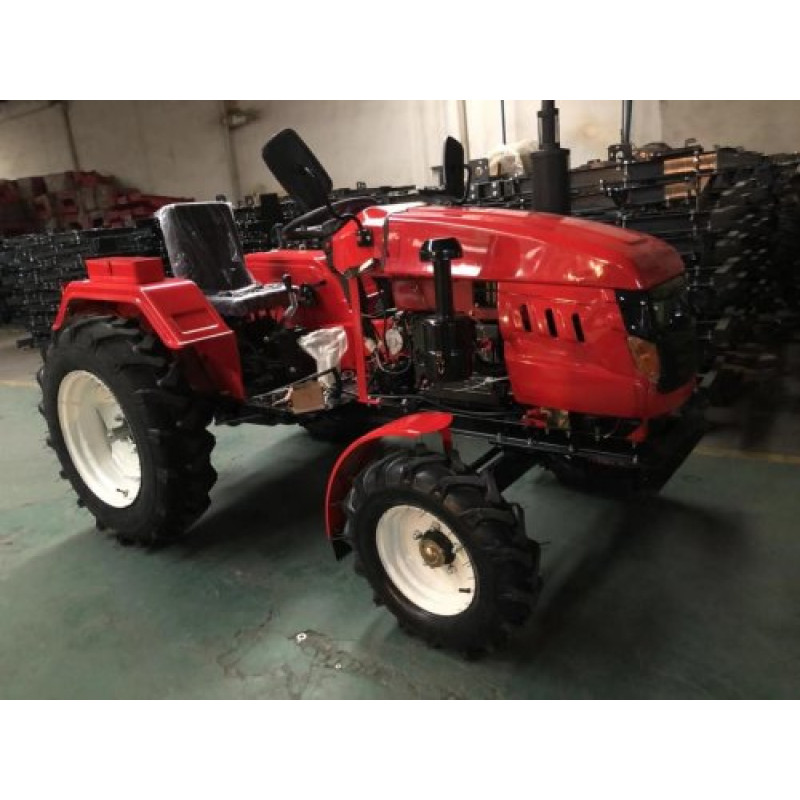

ZUBR T-240 Mototractor (with three-point hitch) — a versatile helper for your farm

The ZUBR T-240 Mototractor model from the ZUBR brand is a modern, compact 2020 mototractor that combines power, reliability, and an affordable price. Thanks to its three-point hitch, this machine becomes a universal platform for a wide range of mounted and trailed equipment, making it effective for small and medium-sized farms, as well as for work in greenhouses, construction, and the municipal sector.

The heart of the T-240 is a reliable four-stroke ZS1115 horizontal diesel engine with water cooling. It has a displacement of 1298 cm3, a cylinder bore of 115 mm, a piston stroke of 125 mm, and develops a maximum power of 24 hp. The engine cooling is water-based, and the lubrication system uses an oil pump. For convenient starting, an electric starter and manual start capability (Z-shaped handle) are provided.

The mototractor has a 4x2 wheel formula (rear-wheel drive), which ensures good maneuverability and a minimum turning radius of 220 cm. The structural weight of the unit is 905 kg, which provides good traction and reduces slippage. The ground clearance is 320 mm, allowing it to work on uneven terrain without damaging vegetation. The tractor's overall dimensions are 2815 x 1470 x 1450 mm, height — 145 cm, length — 285 cm, width — 150 cm, making it convenient for storage in confined spaces.

Chassis and wheel characteristics: rear wheels 7.5" x 20" with a chevron (V-shaped) tread pattern, front wheels 6.0" x 12" with a universal tread pattern. The drive from the engine is transmitted via 4 V-belts under constant tension. The final transmission consists of a cylindrical spur gear and external gear meshing. The transmission has (3+1) × 2 gears.

Configuration, PTO, and auxiliary systems

PTO type: non-autonomous 6-spline Ø35 with rectangular splines, 540 rpm. PTO shaft type — pulley on the flywheel. Engine weight — 230 kg, its overall dimensions: 820 x 530 x 750 mm. The fuel tank holds 12 liters of fuel, engine operating speed — 2200 rpm. The tractor is equipped with disc brakes, two headlights with high and low beams, turn signals, and a horn.

The presence of a hitch for a trailer allows the use of trailed equipment. The kit includes a spare parts kit (ZIP). The minimum turning radius of 220 cm makes the machine convenient for working in confined areas.

Advantages and commercial terms: Flash Army offers competitive purchase conditions for the ZUBR T-240 mototractor: official manufacturer's warranty of 1 year, possibility of purchasing on credit through a partner bank, free delivery throughout Ukraine. For additional information and selection of mounted equipment, please contact the store manager.

Technical specifications and configuration:

The ZUBR T-240 Mototractor is the result of combining an economical diesel engine, compact dimensions, reliable transmission, efficient braking system, and comprehensive electrical equipment. The three-point hitch and PTO allow the machine's application profile to be changed according to seasonal work and farm needs.
