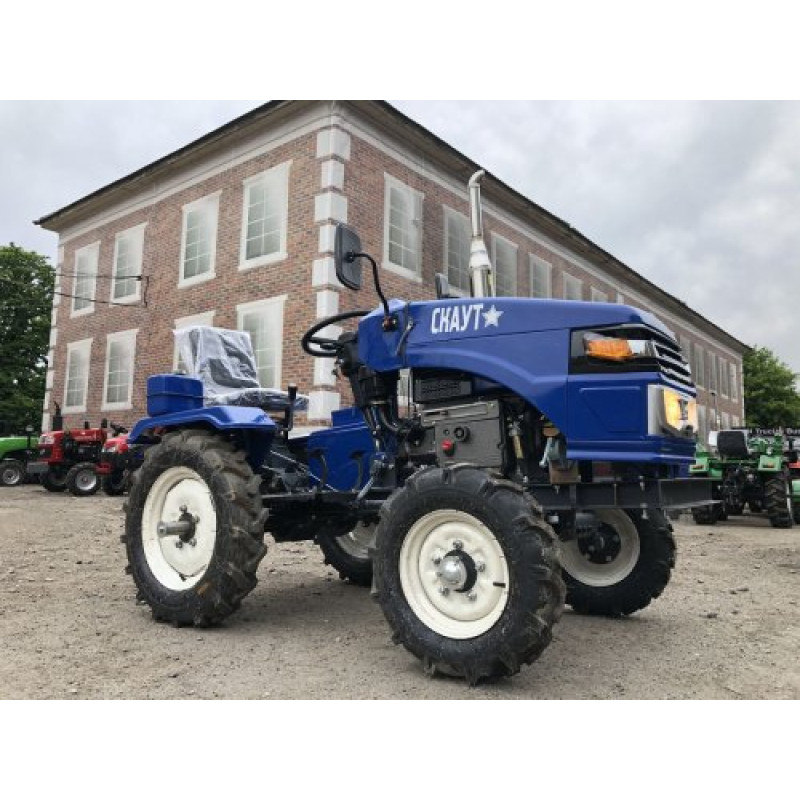

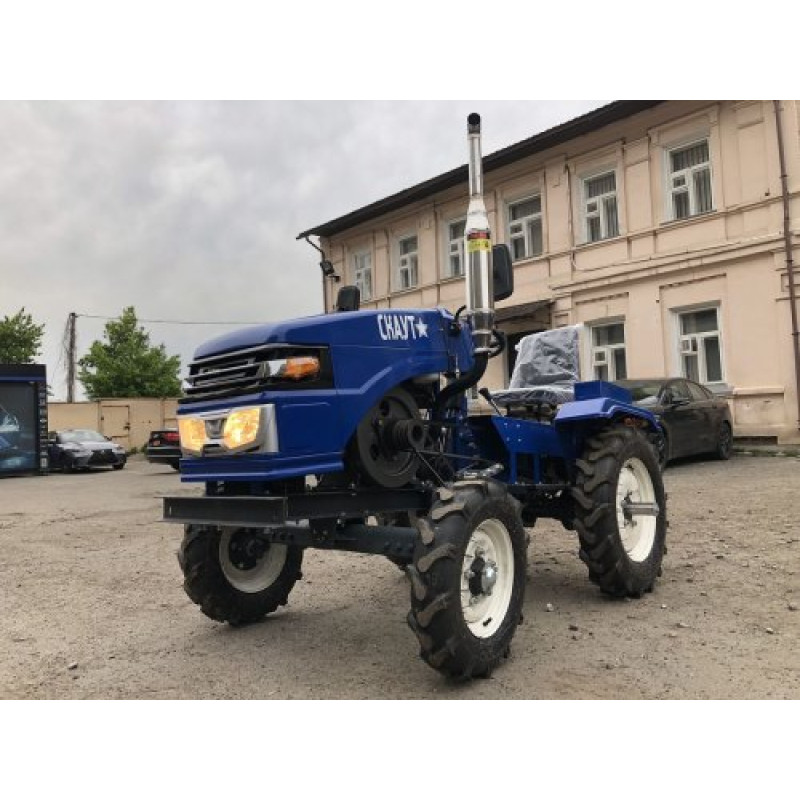

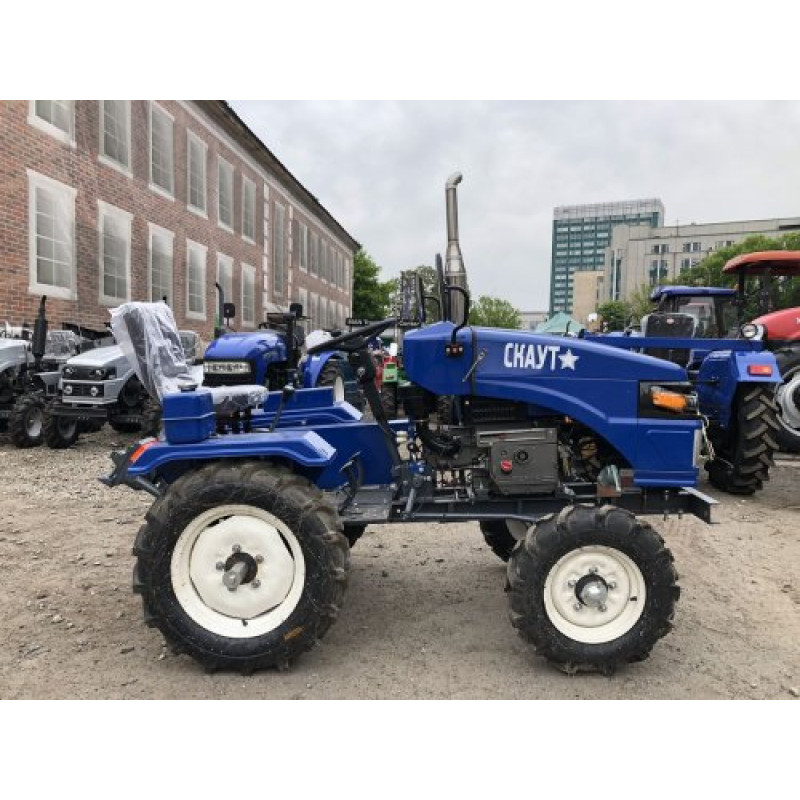

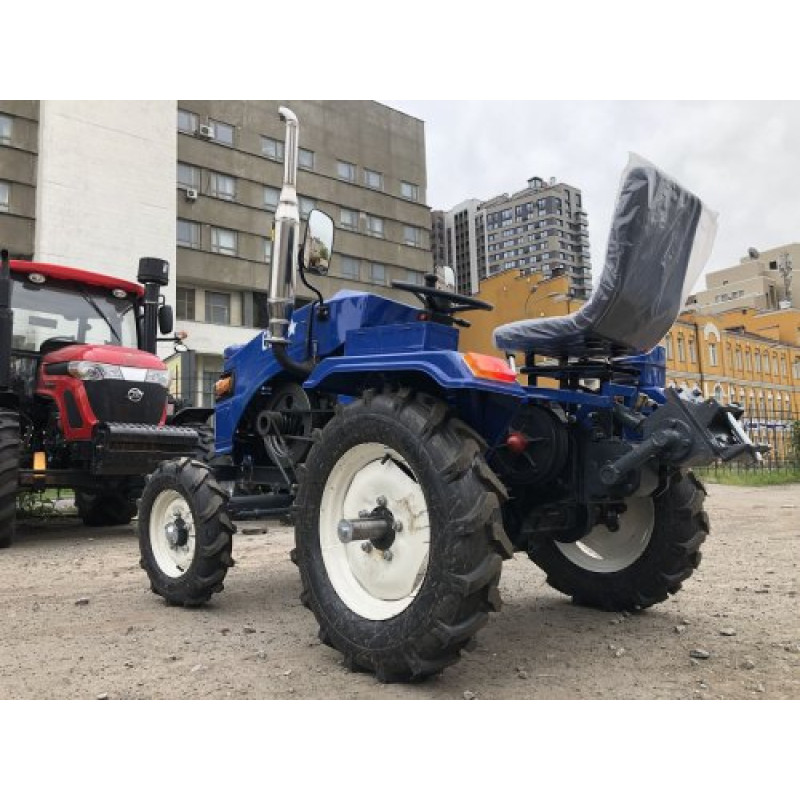

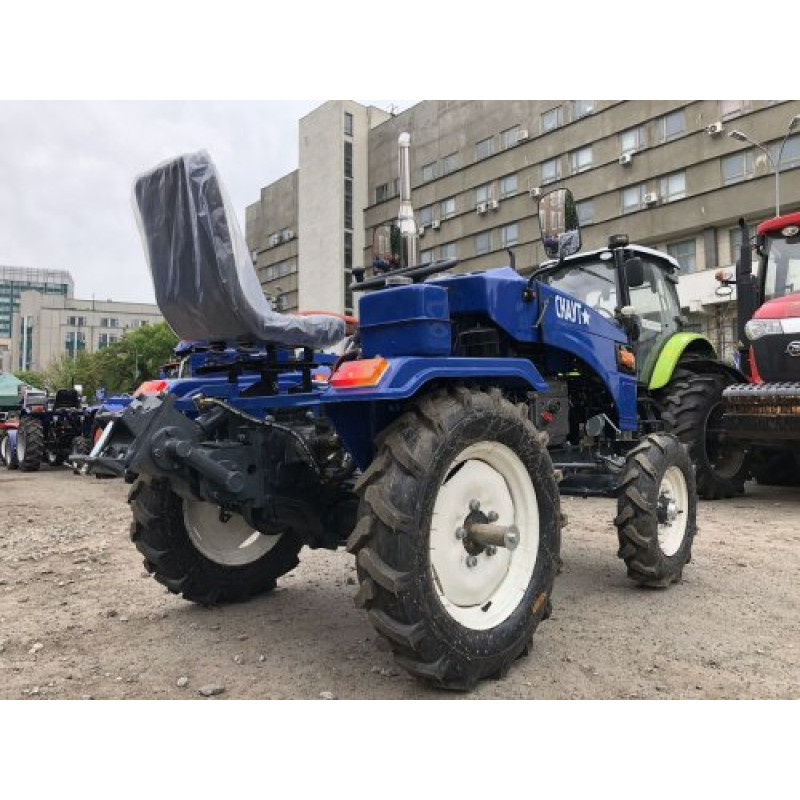

Mototractor Scout T-15 PLUS — Equipment with a Great Future
The Scout T-15 PLUS mototractor from the manufacturer Scout is a reliable and versatile assistant for private households, dachas, or small farms. This model combines compact dimensions, ease of use, and a wide range of applications: plowing, soil cultivation, sowing, harvesting, clearing leaves and debris, and snow removal when additional attachments are installed.
Product type: Tractors, Moto, ATVs, Boats (Vehicle) > Tractors > Mototractors.
Features and Benefits
The mototractor is equipped with a horizontal diesel four-stroke XT-15 engine, which guarantees economical and durable operation. The maximum engine power is 15 hp, and the nominal power is 13.8 hp. The starting system combines an electric starter and manual start (Z-shaped handle), ensuring reliable starting in all weather conditions. A water cooling system is provided for stable operation.
To improve off-road capability in difficult conditions, forced differential lock with fixation is provided. The 4x2 rear-wheel drive makes the tractor maneuverable and easy to control. An intuitive dashboard and an adjustable seat with soft upholstery ensure operator comfort during long hours of work.

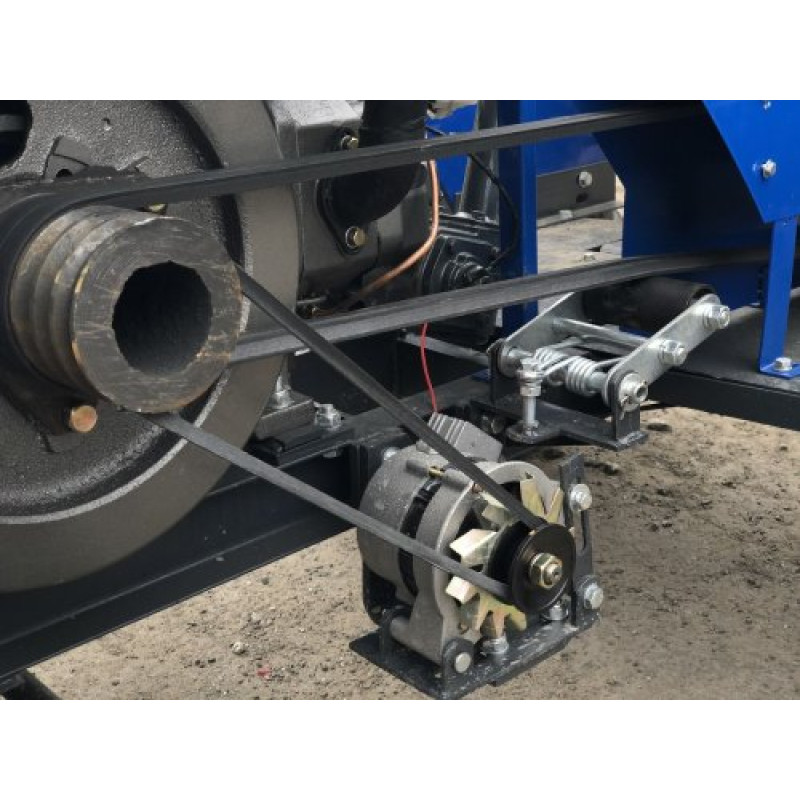

The engine drive is implemented via a pair of B3050 V-belts under constant tension. The two-disc dry friction clutch ensures smooth power transmission, and the combined (3 + 1) × 2 gearbox with cylindrical gear drive provides a sufficient number of speeds for various types of work. The wheelbase and track are adjustable, allowing the machine to be adapted to specific conditions and attachments.
How to Order and Delivery
To buy the Scout T-15 PLUS mototractor, add the item to your cart on the website and leave your contact details. All motor equipment comes with free delivery by our own courier service. Delivery times usually range from 2-3 days; in case of delay, a manager will contact you. If necessary, a manager will help you choose attachments and advise on operation.
Technical specifications:
| Engine type: | Horizontal diesel four-stroke engine |
| Starting method: | Electric starter + manual start (Z-shaped handle) |
| Cylinder diameter: | 95 mm |
| Engine displacement: | 998 cm3 |
| Maximum power: | 15 hp |
| Nominal power: | 13.8 hp |
| Nominal speed: | 2000 rpm |
| Cooling system: | Water |
| Flywheel rotation direction: | counter-clockwise |
| Lubrication: | gear pump with splash lubrication system |
| Injection pressure: | 12753 kPa (130 kgf/cm2) |
| Fuel injection advance angle: | 16 ± 2 |
| Intake valve clearance (cold engine): | 0.25 ± 0.05 mm |
| Exhaust valve clearance (cold engine): | 0.30 ± 0.05 mm |
| Engine weight: | 145 kg |
| Engine dimensions XT-15: | 750*500*500 mm |
| General characteristics of the mototractor | |
| Differential lock: | Forced lock with fixation |
| Tiller width: | 120 cm |
| Plow working width: | 40 cm |
| Overall dimensions without attachments: | 2450 x 1220 x 1250 mm |
| Overall dimensions with attachments: | 2800 × 1220 × 1250 mm |
| Ground clearance: | 240 mm |
| Wheel formula: | 4 x 2 (rear-wheel drive) |
| PTO frequency: | 1176 rpm |
| Structural weight of mototractor (without attachments): | 540 kg |
| Structural weight of mototractor (with tiller): | 612 kg |
| Rear wheels: | 6.5 -16, chevron tread pattern |
| Front wheels: | 5.00 -12, chevron tread pattern |
| Tire pressure, field conditions: | 80 ~ 120 (0.8 ~ 1.2 kgf/cm2) |
| Tire pressure, transport: | 140 ~ 200 (1.40 ~ 2.00 kgf/cm2) |
| Engine drive: | pair of B3050 V-belts under constant tension |
| Nominal trailer load weight: | 1200 kg |
| Clutch: | two-disc, dry type, with constant engagement, friction type |
| Gearbox: | combined type (3 + 1) × 2, with cylindrical gear drive |

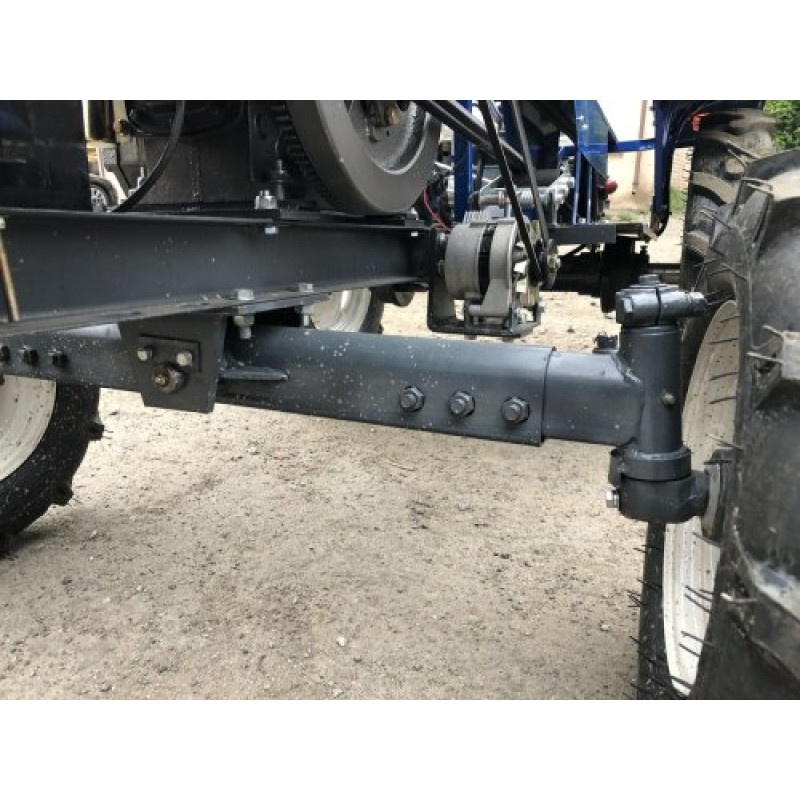

| Wheelbase (wheel width at extreme points): | Adjustable, 1080-1300 mm |
| Track: | Adjustable, 1030-1250 mm |
| Speed, 1st gear forward: | 2.8 km/h |
| Speed, 2nd gear forward: | 3.9 km/h |
| Speed, 3rd gear forward: | 6.1 km/h |
| Speed, 4th gear forward: | 10.4 km/h |
| Speed, 5th gear forward: | 16.5 km/h |
| Speed, 6th gear forward: | 23.5 km/h |
| Speed, 1st gear reverse: | 1.72 km/h |
| Speed, 2nd gear reverse: | 6.97 km/h |
| Final drive: | single-stage, spur gear |
| Steering mechanism: | Worm gear with angle adjustment |
| Brake: | Two-sided dry brake |
| Gearbox lubrication oil volume: | 4 L |

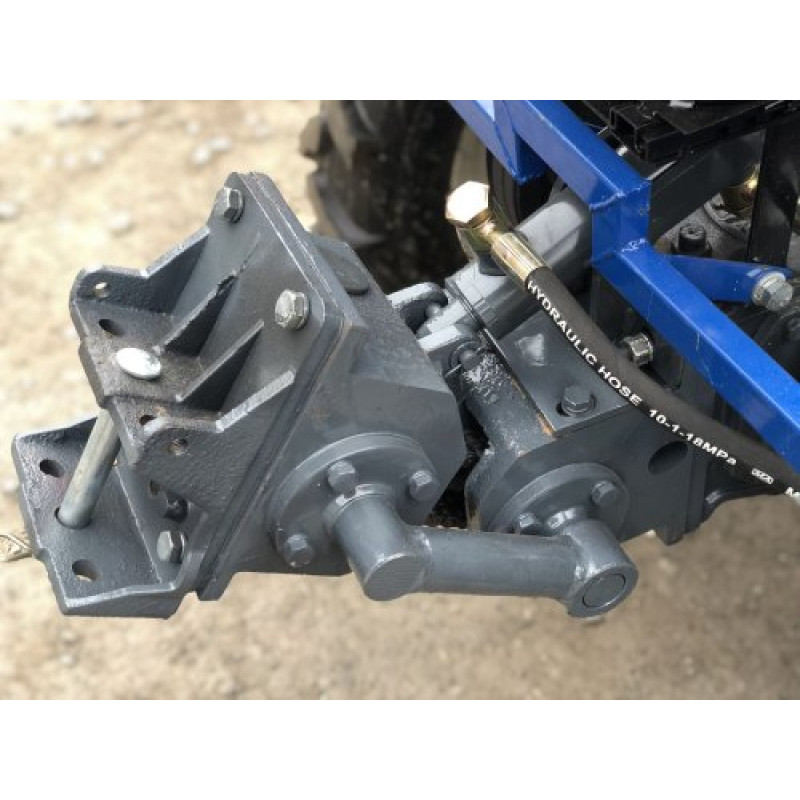

| Attachment control: | hydraulic system |
| Hydraulic system: | Single-vector system with floating position |
| Hydraulic pump distributor type: | Single-vector distributor |
| Hydraulic oil volume in the system: | from 2 to 5 liters (depending on the type of attachment) |
| Critical pressure of hydraulic bridge safety valve: | 16 Mpa |
| Attachment lifting time: | 2 seconds |

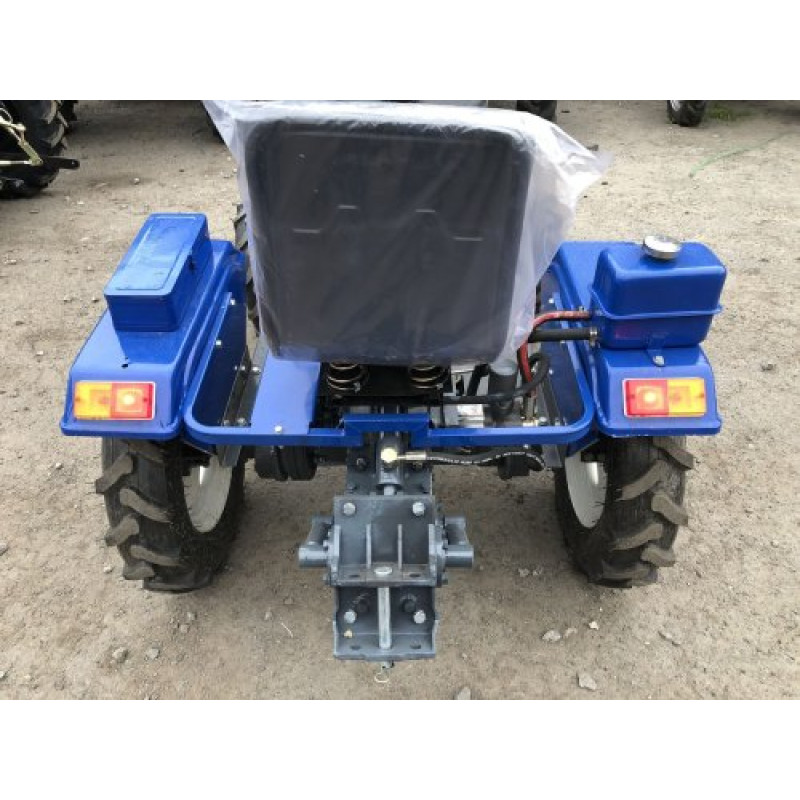

| Rear hitch lifting capacity at suspension axis: | 780 kg |
| Tractor traction class: | 0.2 |
| Tractor traction force, nominal: | 4.32 kN |

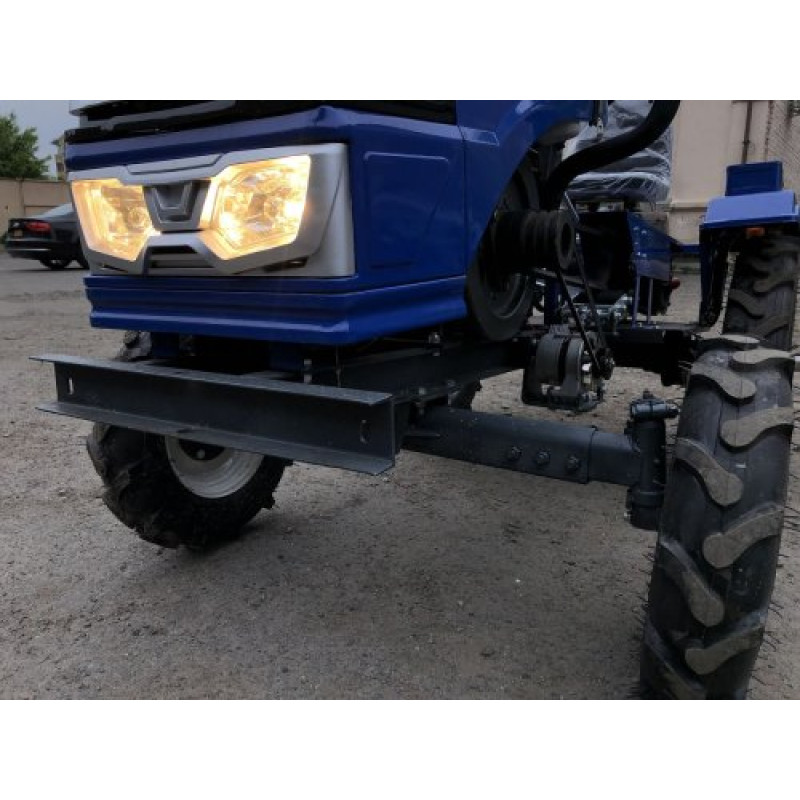

| Lights: | High beam / Low beam |
| Horn: | + |
| Seat: | Soft seat with adjustment |
| Dashboard sensors: | Ammeter, hour meter, engine oil pressure sensor, coolant temperature sensor |
This model is ideal for those looking for high-quality, economical, and multifunctional equipment from a reputable manufacturer. If you need additional attachments or advice on operation, please contact our managers — we will help you choose the optimal solution for your tasks.
