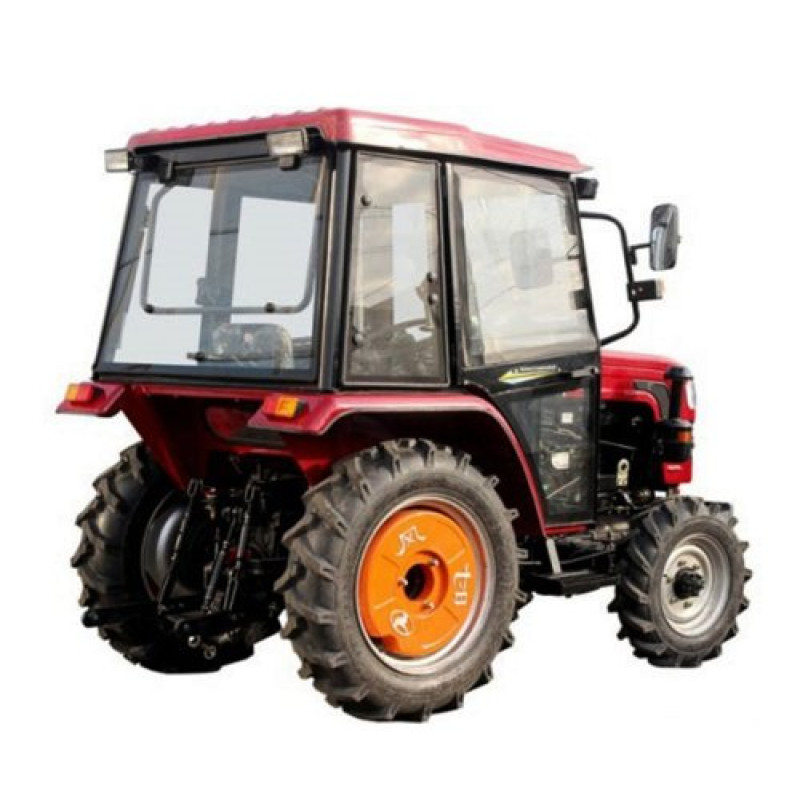

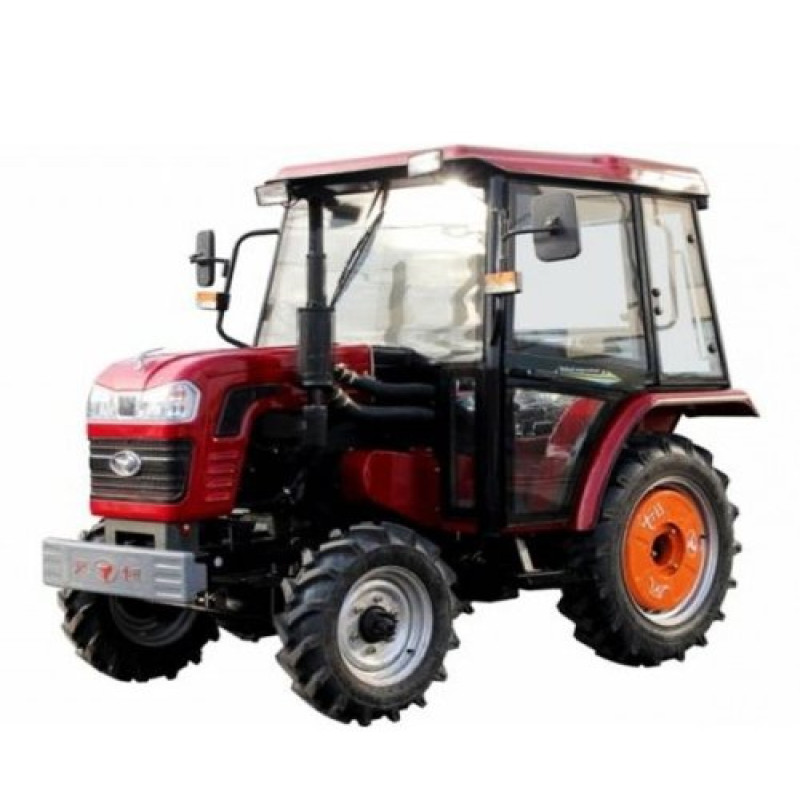

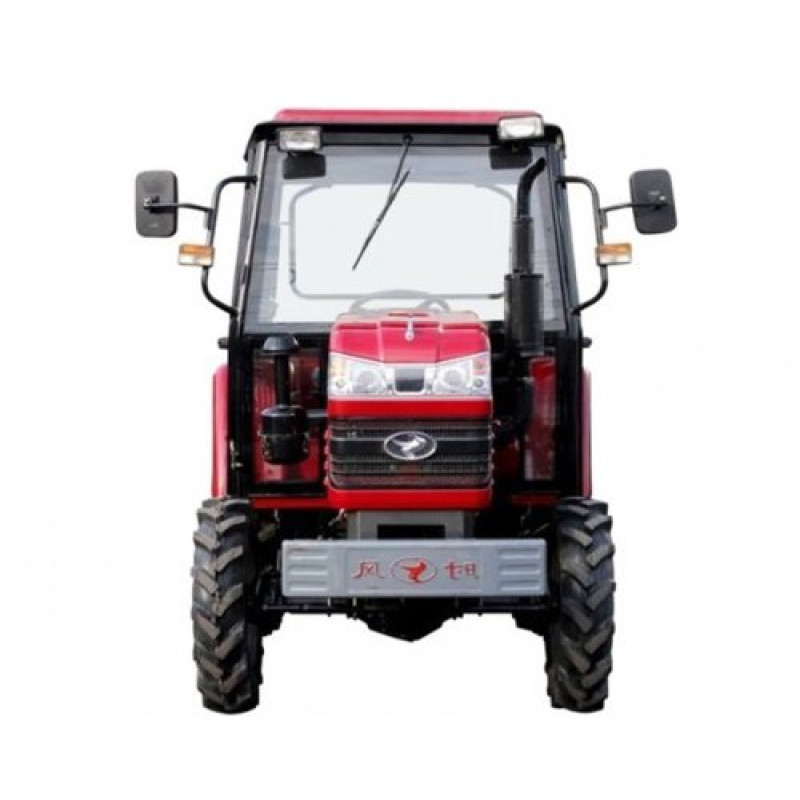

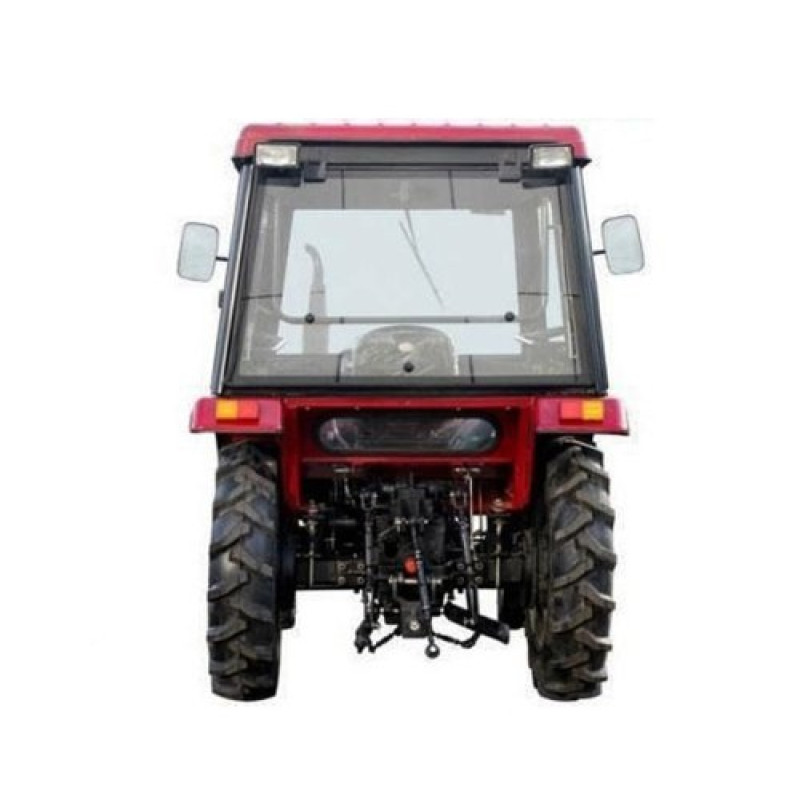

Shifeng SF-244 Cab Mototractor — Description, Specifications, and Advantages
The Shifeng SF-244 Cab mototractor combines the simplicity of a belt drive with a full-fledged heated cabin, making it an optimal choice for working in cold weather and unstable conditions. This model offers an effective combination of affordable price and reliable features: a heated cabin, 4x4 all-wheel drive, and a diesel engine that ensures stable performance for various tasks.
The SF-244 Cab's design includes 4x4 all-wheel drive, a three-point hitch system for convenient operation with mounted and trailed implements, and special counterweights to improve traction on roads and uneven terrain. A forced-pump water cooling system protects the engine from overheating during intensive use.
The model's engine has a power output of 24 hp (17.6 kW), a displacement of 1344 cm3, and a cylinder bore/piston stroke of 90x100 mm, ensuring confident traction with compact machine dimensions. Low fuel consumption makes operation economical, with a nominal fuel consumption of 252 g/kWh. The engine can be started with an electric starter with safe start or manually in case of battery discharge, adding reliability in field conditions.
Operational comfort is ensured by an ergonomic operator's seat, convenient and simple controls, and the presence of necessary sensors. For safe driving in the dark and on public roads, the basic configuration includes powerful front headlights, turn signals, marker lights, and rearview mirrors.
Model advantages: attractive price-to-feature ratio, heated cabin, 4x4 all-wheel drive, reliable 4-stroke diesel engine with forced water cooling, economical fuel consumption, and versatility in performing field and municipal work.
Technical Specifications
Below is a complete list of the technical parameters for the Shifeng SF-244 Cab model.
| Engine power, hp (kW) | 24 hp (17.6) |
| Wheel formula | 4x4 |
| Engine type | 4-stroke diesel with forced water cooling |
| Engine start | electric starter with safe start |
| Engine displacement, cm3 | 1344 |
| Cylinder bore/piston stroke | 90x100 |
| Nominal fuel consumption g/kWh | 252 |
| Fuel pump type | Plunger, in-line |
| Nominal engine crankshaft speed rpm | 2,220 |
| Nominal traction force kN | 4.7 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Gearbox (transmission) | non-synchronized mechanical (4 forward + 1 reverse) * 2 |
| Rear differential lock | no |
| Clutch | Dry, twin-disc |
| Power steering | no |
| Cooling system fan drive | external, in oil bath |
| Braking mechanism | drum type, shoe brake |
| Power take-off (PTO) speed rpm | 540 |
| Maximum lifting capacity of hitch mechanism, kg | |
| Minimum ground clearance, MM | |
| Wheelbase, mm | 1,585 |
| Front wheel track, mm | 1,160~1,260 |
| Rear wheel track, mm | 1025~1295 |
| Front tire size | 6.5 -16 |
| Rear tire size | 9.5 - 24 |
| Theoretical forward speed, km/h | 31.19 |
| Theoretical reverse speed, km/h | 11.25 |
| Fuel tank volume L | 17 |
| Engine crankcase volume, L | 3.5 |
| Gearbox and rear axle crankcase volume, L | 19.0 |
| Lift housing volume, L | 5.0 |
| Front axle crankcase volume, L | 5.0 |
| Engine cooling system volume, L | 15 |
| Overall dimensions (LxWxH), mm | 2990/1580/2400 |
| Curb weight, kg | 1,120 |
The Shifeng SF-244 Cab is ideal for farmers and private households who need a maneuverable yet powerful mototractor with a cabin for year-round operation. Thanks to its features — all-wheel drive, heated cabin, reliable cooling system, and economical diesel engine — the model demonstrates versatility in performing field, municipal, and other tasks.
Manufacturer: Shifeng. Product type: Tractors > Mototractors.
