KENTAVR 160 BN Mototractor (reinforced frame)

Model Overview: The KENTAVR 160 BN Mototractor with a reinforced frame is a robust and versatile unit from the manufacturer KENTAVR, designed for use in homesteads, farms, and garden and park areas. The model belongs to the category: Tractors > Mototractors. The reinforced frame increases chassis rigidity and load capacity, allowing for the use of a wide range of mounted and trailed equipment and intensive operation of the tractor.

Key Advantages: Reinforced frame for increased strength and stability; powerful water-cooled diesel engine for stable long-term operation; convenient starting thanks to electric starter and manual start (Z-handle); drum brakes and reliable transmission for safe operation even at full load. This is a compact, ergonomic, and repairable unit for a wide range of agricultural tasks.

Technical Specifications:

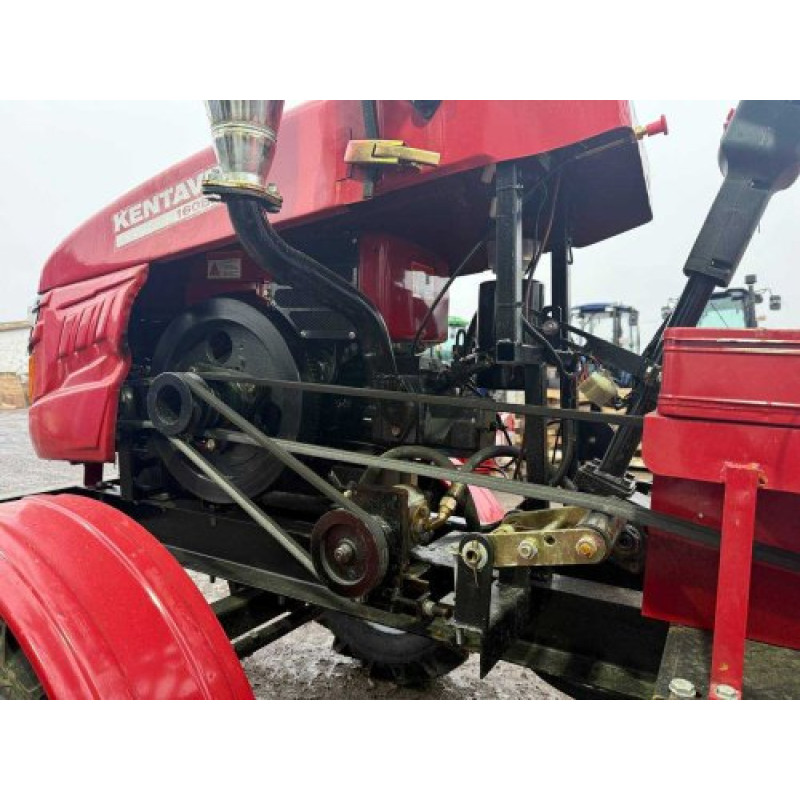

Detailed Description of Components: The JD-16 engine with a displacement of 709 cm3 and a rated power of 15 hp provides confident traction for soil cultivation, transport, and work with mounted implements. The lubrication system with a gear pump and splash oil supply ensures reliable operation under load, while condenser (water) cooling maintains a stable temperature during long work cycles. The flywheel rotation direction is counter-clockwise. Engine starting is possible both with an electric starter and a manual Z-handle starter for emergency or field conditions.

Chassis and Braking System: The combined type transmission (3+1)*2 with cylindrical gear drive ensures smooth gear changes and unit durability. The single-disc dry friction clutch provides reliable torque transfer, and two drum brakes ensure safe stopping even under significant loads. The gearbox oil volume is 5 L, which simplifies maintenance.

Dimensions, Tires, and Track Adjustment: Dimensions without attachments are 2200x1100x1770 mm, ground clearance is 250 mm, and structural weight is 490 kg. Front wheels are 5.00-12, rear wheels are 6.5-16 with a chevron tread for better grip. Adjustable front wheel track: 1100 / 1200 / 1300 mm; rear: 900-1300 mm — this allows the tractor to adapt to various working conditions and crop rows.

The KENTAVR 160 BN Mototractor with a reinforced frame will be an excellent choice for farm owners who need a powerful, compact, and reliable unit with the ability to connect mounted equipment. The combination of the JD-16 diesel engine, robust transmission, and reinforced chassis design makes this model effective for a wide range of agricultural and municipal tasks.
