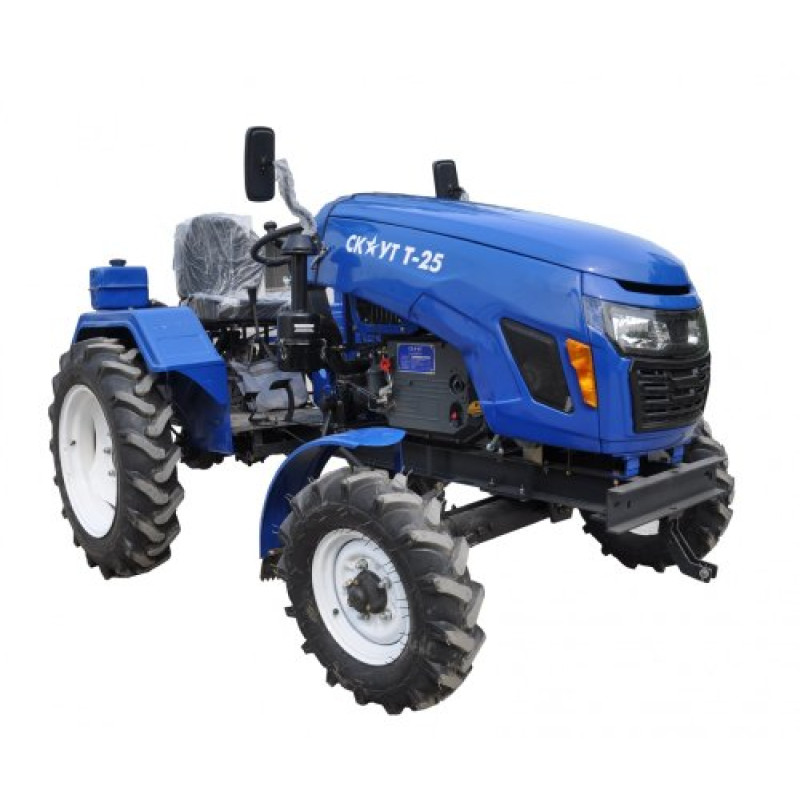

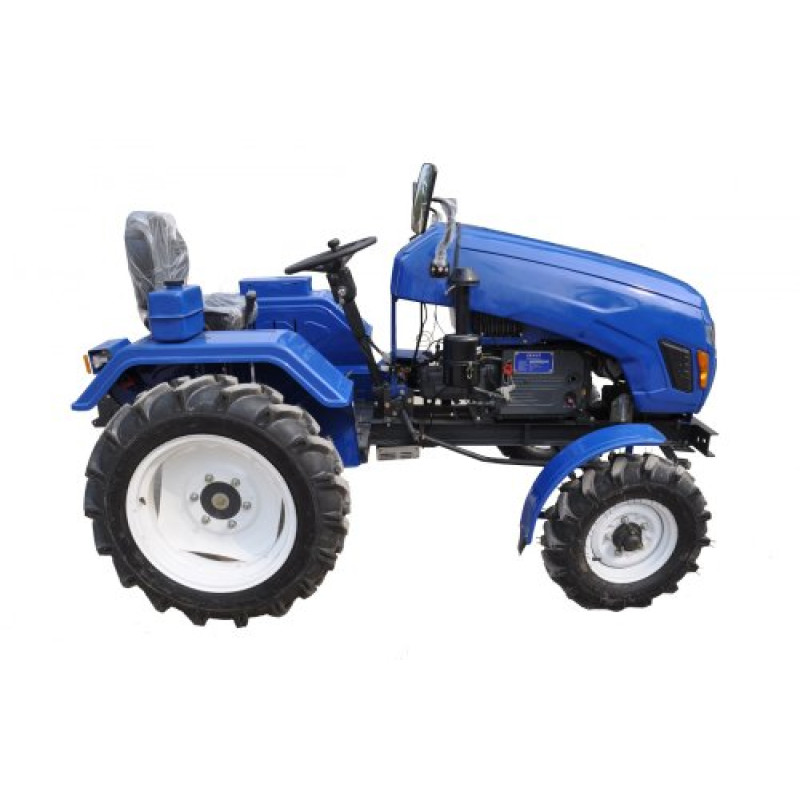

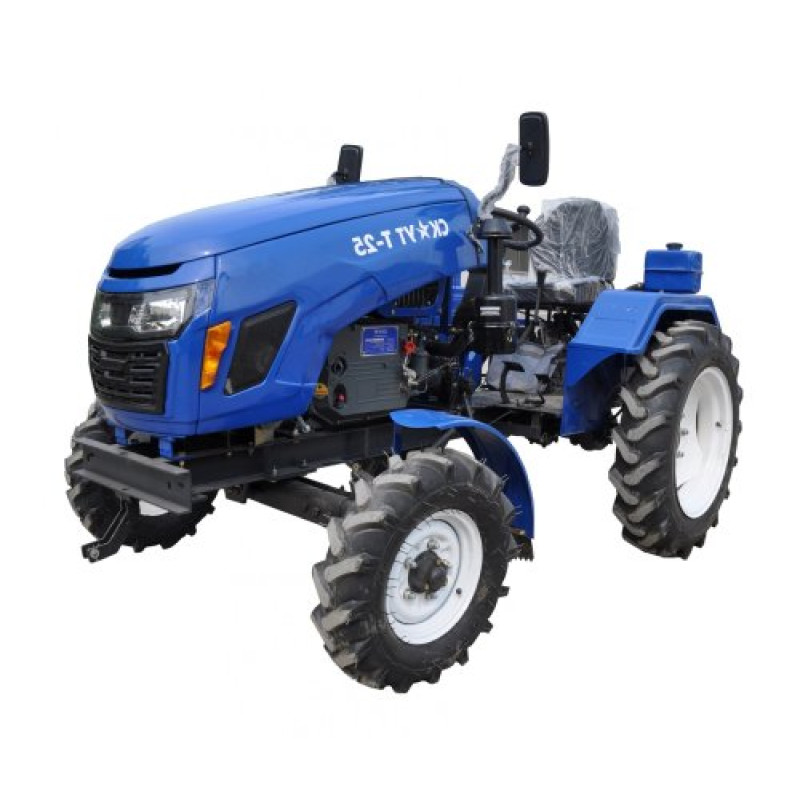

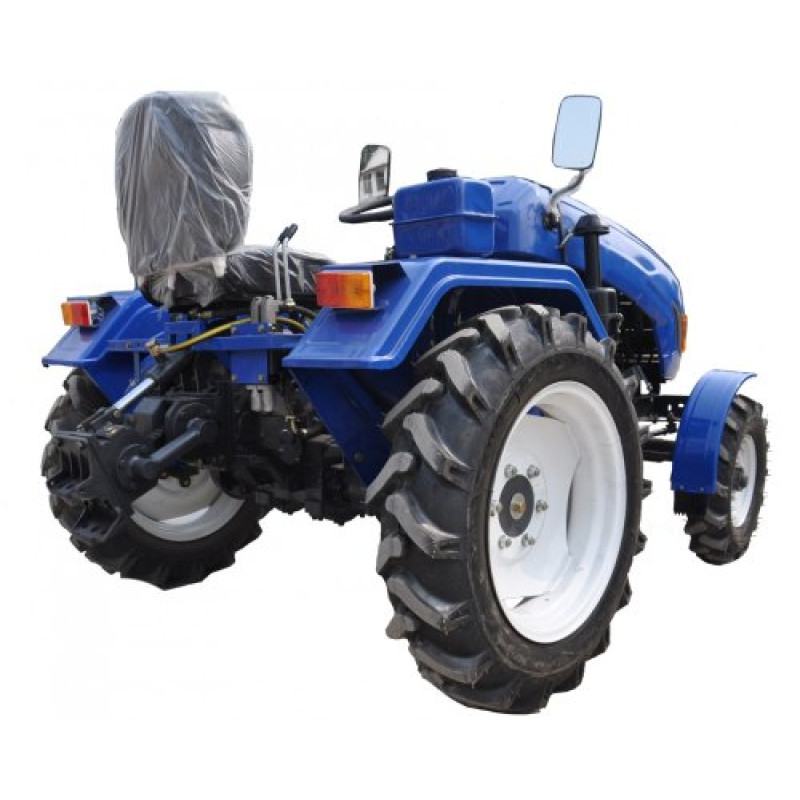

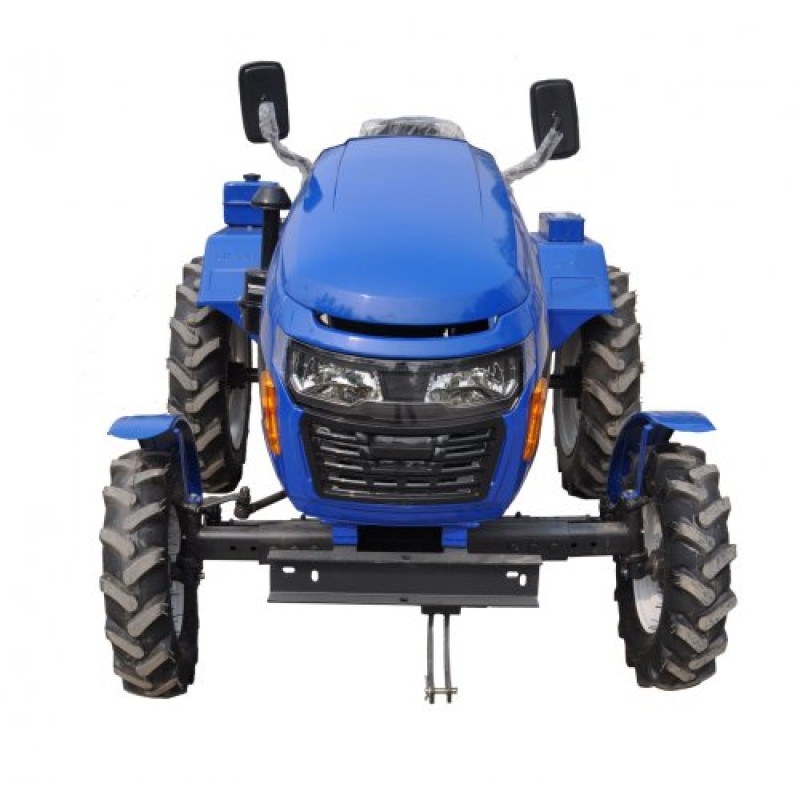

Garden Scout T-25 Mototractor — Description and Advantages

The Garden Scout T-25 mototractor from manufacturer Scout is a modern, compact agricultural machine from 2017, designed for private farms and farmers to cultivate plots up to 5 hectares. Thanks to its streamlined hood design and user feedback-driven improvements, this model is ideal for working in greenhouses, vegetable gardens, and for growing grain and vegetable crops.

Engine and Chassis: The mototractor is equipped with a horizontally positioned, single-cylinder, four-stroke diesel engine ZS1115-T with a displacement of 1115 cm³. The maximum power is 20 hp (14.71 kW), and the nominal power is 18.1 hp (13.31 kW). The RPM range is 2000–2200 rpm, with 1 cylinder, a piston stroke of 115 mm, and a cylinder diameter of 115 mm. The cooling system is water-cooled, and lubrication is provided by a gear pump with splash lubrication. The engine can be started with a manual starter (Z-shaped handle) and an electric starter. The engine mass is 197 kg, engine dimensions are 910×760×440 mm, and the fuel tank capacity is 9 L. The engine comes with a 2-year warranty.

Transmission, Drive, and Control: The tractor is equipped with a mechanical gearbox with a planetary differential; the number of gears is (3 forward + 1 reverse) x 2. The drive from the engine is implemented by a pair of B3410 V-belts. The PTO type is belt + gear, and the power take-off shaft type is a pulley on the flywheel. The wheel formula is 4 x 2. The clutch type is a single-disc dry friction type. The braking system is a two-sided dry brake (mechanical drums), ensuring reliable braking in field conditions.

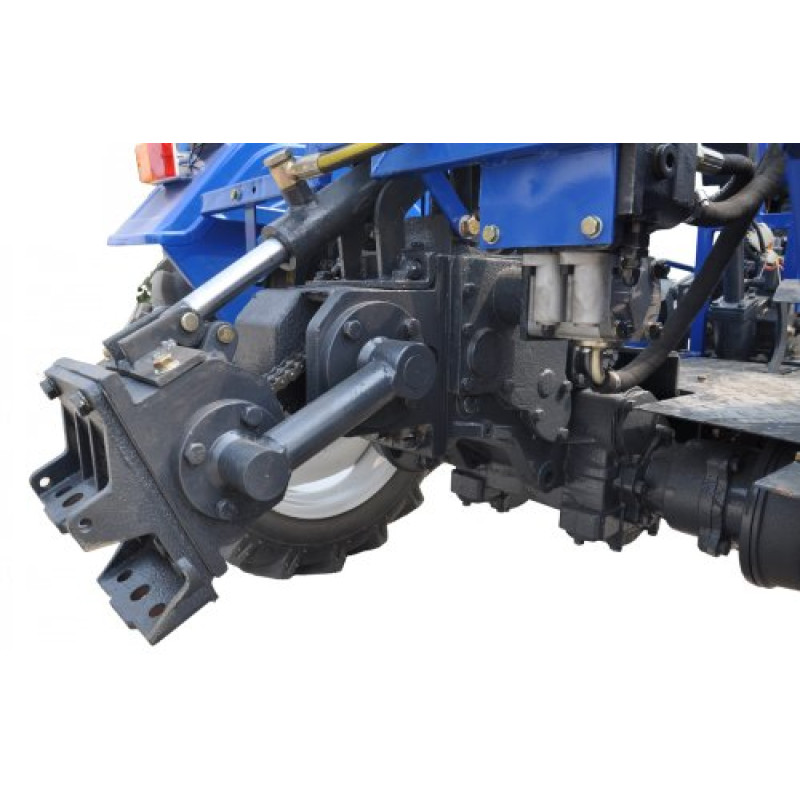

Differential Lock and Hydraulics: The model is equipped with a forced differential lock with automatic unlocking when neutral or reverse gear is engaged — this increases проходимость (passability) on difficult terrain and convenience when towing or working with attachments. The hydraulic system features two sections with a floating mode; two hydraulic inputs/outputs (front and rear) are provided to avoid re-routing hoses when changing attachments.

Wheels and Running Characteristics: The tractor is fitted with 20-inch wide-profile rear wheels (7.50-20) and 6.00-12 front wheels, ensuring high stability and passability on various soil types. A chevron tread is used. The minimum turning radius is 200 cm. The adjustable track width in the range of 1100–1510 mm allows working between rows without damaging plants.

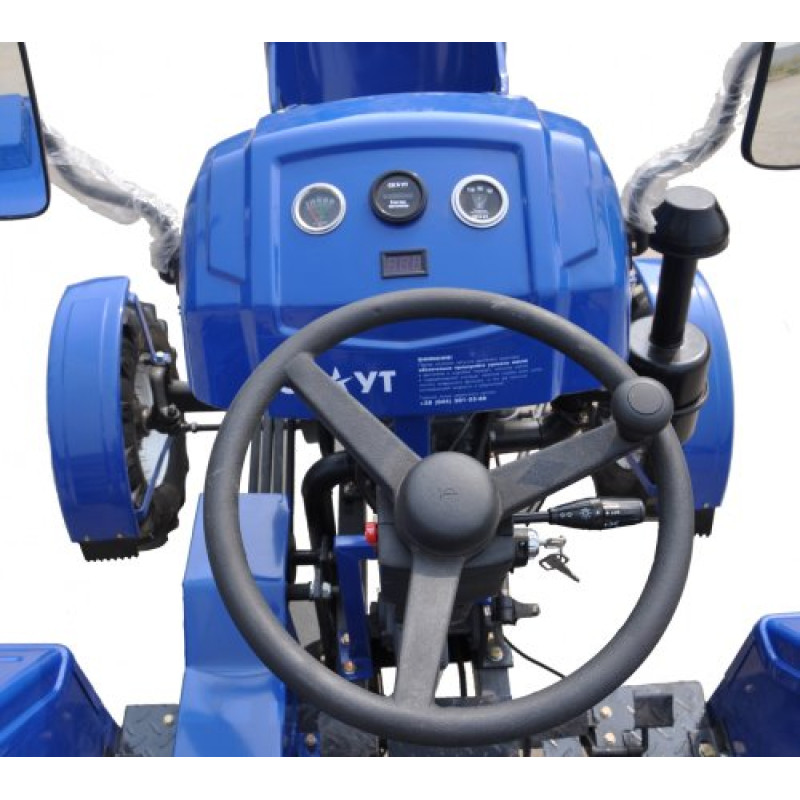

Electrics, Instruments, and Safety: The lighting system includes two headlights with high and low beams, turn signals, and marker lights. There is an audible signal (horn). The dashboard features sensors for: voltmeter, coolant temperature sensor, oil pressure sensor, and an hour meter, allowing control of the technical condition during operation.

Advantages of the Garden Scout T25 model:

• Adjustable track for working between rows;
• Diesel engine with long service life and economical fuel consumption;
• Expansion tank;
• 2-section hydraulics with floating mode;
• Reliable engine sensors and instruments;
• Clear and smooth gear engagement;
• Includes a 1.2 m wide tiller (Scout-120 Rotary Tiller);
• Spare parts kit included for quick repairs and maintenance.

Scout-120 Tiller (included rotary tiller): Cultivation width — 120 cm; PTO type for drive — PTO (gear); recommended traction unit power — 11 hp; working depth — 12–17 cm; working speed — 2–7 km/h; number of blades — 24; tiller mass — 620 kg.

Tractor Dimensions and Mass: Overall dimensions — 2500/1510/1400 mm, ground clearance — 30 cm, structural weight without attachments — 790 kg. The mototractor has high stability on various soils, even in rainy weather, thanks to the wide treads of the rear wheels. If necessary, the track width on the front and rear axles can be adjusted, making it suitable for row crops.

You can buy the single-cylinder Garden Scout T-25 mototractor throughout Ukraine with delivery within 24 hours from Kyiv, Vinnytsia, Chernihiv, Poltava, Kharkiv. Payment is possible via full prepayment or credit. For consultations and delivery information, please contact the sales department.

The Garden Scout T-25 is a practical and economical solution for farmers and private farm owners who need reliable mini-equipment with good technical characteristics and service support.
