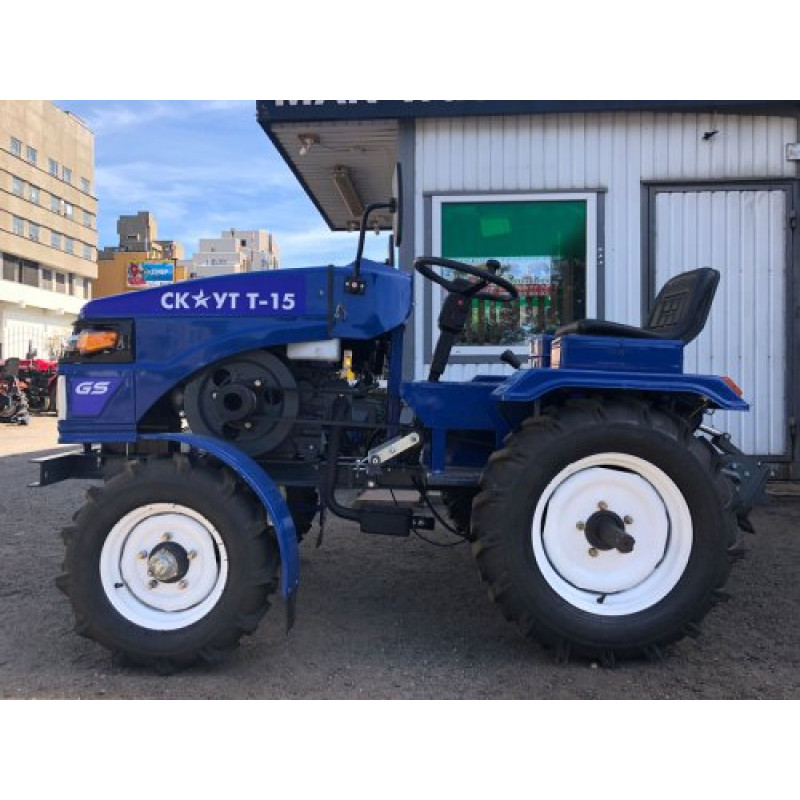

Garden Scout T-15 Mototractor

The Garden Scout T-15 mototractor is a versatile and reliable unit from the Scout brand, designed for a wide range of agricultural, communal, and household tasks. This model is the successor to the T12 dif-vt: the design has been retained, but engineers have optimized many components to improve serviceability, durability, and operational characteristics.

Engine and Starting

At the heart of the machine is a horizontal diesel single-cylinder four-stroke XT15 engine with a maximum power of 15 hp. The engine displacement is 998 cm3, cylinder bore is 95 mm, nominal power is 13.8 hp, and nominal speed is 2000 rpm. The cooling system is water (liquid). Starting is possible with both an electric starter and a manual "Z-shaped" starter. Full battery charging and a front oil pan drain are provided for convenient oil changes without removing the engine from the frame.

Transmission, Chassis, and Control

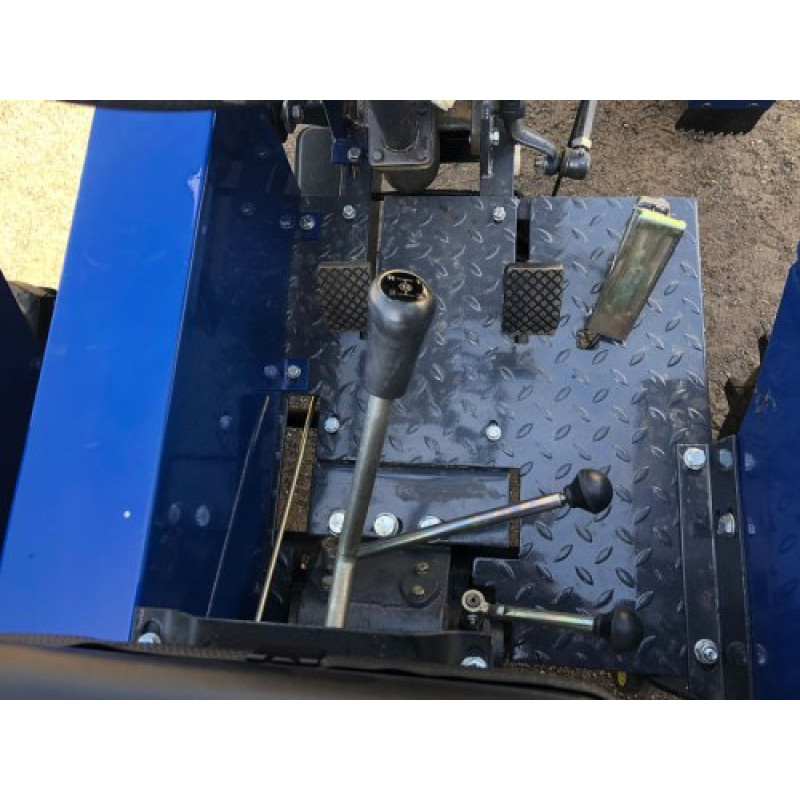

The transmission has been modernized: the half-axles have been extended to 1.25 m, allowing the track width to be adjusted from 0.8 to 1.25 m. The wheel formula is 4 x 2 (rear-wheel drive). The wheelbase is adjustable within 1080–1300 mm, the track is 1030–1250 mm, and the ground clearance is 240 mm. The gear shift lever has been refined to minimize the risk of engaging multiple gears simultaneously and reduce stress on mounting points.

Electronics and Dashboard

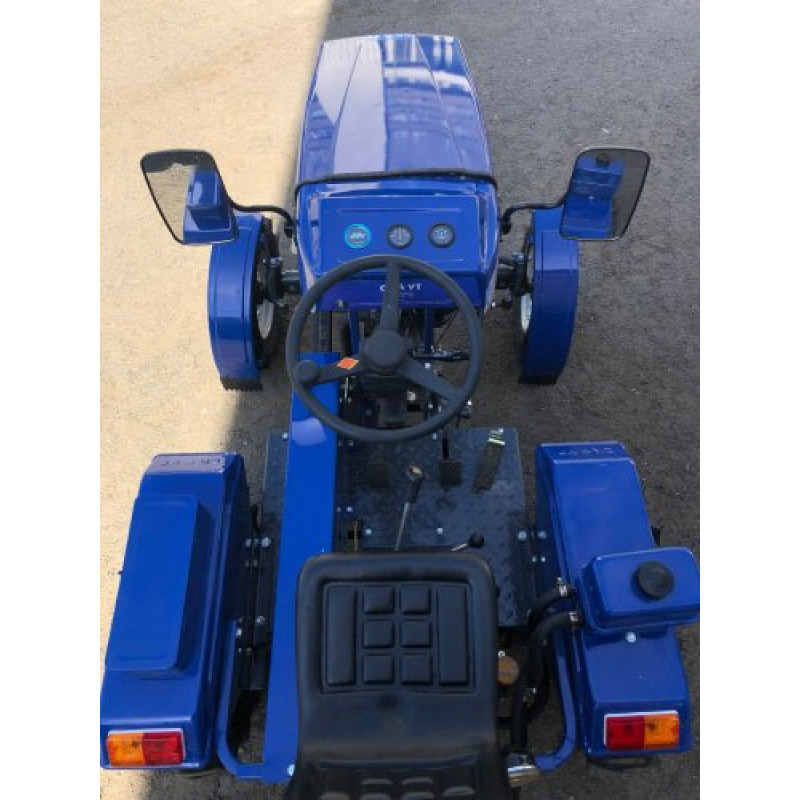

The dashboard features the most essential gauges: an hour meter, ammeter (voltmeter), oil pressure gauge, and coolant temperature gauge. Equipment includes high/low beam headlights and a multi-functional horn, ensuring comfort and safety when working in various conditions.

Hydraulics and Mounted Mechanisms

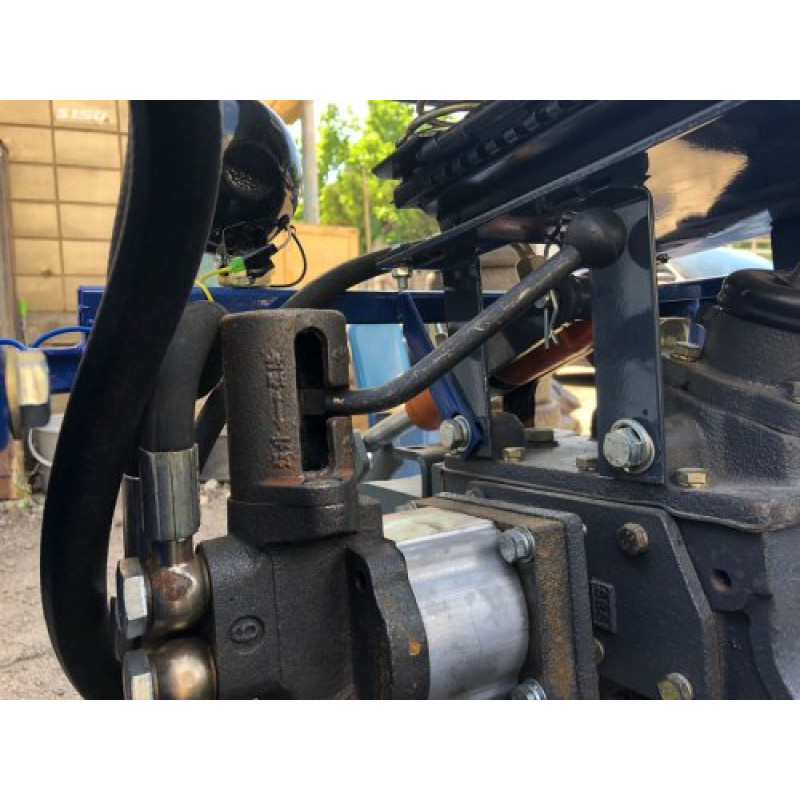

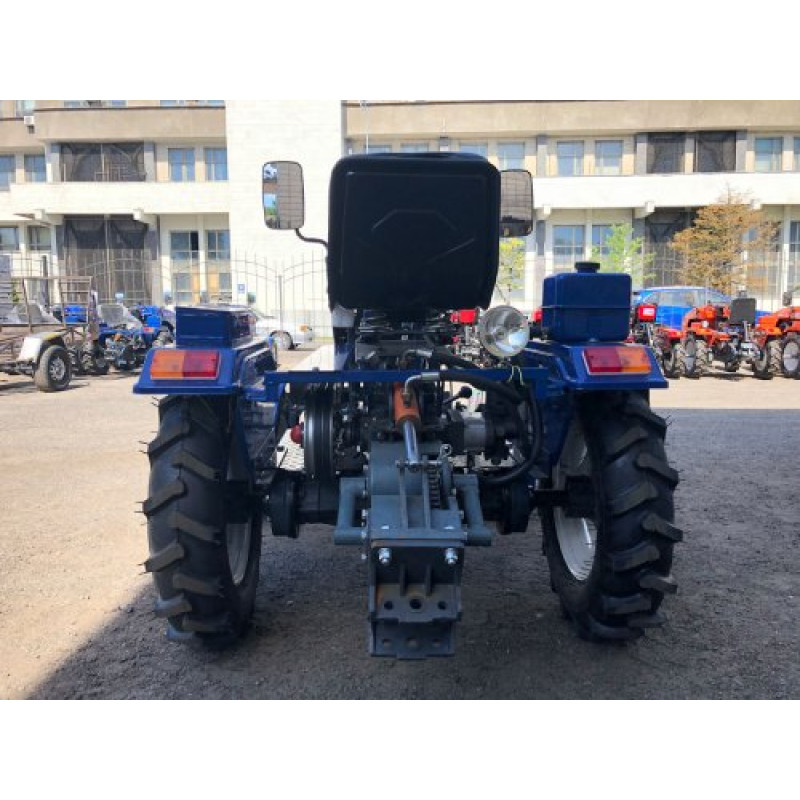

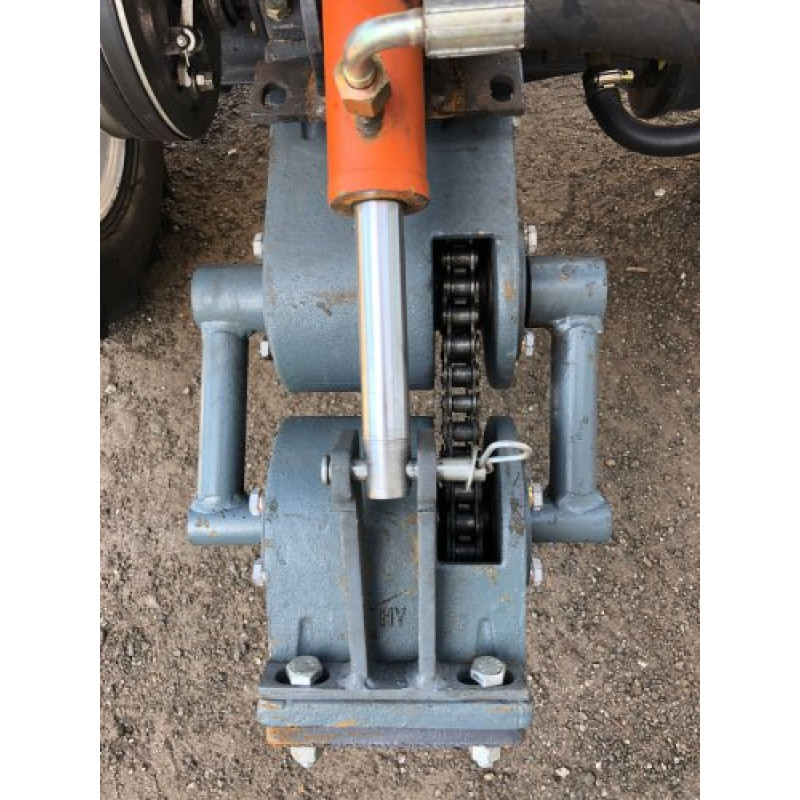

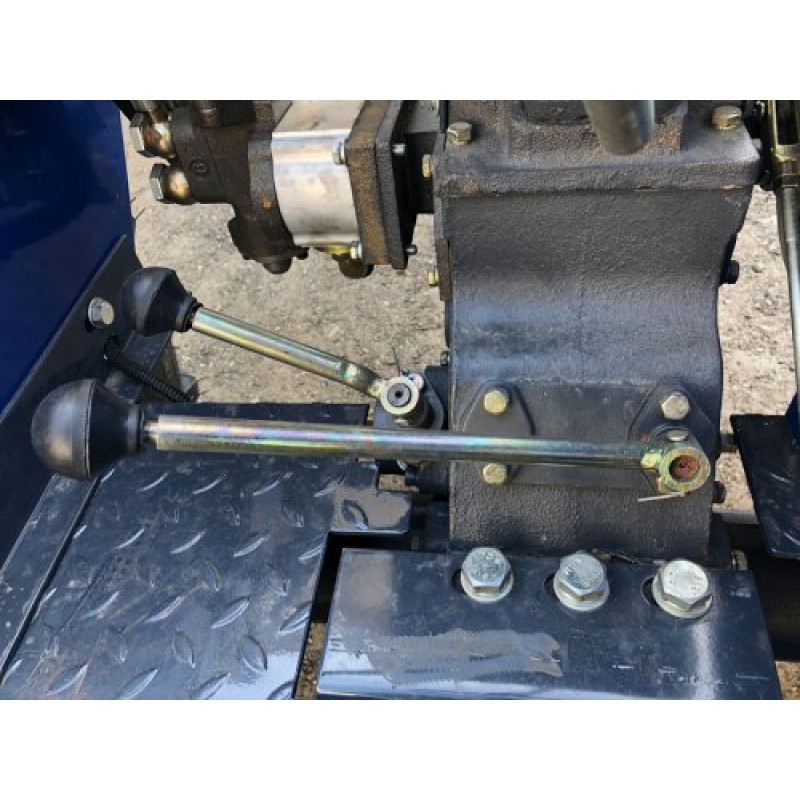

The Garden Scout T-15 features a single-vector hydraulic system with a floating position, a hydraulic pump, and a distributor. This allows simultaneous connection of front and rear hydraulics without changing hoses when switching attachments. A floating mode is provided for both hydraulics. Moving the double-row chain inside the lifting mechanism reduced the load on the drive shaft while maintaining the necessary chain tension. The lifting time for attachments is 2 seconds, the lifting capacity of the rear mounted mechanism on the suspension axle is 780 kg, and the critical pressure of the hydraulic bridge safety valve is 16 MPa.

Attachments and Trailed Equipment

The machine supports a wide range of mounted and trailed equipment: rotary tillers, plows, rotary mowers, blades, and other units. The standard rotary tiller width is 120 cm, and the plowing width is 40 cm. The nominal load capacity for a trailer is 1200 kg. Before sale, each mototractor undergoes pre-sale preparation: mechanisms are checked for functionality, and necessary oils are filled.

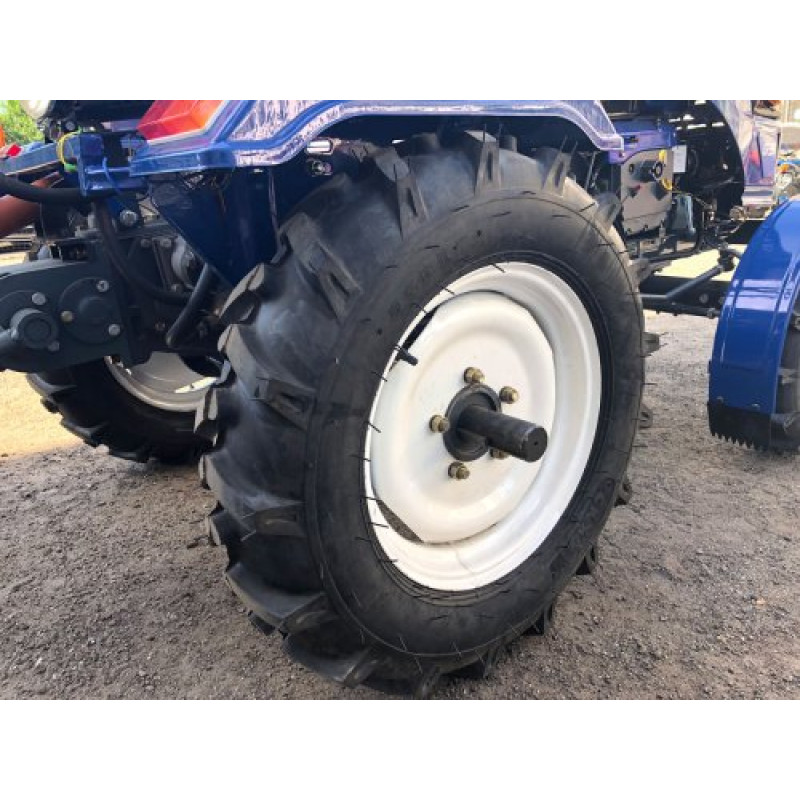

Wheels: rear — 6.5-16 with chevron tread, front — 5.00-12 with chevron tread. Dimensions in inches — 6.5*16 and 5.0*12. Tire pressure in field conditions — 80–120 (0.8–1.2 kg/cm2), during transport — 140–200 (1.40–2.00 kg/cm2).

This model combines the economy and maneuverability of a power tiller with the power and productivity of a tractor, making the Garden Scout T-15 an excellent choice for private households, farms, or communal enterprises. Brand: Scout. Category: Tractors > Mototractors.

This detailed specification outlines the key technical parameters and design features of the Garden Scout T-15 mototractor, allowing you to assess its suitability for your tasks and choose appropriate attachments.
