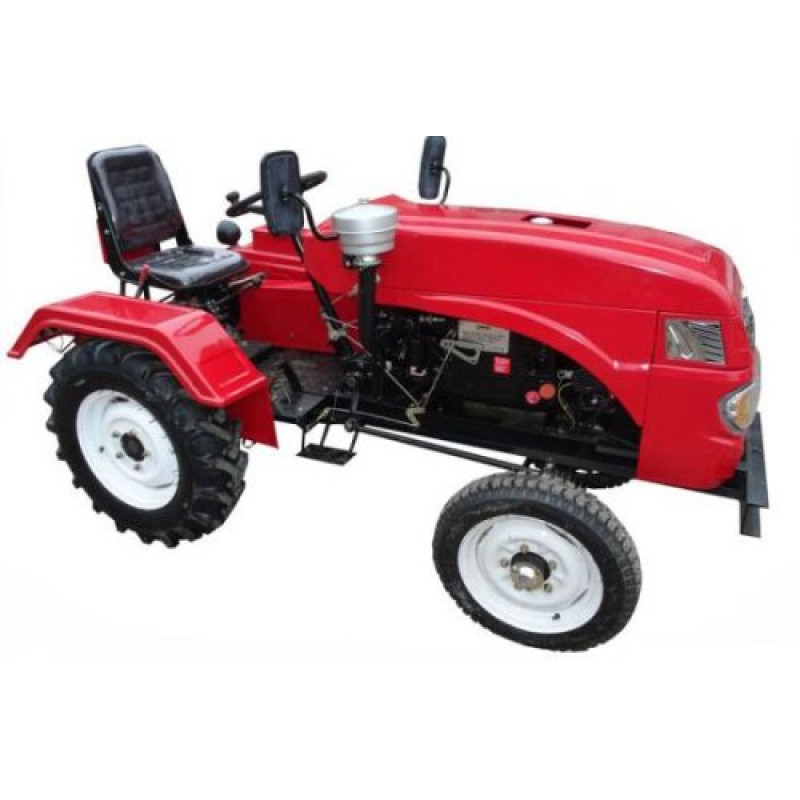

Forte T-241EL-HT Mototractor — Overview and Capabilities
The Forte T-241EL-HT mototractor combines an affordable price, reliable quality, and optimal functionality for farming. This model is equipped with a 4-stroke diesel engine with a power output of 24 hp (17.65 kW) and an economical fuel consumption of approximately 1.5 l/h, making it ideal for cultivating plots up to ~5 ha. The Forte T-241EL-HT provides high traction, off-road capability, and maneuverability even in challenging field conditions.
Brand: FORTE
Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mototractors
Advantages and Configuration
The Forte T-241EL-HT configuration is designed for comfortable and efficient operation: a soft adjustable seat, a height-adjustable steering column, and a hydraulic system for convenient lifting and control of attachments (lifting time — 2 seconds). The basic configuration includes a 120-cm rotary tiller (cultivation width 120 cm) with 20 blades, a single-furrow plow, and a fully equipped hydraulic system. Engine start is possible with a manual starter (Z-handle) and an electric starter; the cooling system is water-based (condenser). The engine features a gear pump lubrication system with splash lubrication for reliable operation in various conditions.
Owners note the reliable design, good traction and stability of the machine, ease of maintenance, and good compatibility with attachments. The model stands out favorably with an optimal power-to-fuel consumption ratio among analogues from other brands.
Technical Specifications:
| Type: | Horizontally positioned diesel four-stroke engine ZS1115NLD with water cooling and electric start system | |
| Cylinder diameter: | 115 mm | |
| Piston stroke: | 120 mm | |
| Engine displacement: | 1. 246 cc | |
| Maximum power: | 24 hp / 17.65 kW | |
| Rated power: | 22 hp / 16.18 kW | |
| Rated speed: | 2200 rpm | |
| Cooling system: | Condenser | |
| Flywheel rotation direction: | Counter-clockwise | |
| Lubrication: | Gear pump with splash lubrication system | |
| Engine start: | Manual starter (Z-handle) + electric starter | |
| Injection pressure: | 12753 kPa (130 kgf/cm2) | |
| Fuel injection advance angle: | 16 ± 2 to top dead center | |
| Intake valve clearance (cold engine): | 0.25 ± 0.05 mm | |
| Exhaust valve clearance (cold engine): | 0.30 ± 0.05 mm | |
| Engine weight: | 230 kg | |
| Engine dimensions R195ANL: | 820 * 530 * 750 mm | |
| Brand: | USA | |
| Assembly: | China / Ukraine | |
| Overall dimensions (without attachments): | 2500 (length) x 1200 (width) x 1200 (height, max.) mm | |
| Overall dimensions (with rotary tiller installed): | 3300 x 1200 x 1800 mm | |
| Ground clearance: | 240 mm | |
| Tractor structural weight (without attachments): | 630 kg | |
| Kit weight, tractor + rotary tiller: | 685 kg | |
| Wheels | 7.50 -17, rear Chevron tread pattern / 4.00 - 14 front | |
| Wheelbase (wheel width at extreme points): | Front 850 mm / rear 1050 mm | |
| Track (distance between wheels, at midpoints): | Front 800 mm / rear 950 mm | |
| Tire pressure, field conditions: | 80 ~ 120 (0.8 ~ 1.2 kgf/cm2) | |
| Tire pressure, transport: | 140 ~ 200 (1.40 ~ 2.00 kgf/cm2) | |
| PTO speed: | 1176 rpm | |
| Engine drive: | Pair of B3300 V-belts under constant tension. | |
| Drive to: | Rear wheels, 4x2 | |
| Rated trailer load weight: | 2000 kg | |
| Drive wheel ballast weight: | 65 | |
| Clutch: | Single-disc, dry type, with constant engagement, friction type | |
| Gearbox: | Combined type (3 + 1) * 2, with cylindrical gear drive | |
| Final drive: | Single-stage spur cylindrical gear drive | |
| Steering mechanism: | Worm type | |
| Differential: | Self-locking | |
| Brake: | Two-sided dry type brake (mechanical drums) | |
| Seat: | Soft, adjustable | |
| Steering column: | Height adjustable | |
| Minimum turning radius: | 2.1 m | |
| PTO for rotary tiller drive: | Gear-driven | |
| Attachment lifting time: | 2 seconds | |
| Gearbox oil volume: | 6 l | |
| Rear attachment lifting system: | Trolley | |
| Hydraulic system oil volume: | 5 l | |
| Light system: | Two headlights, high/low beam, turn signals, marker lights. | |
| Horn: | Yes | |
| Rotary tiller cultivation width: | 120 cm | |
| Rotary tiller assembly weight: | 56.1 kg | |
| Number of blades: | 20 pcs | 459 |
By choosing to buy the Forte T-241EL-HT, you get a versatile mototractor for gardening and agricultural work with reliable hydraulics, convenient operation, and the ability to equip it with necessary attachments. We ensure delivery in Kyiv and other regions of Ukraine in the shortest possible time.
