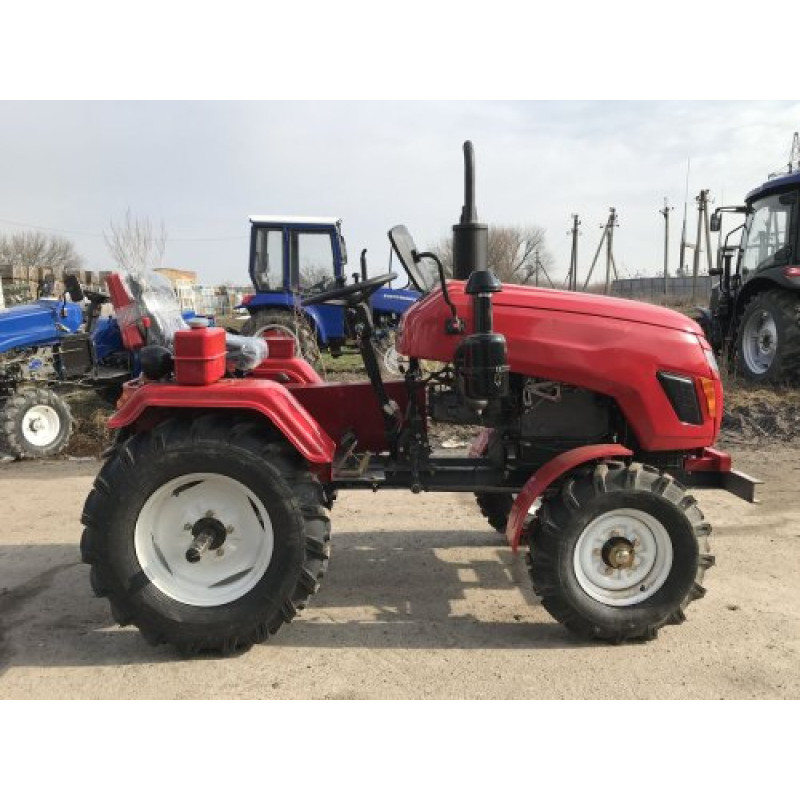

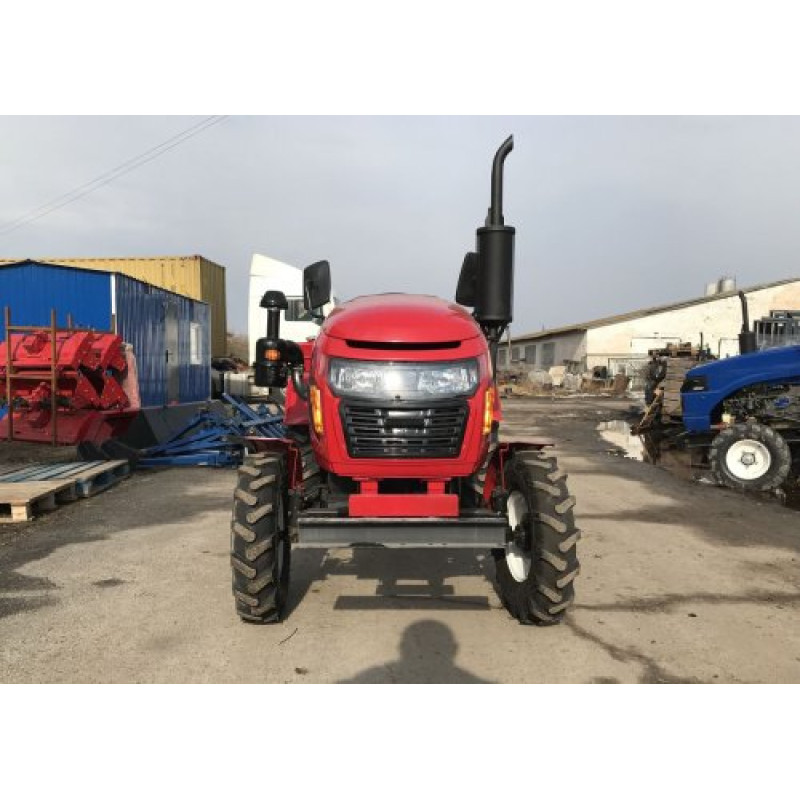

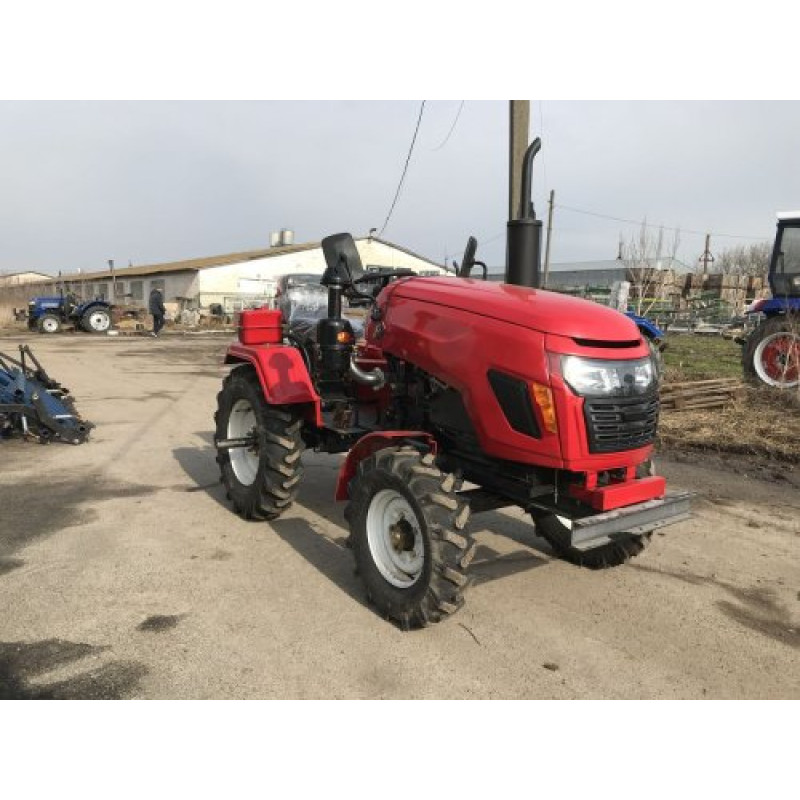

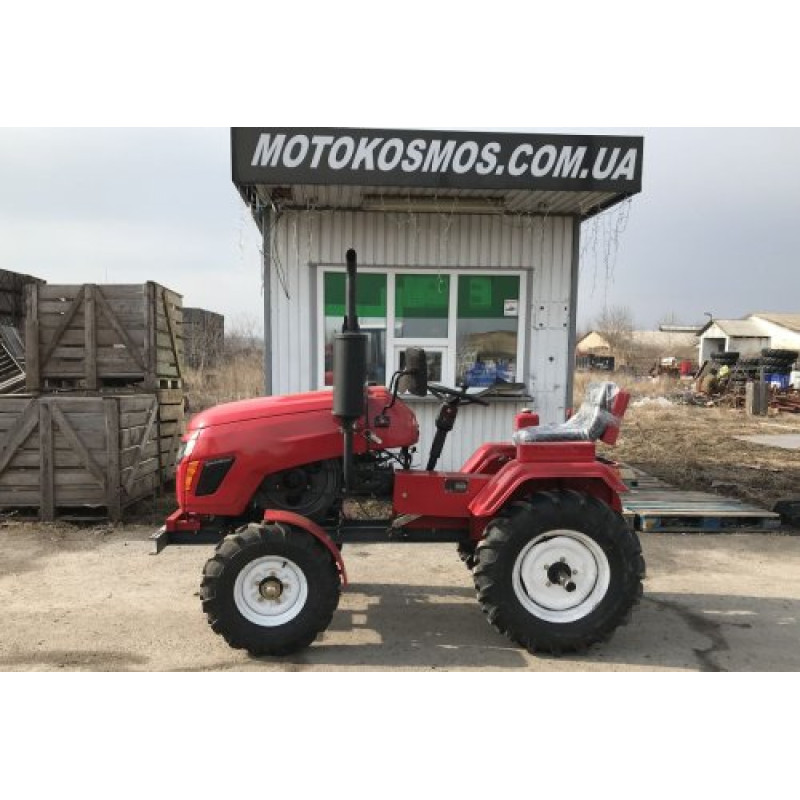

Mototractor DW 180 LXL — a universal assistant for farm and business

The DW 180 LXL mototractor from the DW brand is an affordable and reliable machine, ideal for working on plots up to 2 hectares, in large greenhouses, as well as for municipal and construction tasks. This model is recommended for household use and small businesses: with intensive use, the investment in the DW 180 LXL often pays for itself in 6–12 months, and sometimes even in one season. Product category: Tractors, Motos, ATVs, Boats (Vehicle) > Tractors > Mototractors.

Key advantages and areas of application

The DW 180 LXL demonstrates high durability and operational resources — DW series mototractors are capable of operating 3000–4000 engine hours without major overhaul, provided maintenance regulations are followed. Main areas of application: land cultivation, greenhouse work, transport operations (load capacity up to 1 ton), municipal work (cleaning sidewalks from debris and snow), use as a tractor on construction sites.

Engine

The mototractor is equipped with a ZS1100 diesel engine with a maximum power of 18 hp (13.24 kW) and a displacement of 900 cc. The nominal rotational speed is 2200 rpm. The cooling system is condensate. Starting is possible with both a manual starter (Z-shaped handle) and an electric starter. Injection pressure is 12753 kPa (130 kgf/cm2), injection advance angle is 16 ± 2° before top dead center. Valve clearances for a cold engine: intake — 0.25 ± 0.05 mm, exhaust — 0.30 ± 0.05 mm. Engine weight is 169 kg.

Transmission

Torque is transmitted via a V-belt drive to the rear axle. The combined type gearbox (3 + 1) × 2 provides the necessary speed range with high and low gears. The clutch is dry single-disc. The presence of a differential lock increases maneuverability, reduces clutch load, and decreases wear on the drive wheels.

Chassis

The model has rear-wheel drive (4x2) with standard tires: front — 6.0×12, rear — 7.5×16. Recommended tire pressure in field conditions is 80 ~ 120 (0.8 ~ 1.2 kgf/cm2). Ground clearance is 300 mm, minimum turning radius is 2.2 m. Tractor dimensions are 2400×1500×1900 mm, structural weight is 570 kg.

Hydraulics and PTO

The hydraulic system is represented by a three-point single-section mechanism for attaching working equipment. A gear pump ensures high performance and a maximum lifting capacity of up to 250 kg. There is a gear PTO for driving plows or tillers, hydraulic outlets, a hydraulic cylinder, and a socket for connecting a trailer or other chassis-mounted equipment.

Options and operator comfort

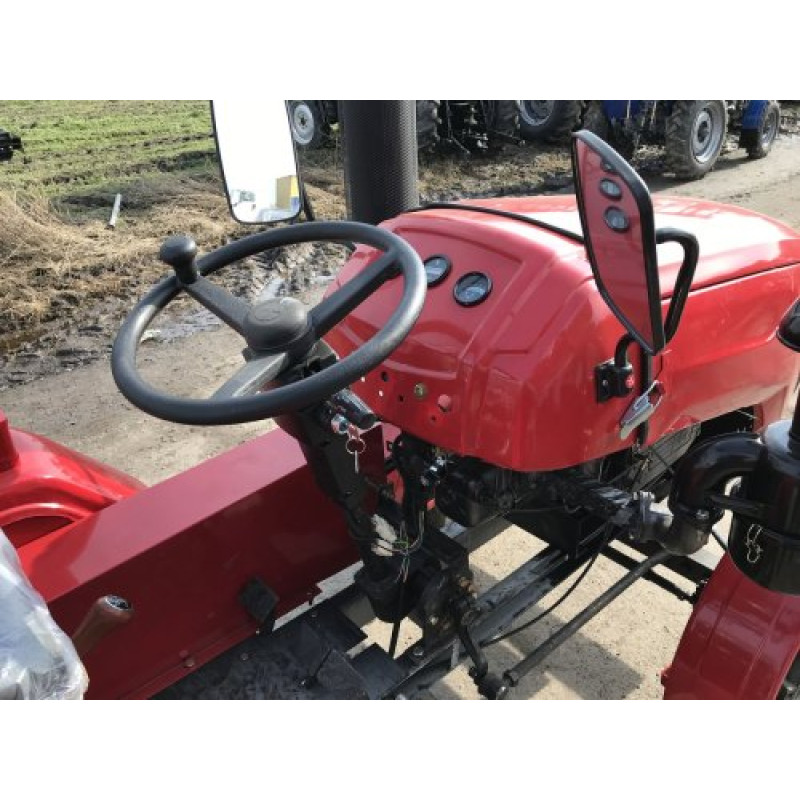

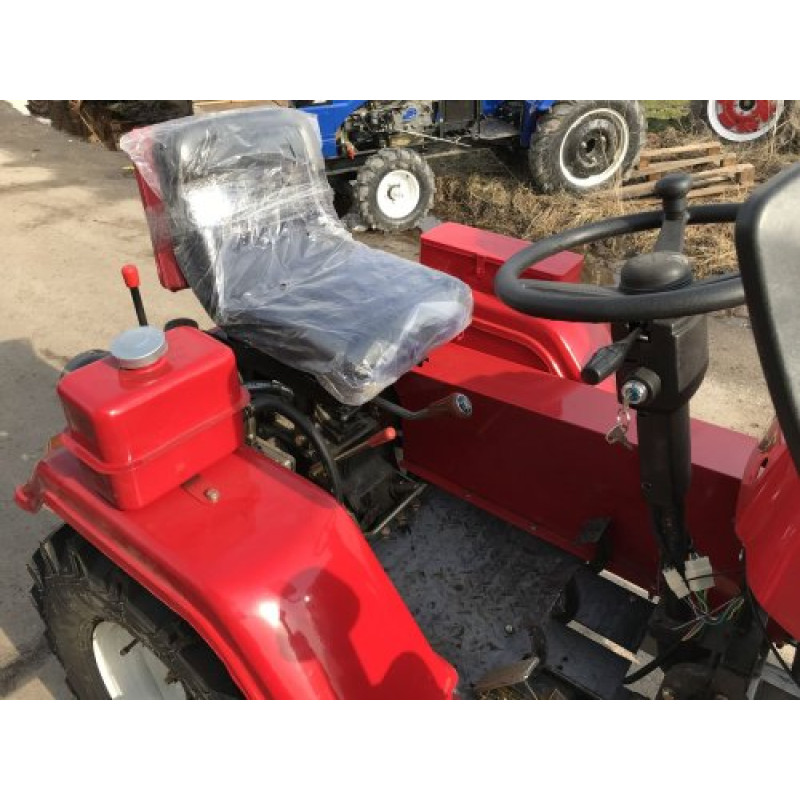

The package includes modern low and high beam optics, rearview mirrors, and a comfortable adjustable seat that adapts to the operator's weight. Worm-type steering ensures precise control. The dashboard features necessary gauges, and glove compartments with a set of parts and tools are provided on the sides of the seat.

How to buy and delivery

You can order the DW 180 LXL mototractor with free delivery across Ukraine. After placing an order, delivery is made within 2-3 days. Various payment methods are available, including cash on delivery and credit purchase. For additional details, please contact the sales department.

Technical specifications

If you are looking for a reliable, economical, and multifunctional mototractor for farm work and small business, the DW 180 LXL combines a powerful 18-hp diesel engine, a well-designed transmission, efficient hydraulics, and useful options for operator comfort.
