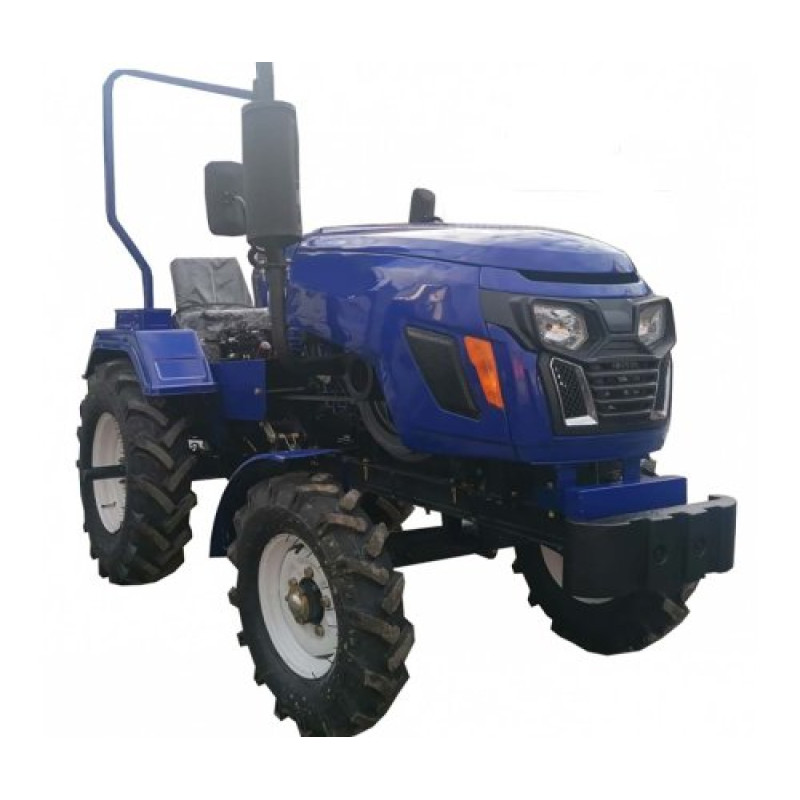

DMTZ 180 Lux Mototractor + 1.3 m Rotary Tiller
Introducing the DMTZ 180 Lux mototractor with a 1.3-meter rotary tiller — a versatile solution for soil cultivation on private plots, in gardens, vegetable patches, or small farms. This model from the manufacturer DMTZ combines a powerful 4-stroke diesel engine, a well-designed transmission, and convenient operational parameters, ensuring reliable performance for various types of agricultural work.
Engine and Power Unit
The mototractor is equipped with a 4-stroke water-cooled diesel engine with a displacement of 1115 cm3 and a cylinder bore of 105x135 mm. The nominal engine power is 18 hp / 13.23 kW, providing sufficient traction for working with mounted and trailed equipment. The cooling system is water-based, which increases operational stability under prolonged loads.
Transmission, Drive, and Drive Elements
The drive is 4x2. The transmission is a gear-type combined system ((3+1)x2), combining reliability and ease of maintenance. The clutch is a 2-disc type, ensuring long service life and smooth power transfer. The power take-off (PTO) shaft operates at 540 rpm, allowing for the connection of standard mounted equipment. The design does not include a rear differential lock.
Brakes and Steering
Dry-type (drum) brakes guarantee safe stopping even under load. Maneuverable dimensions and adjustable track width ensure convenience when working on plots with varying terrain.
Dimensions, Wheels, Fuel
The compact dimensions of the tractor are 2500x1350x1400 mm, and its weight is 615 kg, which facilitates transportation and work in confined spaces. The adjustable front wheel track is 950-1320 mm, and the rear wheel track is 880-1320 mm. Tire sizes: front — 6.50-12, rear — 9.50-16. The fuel tank capacity is 10 L, allowing for long operations without frequent refueling.
Configuration and Purpose
The kit includes a 1.3-meter rotary tiller, which makes the model versatile for soil preparation, loosening, shredding plant residues, and leveling plots. The combination of a reliable diesel power unit, robust transmission, and optimal dimensions makes the DMTZ 180 Lux a profitable investment for farmers, private households, landscape, and municipal services.
Technical Specifications
| Engine Power | 18 hp / 13.23 kW |
| Drive | 4x2 |
| Engine Type | 4-stroke, diesel engine |
| Cooling | water-cooled |
| Engine Displacement | 1115 cm3 |
| Cylinder Bore | 105x135 |
| Transmission | gear-type, combined (3+1)x2 |
| Rear Differential Lock | no |
| Clutch | 2-disc type |
| Brakes | dry type. Drum |
| Front Wheel Track | 950-1320 |
| Rear Wheel Track | 880-1320 |
| Front Tire Size | 6.50-12 |
| Rear Tire Size | 9.50-16 |
| Power Take-Off (PTO) Shaft | 540 rpm |
| Dimensions, mm | 2500x1350x1400 |
| Fuel Tank Capacity | 10 L |
| Tractor Weight | 615 kg |
Manufacturer: DMTZ. Model: DMTZ 180 Lux with 1.3 m tiller. Product Category: Tractors > Mototractors. This mototractor will be a reliable assistant for working on various soil types where power and precision cultivation are required.
